Check List For Interview - With VDC

Check List for Interview

CHECK
Check the following items about the vehicle's state.

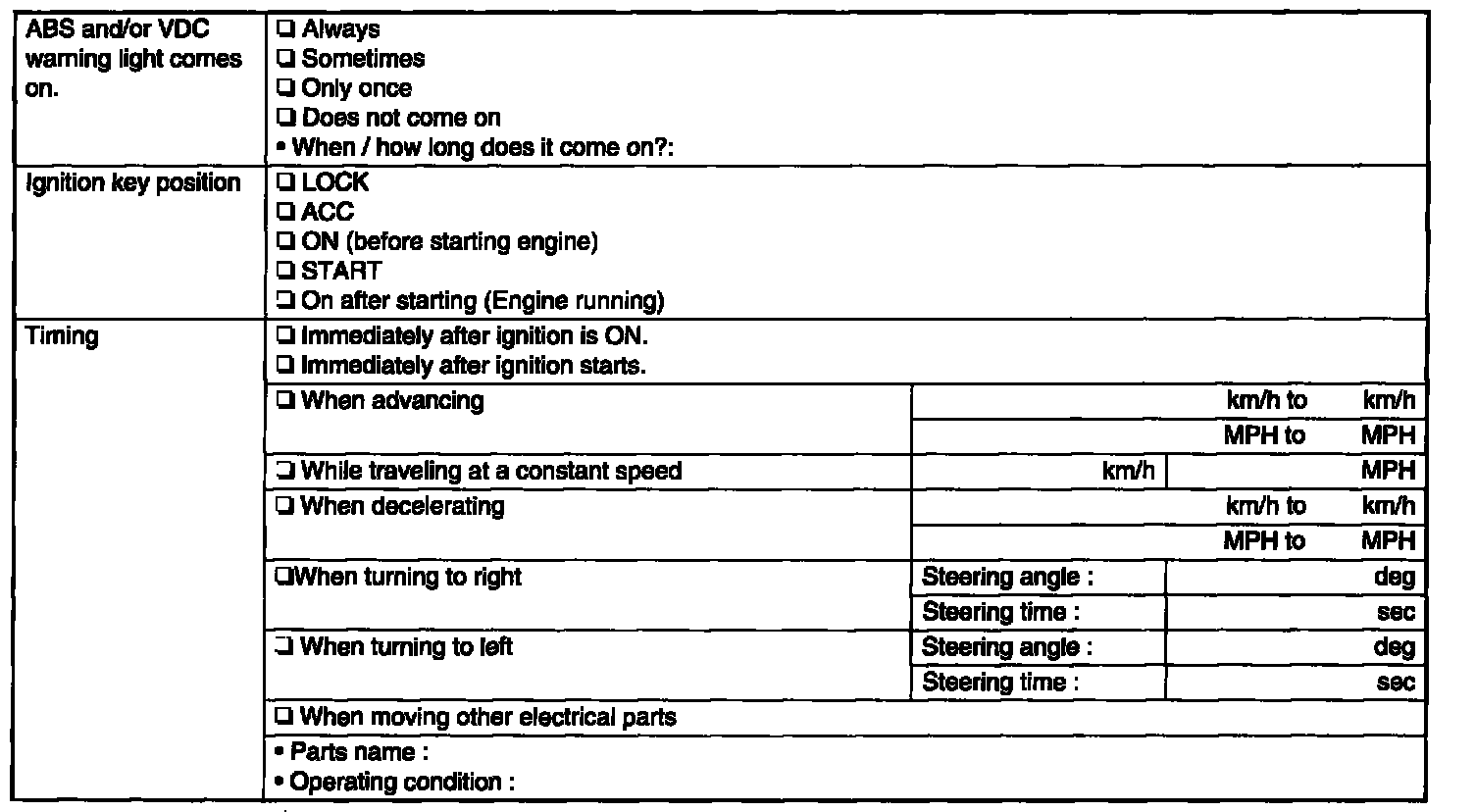

STATE OF ABS AND/OR VDC WARNING LIGHT

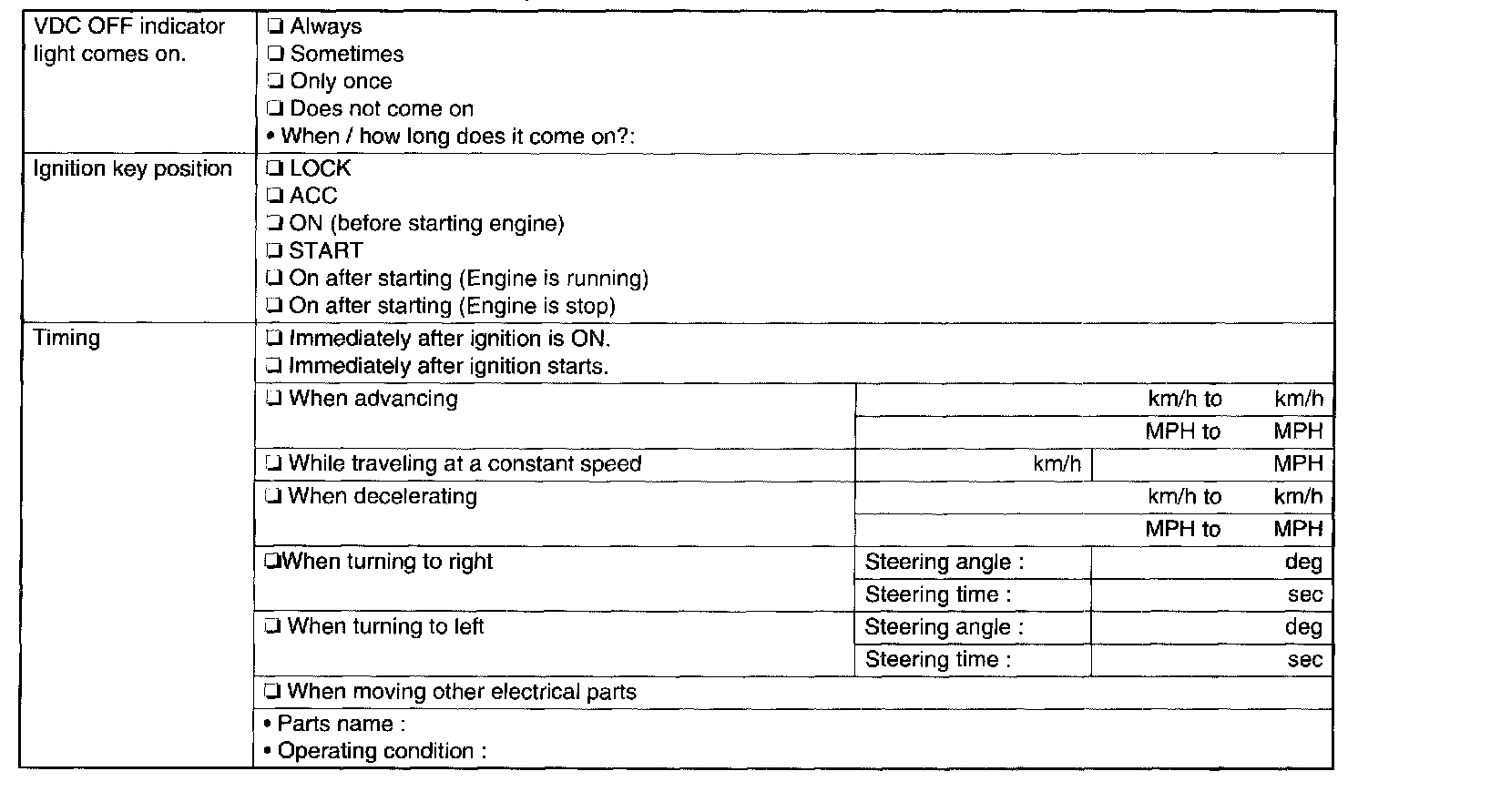

STATE OF VDC OFF INDICATOR LIGHT

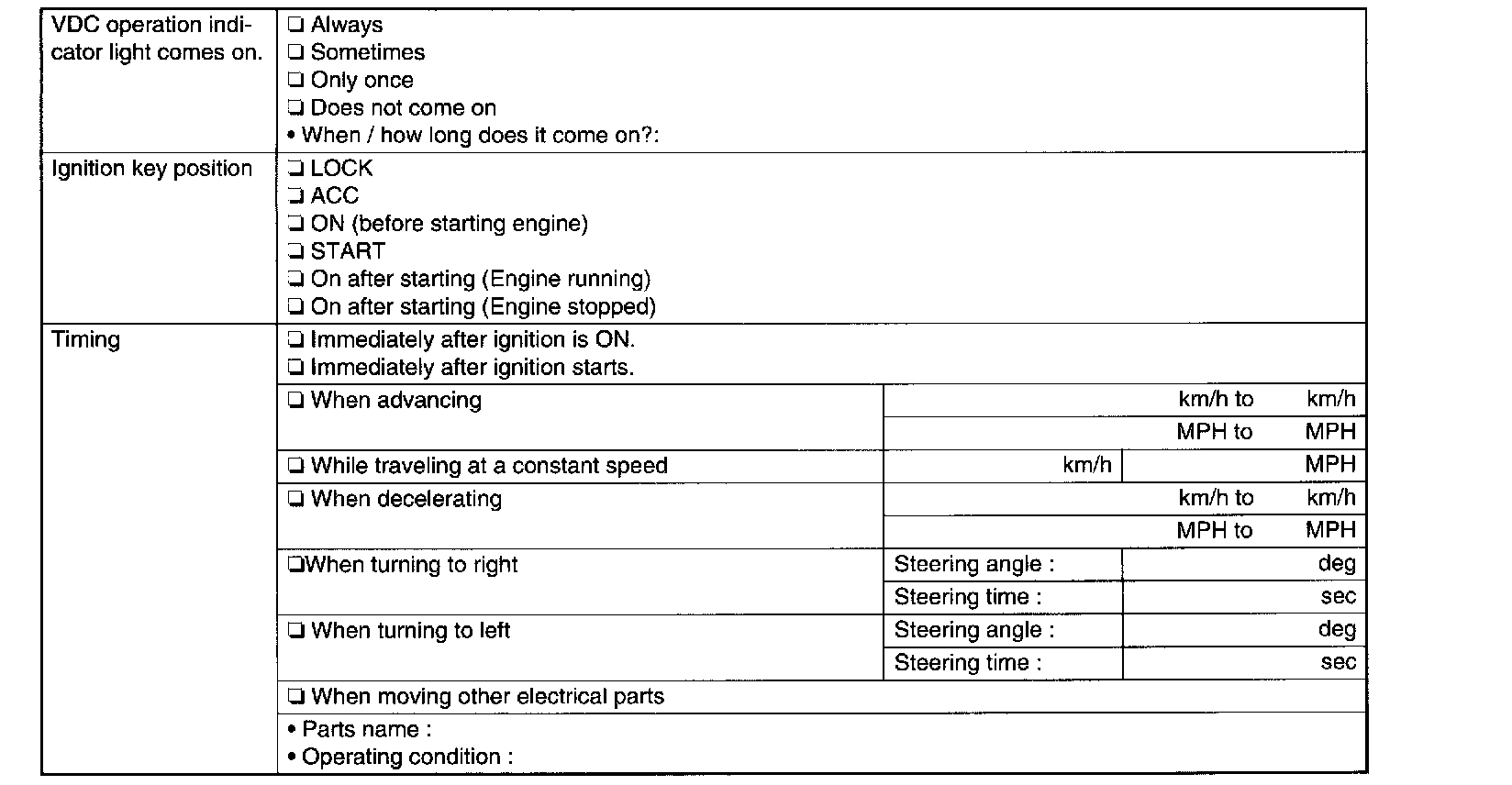

STATE OF VDC OPERATION INDICATOR LIGHT

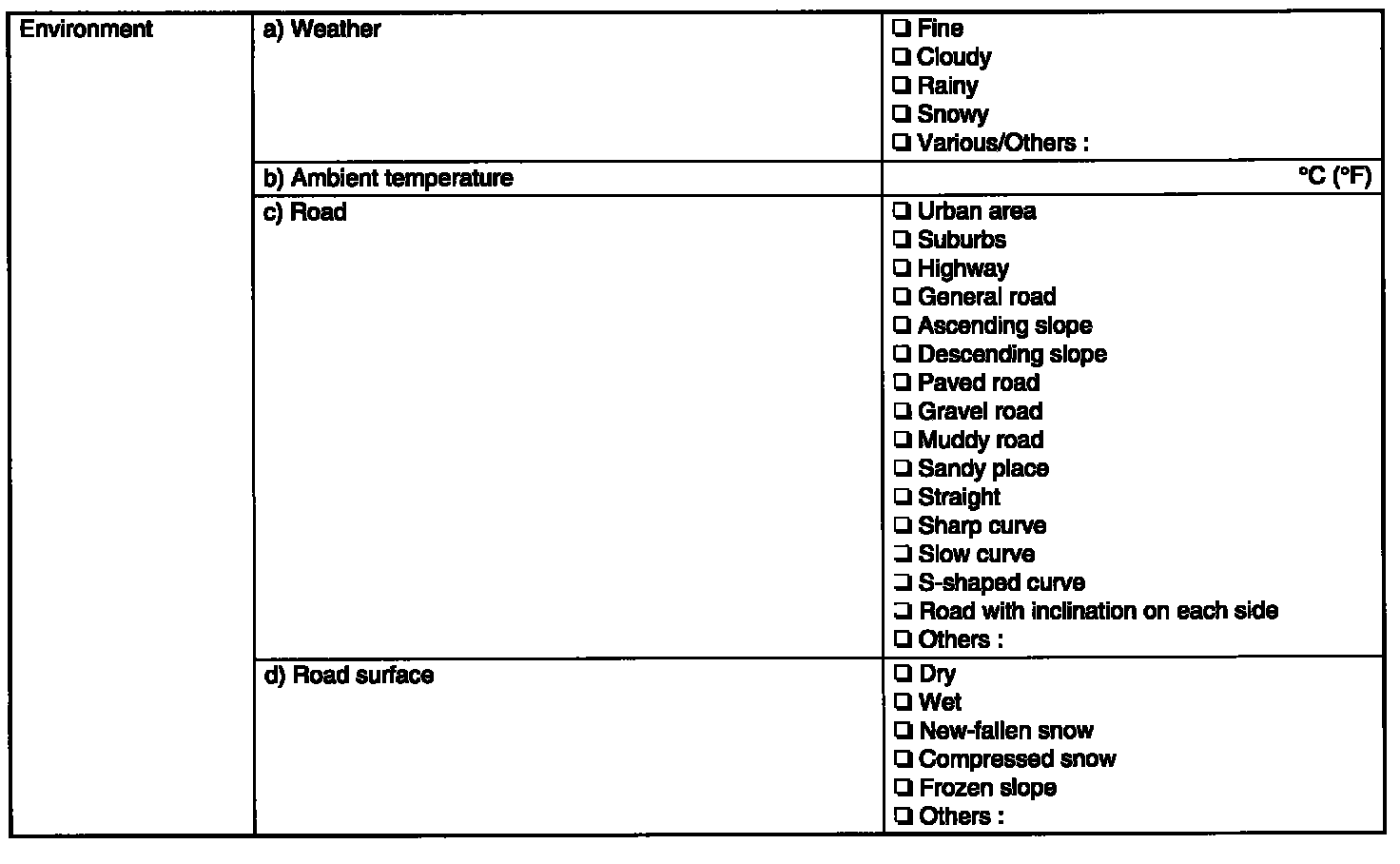

CONDITIONS UNDER WHICH TROUBLE OCCUR
