Diagnostic Trouble Code (DTC) Does Not Appear

DIAGNOSTIC TROUBLE CODE (DTC) DOES NOT APPEAR

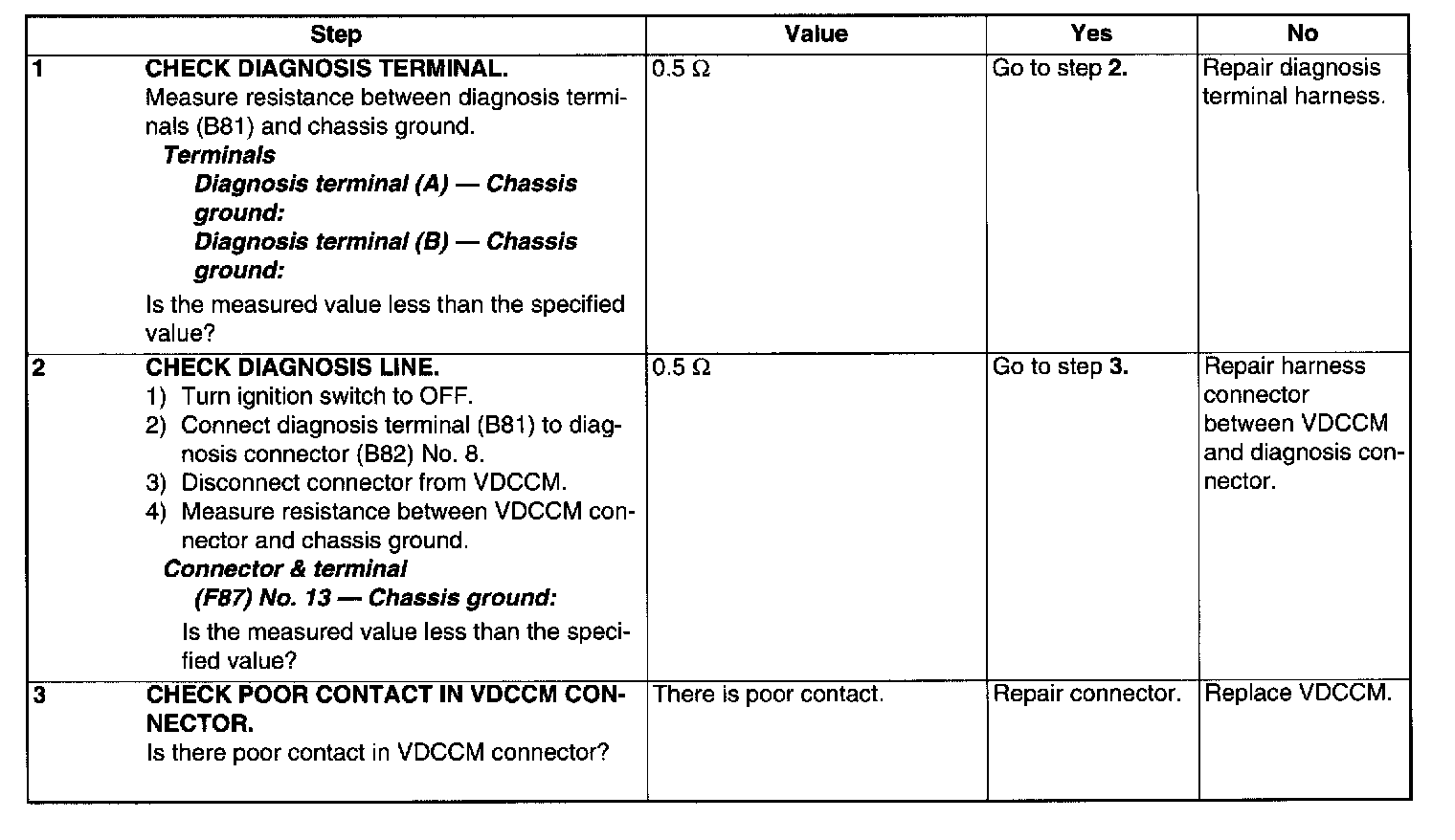

DIAGNOSIS
^ Diagnosis circuit is open.

TROUBLE SYMPTOM:
^ The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.

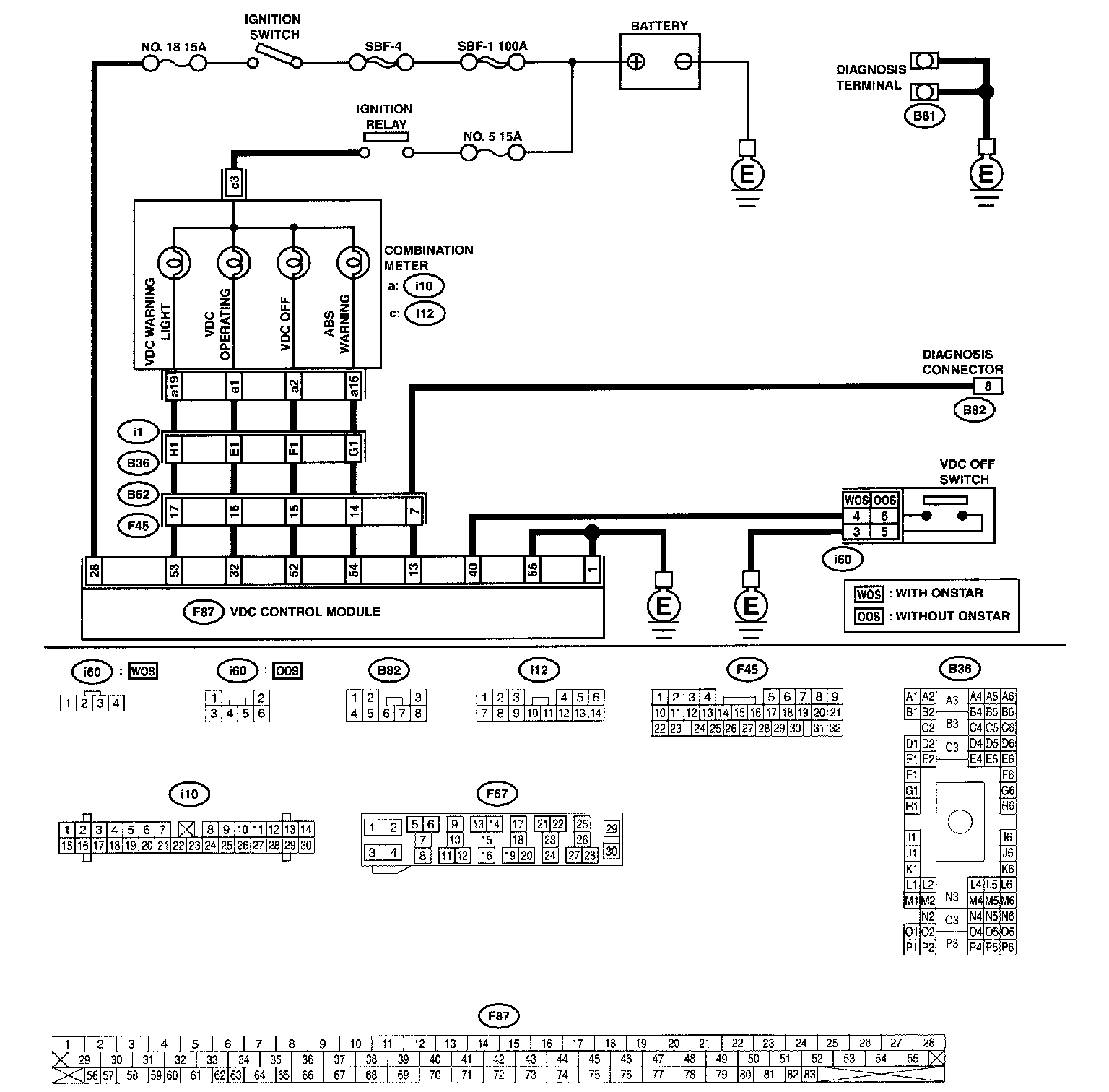

WIRING DIAGRAM:
