With ABS Warning Light Does Not GO Off

ABS WARNING LIGHT DOES NOT GO OFF

DIAGNOSIS
^ ABS warning light circuit is open or shorted.

TROUBLE SYMPTOM:
^ When starting the engine and while ABS warning light is kept ON.

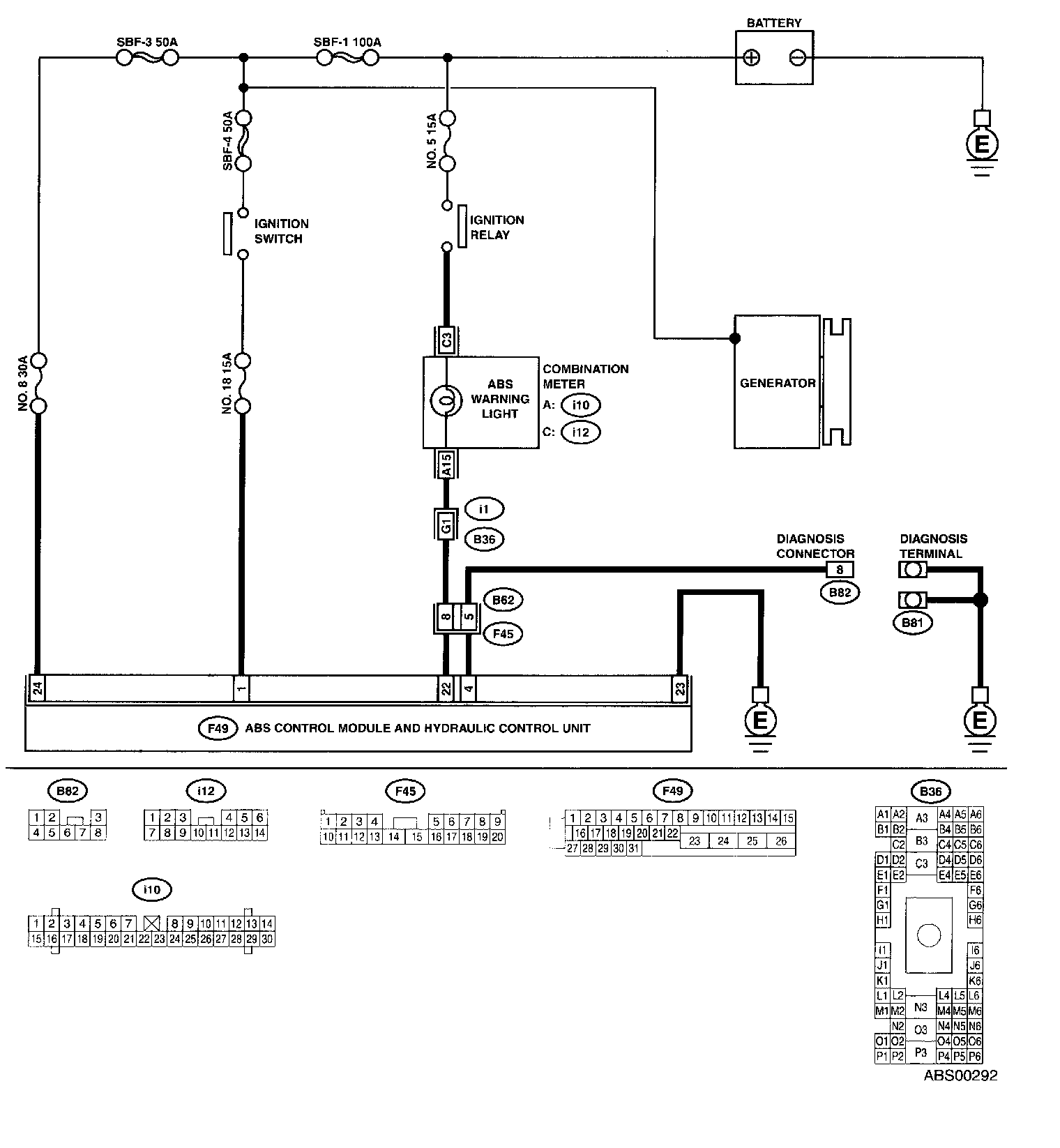

WIRING DIAGRAM:
