With ABS Warning Light Does Not Come on

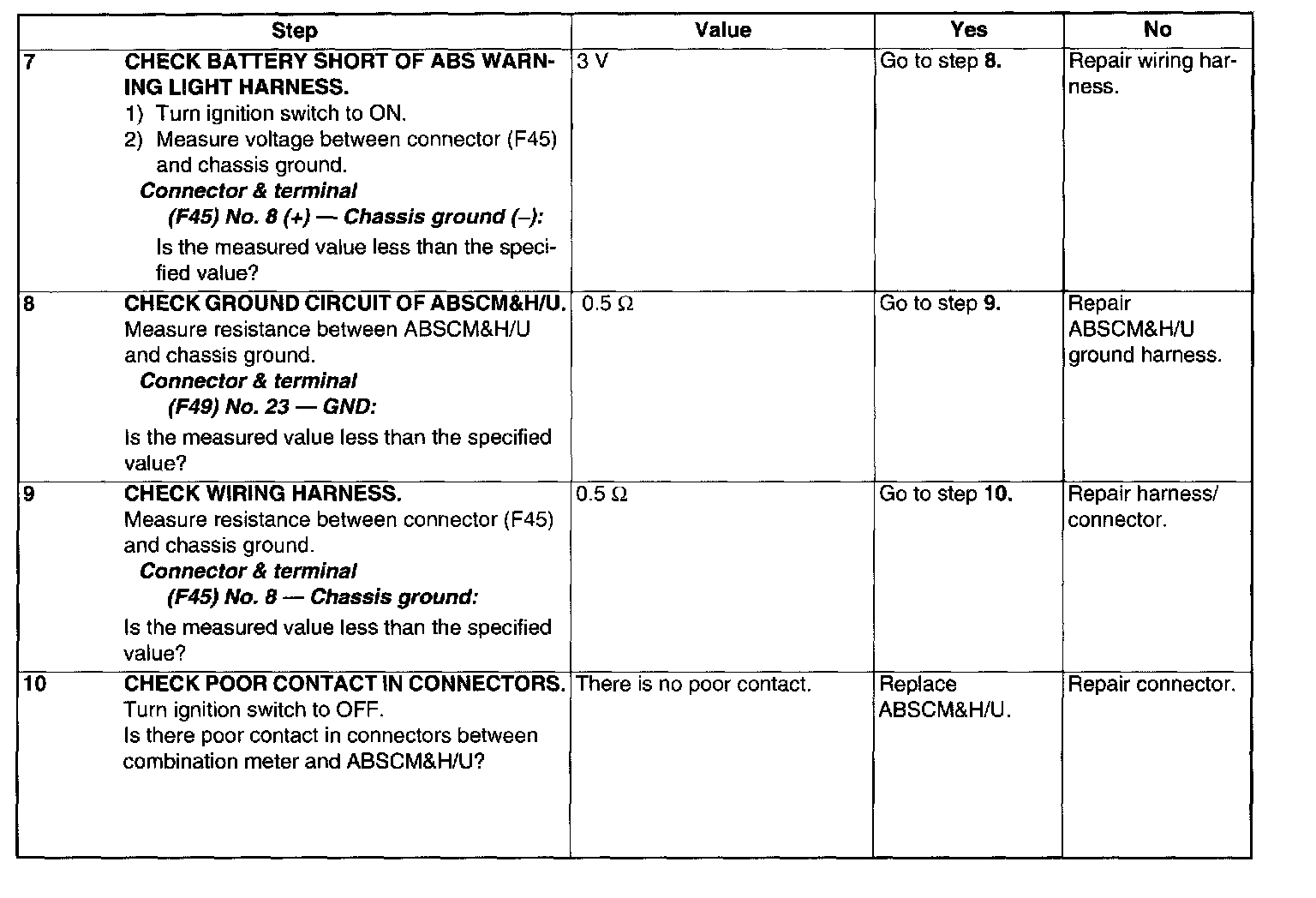

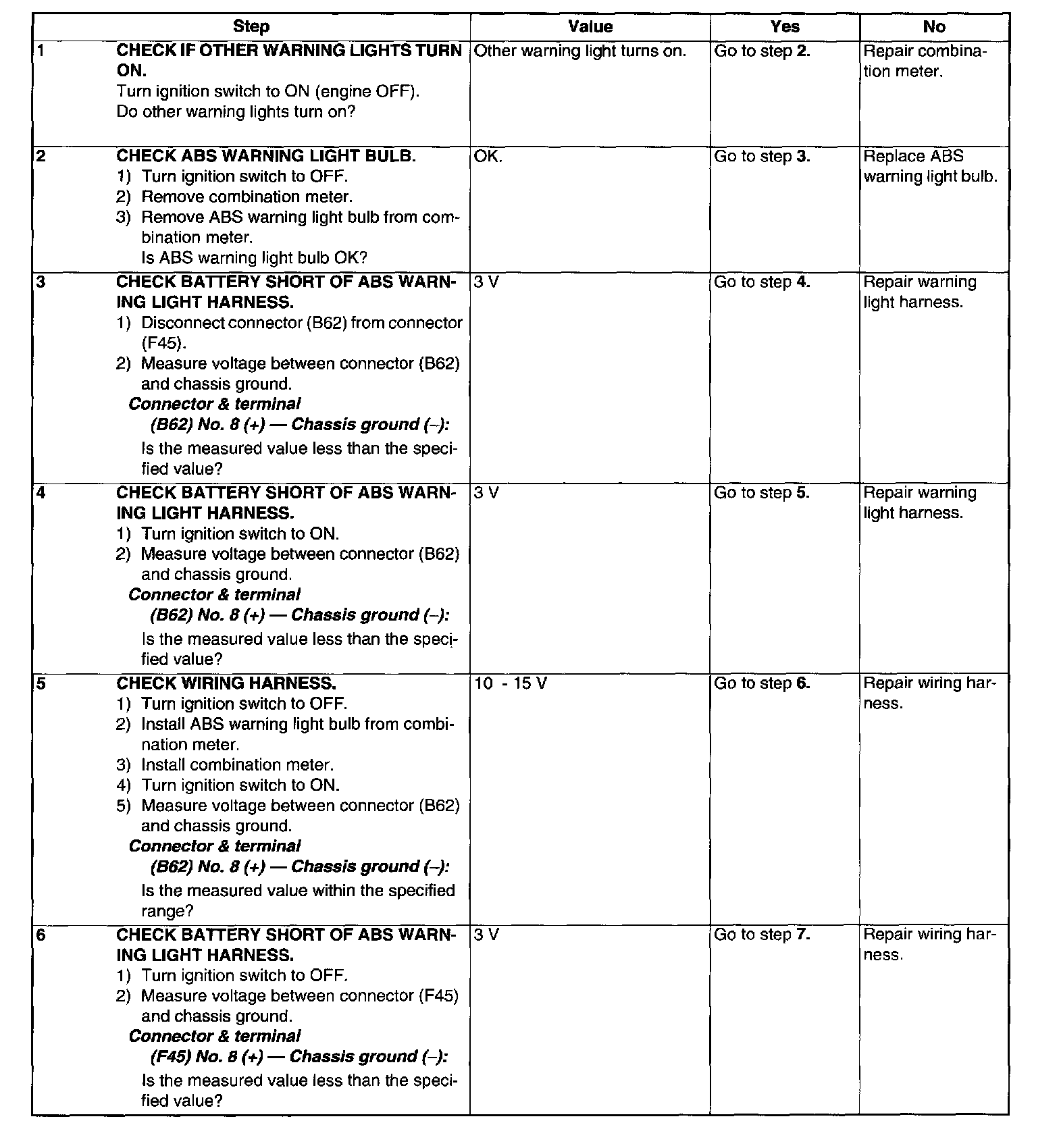

Diagnostics Chart with Diagnosis Connector

ABS WARNING LIGHT DOES NOT COME ON.
DIAGNOSIS
^ ABS warning light circuit is open or shorted.

TROUBLE SYMPTOM:
^ When ignition switch is turned ON (engine OFF), ABS warning light does not come on

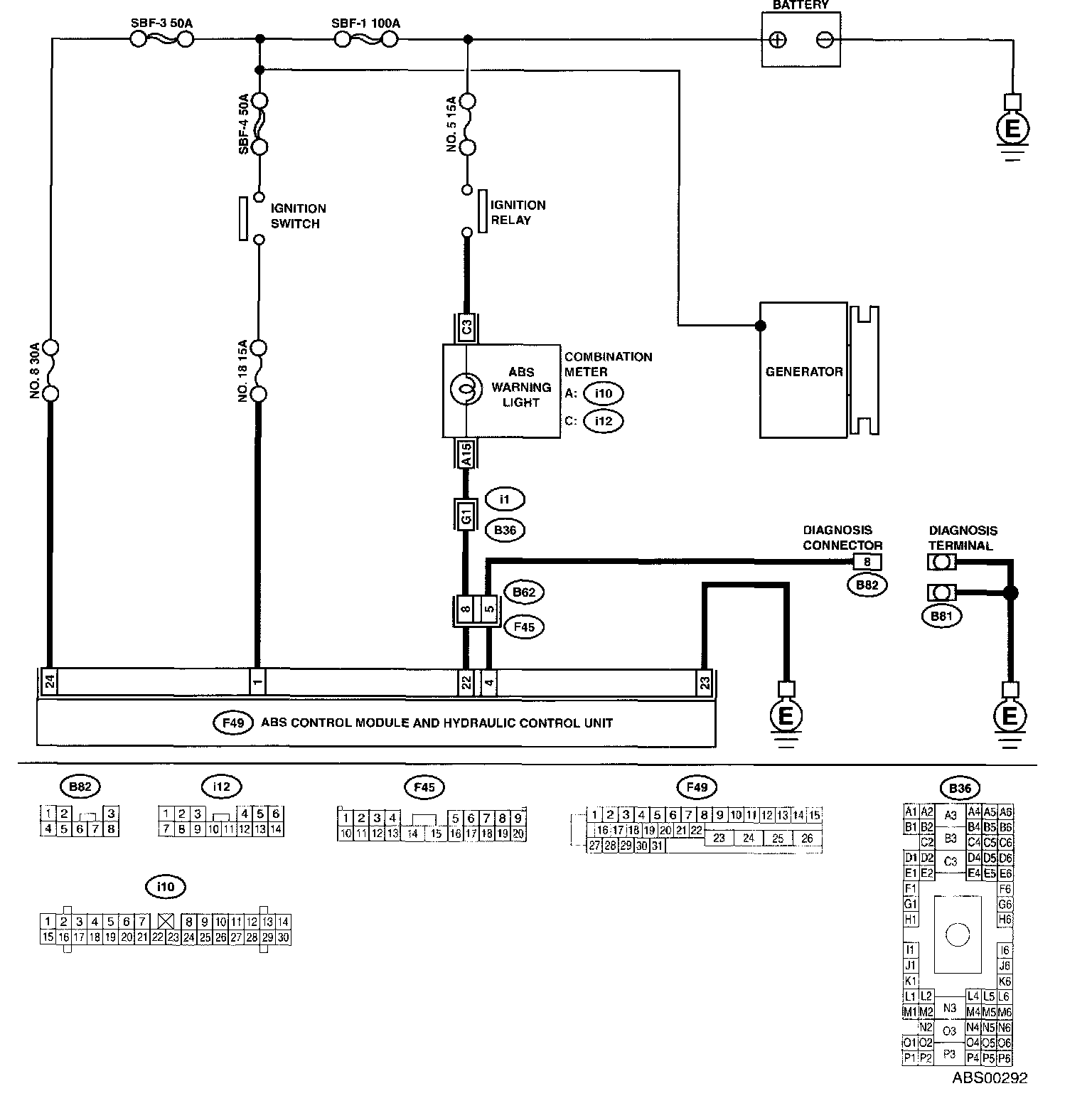

WIRING DIAGRAM:
