No Trouble Code

B: NO TROUBLE CODE

DIAGNOSIS
^ ABS warning light circuit is shorted.

TROUBLE SYMPTOM:
^ ABS warning light remains on.
^ NO TROUBLE CODE displayed on the select monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.

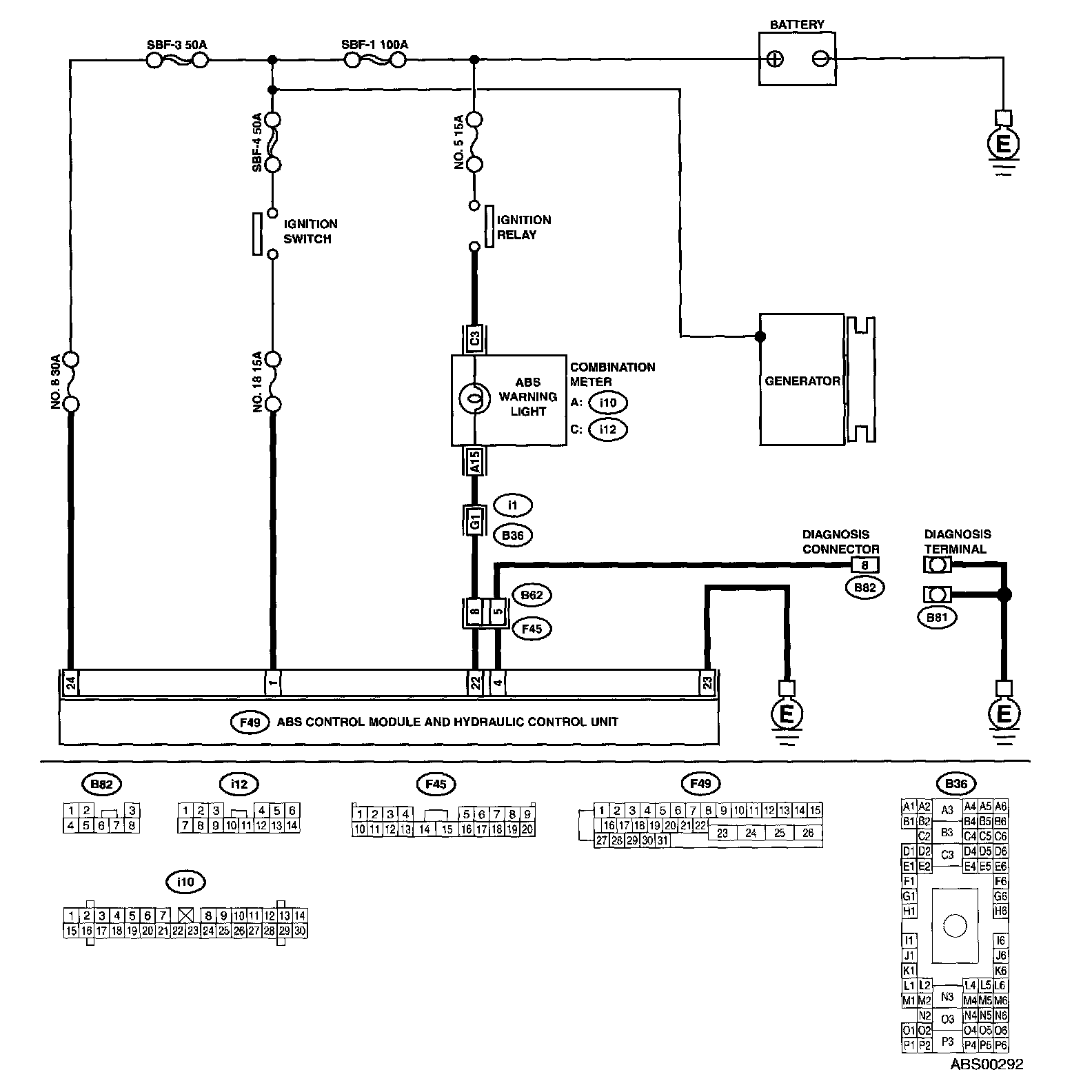

WIRING DIAGRAM:

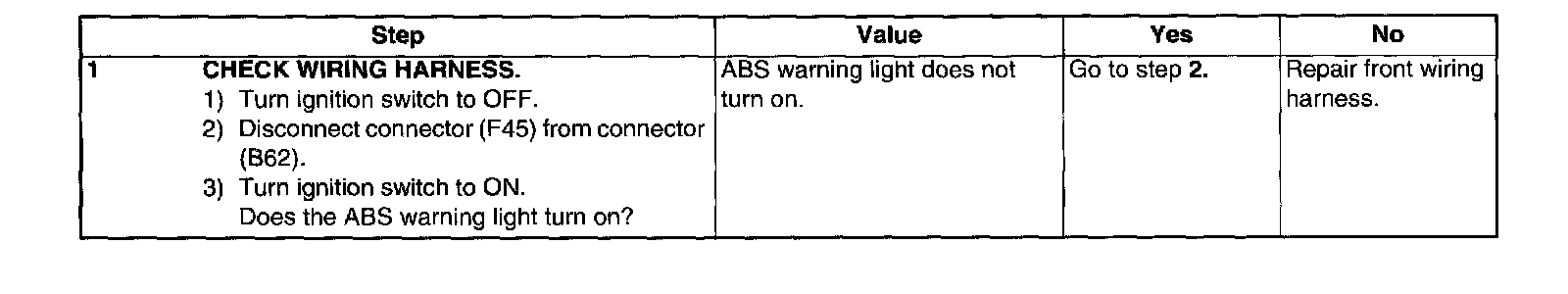

Test 1 Of 2:

Test 2 Of 2:
