Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS warning light remains on.

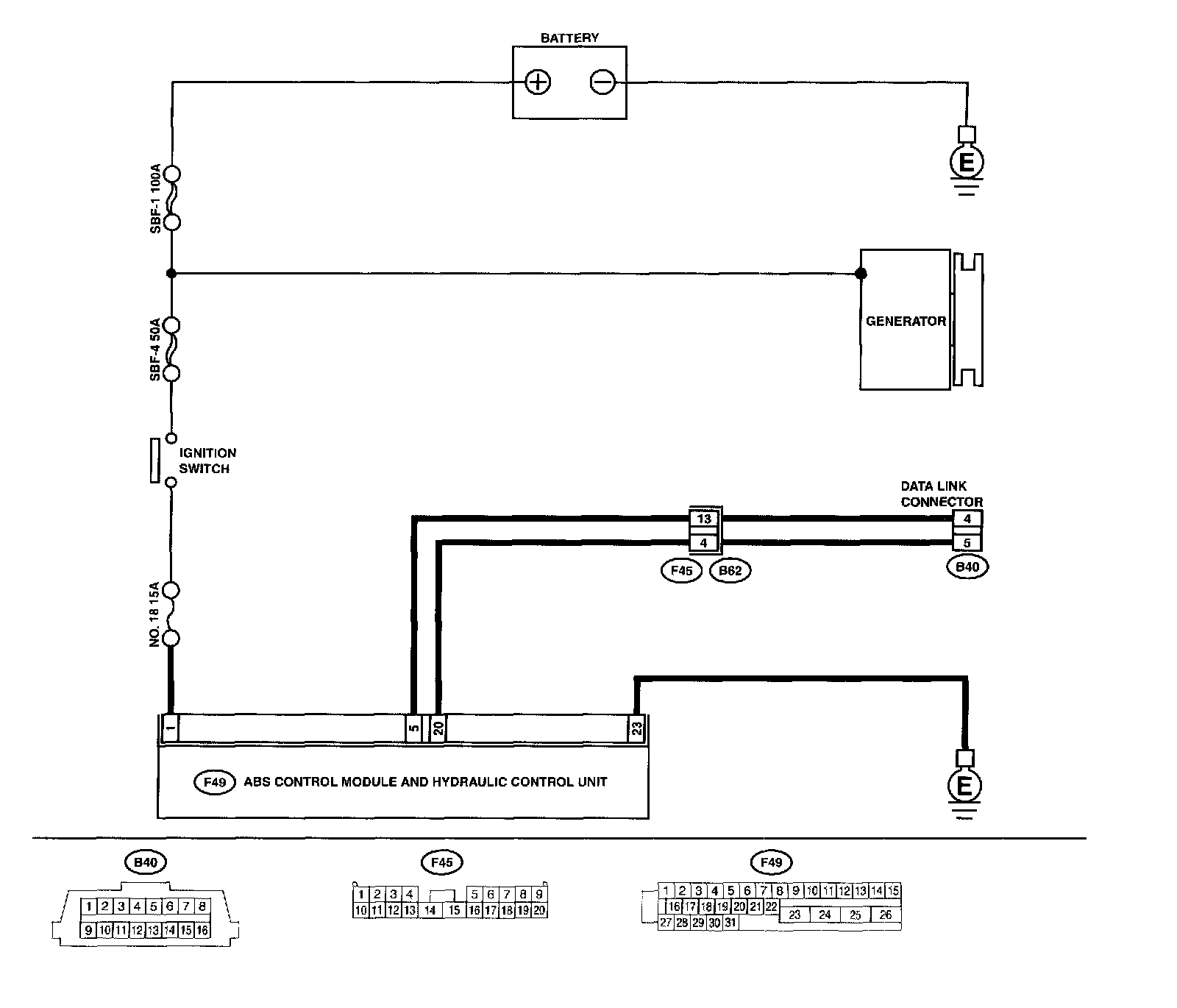

WIRING DIAGRAM:

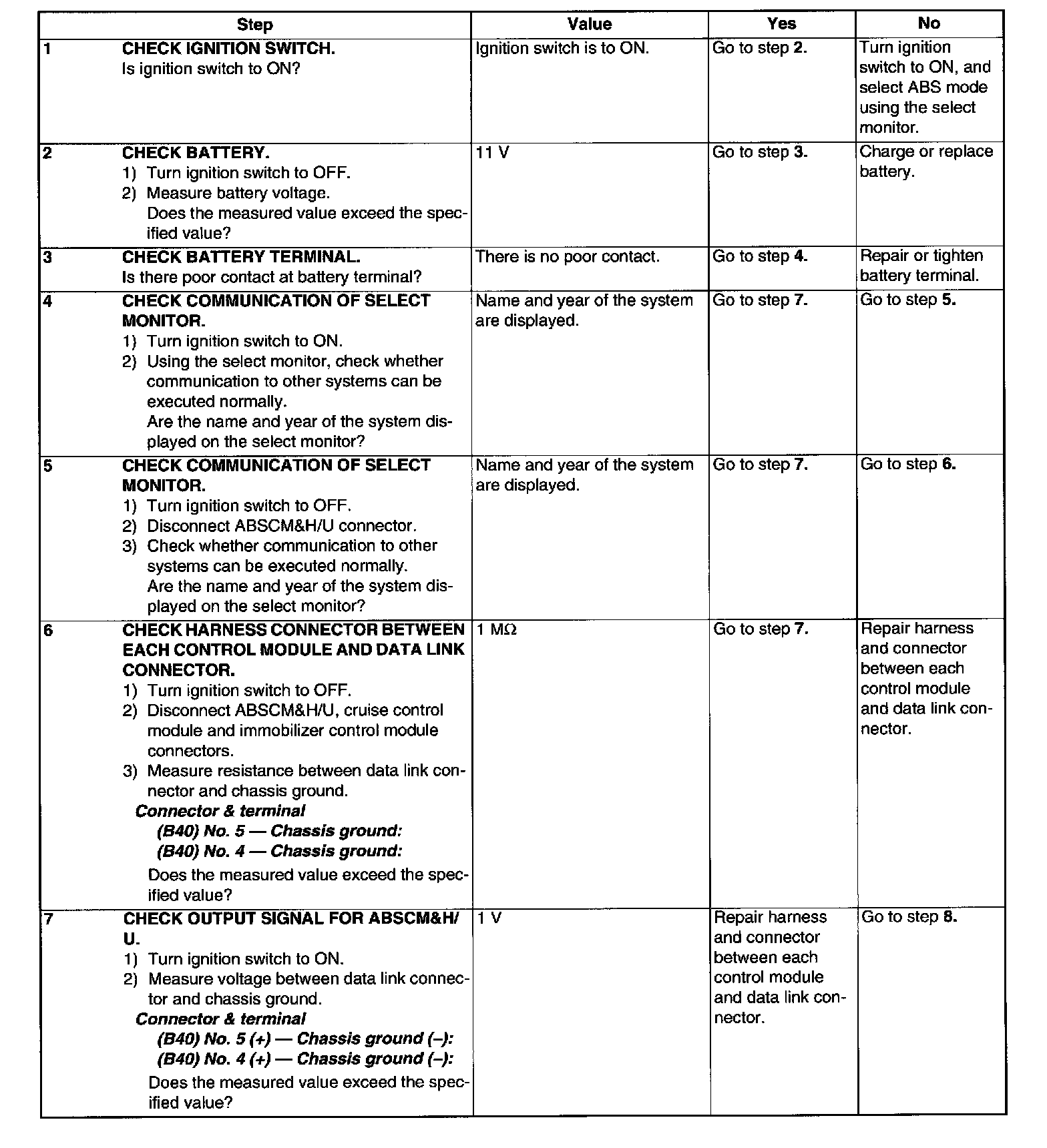

Test 1 Of 2:

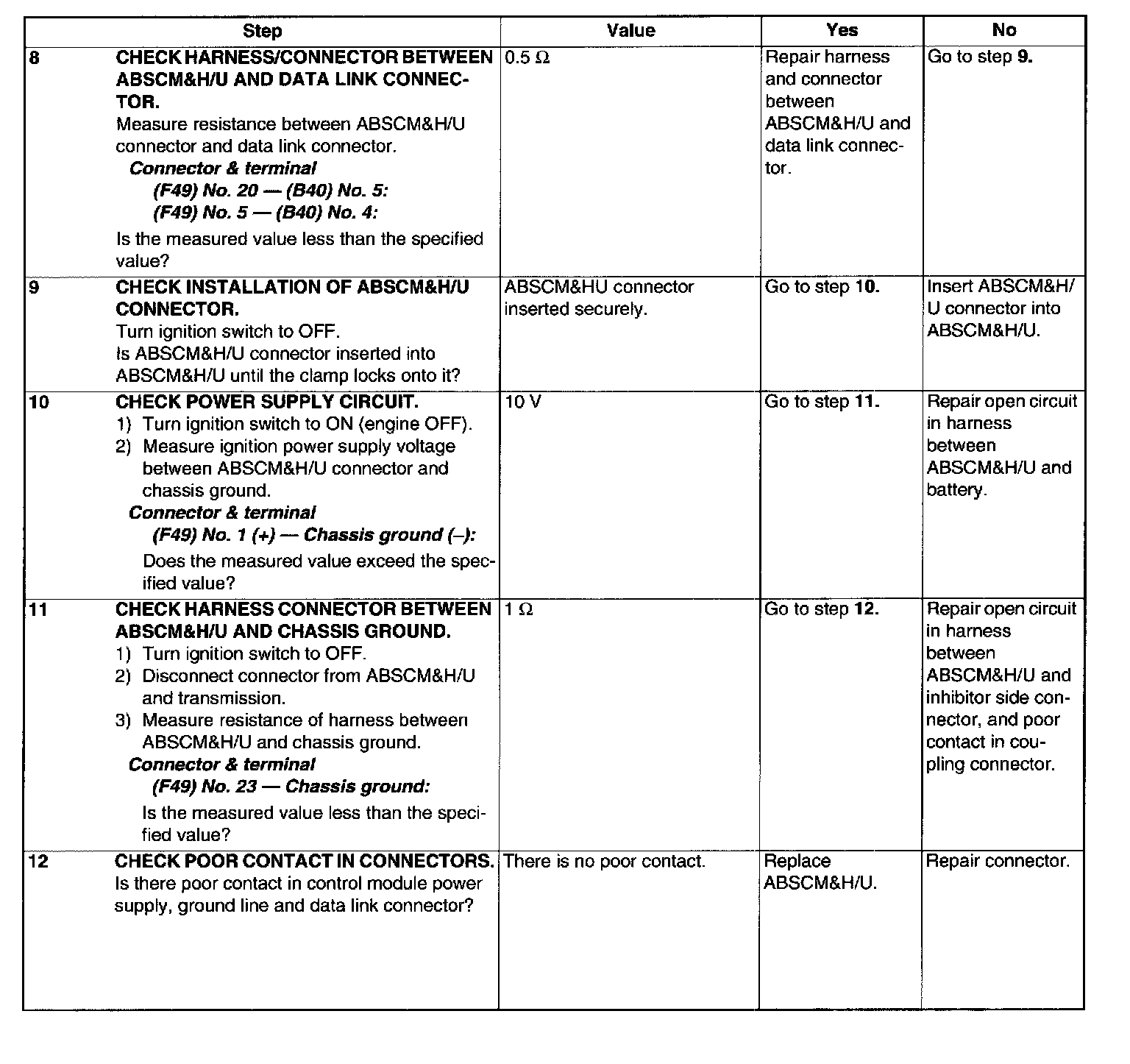

Test 2 Of 2:
