Antenna Amplifier: Testing and Inspection

Antenna Amplifier

INSPECTION

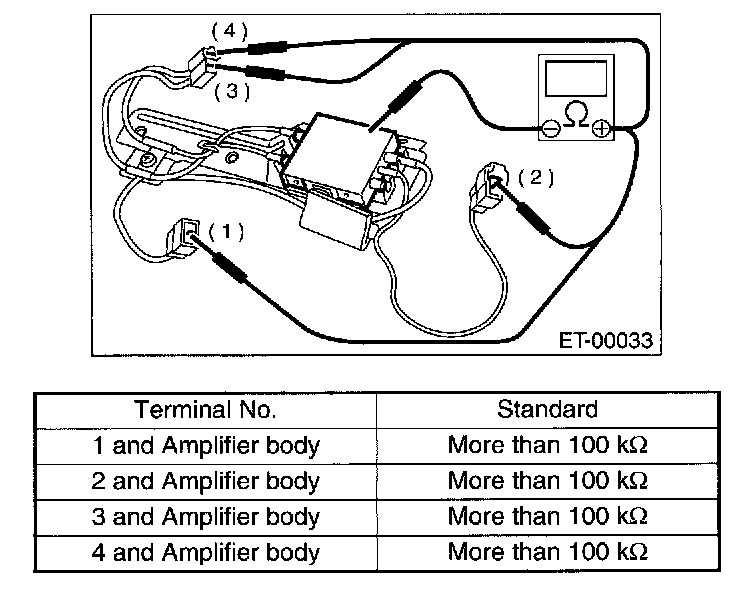

1. SEDAN

Measure antenna amplifier resistance.

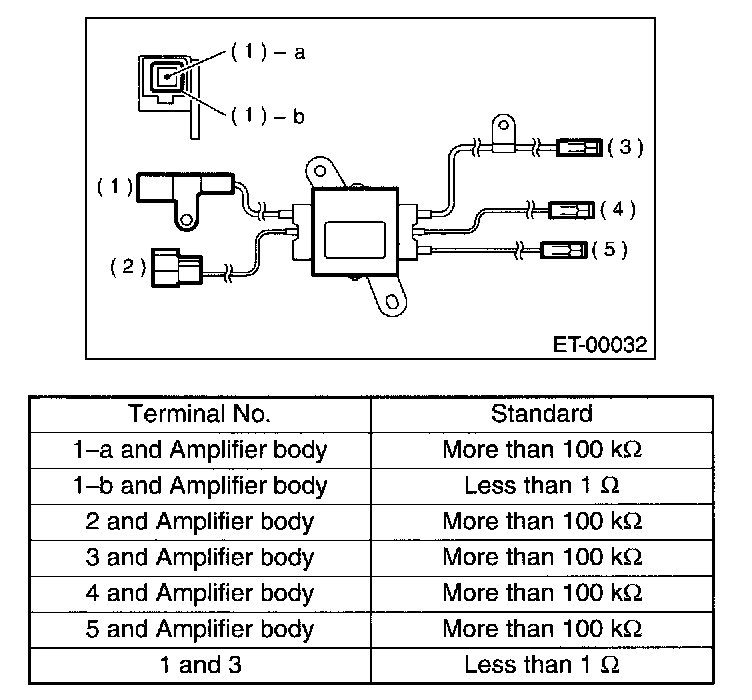

2. WAGON

Measure antenna amplifier resistance.
