P1711
DTC P1711 - ENGINE TORQUE CONTROL SIGNAL # 1 CIRCUIT MALFUNCTIONDTC DETECTING CONDITION
Two consecutive driving cycles with fault
TROUBLE SYMPTOM
Excessive shift shock
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

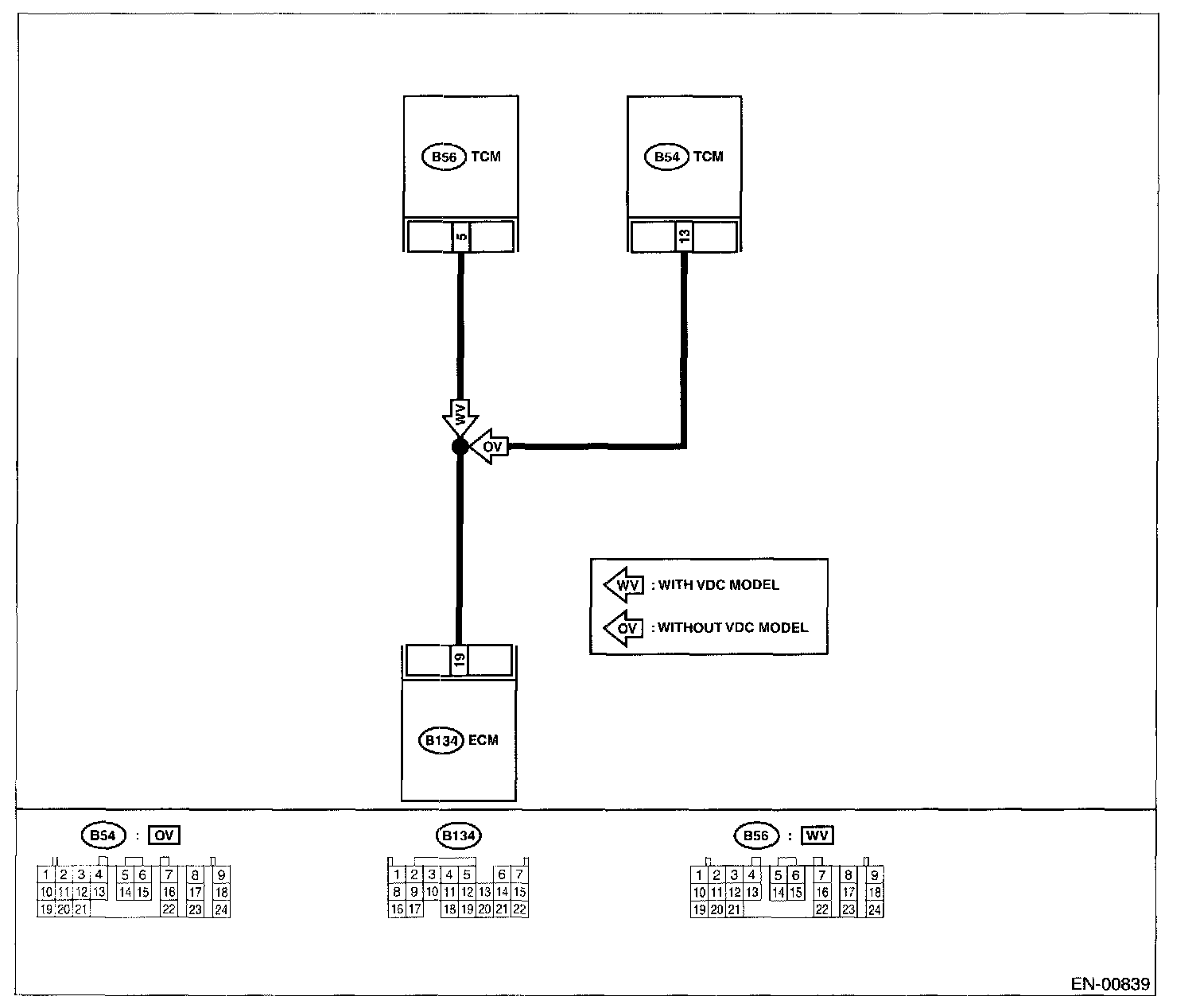

Wiring Diagram:
WIRING DIAGRAM
