P1446

DTC P1446 - FUEL TANK SENSOR CONTROL VALVE CIRCUIT LOW

DTC DETECTING CONDITION
Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

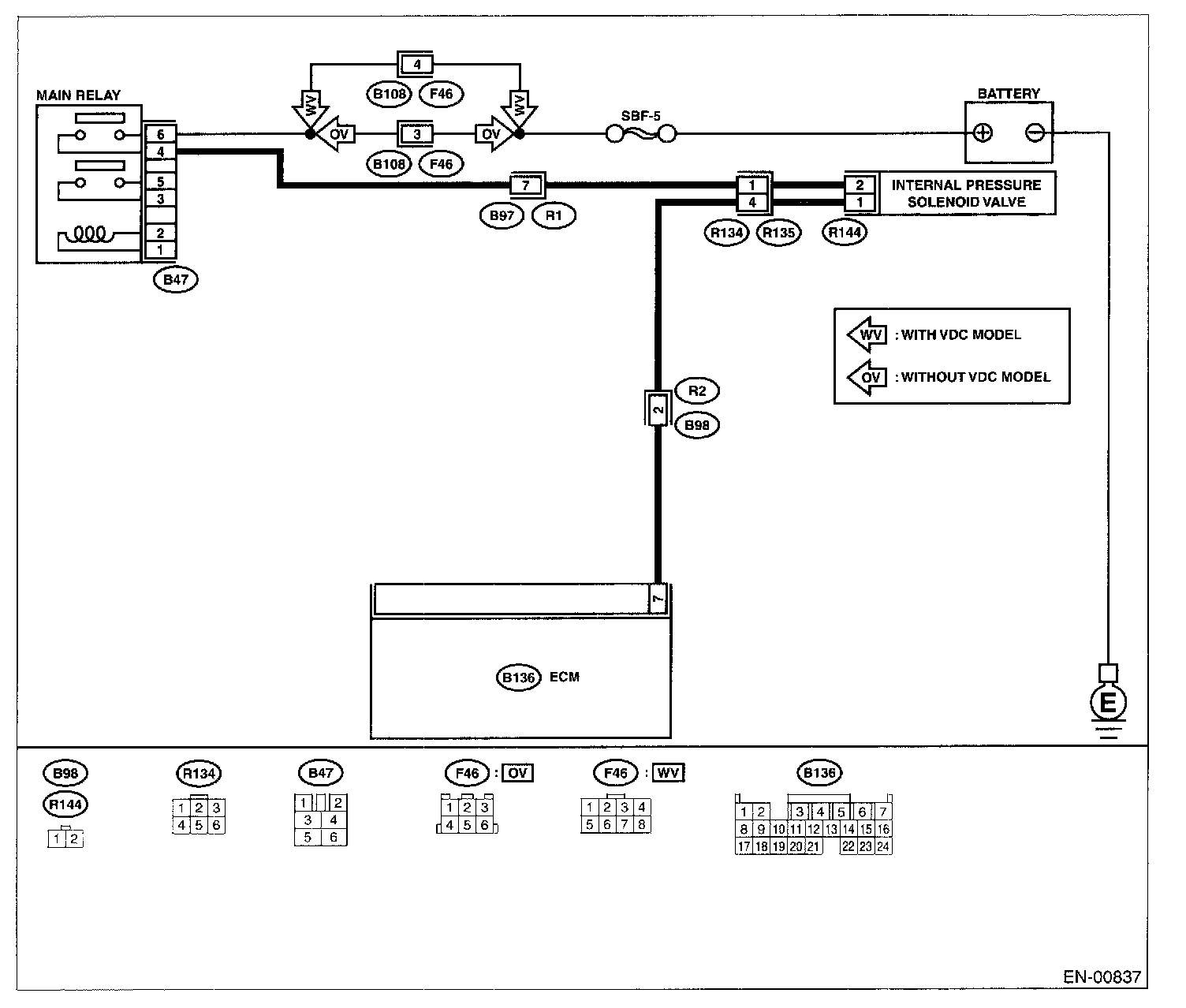

Wiring Diagram:

WIRING DIAGRAM

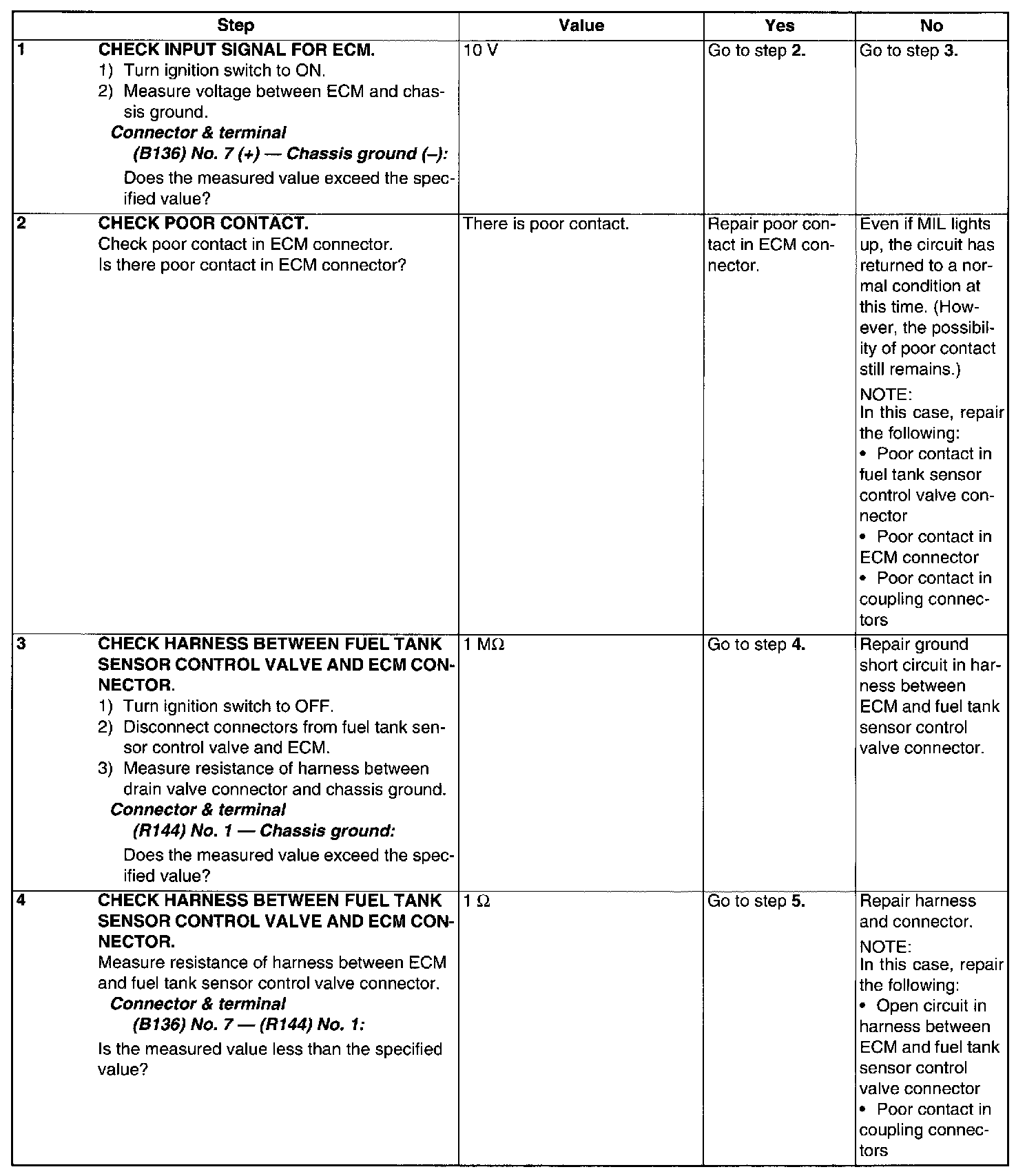

Step 1 - 4:

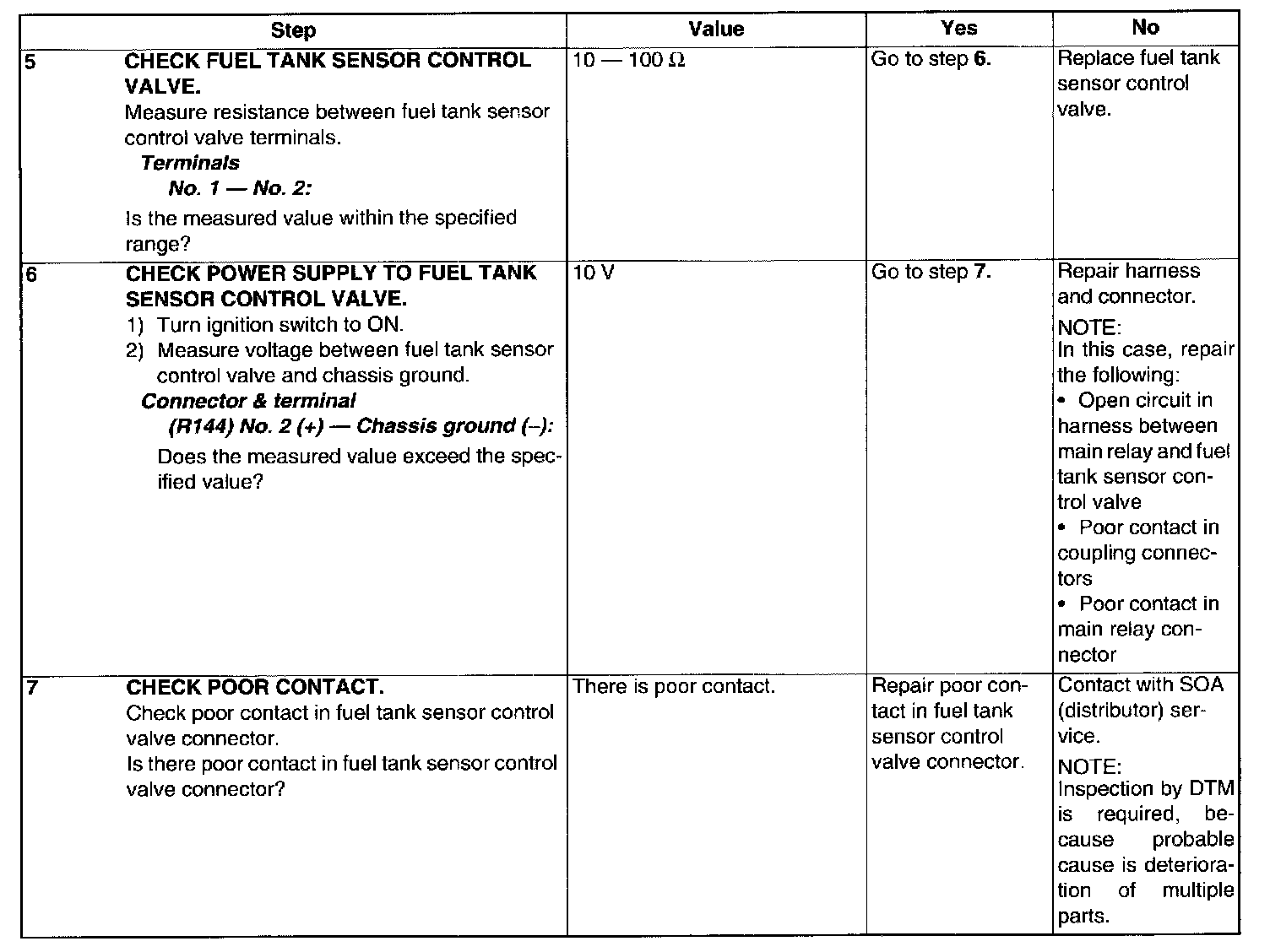

Step 5 - 7:
