P1153
DTC P1153 - O2 SENSOR CIRCUIT RANGE/PERFORMANCE (HIGH) (BANK1 SENSOR 1)DTC DETECTING CONDITION
Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

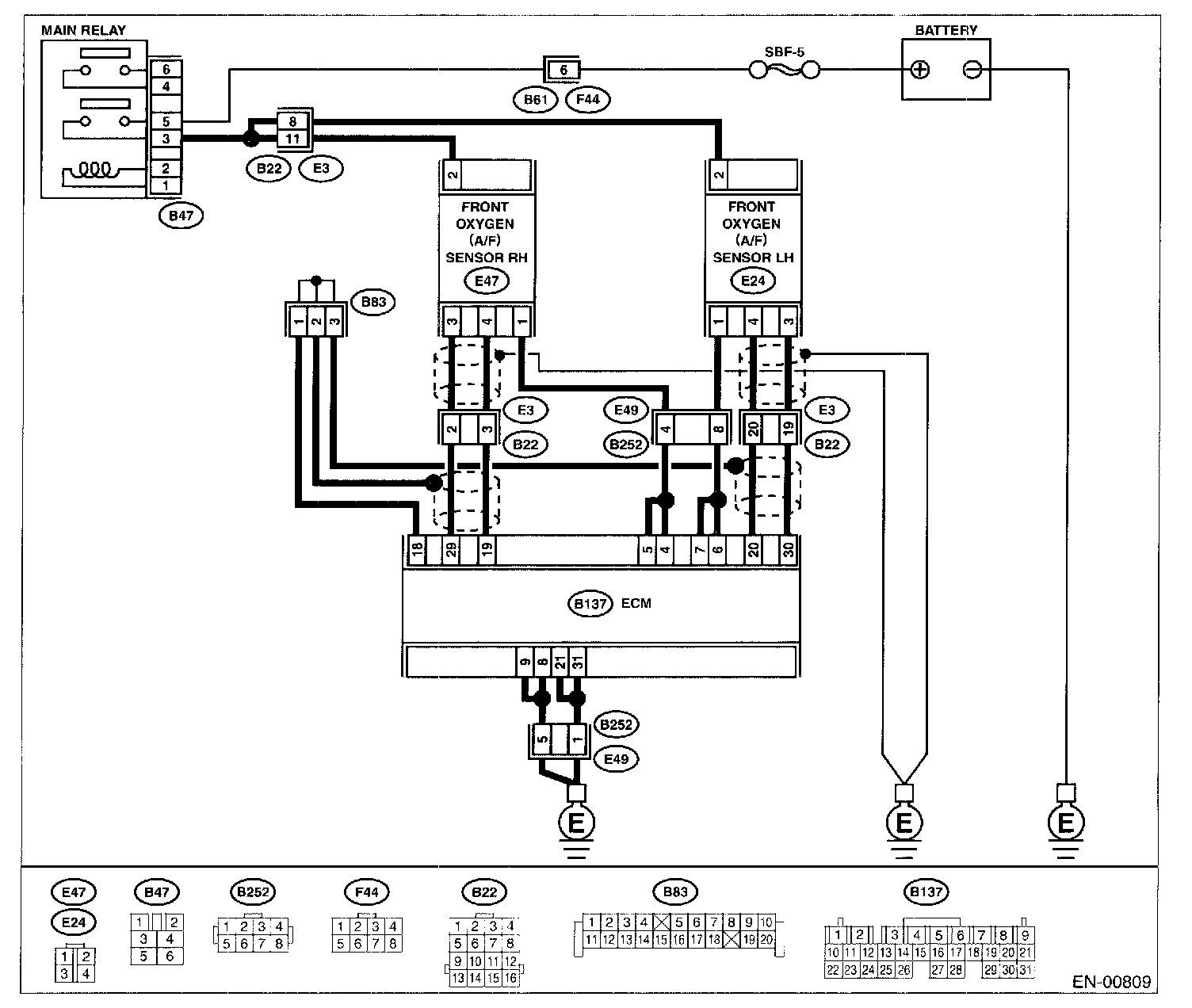

Wiring Diagram:
WIRING DIAGRAM
