P0866
DTC P0866 - TCM COMMUNICATION CIRCUIT HIGH
DTC DETECTING CONDITION
Two consecutive driving cycles with fault
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

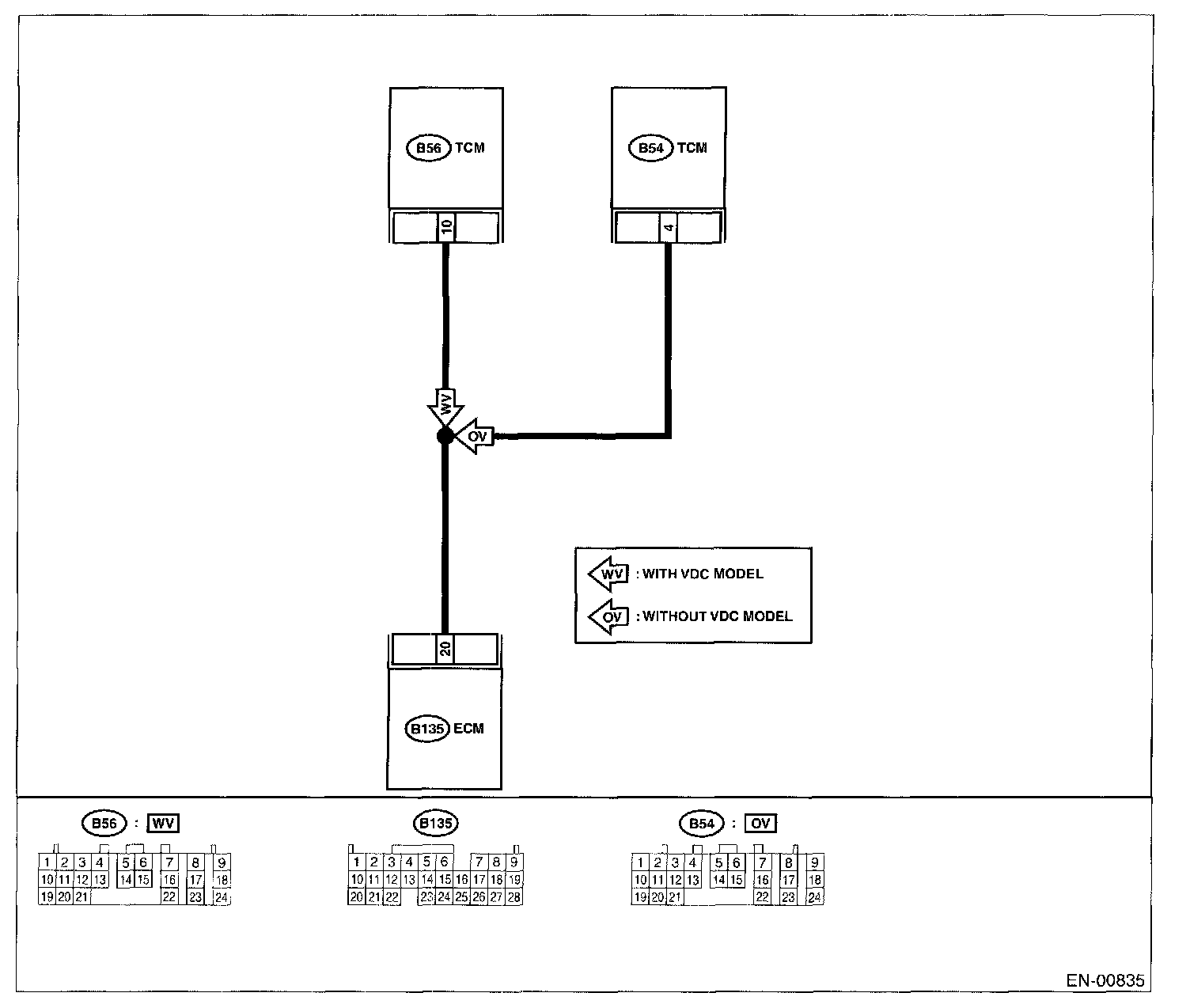

Wiring Diagram:
WIRING DIAGRAM

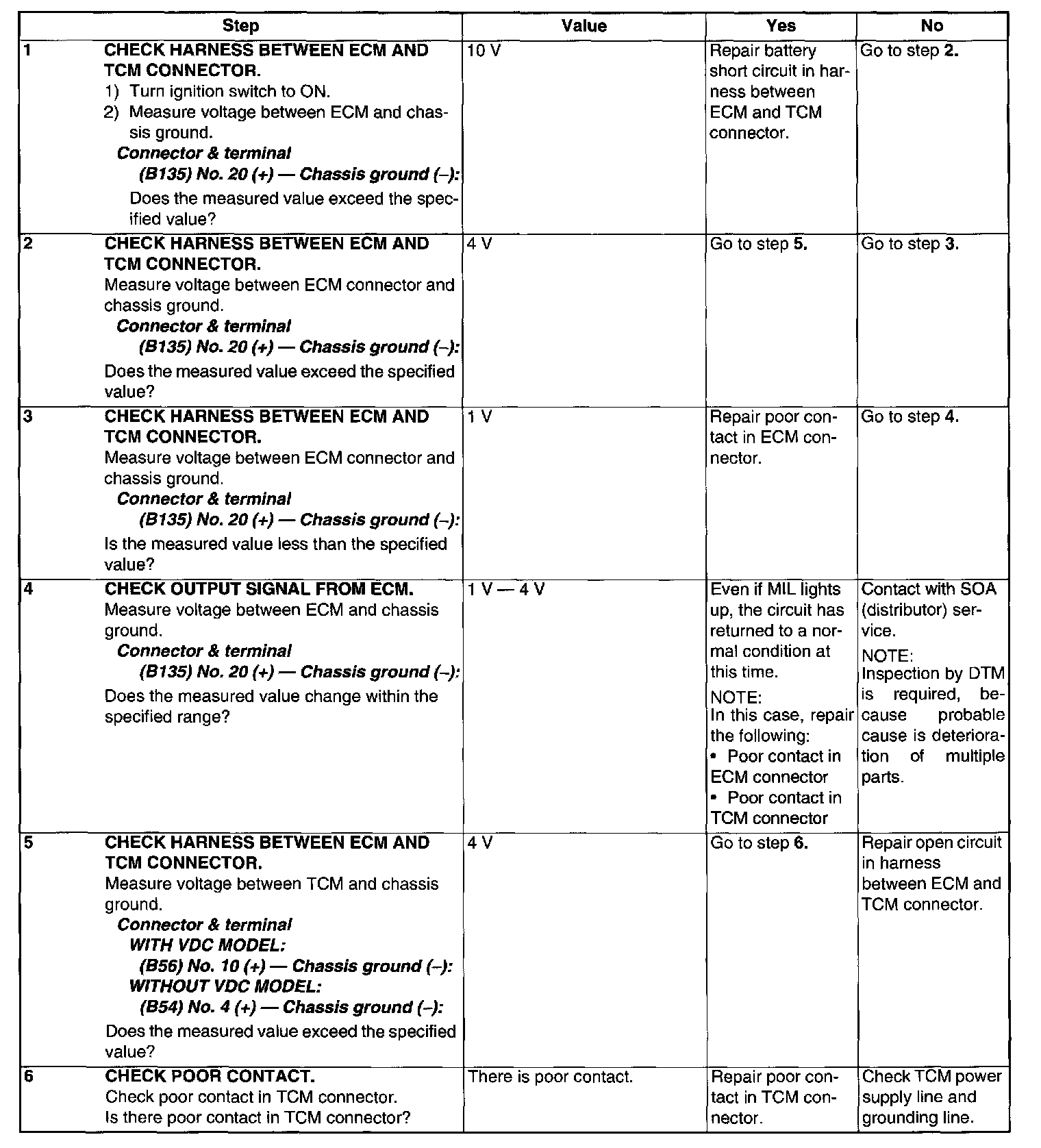

Step 1 - 6:
