P0852

DTC P0852 - NEUTRAL SWITCH INPUT CIRCUIT HIGH

DTC DETECTING CONDITION
Two consecutive driving cycles with fault

TROUBLE SYMPTOM
Erroneous idling

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

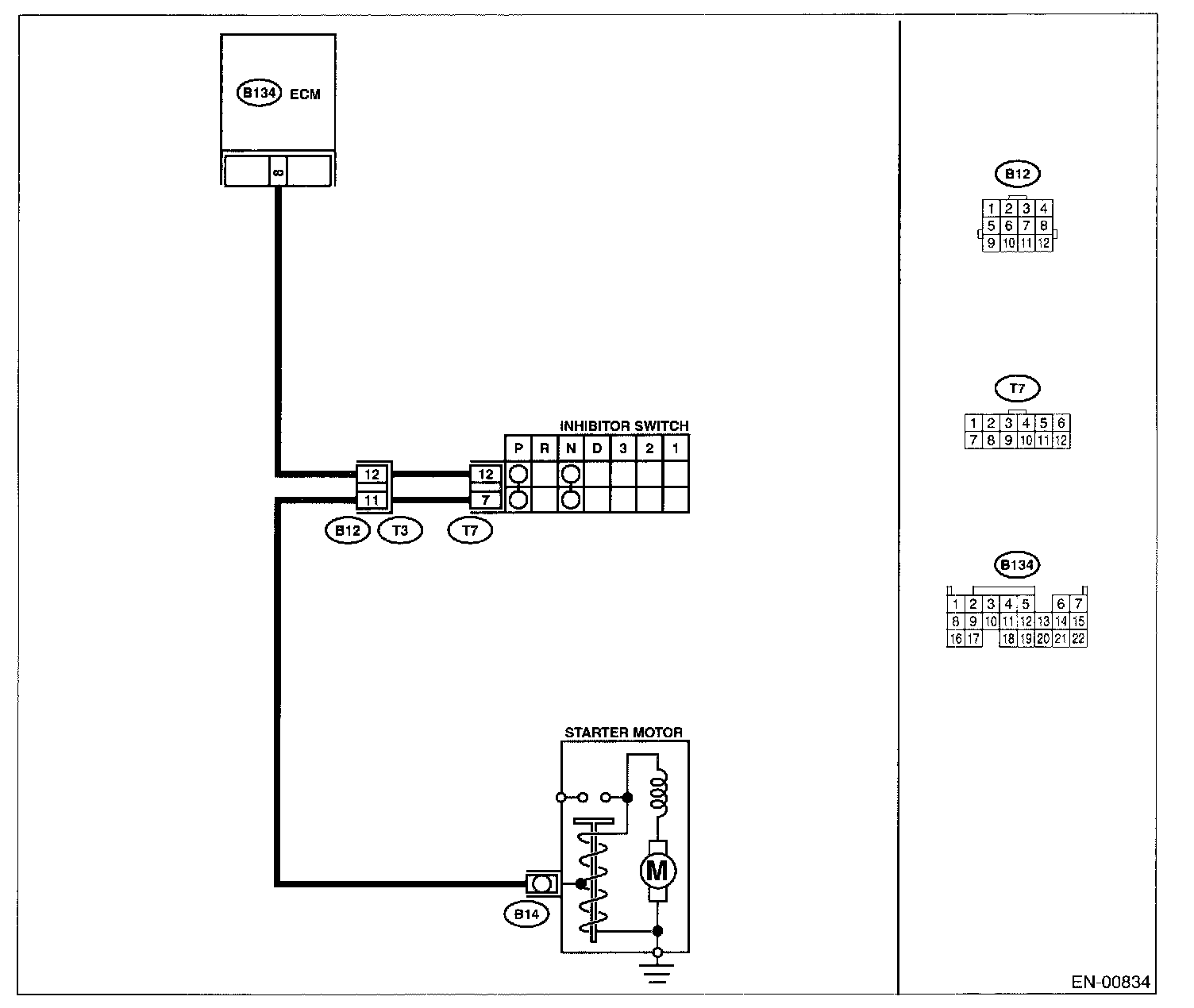

Wiring Diagram:

WIRING DIAGRAM

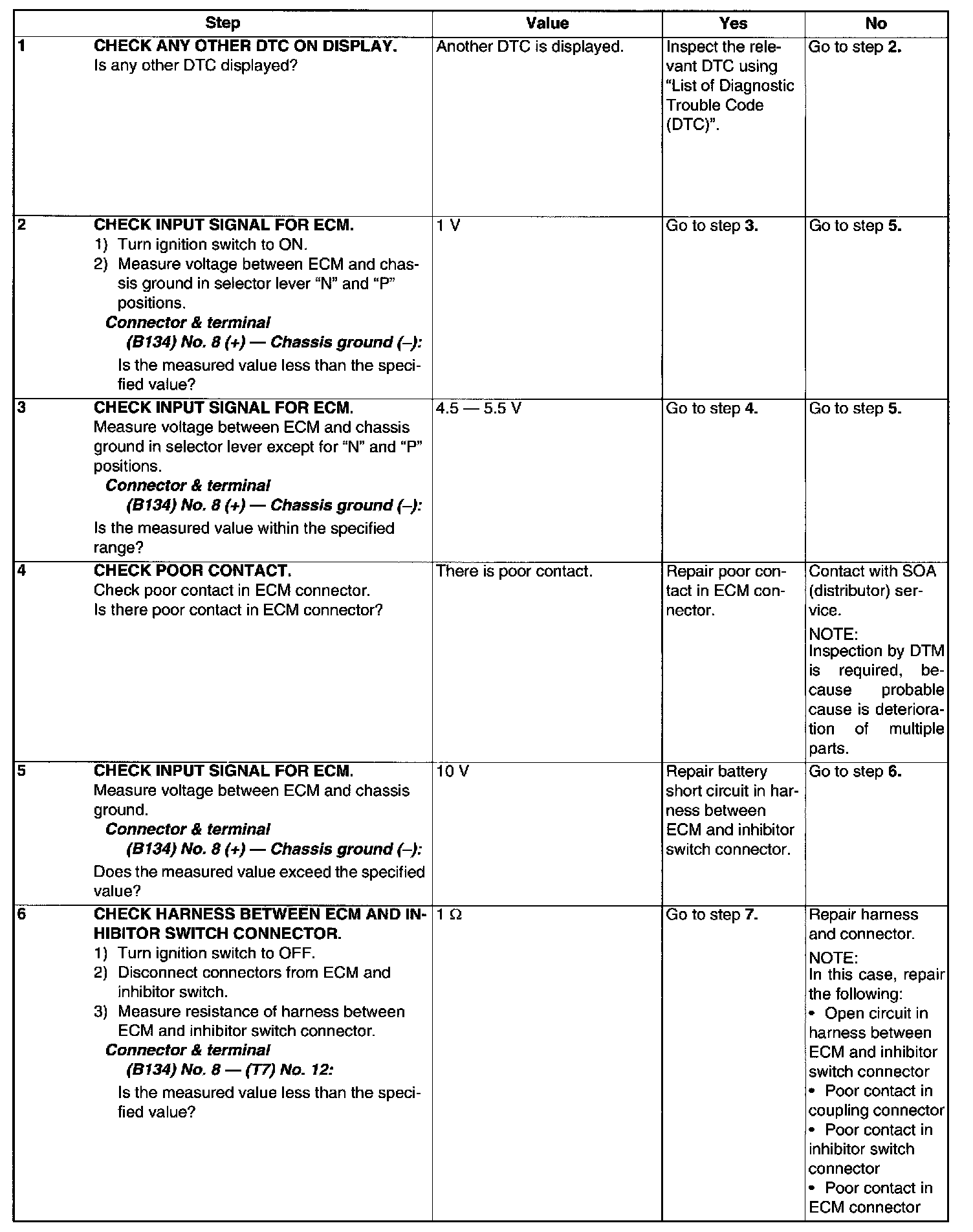

Step 1 - 6:

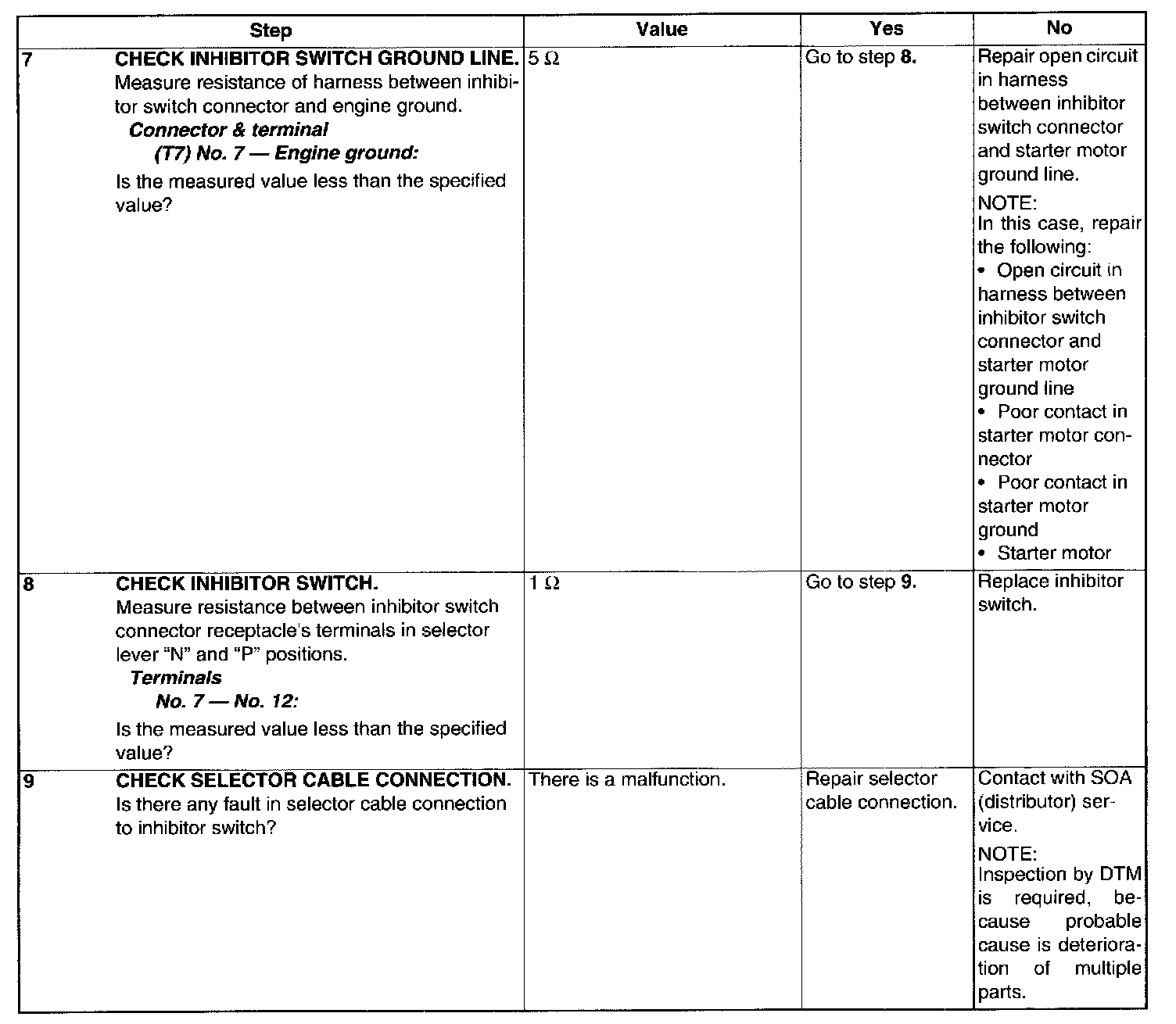

Step 7 - 9:
