P0442
DTC P0442 - EVAPORATIVE EMISSION CONTROL SYSTEM LEAK DETECTED (SMALL LEAK)DTC DETECTING CONDITION
Two consecutive driving cycles with fault
TROUBLE SYMPTOM
- Gasoline smell
- There is a hole of more than 1.0 mm (0.04 in) dia. in evaporation system or fuel tank.
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

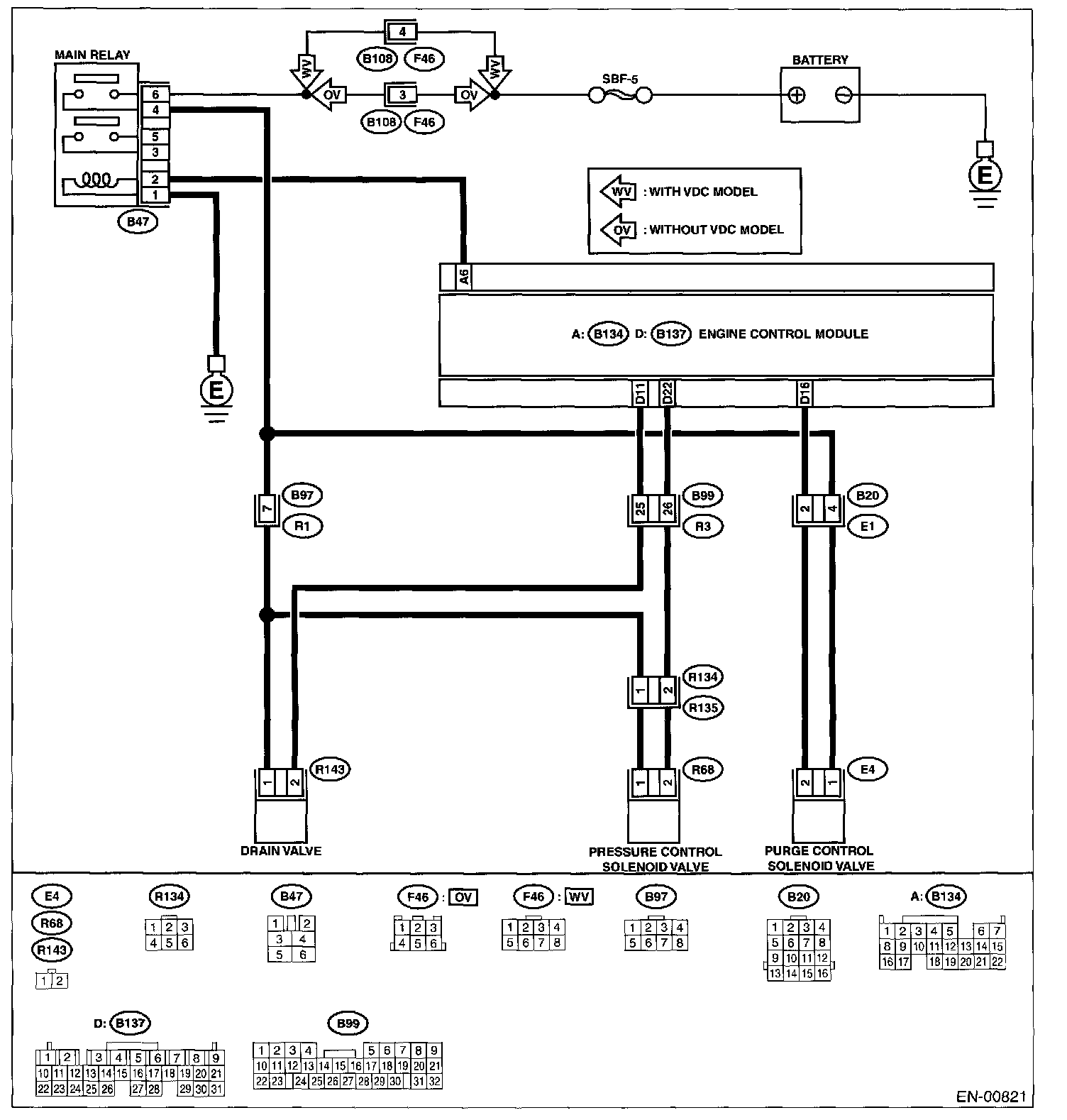

Wiring Diagram:
WIRING DIAGRAM
