P0340

DTC P0340 - CAMSHAFT POSITION SENSOR "A" CIRCUIT (BANK 1 OR SINGLE SENSOR)

DTC DETECTING CONDITION
Immediately at fault recognition

TROUBLE SYMPTOM
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

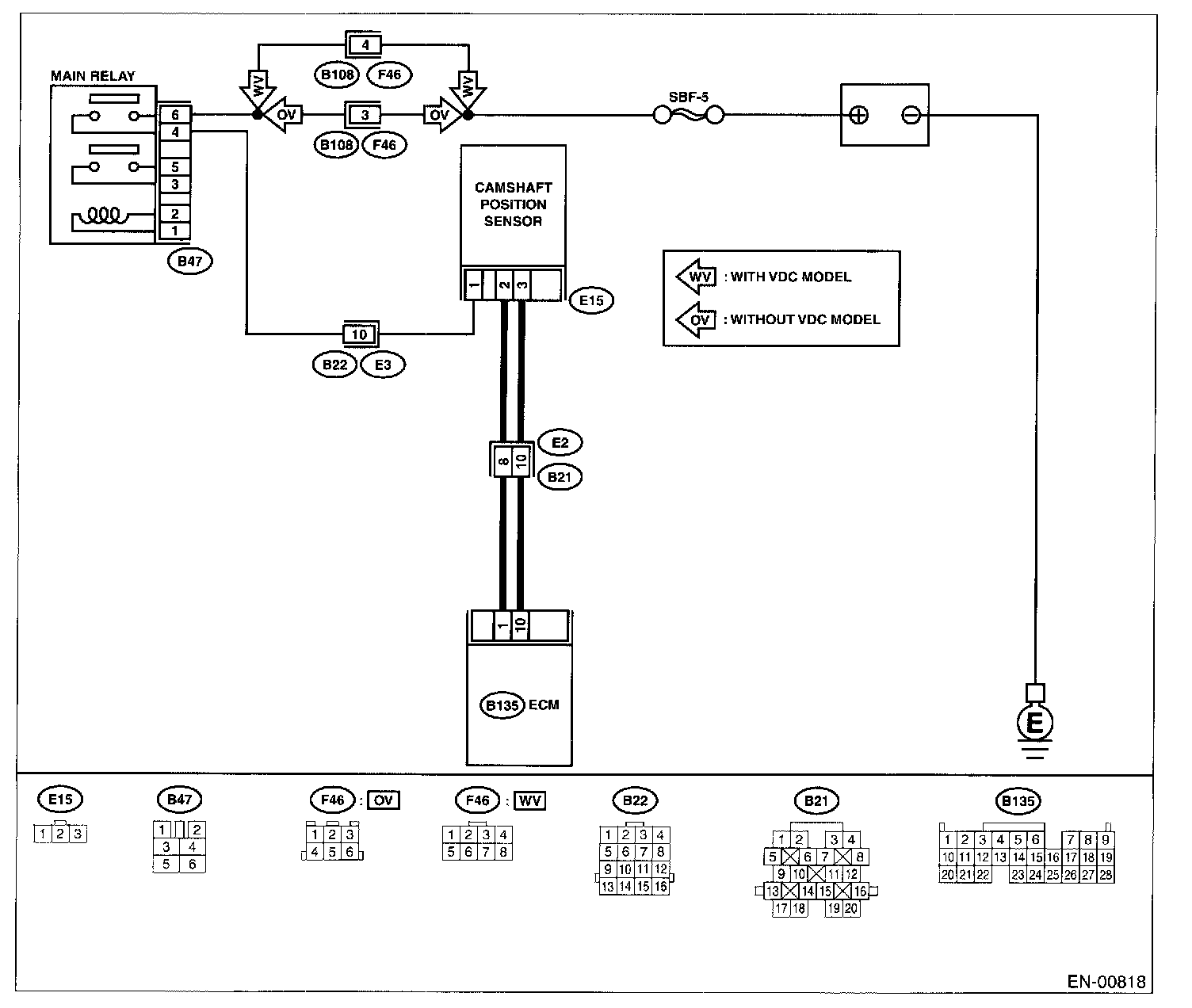

Wiring Diagram:




WIRING DIAGRAM

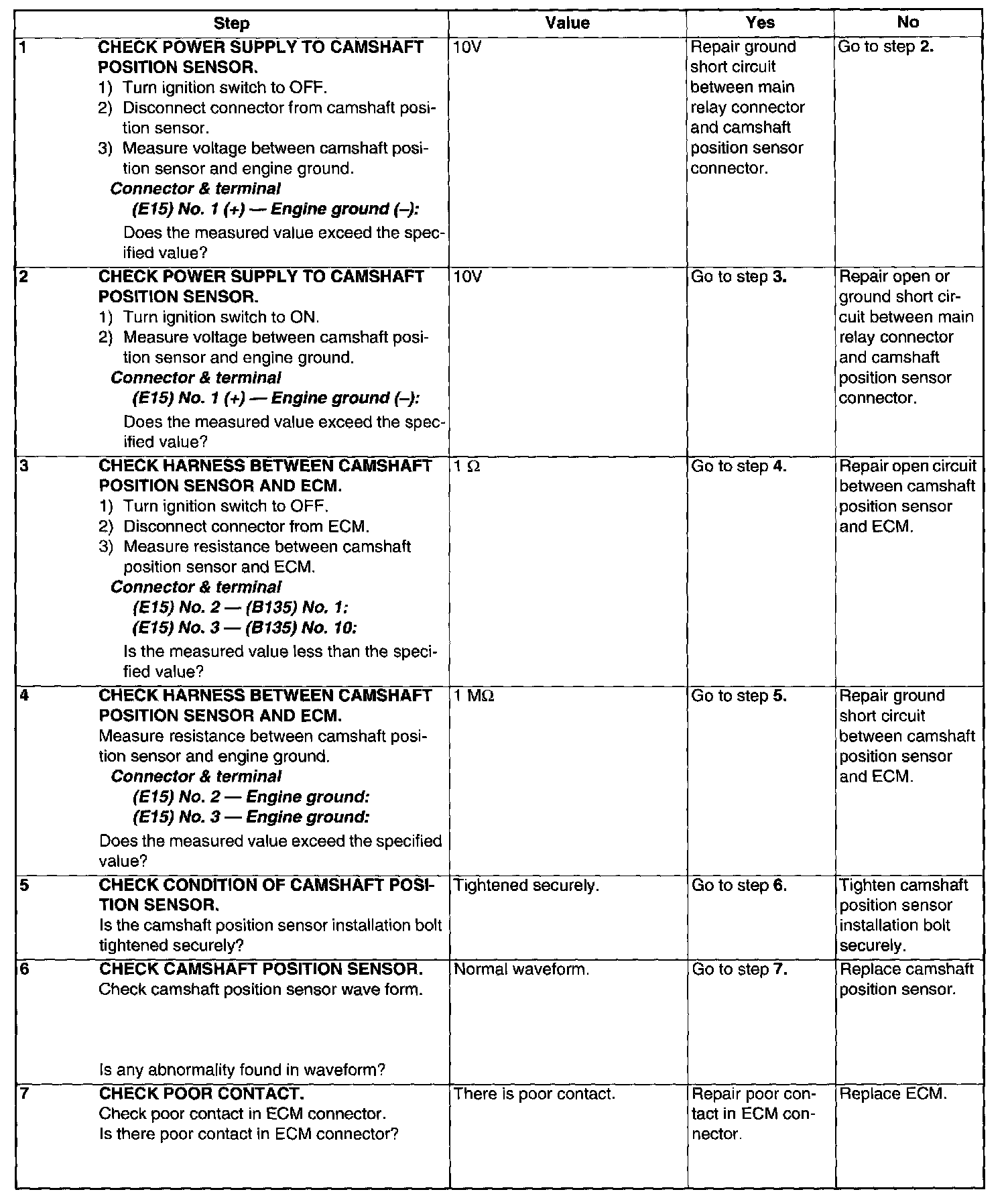

Step 1 - 7:
