P0133
DTC P0133 - O2 SENSOR CIRCUIT SLOW RESPONSE (BANK 1 SENSOR 1)DTC DETECTING CONDITION
Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

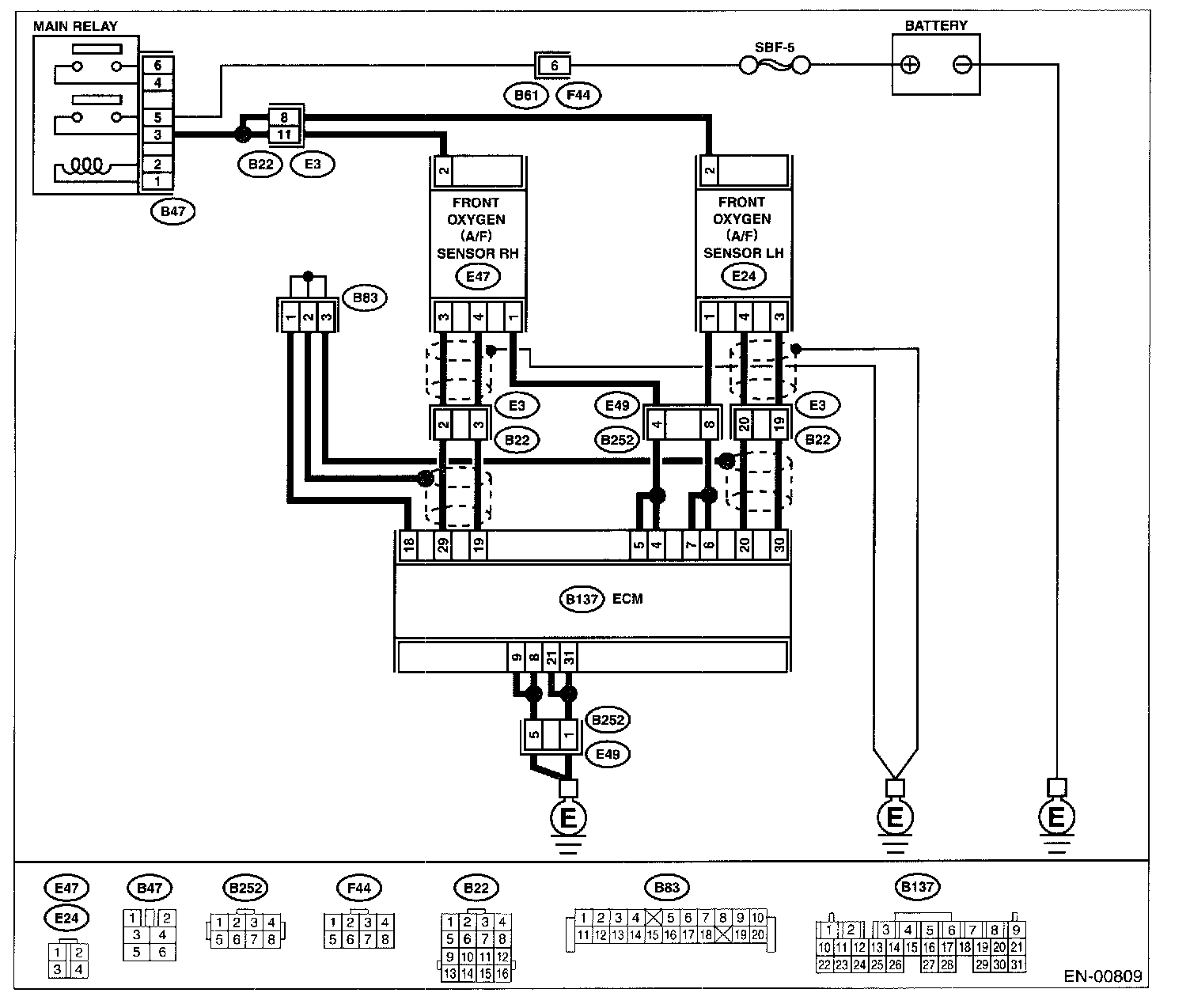

Wiring Diagram:
WIRING DIAGRAM
