P0113

DTC P0113 - INTAKE AIR TEMPERATURE CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
Immediately at fault recognition

TROUBLE SYMPTOM
- Erroneous idling
- Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

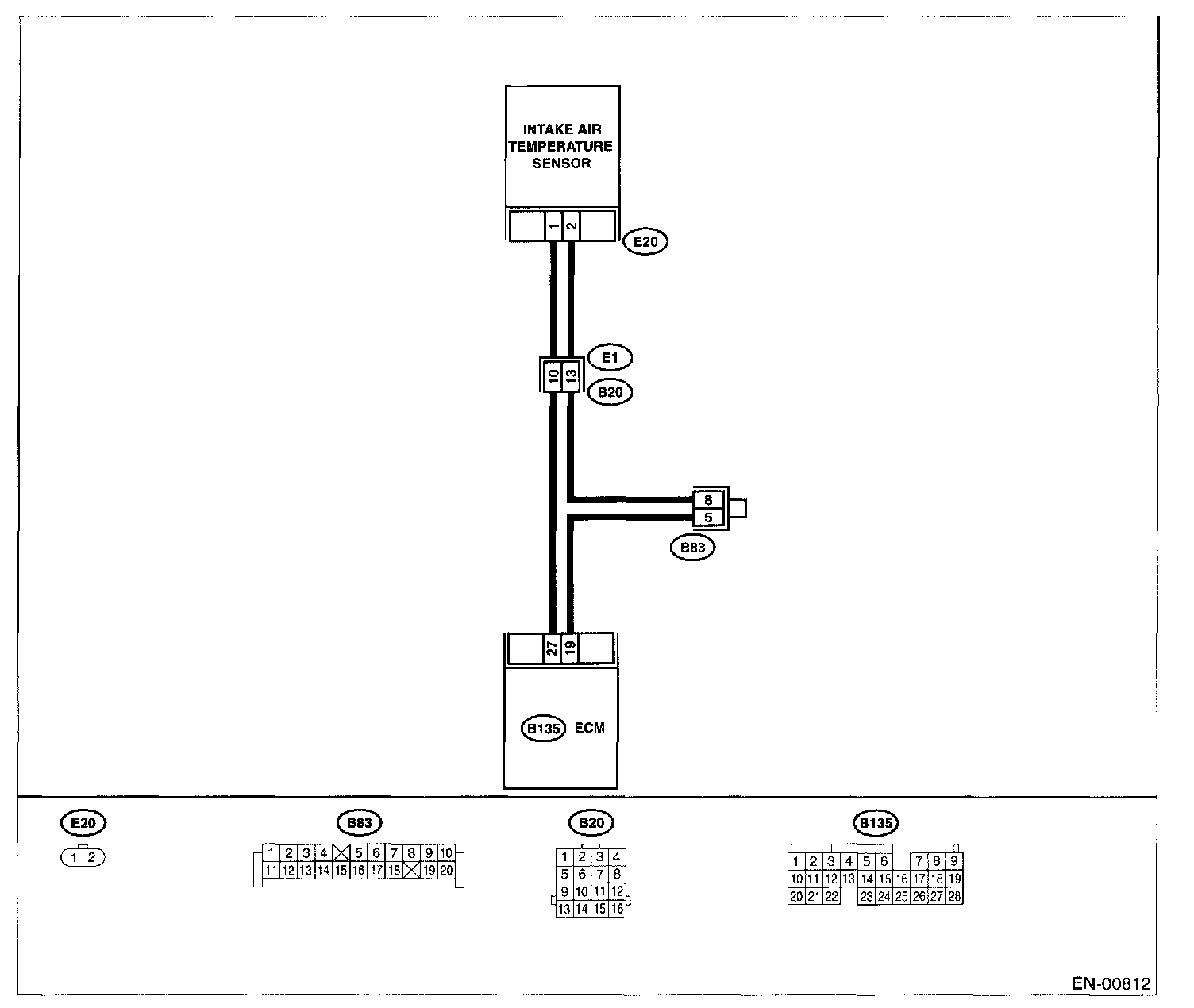

Wiring Diagram:

WIRING DIAGRAM

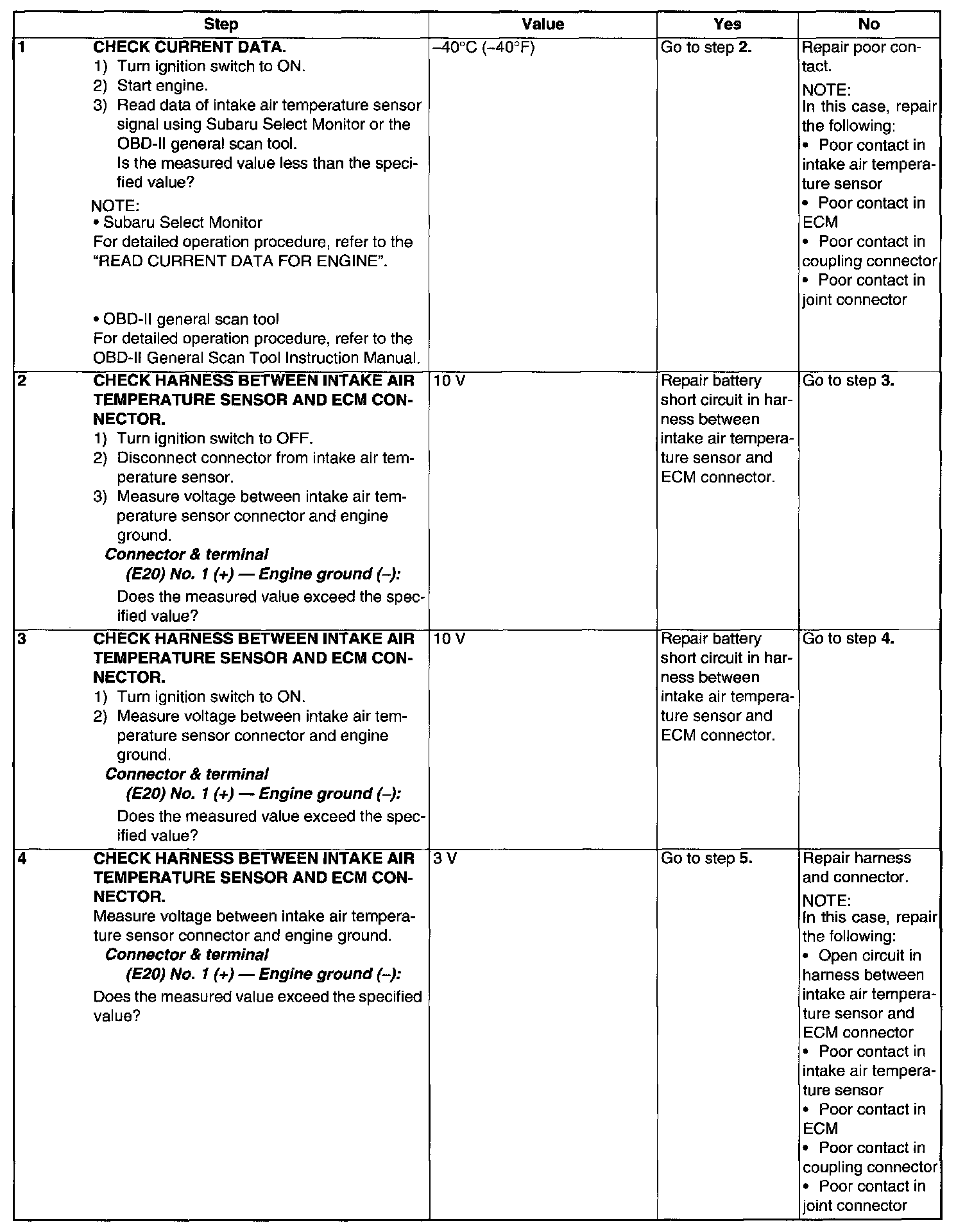

Step 1 - 4:

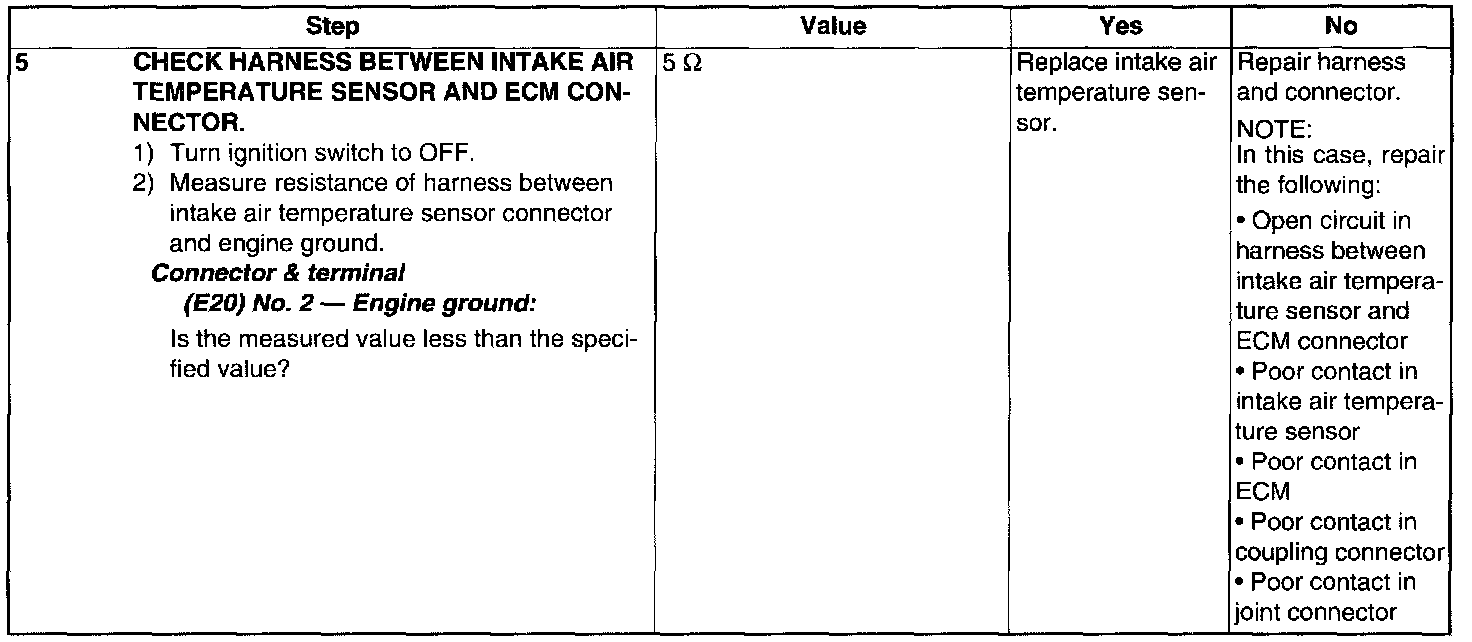

Step 5:
