P0050
DTC P0050 - HO2S HEATER CONTROL CIRCUIT (BANK 2 SENSOR 1)DTC DETECTING CONDITION
Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

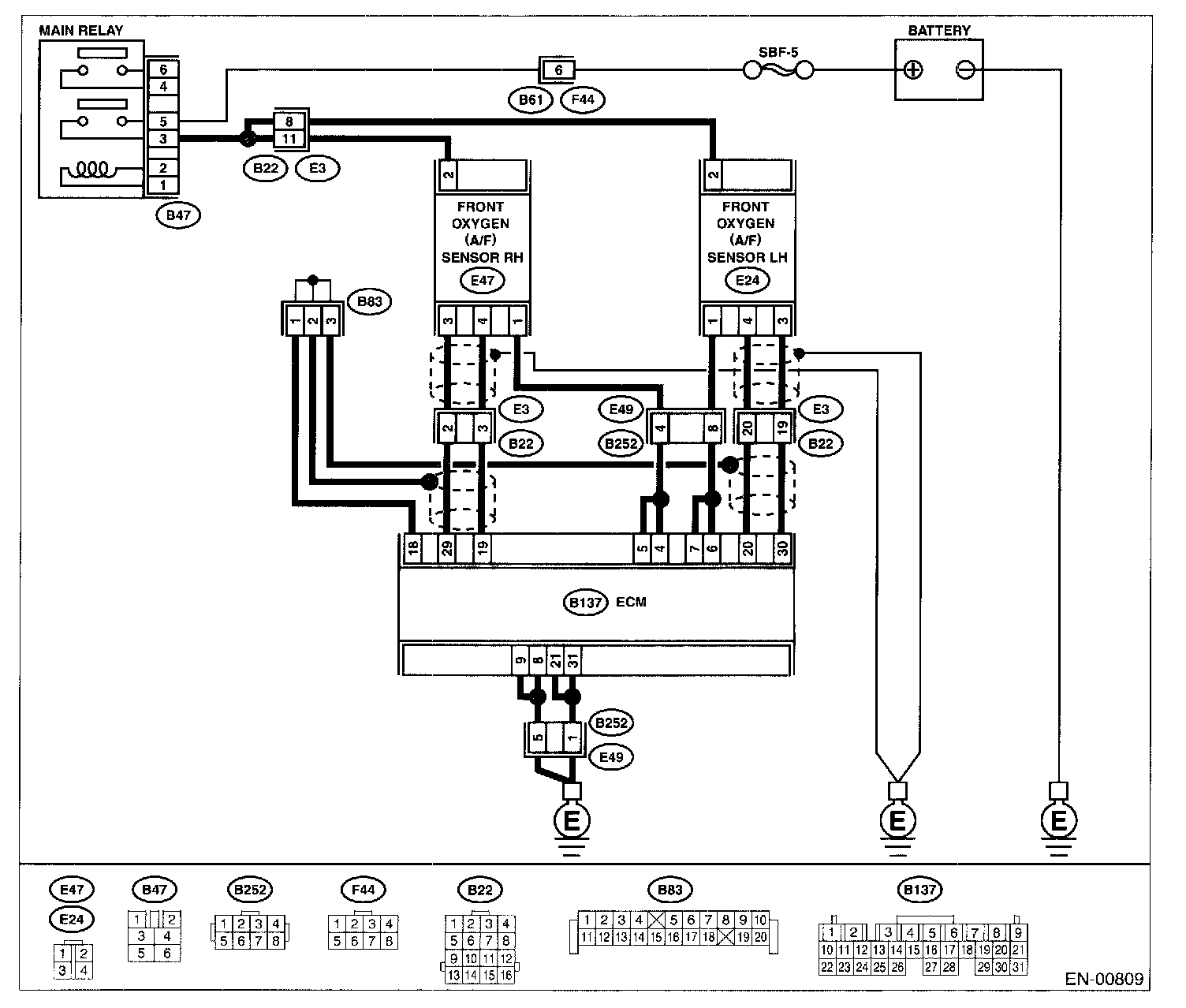

Wiring Diagram:
WIRING DIAGRAM
