Differential Pressure of Pressure Sensor Is Too Big

DTC 74 DIFFERENTIAL PRESSURE OF PRESSURE SENSOR IS TOO BIG

DIAGNOSIS
^ Faulty pressure sensor

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

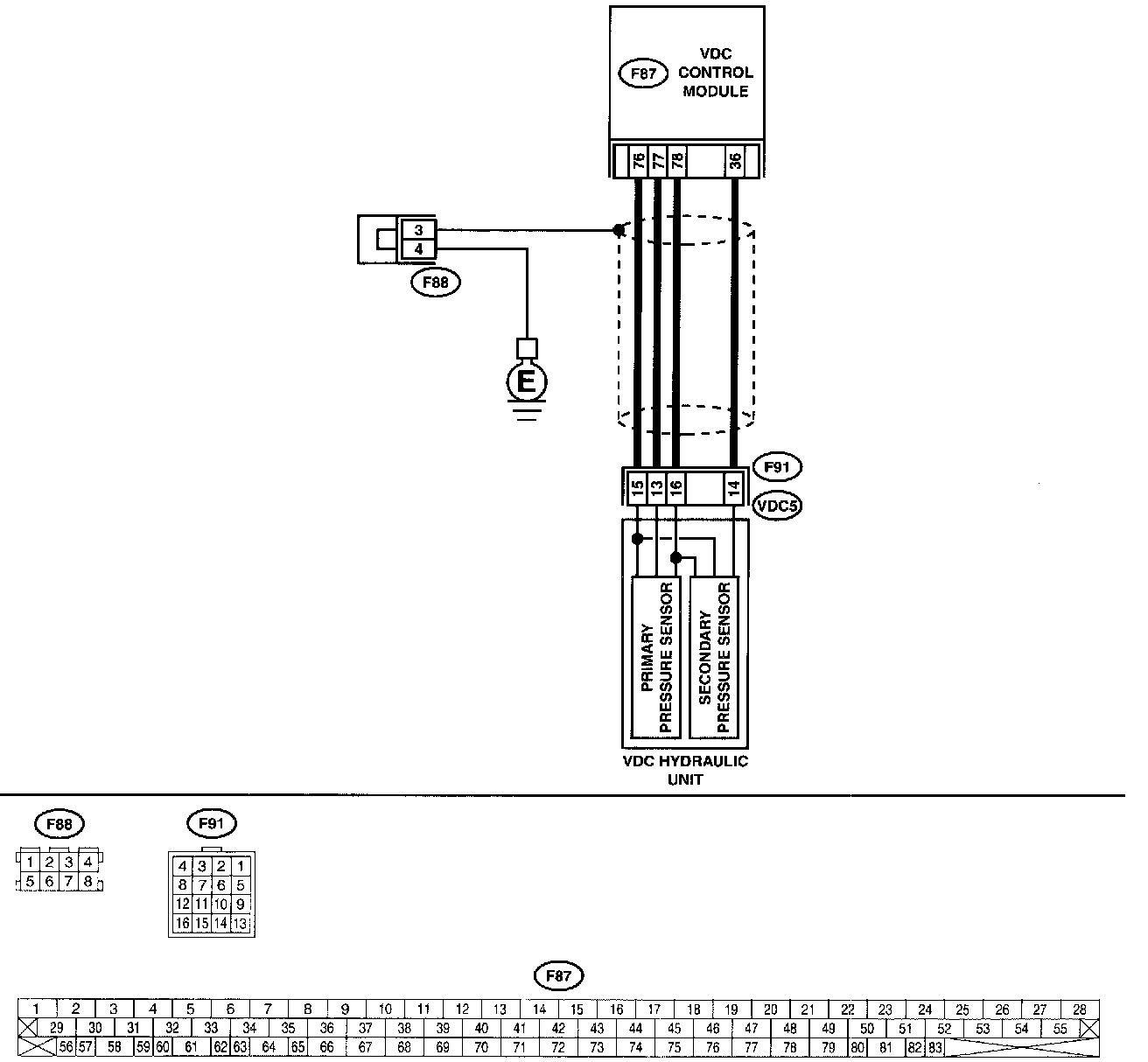

WIRING DIAGRAM:

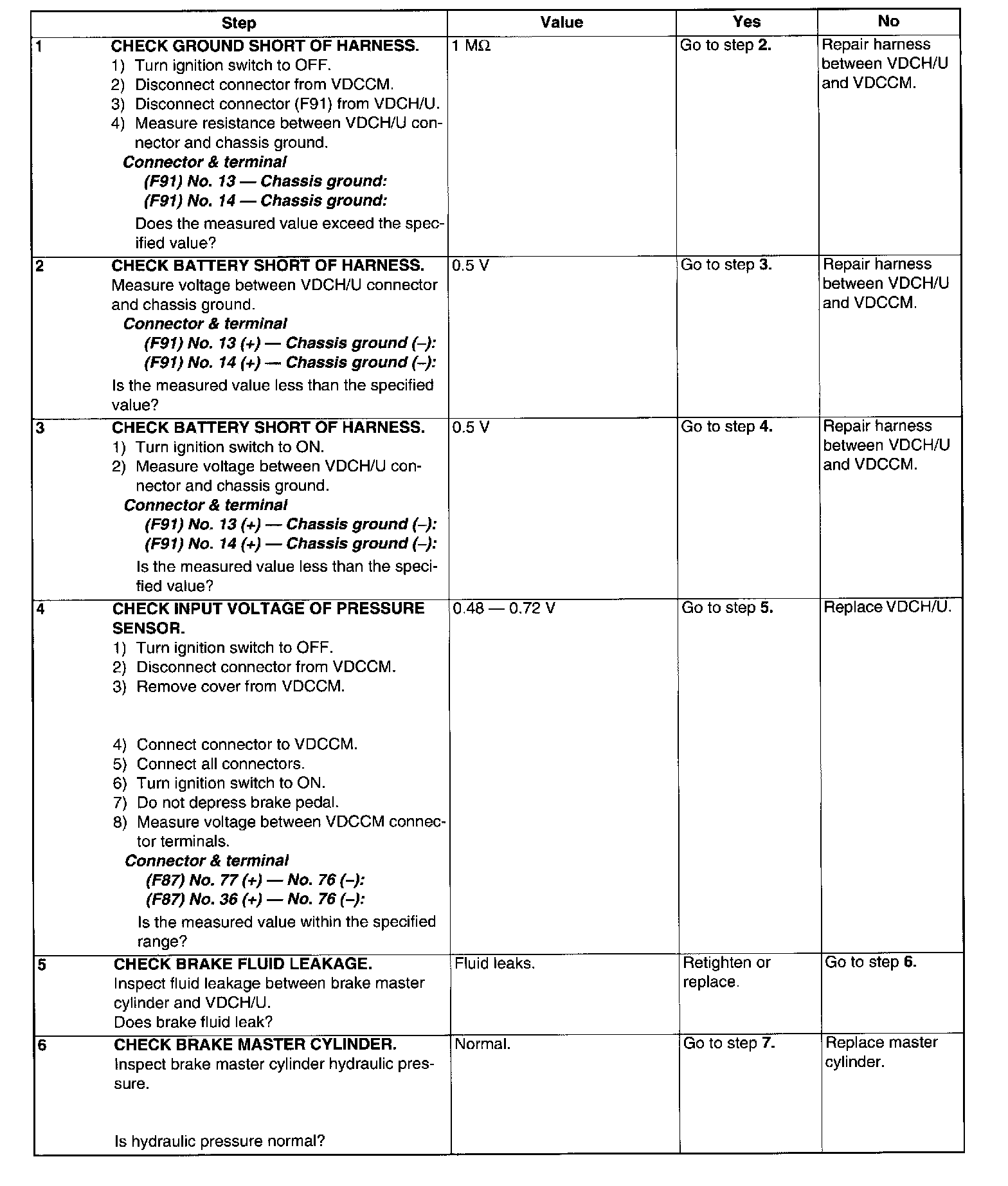

Test 1 Of 2:

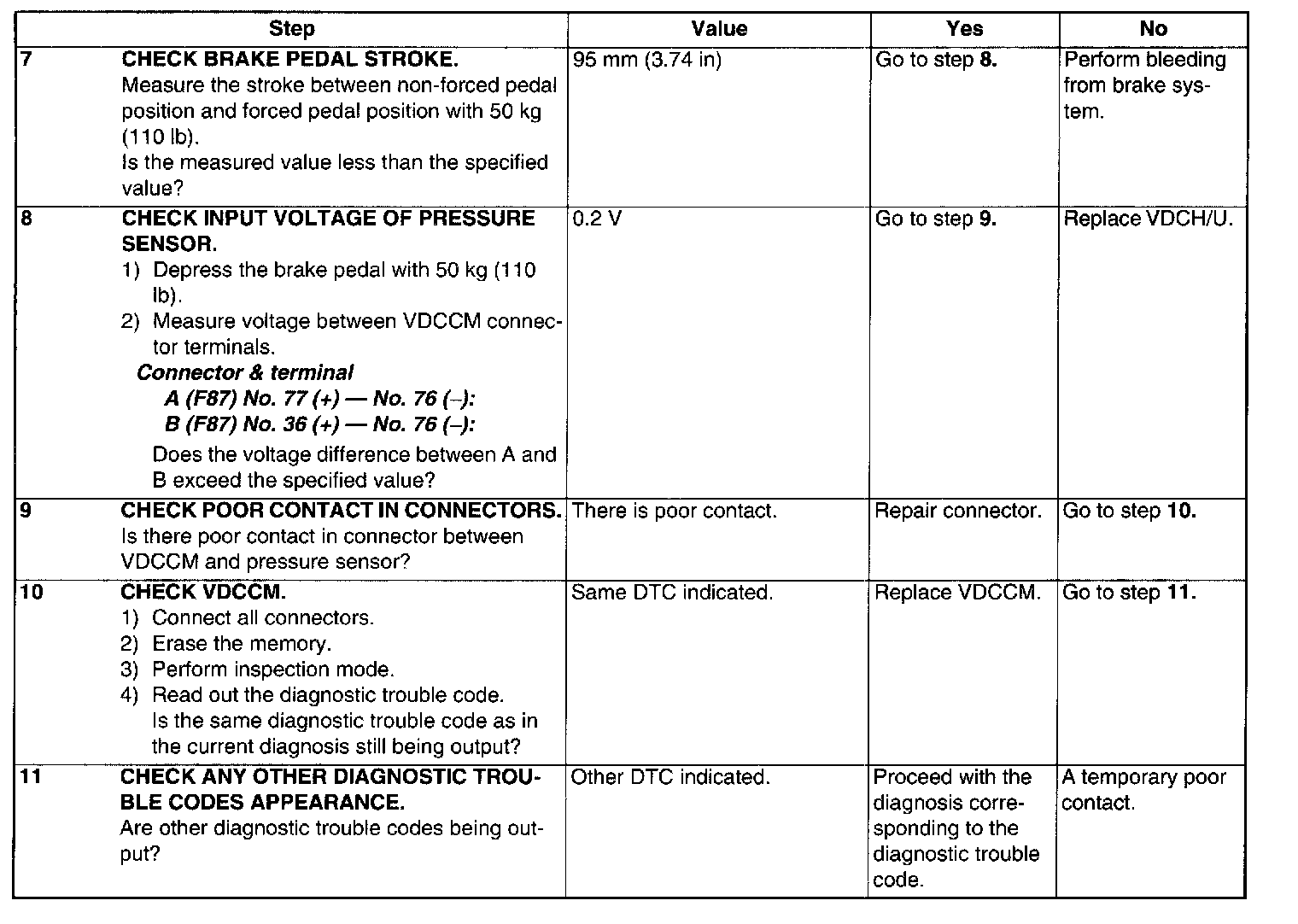

Test 2 Of 2:
