Transmission Control Systems
DTC 74 2-4 BRAKE TIMING SOLENOIDDIAGNOSIS:
Output signal circuit of 2-4 brake timing solenoid is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock.

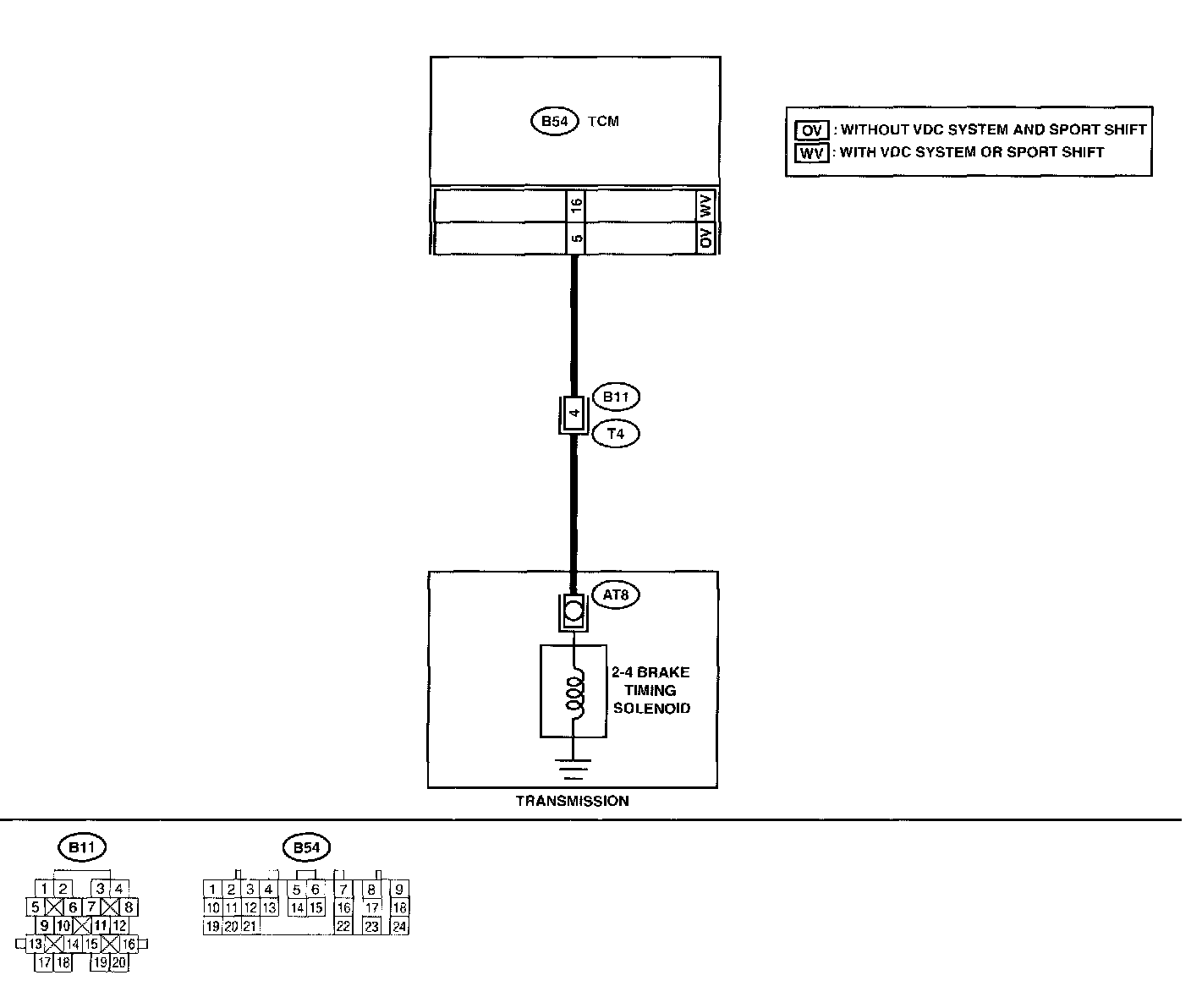

WIRING DIAGRAM:

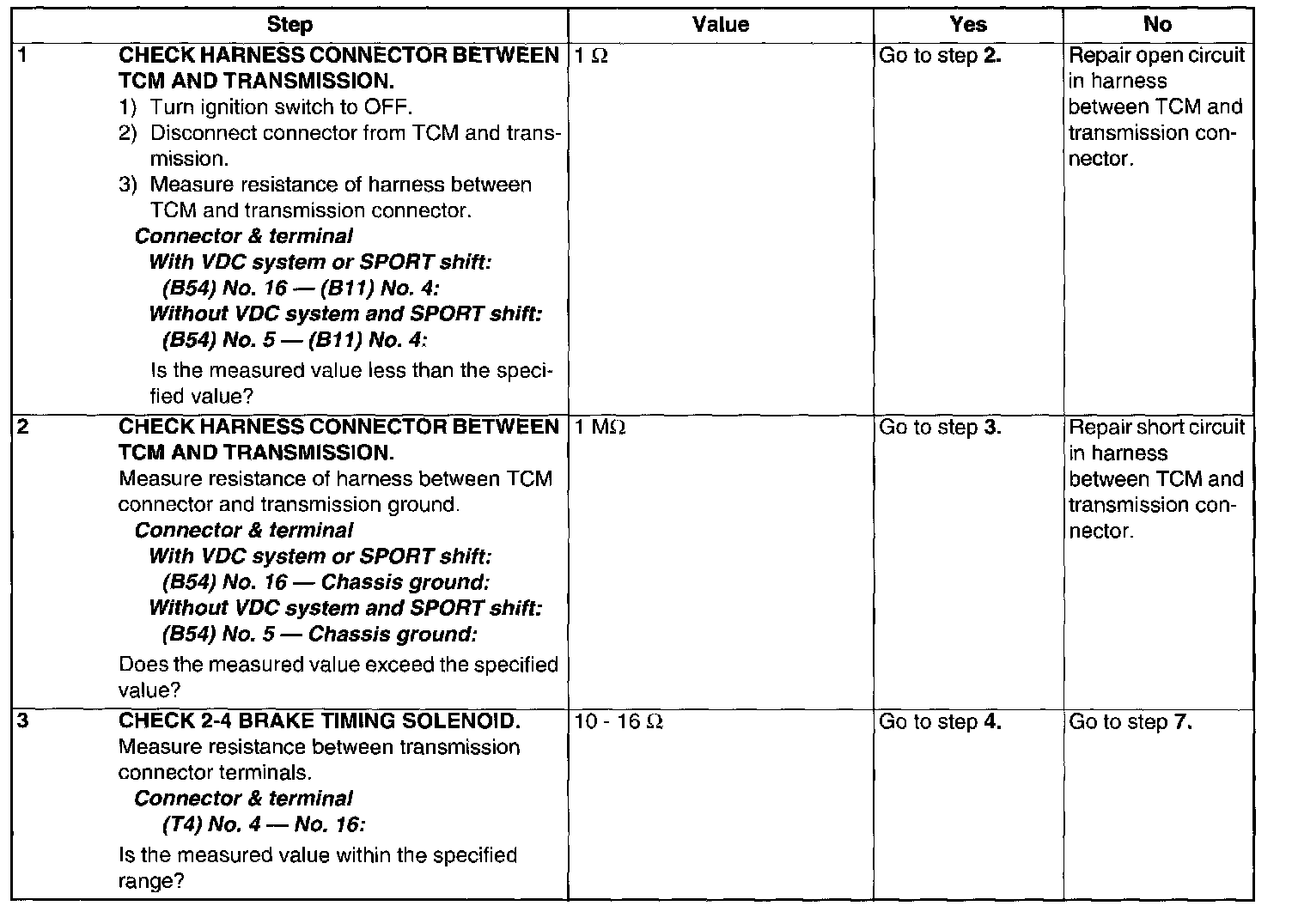

Test 1 Of 3:

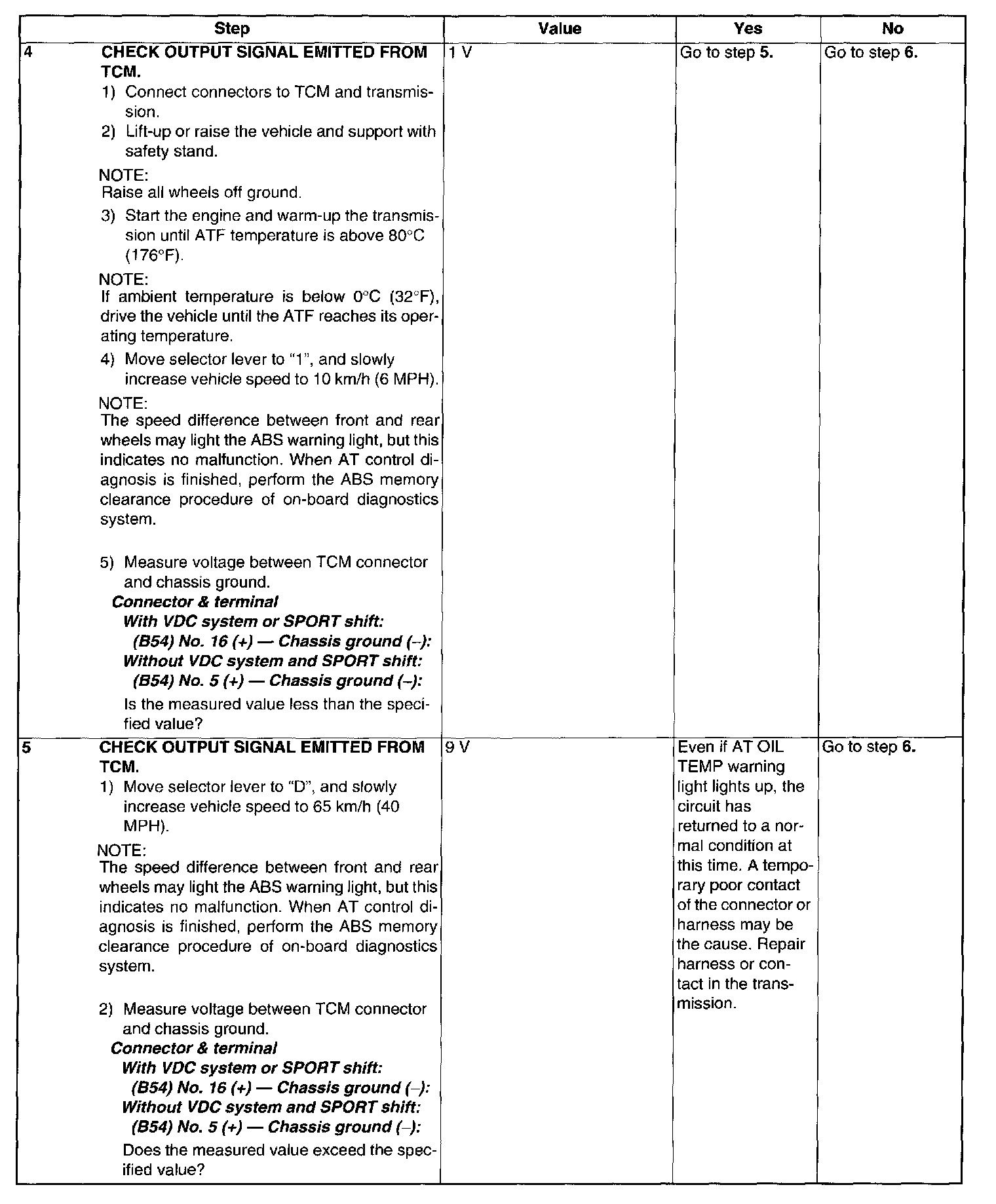

Test 2 Of 3:

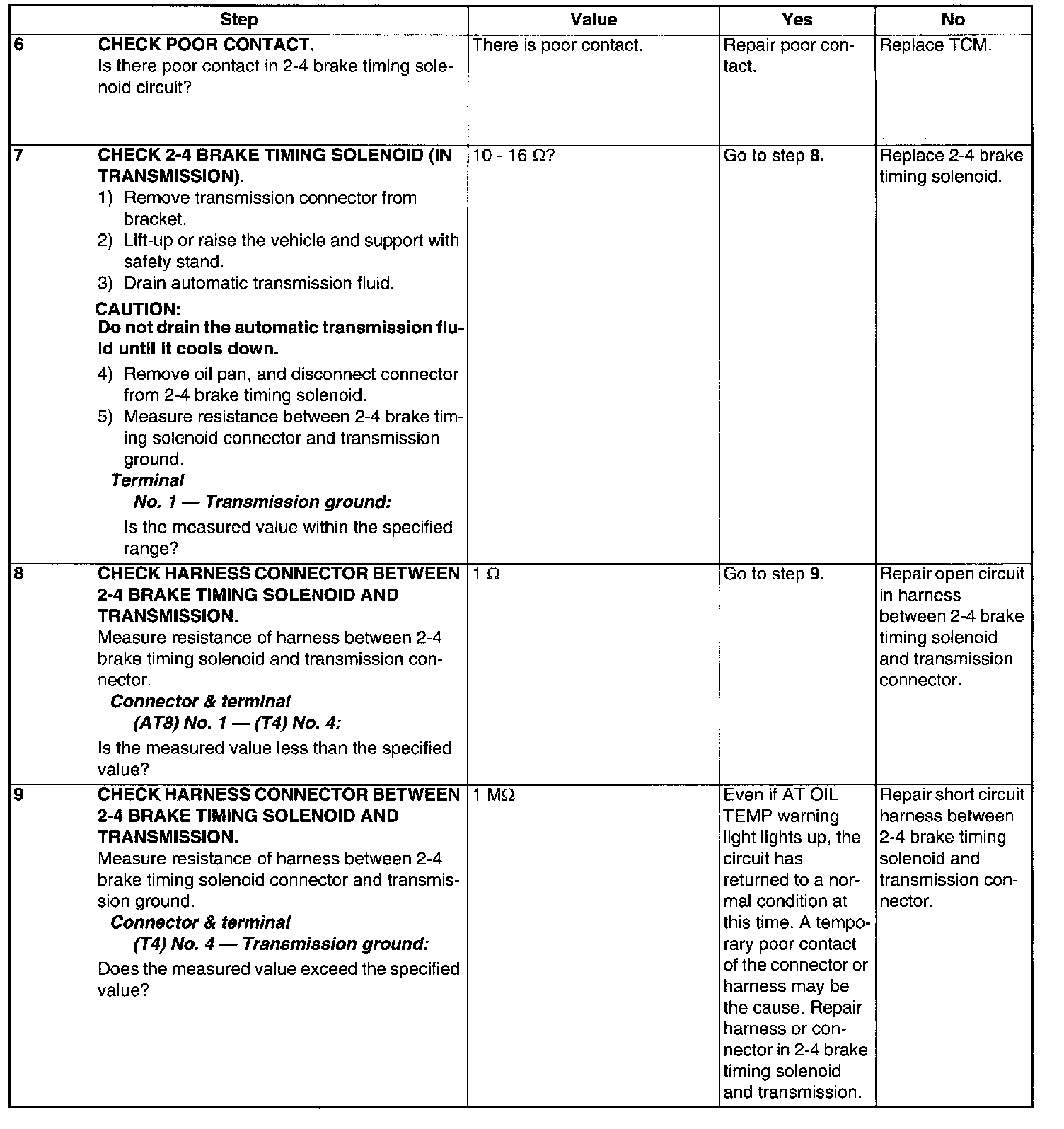

Test 3 Of 3:
DIAGNOSIS:
Output signal circuit of 2-4 brake timing solenoid is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock.
WIRING DIAGRAM:
