Home >> Subaru >> 2003 >> Outback F6-3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 73 >> Vdc System Trouble Code Charts For Select Monitor Results >> Abnormal Lateral G Sensor Output

Abnormal Lateral G Sensor Output

DTC 73 ABNORMAL LATERAL G SENSOR OUTPUT

DIAGNOSIS
^ Faulty lateral G sensor

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

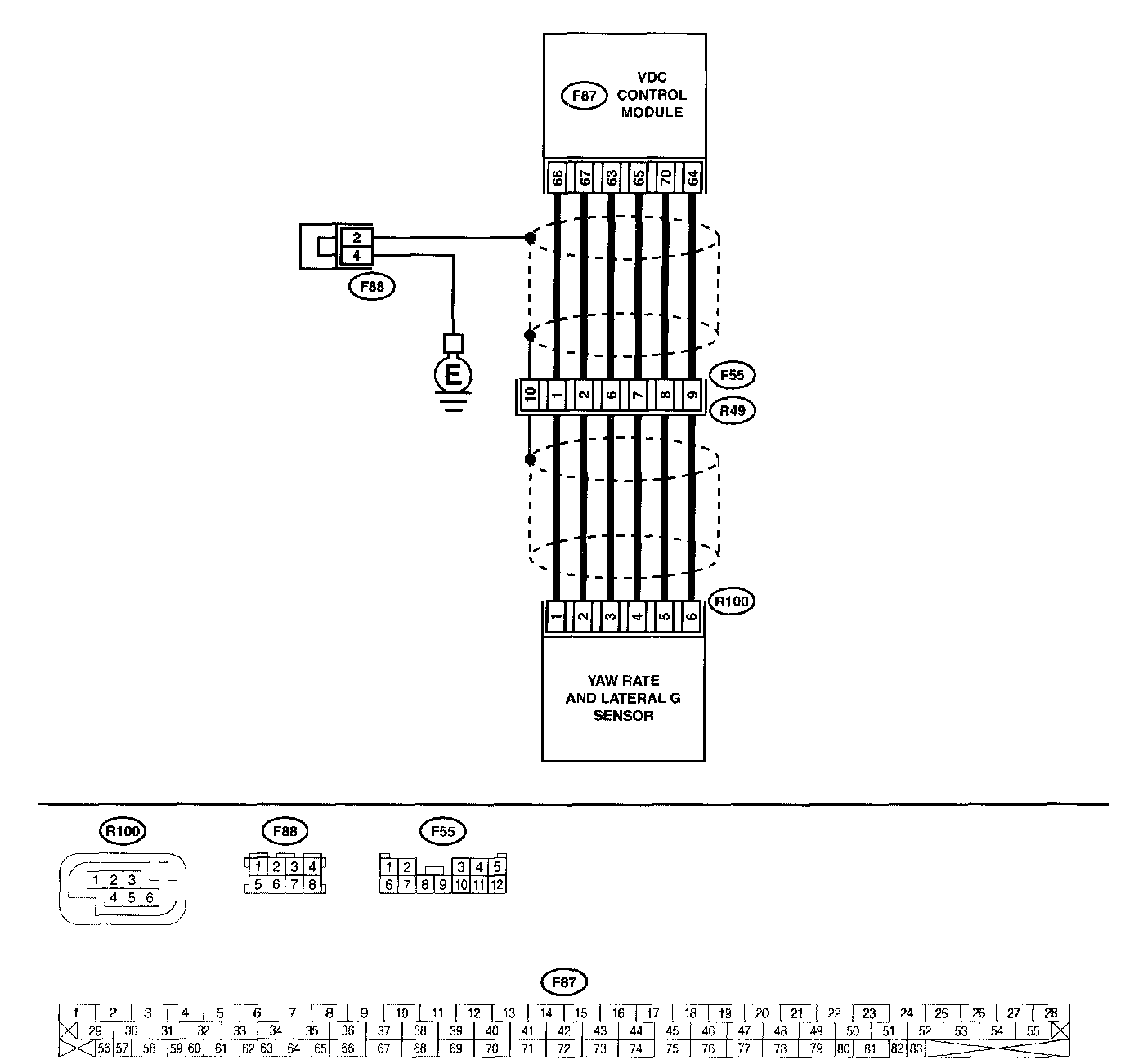

WIRING DIAGRAM:
