Change Range of Yaw Rate Sensor Signal Is Too Big

DTC 72 CHANGE RANGE OF YAW RATE SENSOR SIGNAL IS TOO BIG

DIAGNOSIS
^ Faulty yaw rate sensor

TROUBLE SYMPTOM:
^ VDC does not operate.

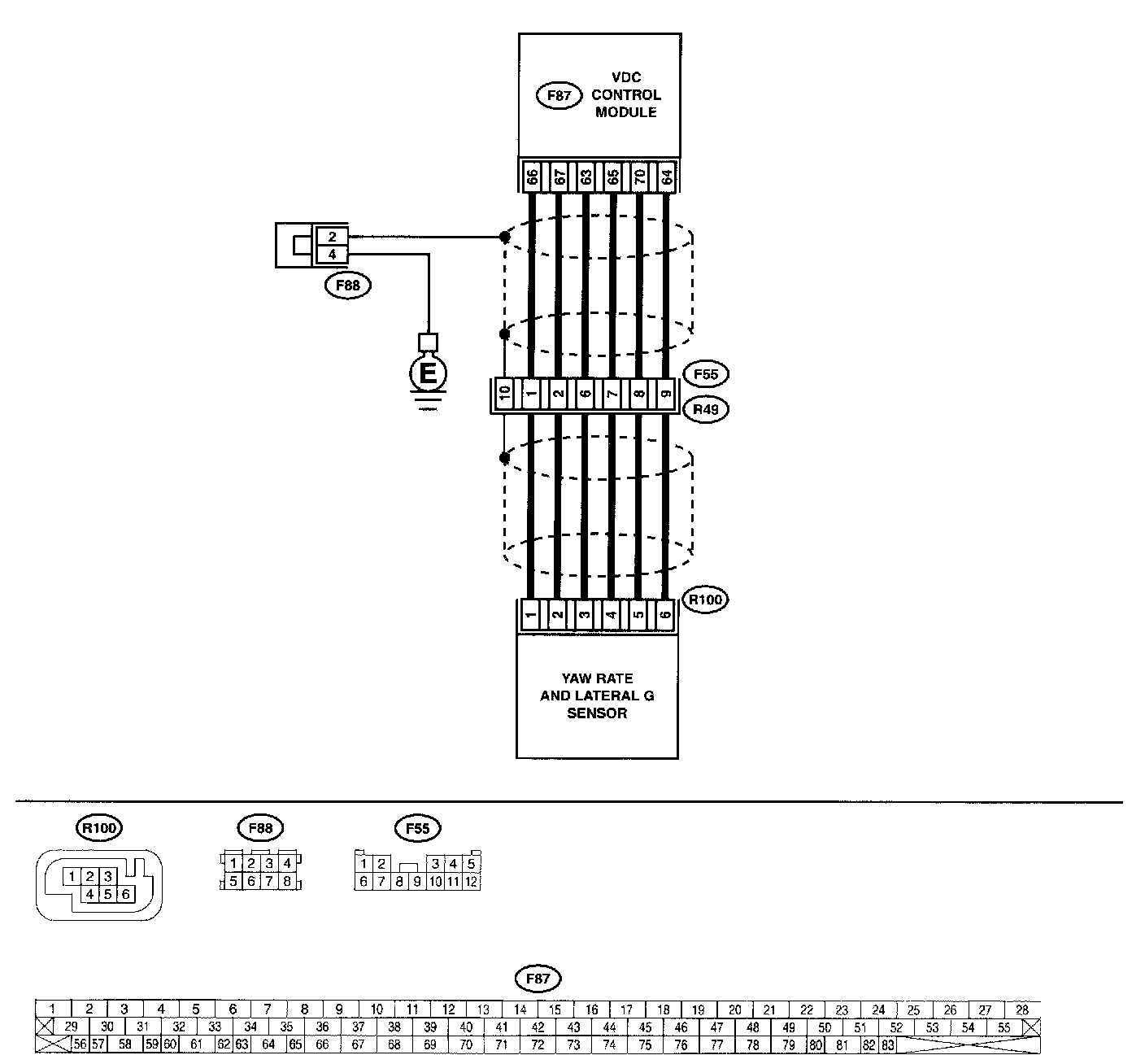

WIRING DIAGRAM:

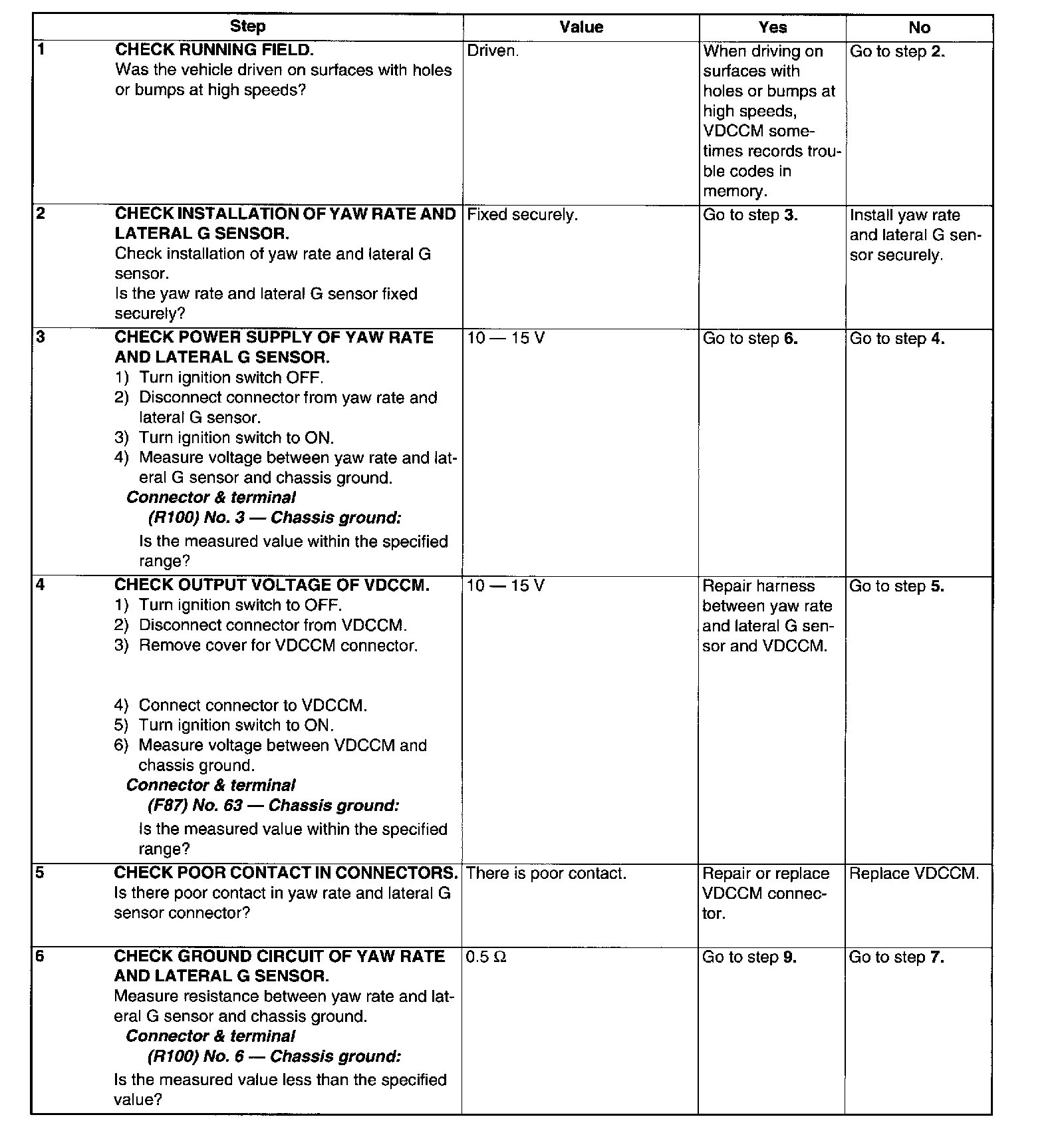

Test 1 Of 3:

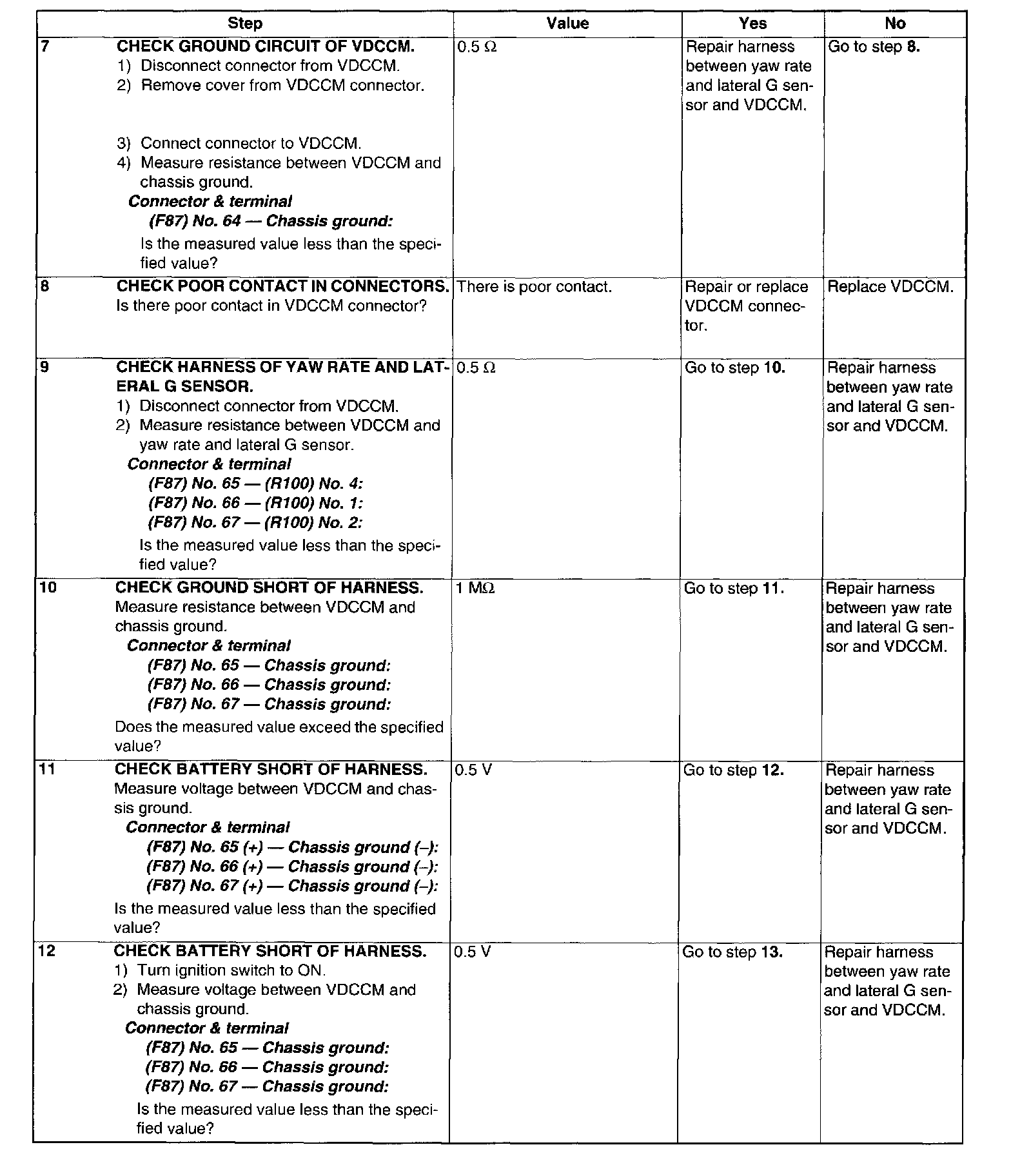

Test 2 Of 3:

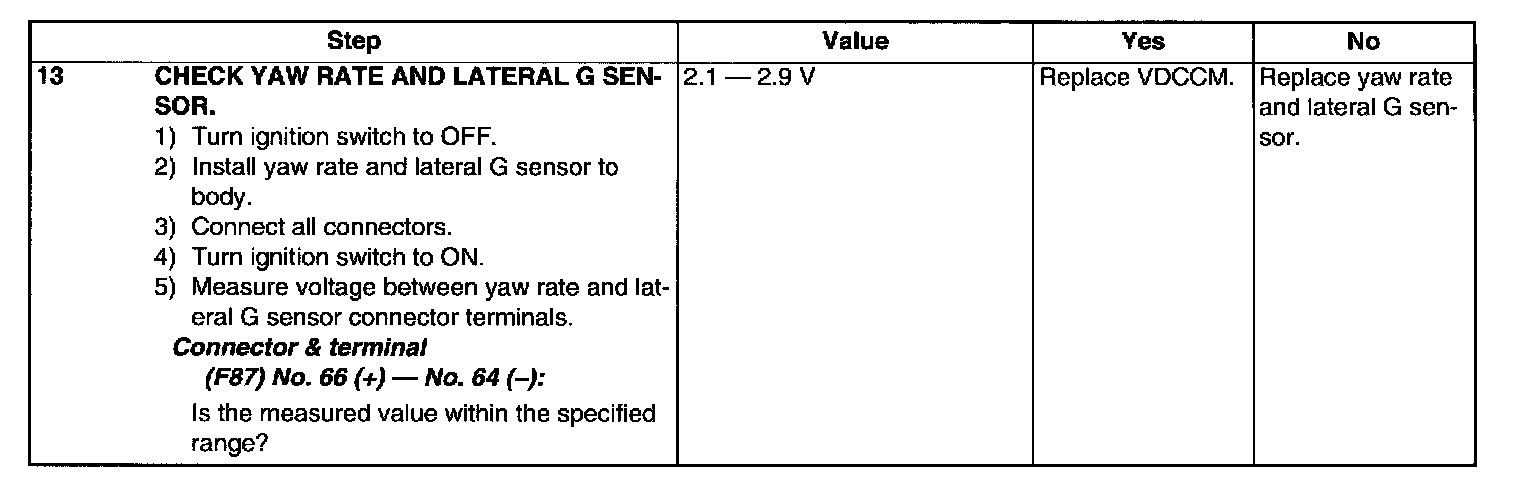

Test 3 Of 3:
