Abnormal Yaw Rate Sensor Output

DTC 72 ABNORMAL YAW RATE SENSOR OUTPUT

DIAGNOSIS
^ Faulty yaw rate sensor

TROUBLE SYMPTOM:
^ VDC does not operate.

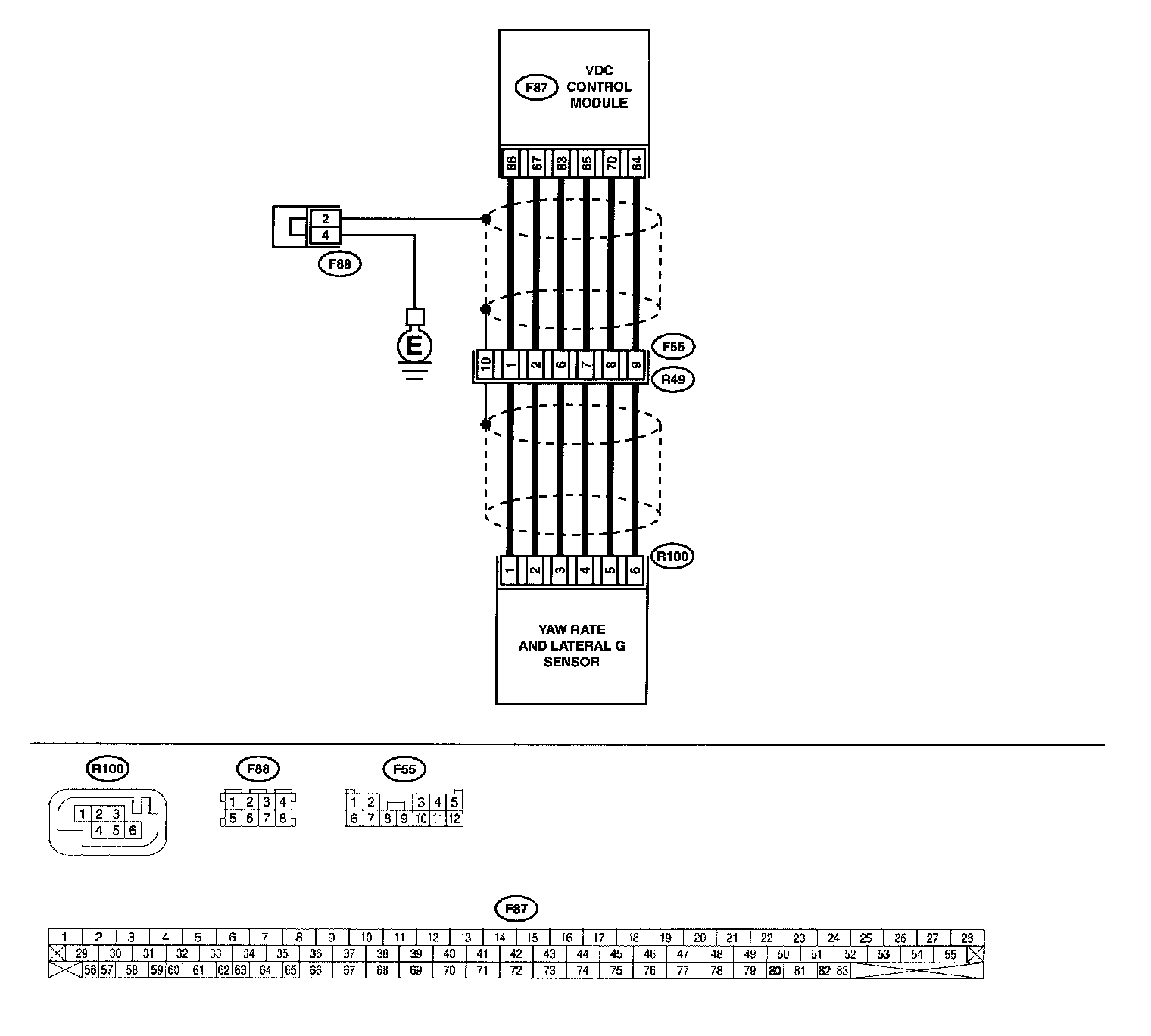

WIRING DIAGRAM:

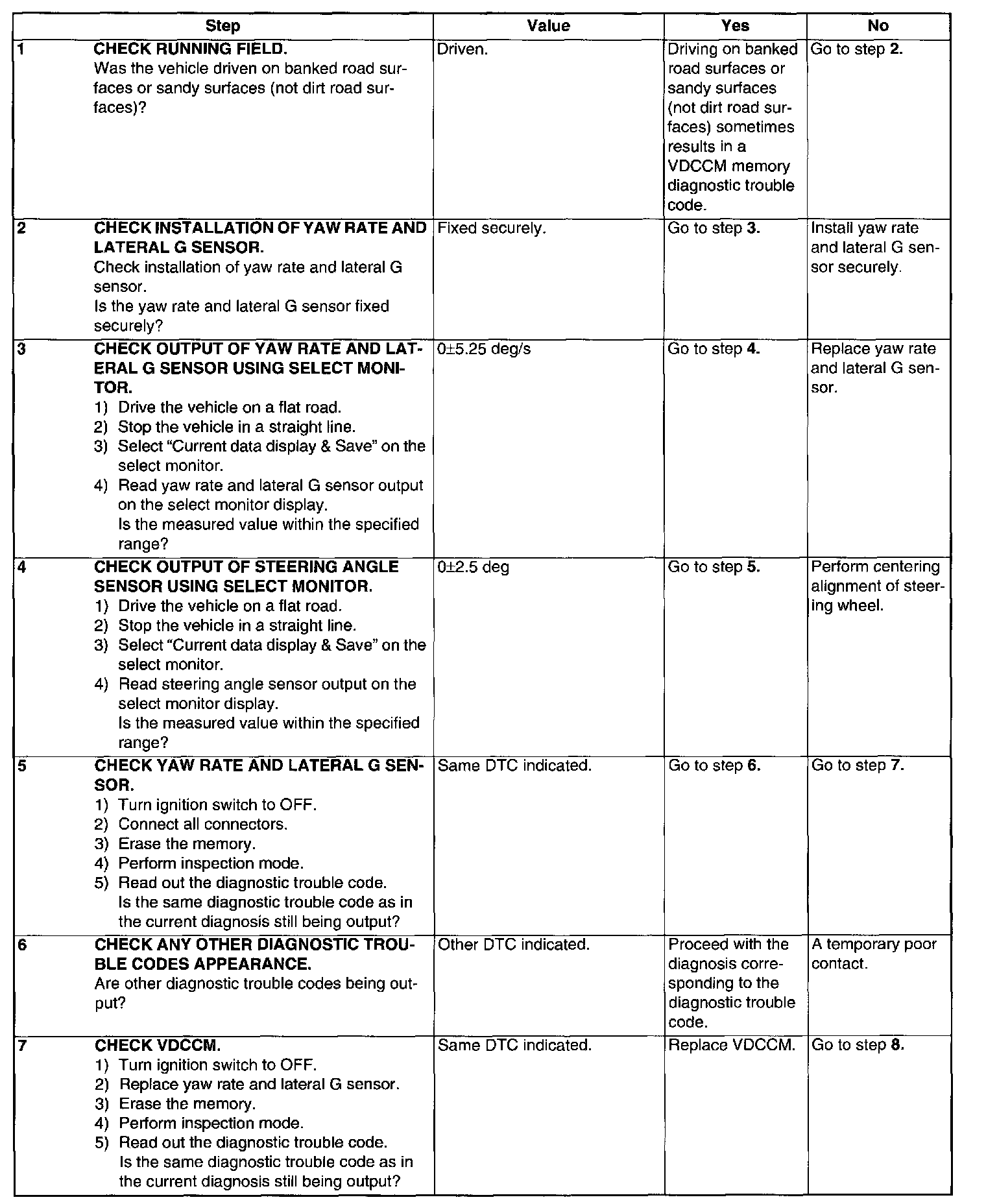

Test 1 Of 2:

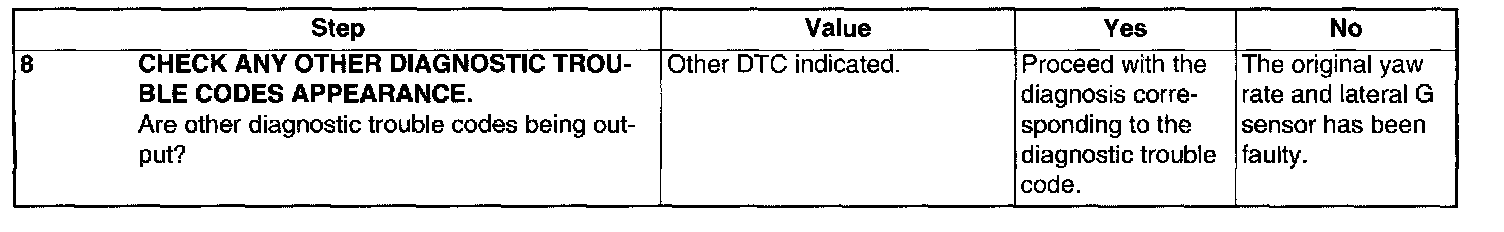

Test 2 Of 2:
