Transmission Control Systems

DTC 72 SHIFT SOLENOID 2

DIAGNOSIS:
Output signal circuit of shift solenoid 2 is open or shorted.

TROUBLE SYMPTOM:
Does not shift.

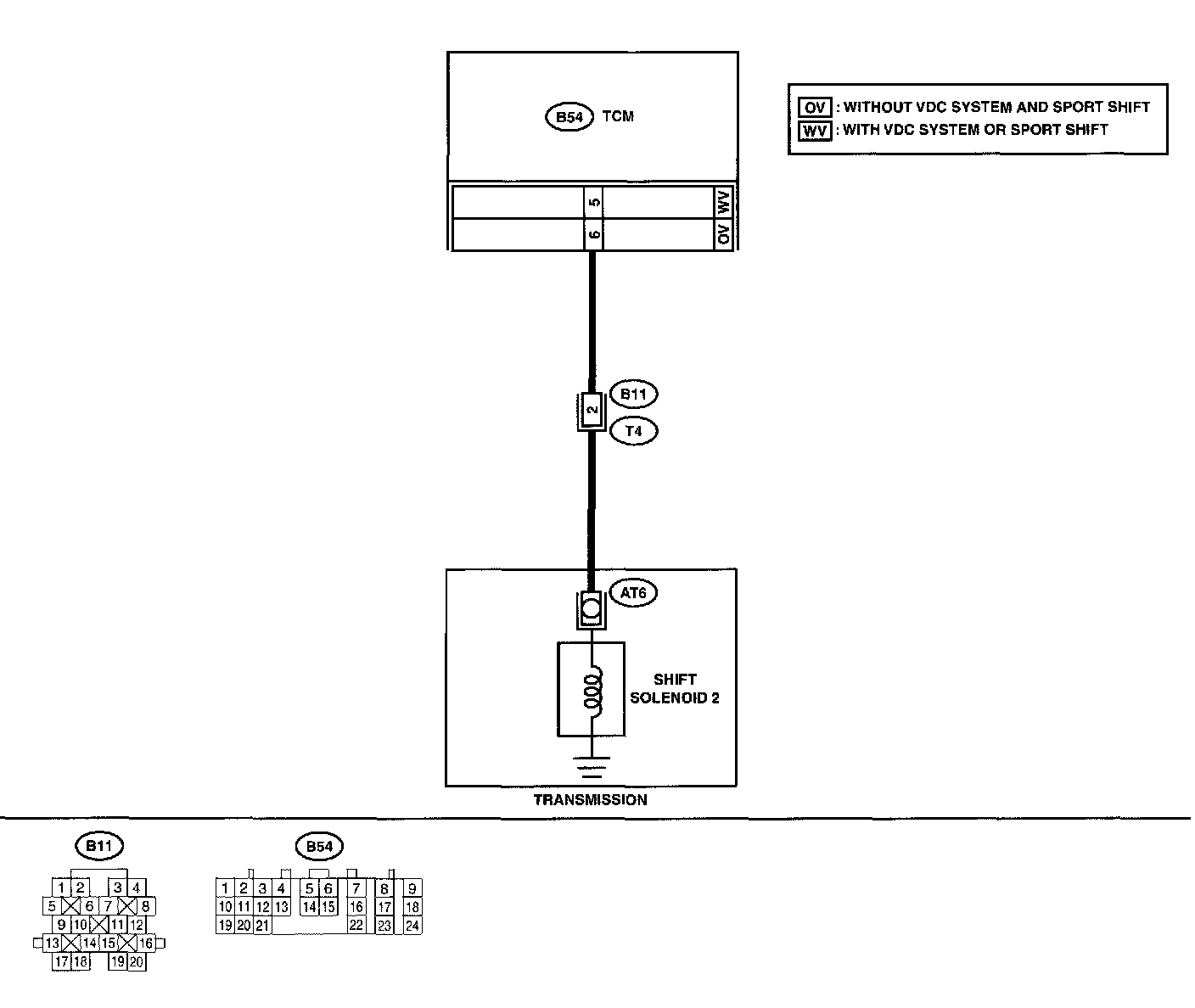

WIRING DIAGRAM:

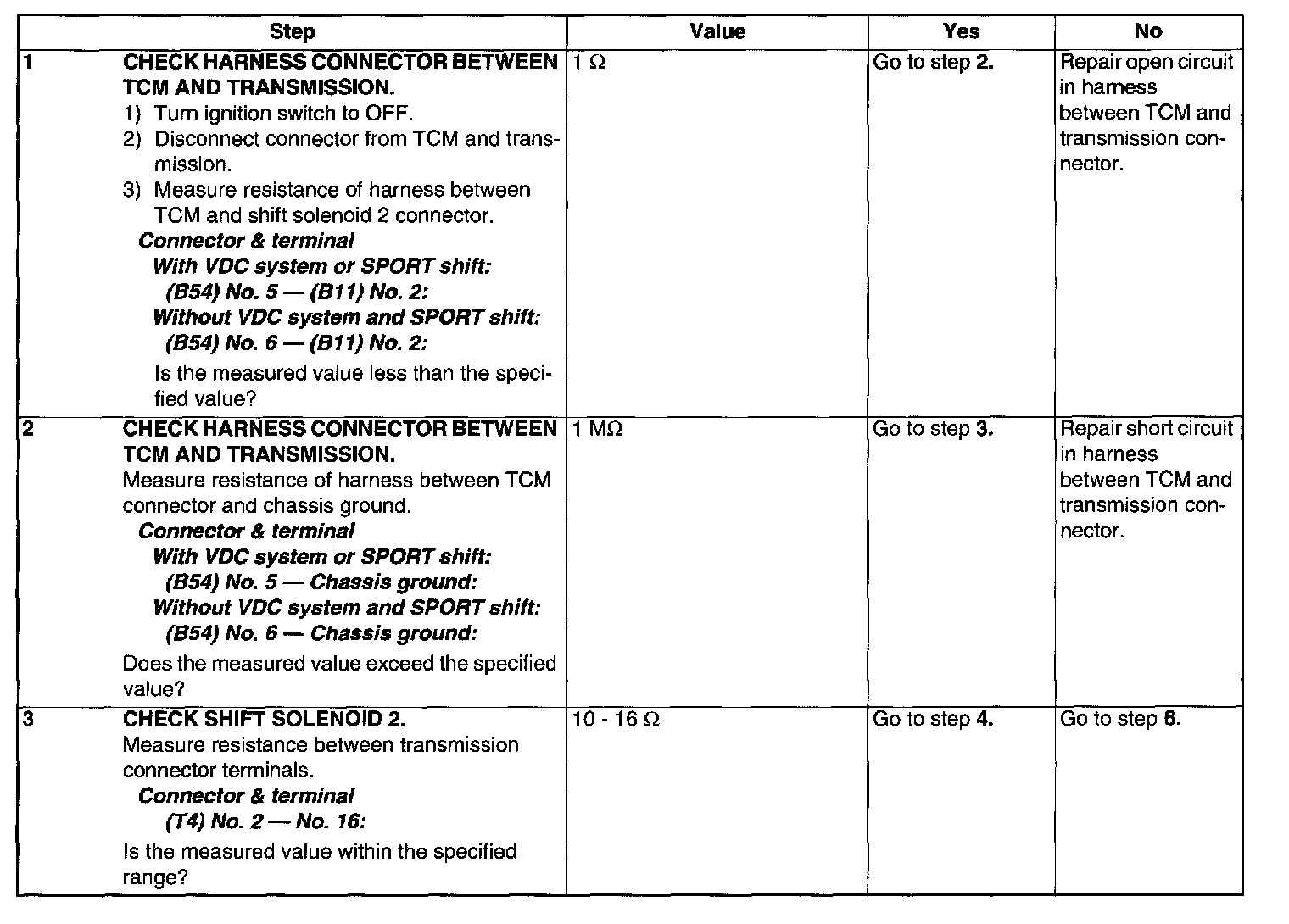

Test 1 Of 3:

Test 2 Of 3:

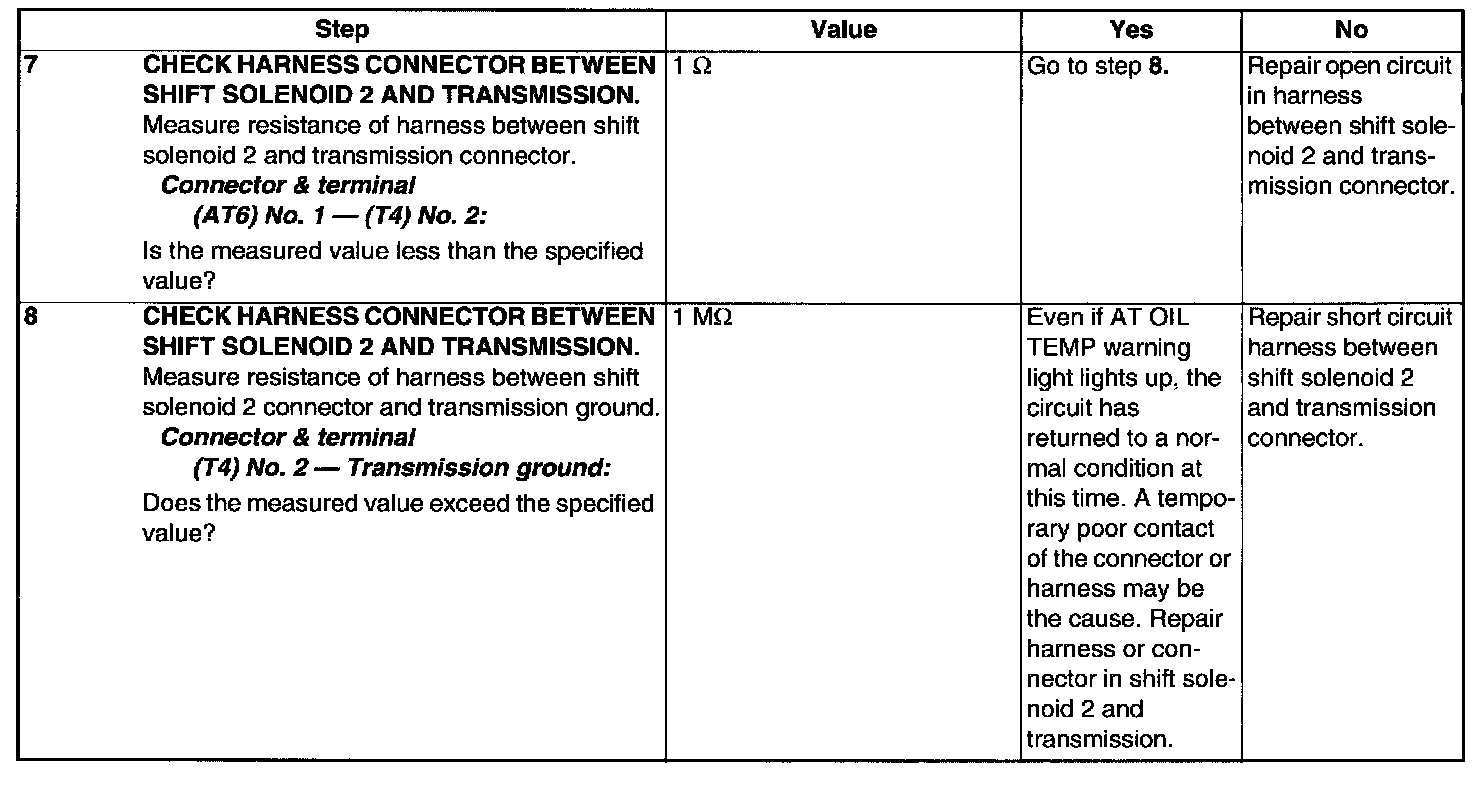

Test 3 Of 3:
