Steering Angle Sensor Malfunction

DTC 71 STEERING ANGLE SENSOR MALFUNCTION

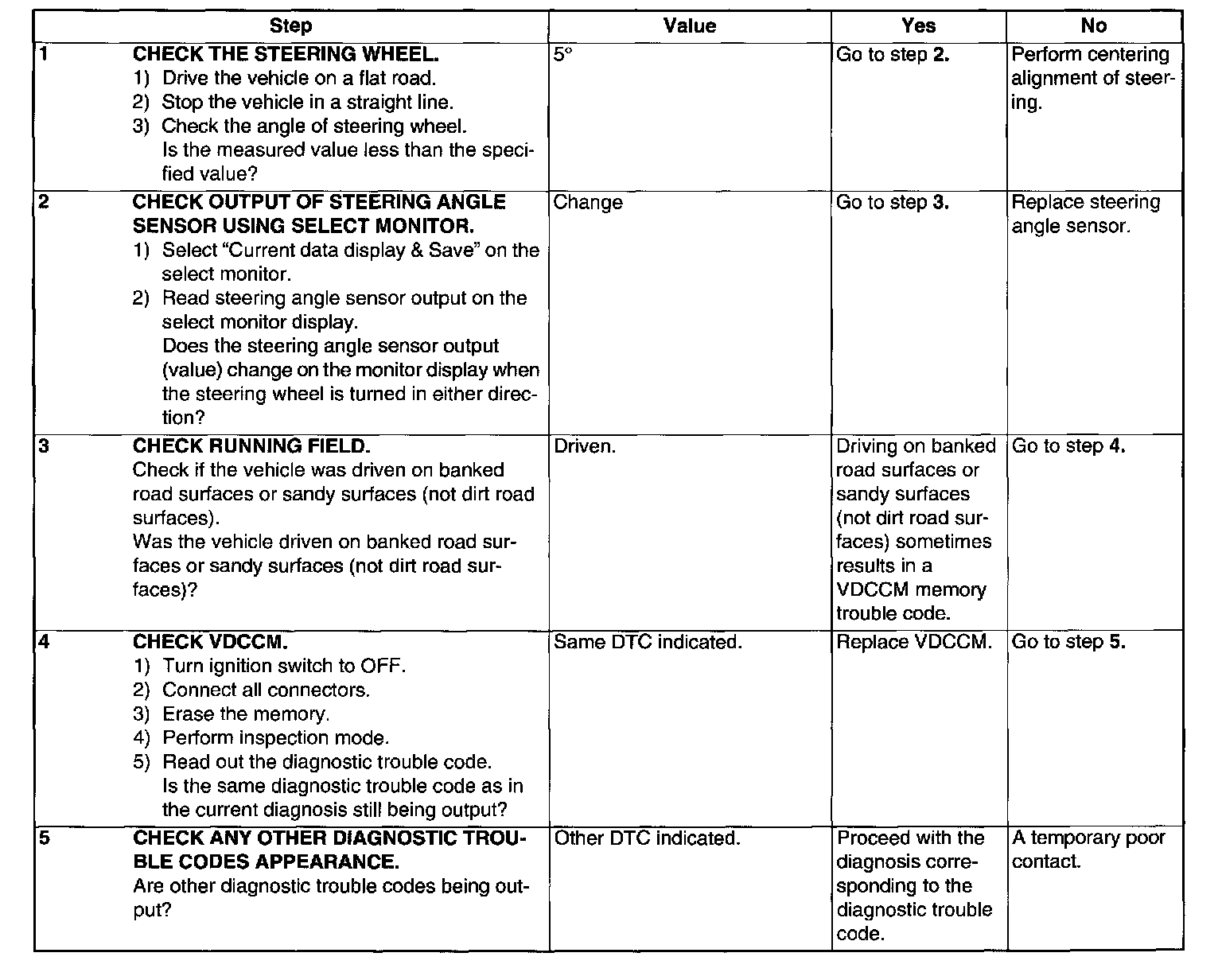

DIAGNOSIS
^ Faulty steering angle sensor

TROUBLE SYMPTOM:
^ VDC does not operate.

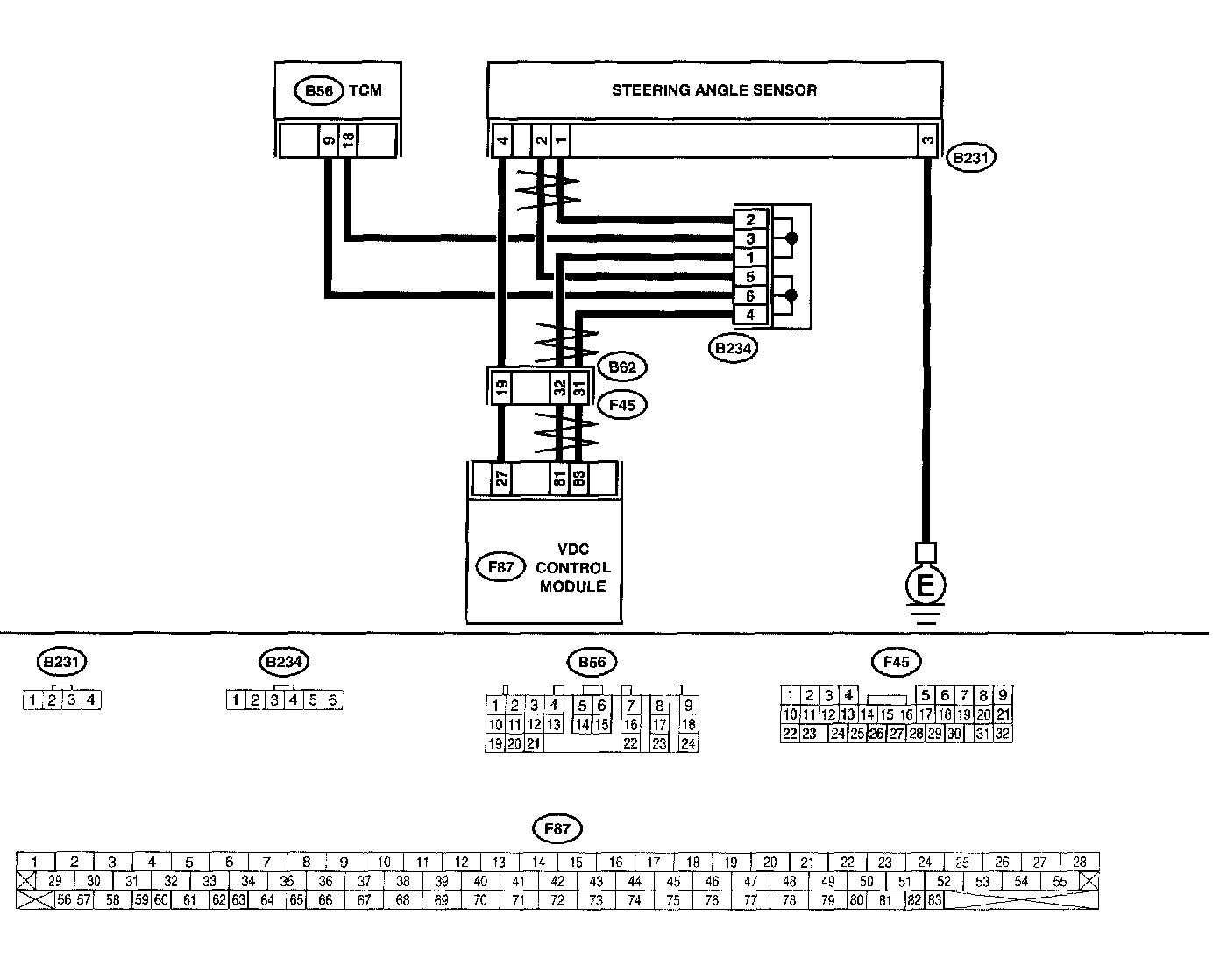

WIRING DIAGRAM:
