No Signal From Steering Angle Sensor

DTC 71 NO SIGNAL FROM STEERING ANGLE SENSOR

DIAGNOSIS
^ Faulty steering angle sensor

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

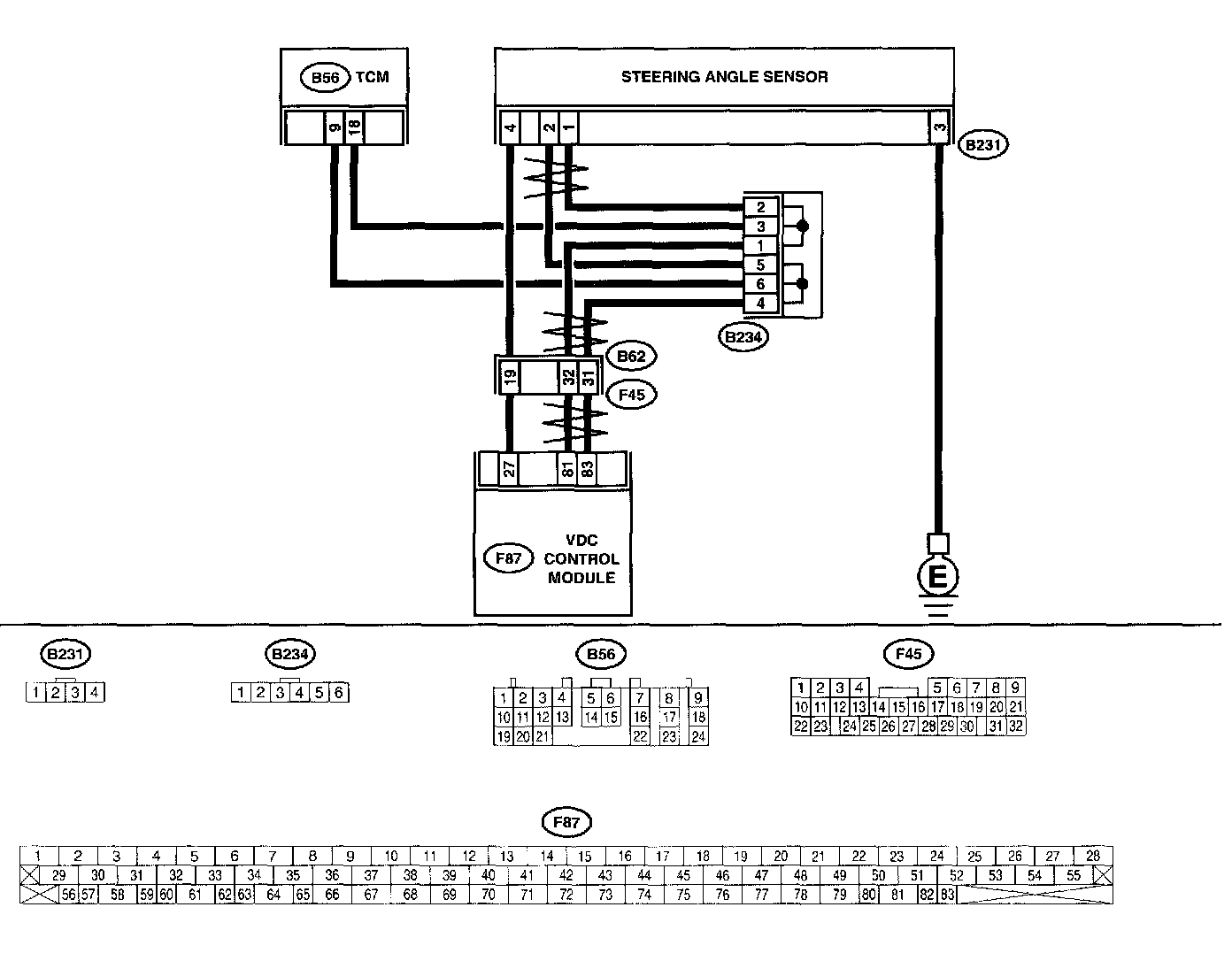

WIRING DIAGRAM:

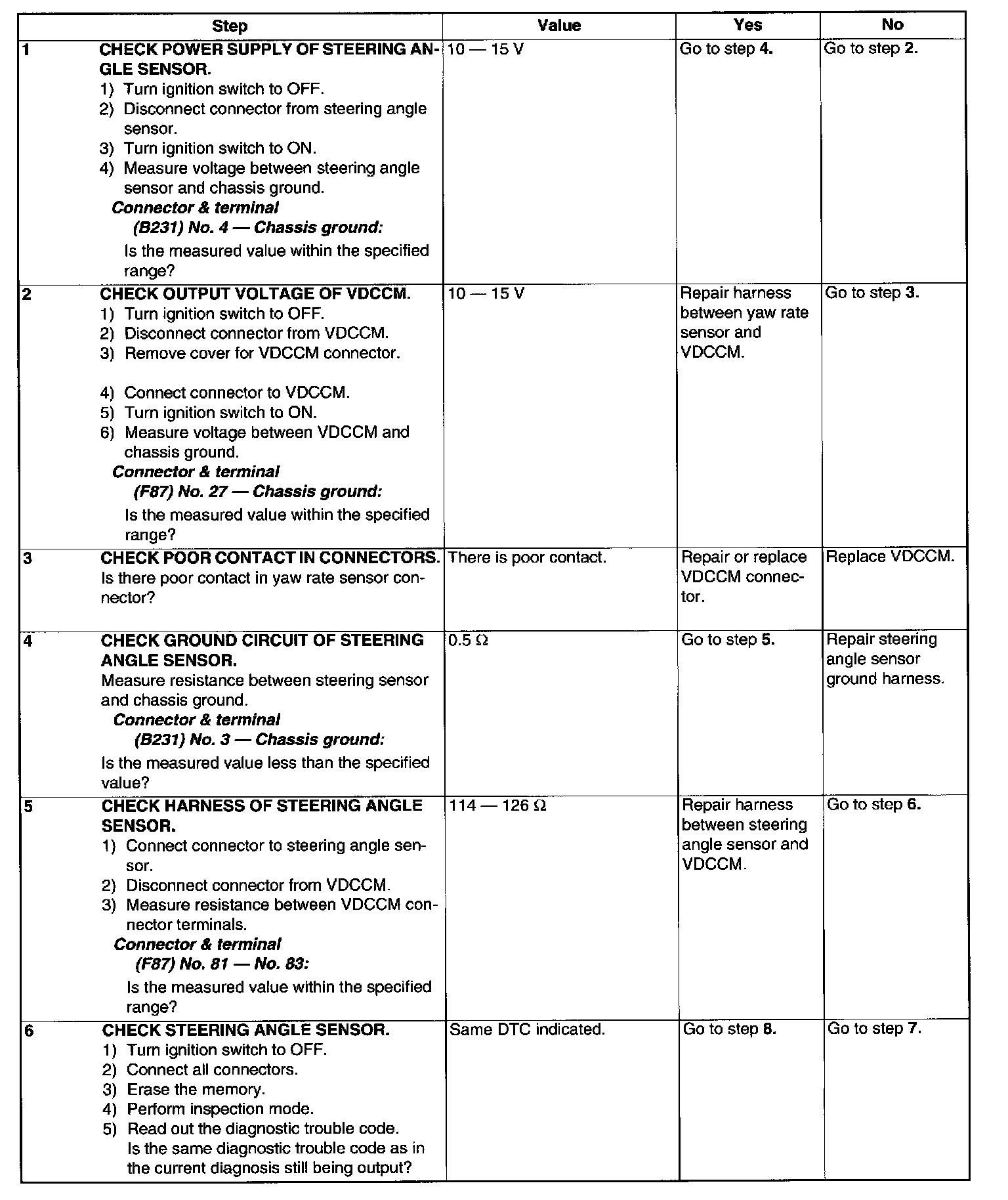

Test 1 Of 2:

Test 2 Of 2:
