Change Range of Steering Angle Sensor Is Too Big

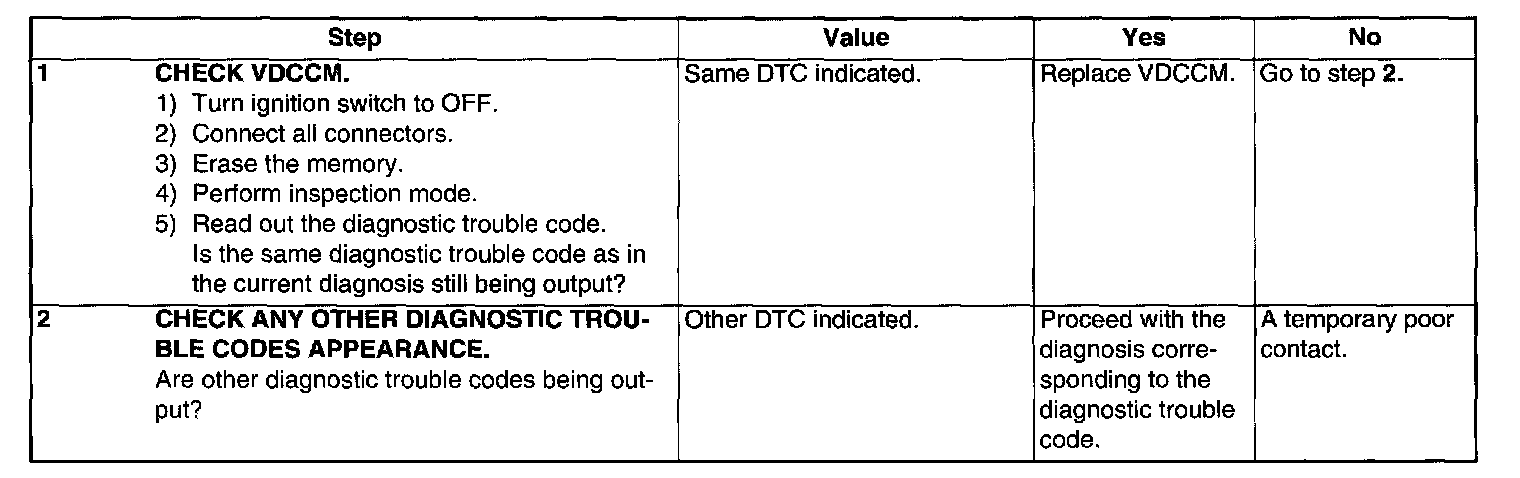

DTC 71 CHANGE RANGE OF STEERING ANGLE SENSOR IS TOO BIG

DIAGNOSIS
^ Faulty steering angle sensor

TROUBLE SYMPTOM:
^ VDC does not operate.

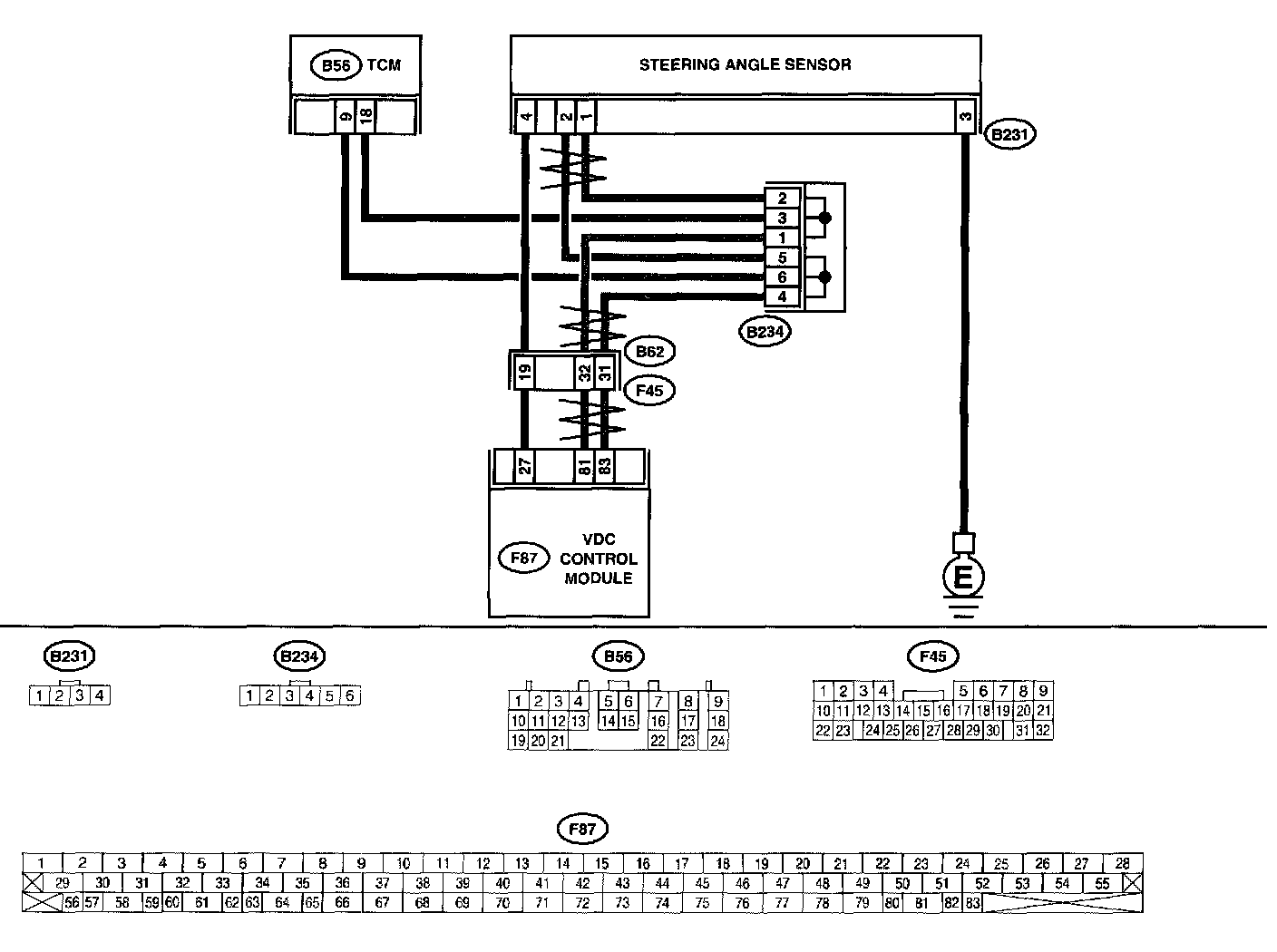

WIRING DIAGRAM:
