ABS Trouble Code Charts For Warning Light Codes
DTC 56 ABNORMAL G SENSOR OUTPUT VOLTAGEDIAGNOSIS
^ Faulty G sensor output voltage
TROUBLE SYMPTOM:
^ ABS does not operate.
WIRING DIAGRAM:

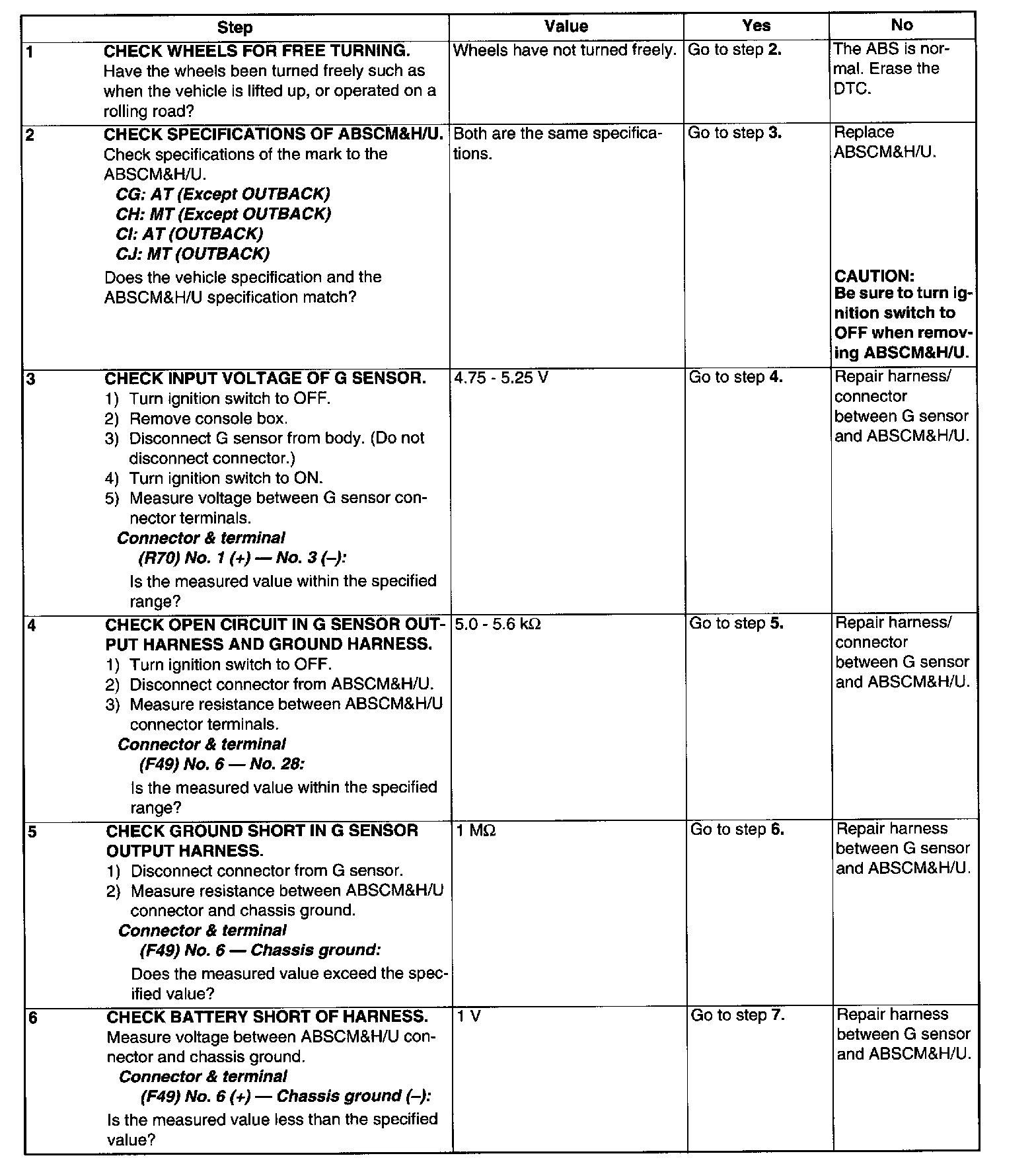

Test 1 Of 3:

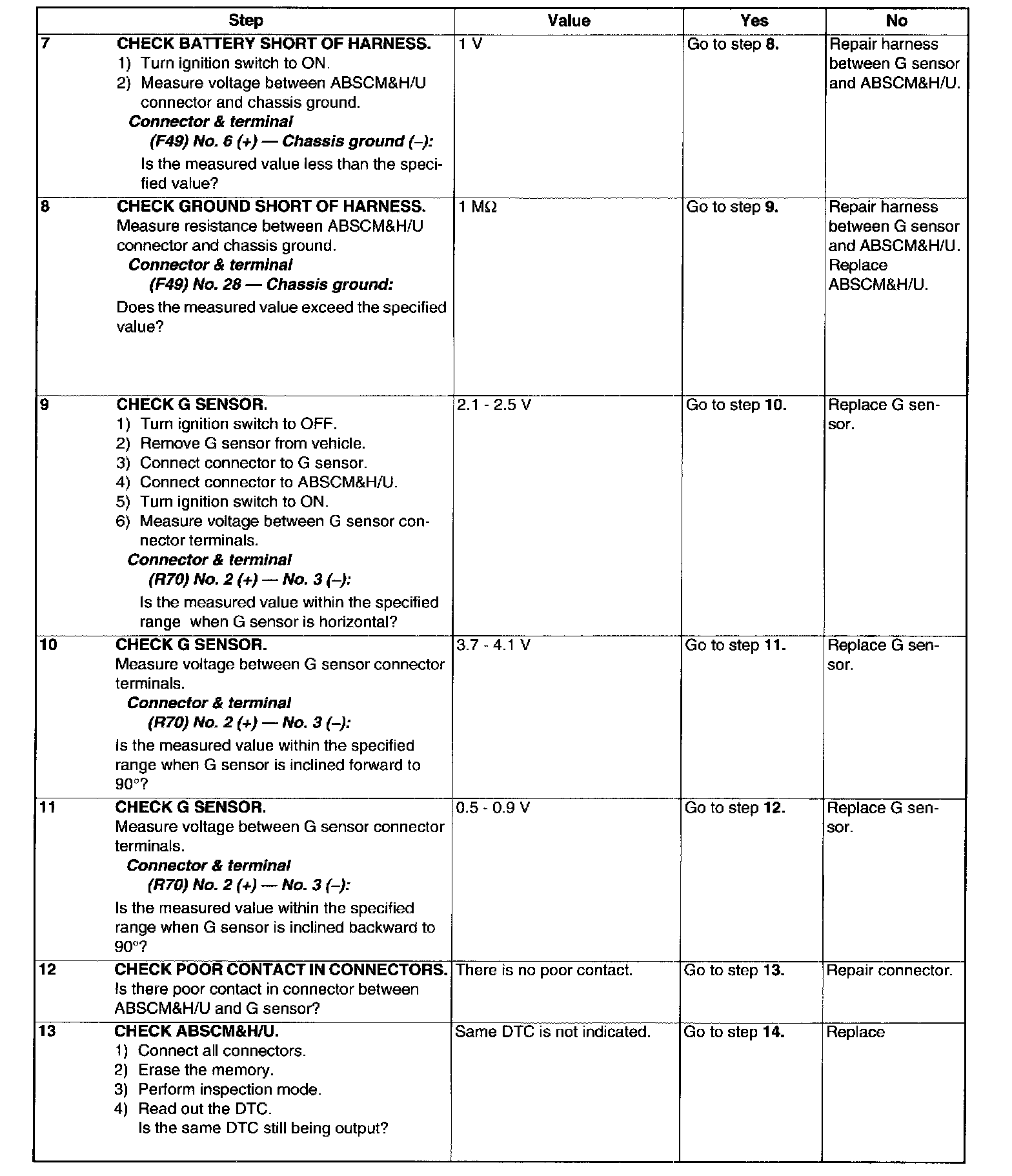

Test 2 Of 3:
Test 3 Of 3:
DIAGNOSIS
^ Faulty G sensor output voltage
TROUBLE SYMPTOM:
^ ABS does not operate.
WIRING DIAGRAM:
