ABS Trouble Code Charts For Select Monitor Results

DTC 54 STOP LIGHT SWITCH SIGNAL CIRCUIT MALFUNCTION

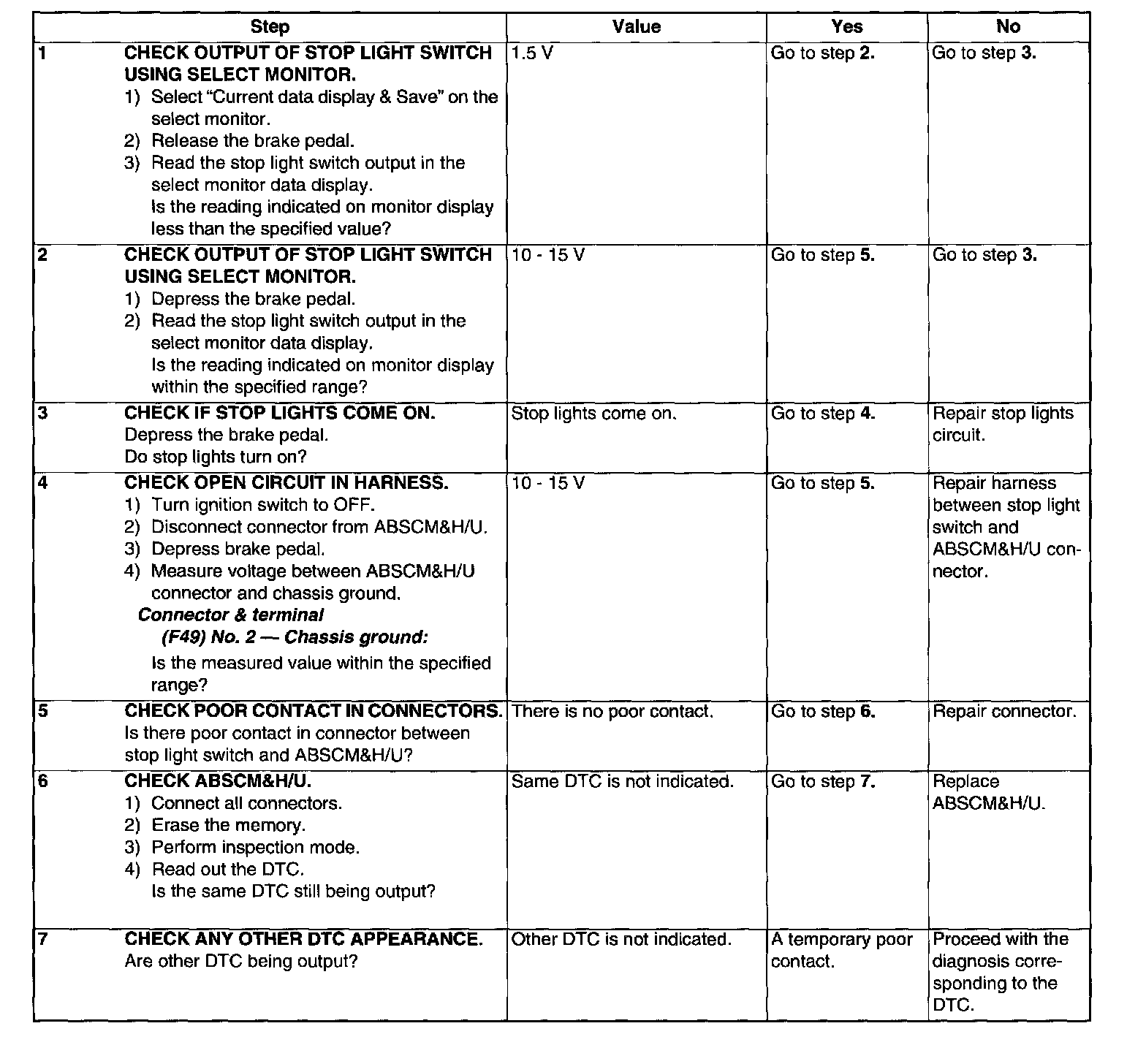

DIAGNOSIS
^ Faulty stop light switch

TROUBLE SYMPTOM:
^ ABS does not operate.

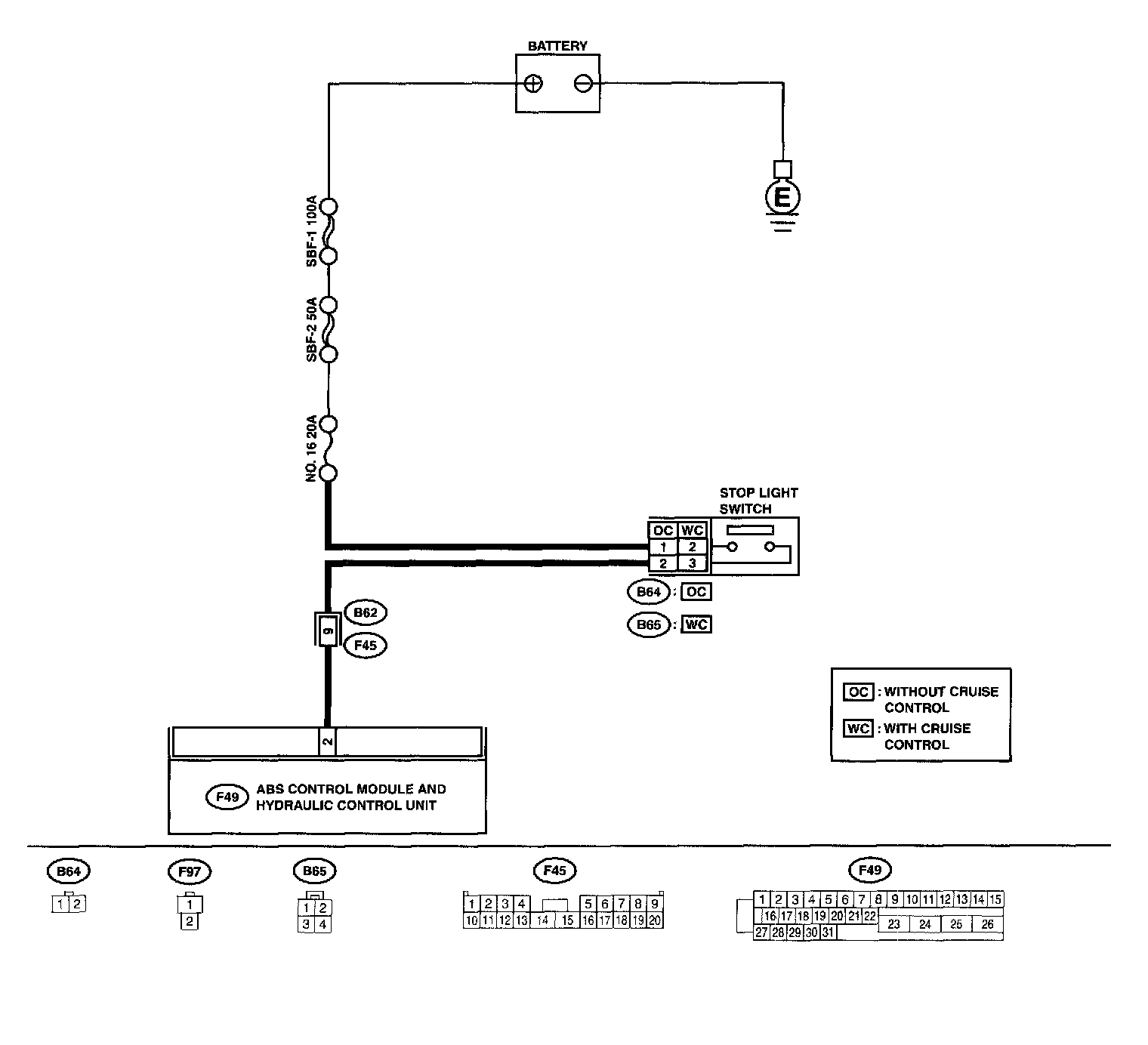

WIRING DIAGRAM:
