Vdc System
DTC 52 ABNORMAL MOTOR AND/OR MOTOR RELAYDIAGNOSIS
^ Faulty motor
^ Faulty motor relay
^ Faulty harness connector
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

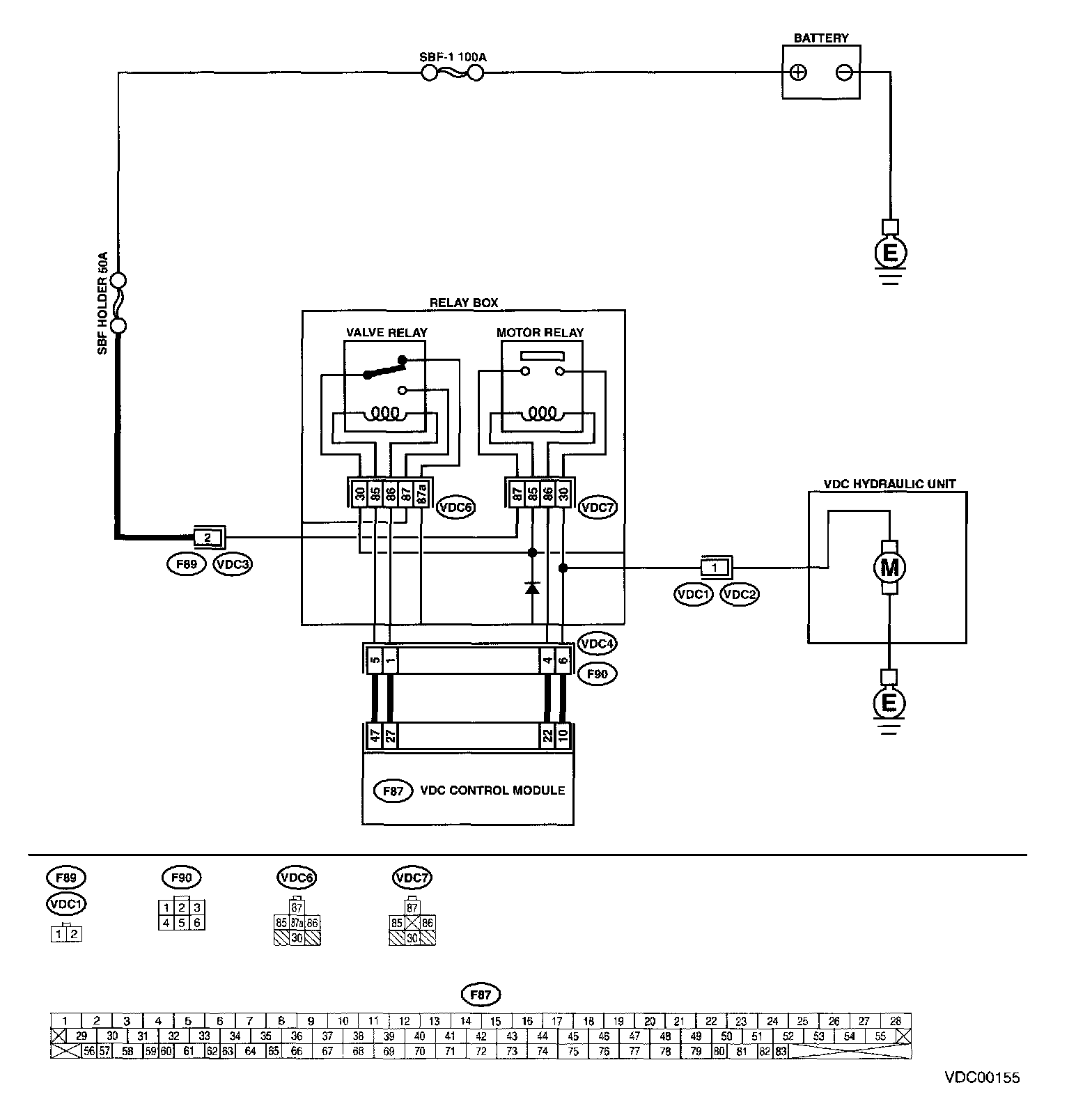

WIRING DIAGRAM:

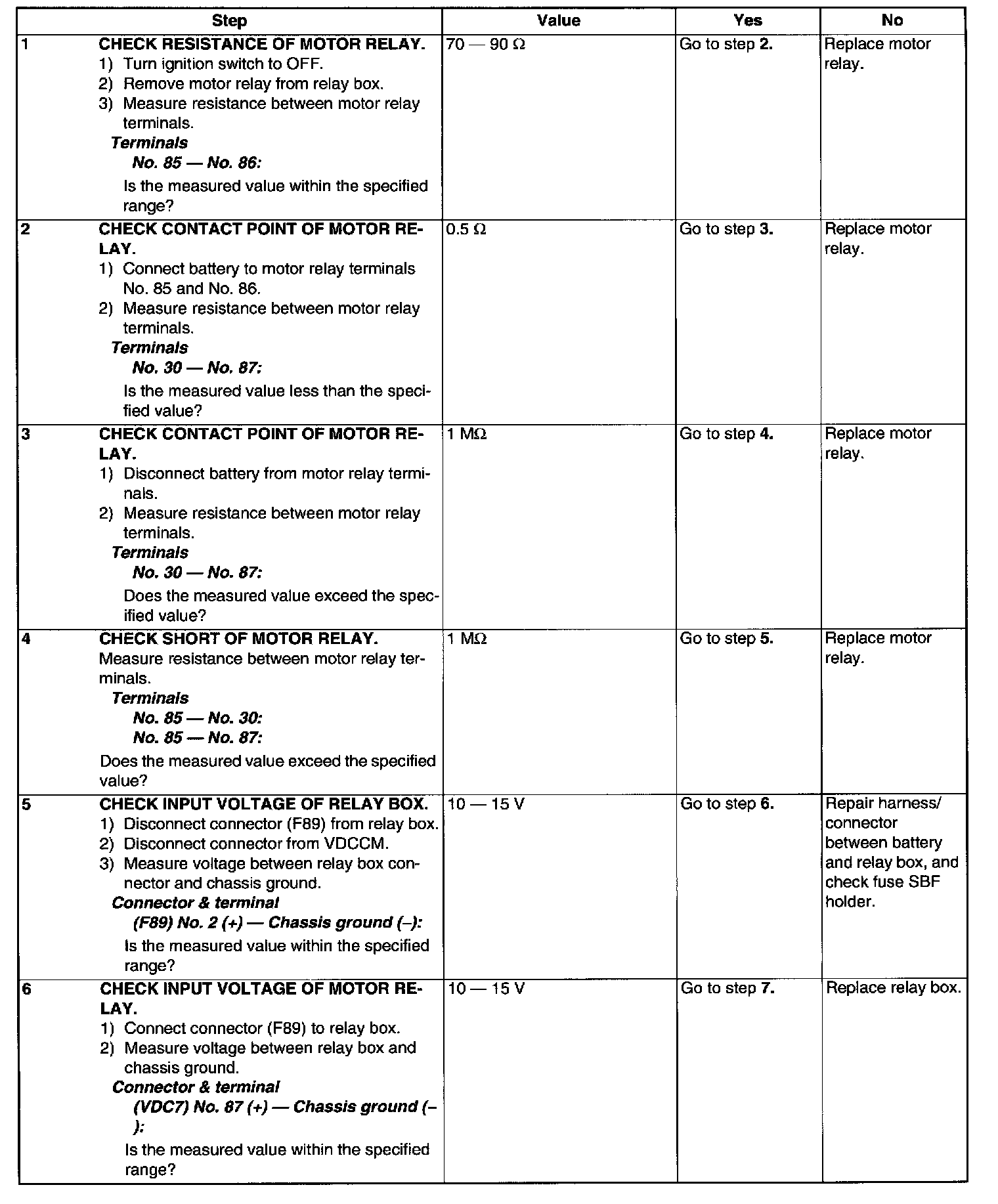

Test 1 Of 4:

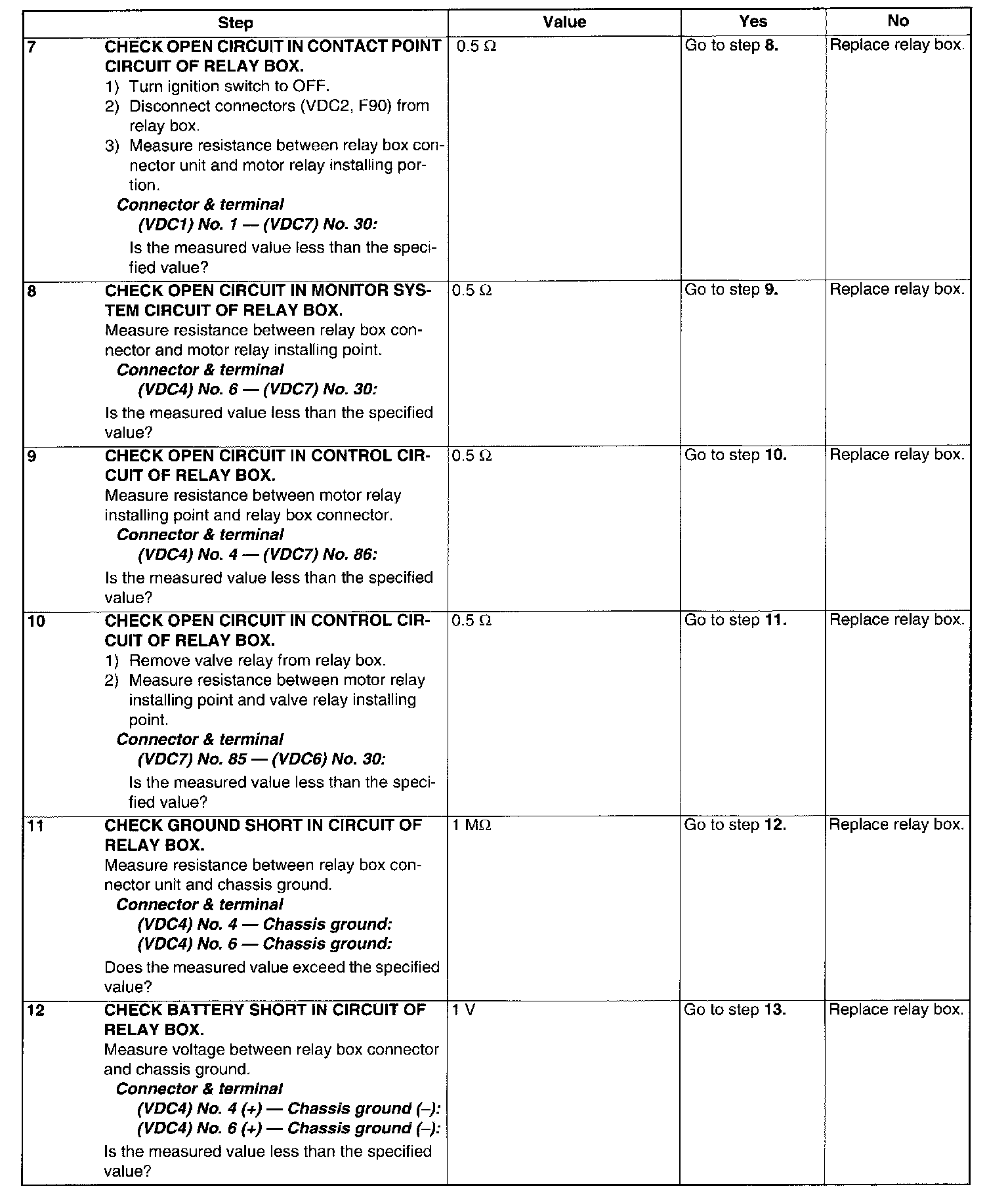

Test 2 Of 4:

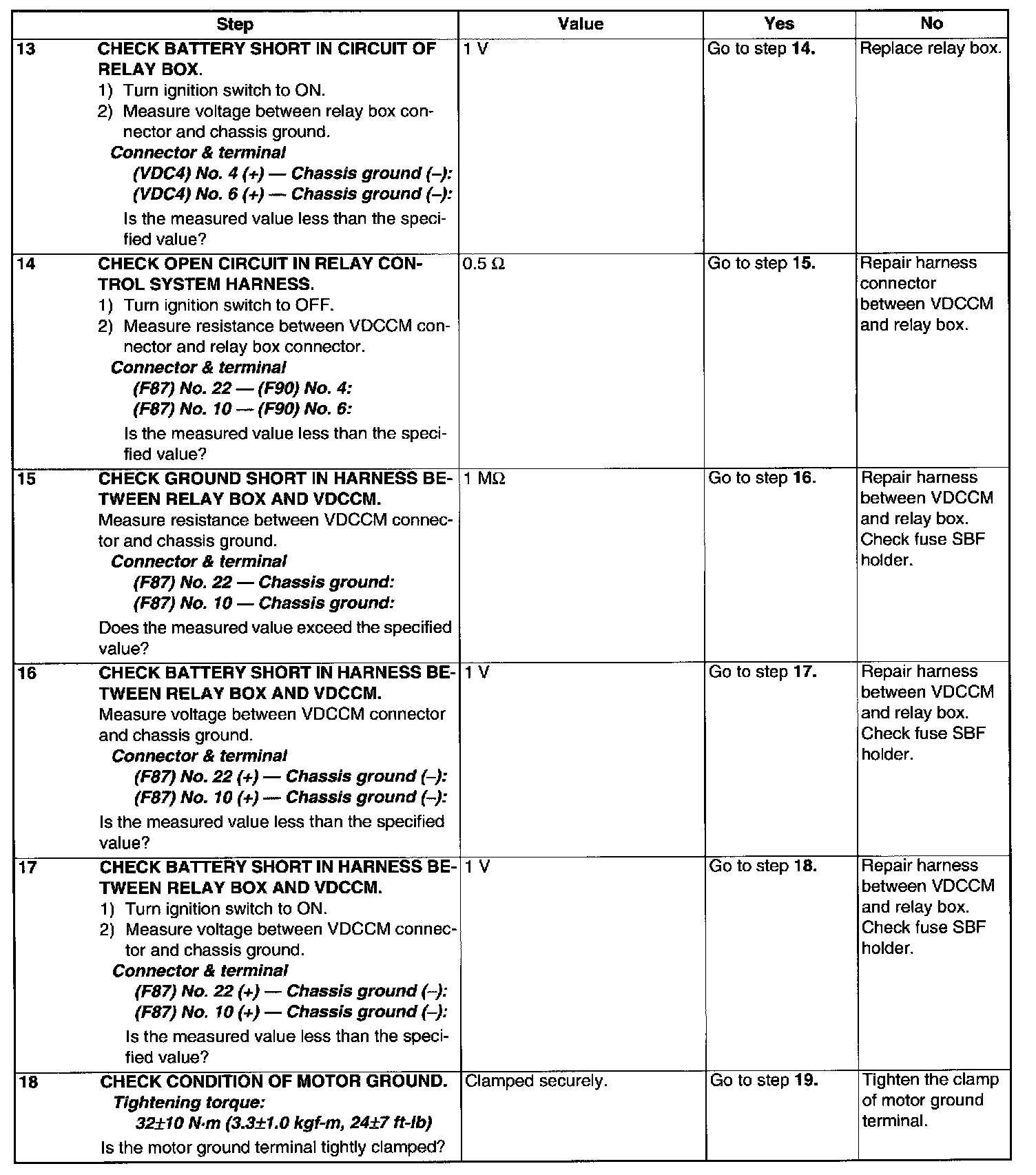

Test 3 Of 4:

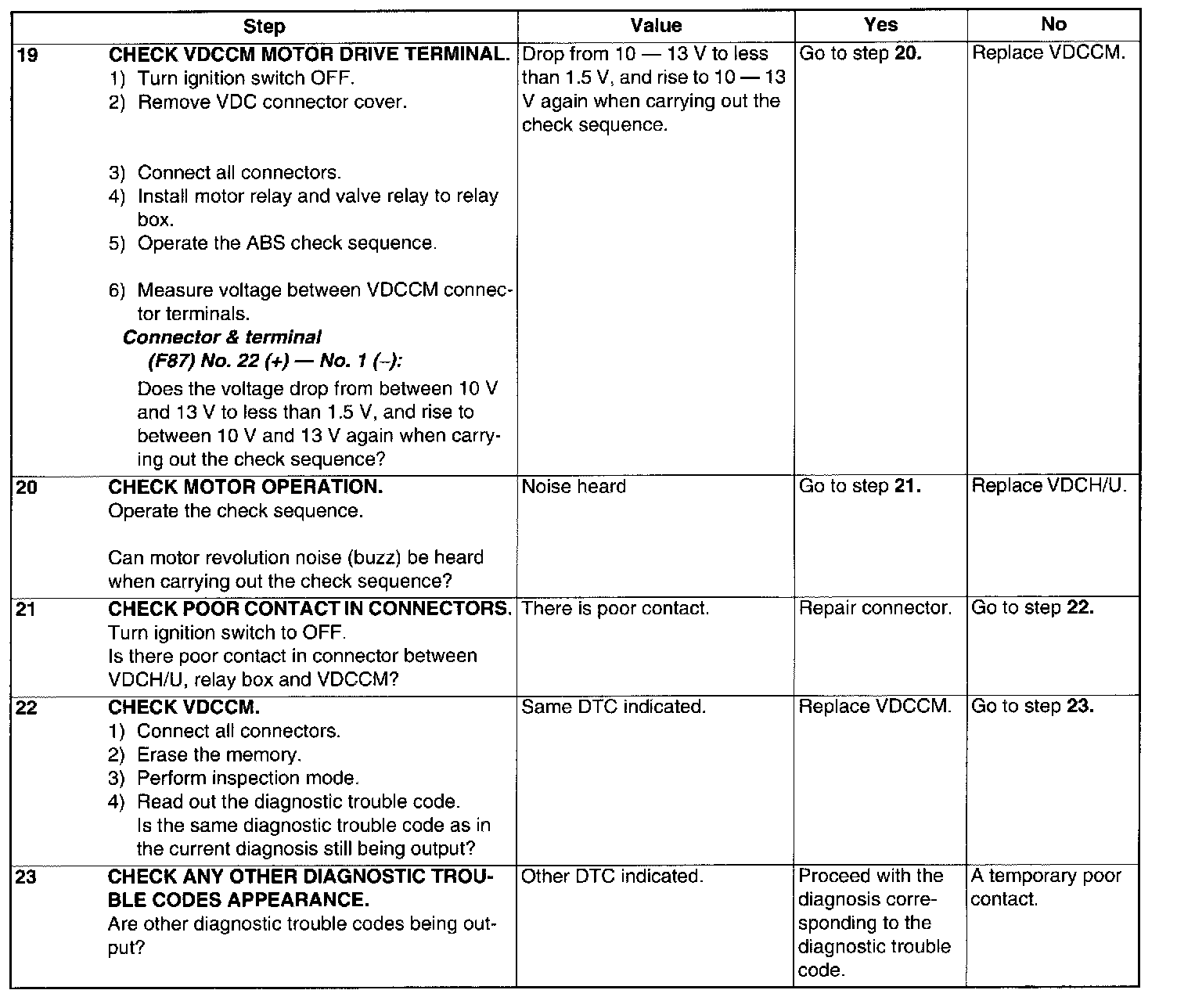

Test 4 Of 4:
