Motor and Motor Relay on Failure

DTC 52 MOTOR AND MOTOR RELAY ON FAILURE

DIAGNOSIS
^ Faulty motor relay
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.





WIRING DIAGRAM:

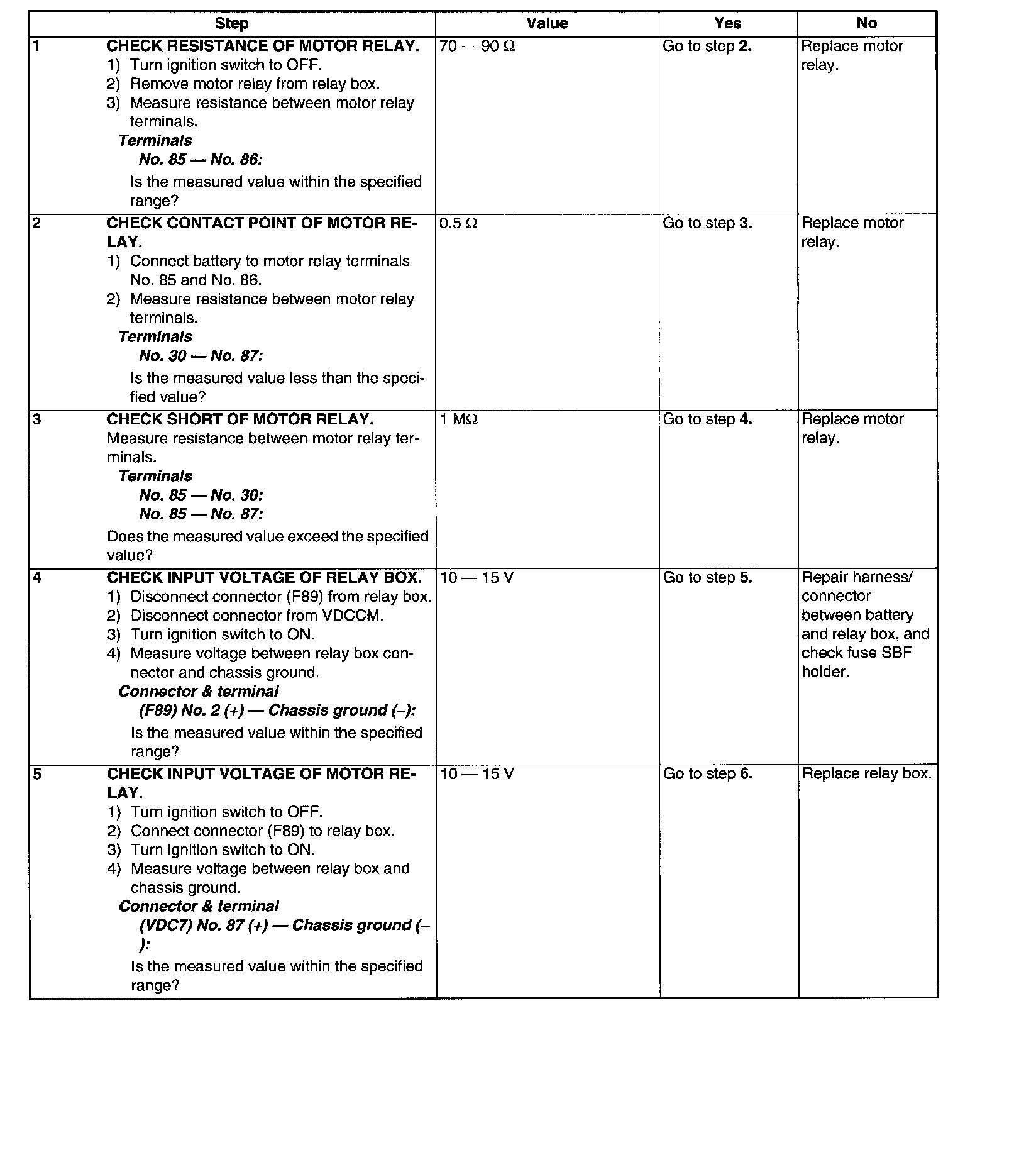

Test 1 Of 4:

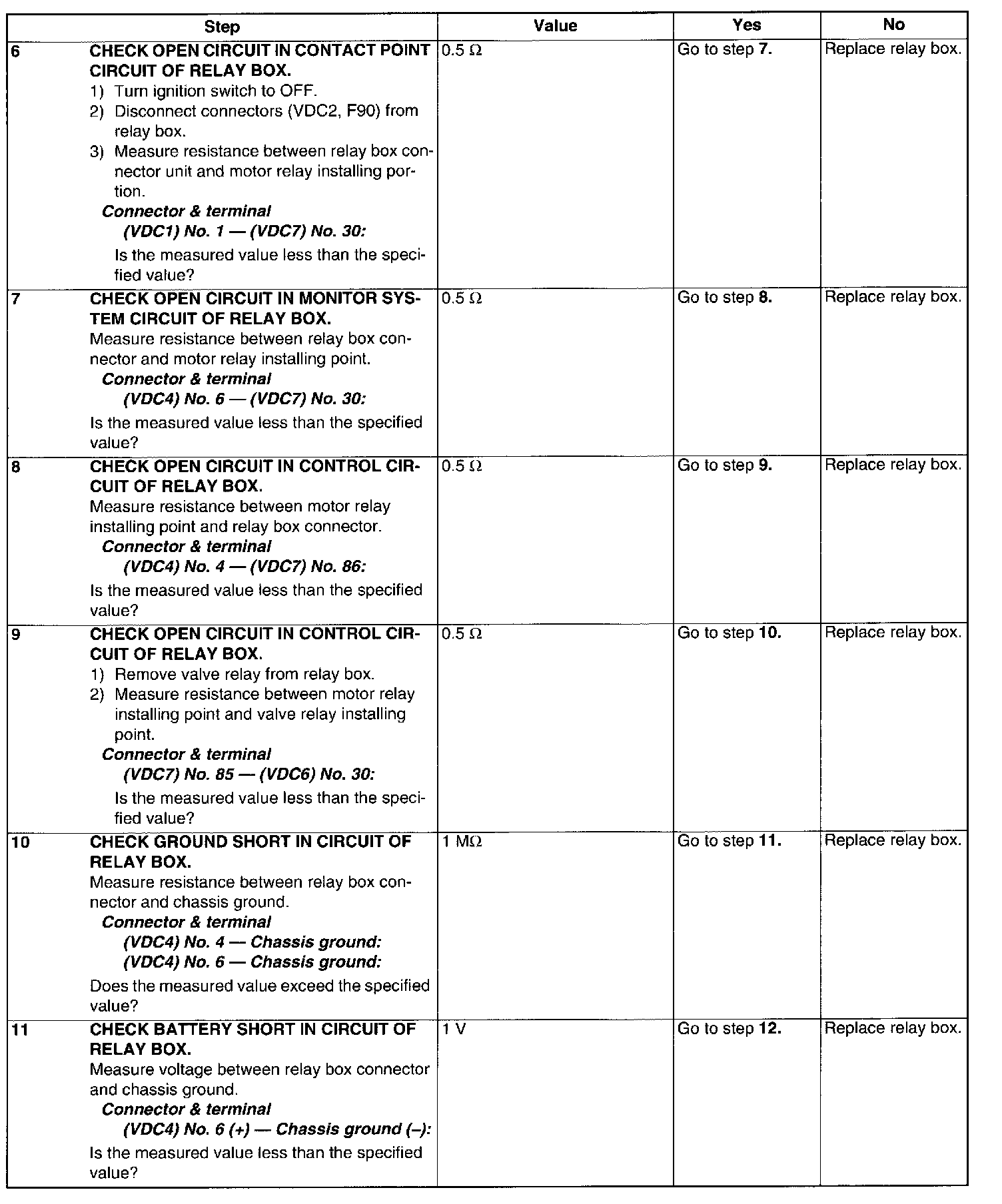

Test 2 Of 4:

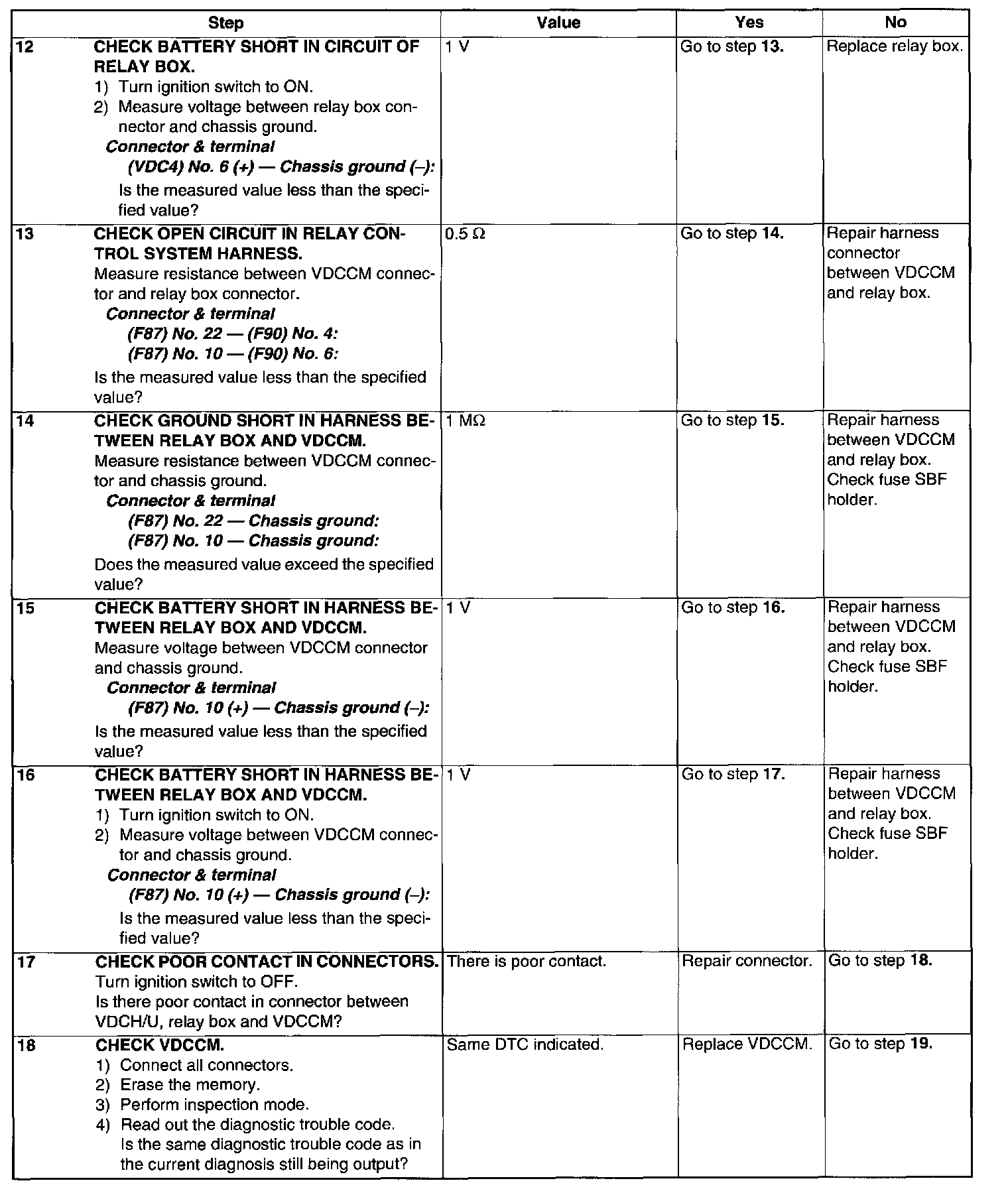

Test 3 Of 4:

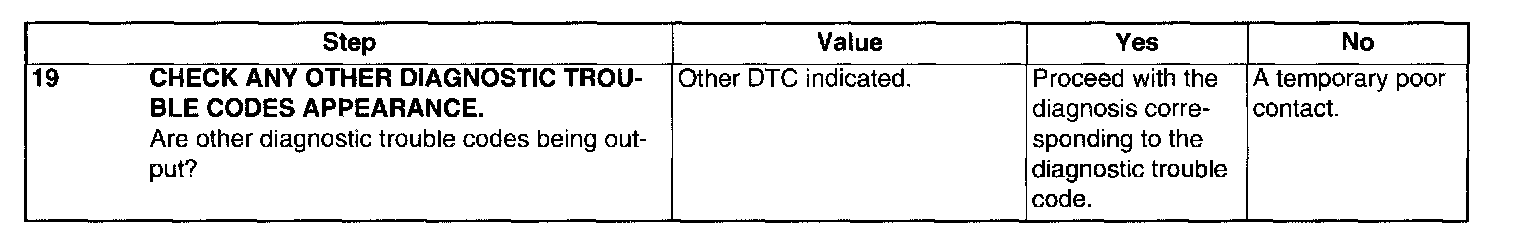

Test 4 Of 4:
