Motor and Motor Relay Off Failure

DTC 52 MOTOR AND MOTOR RELAY OFF FAILURE

DIAGNOSIS
^ Faulty motor relay
^ Faulty harness connector

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

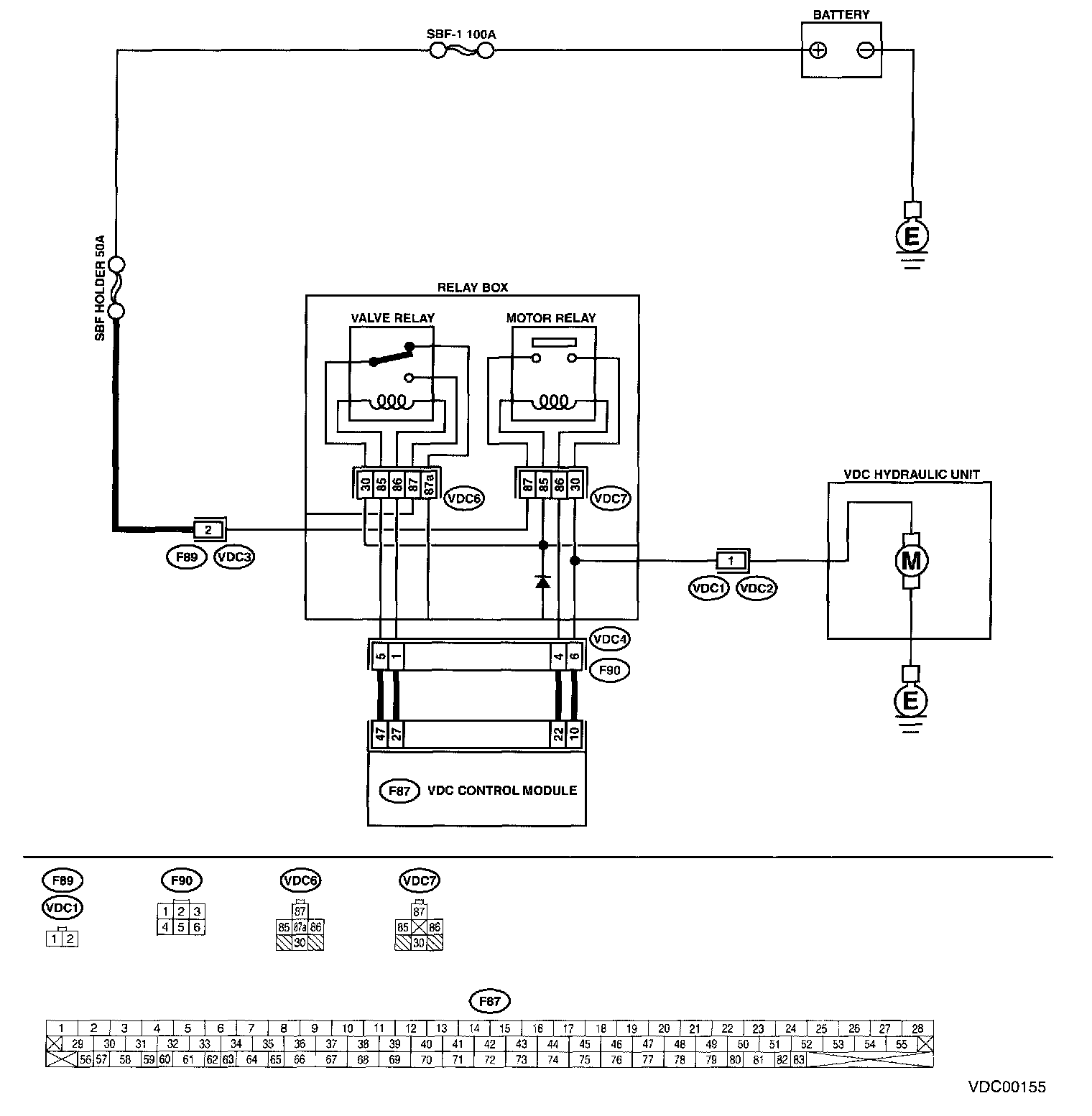

WIRING DIAGRAM:

Test 1 Of 2:

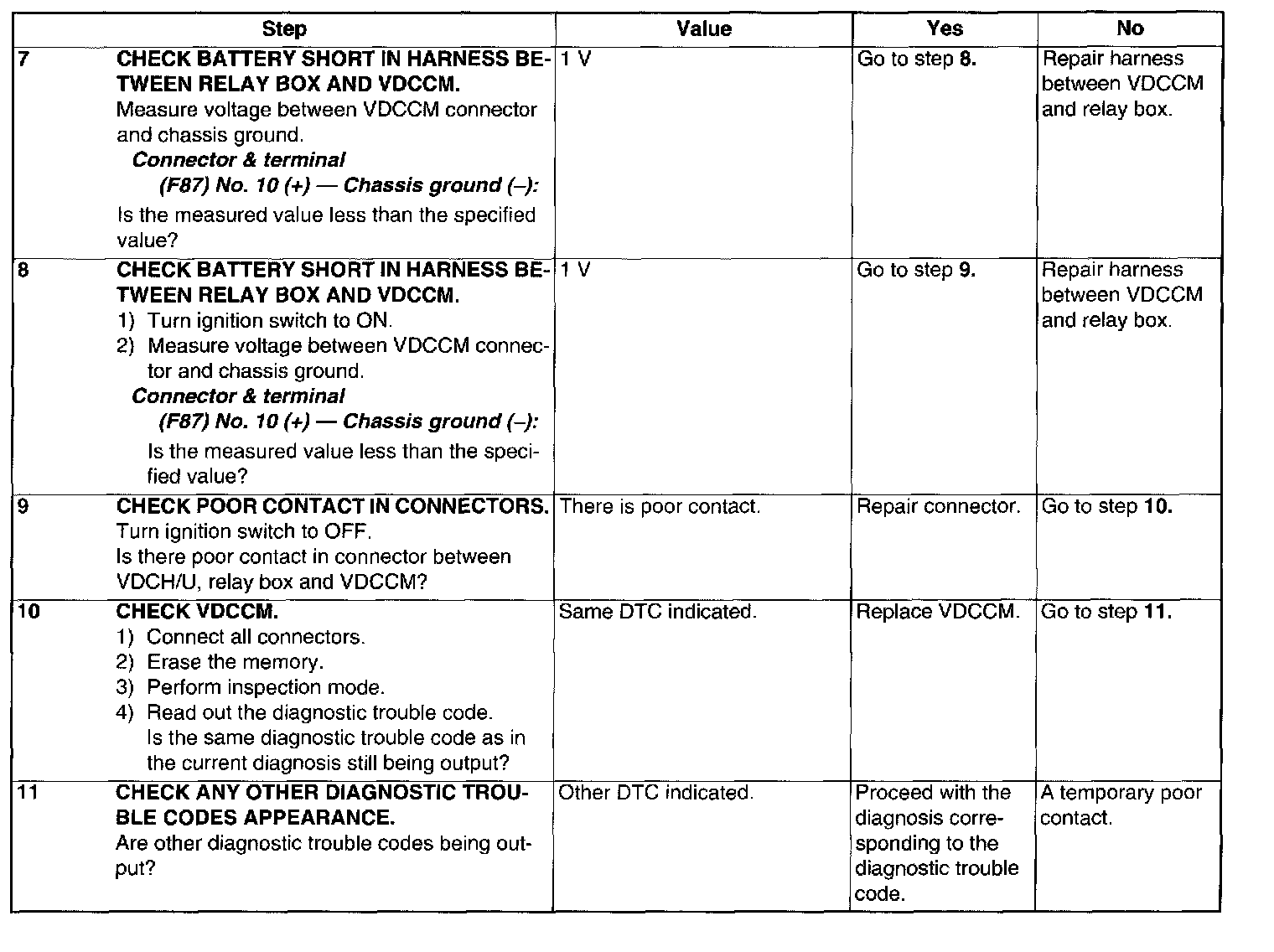

Test 2 Of 2:
