Valve Relay ON Failure

DTC 51 VALVE RELAY ON FAILURE

DIAGNOSIS
^ Faulty valve relay

TROUBLE SYMPTOM:
^ ABS does not operate.

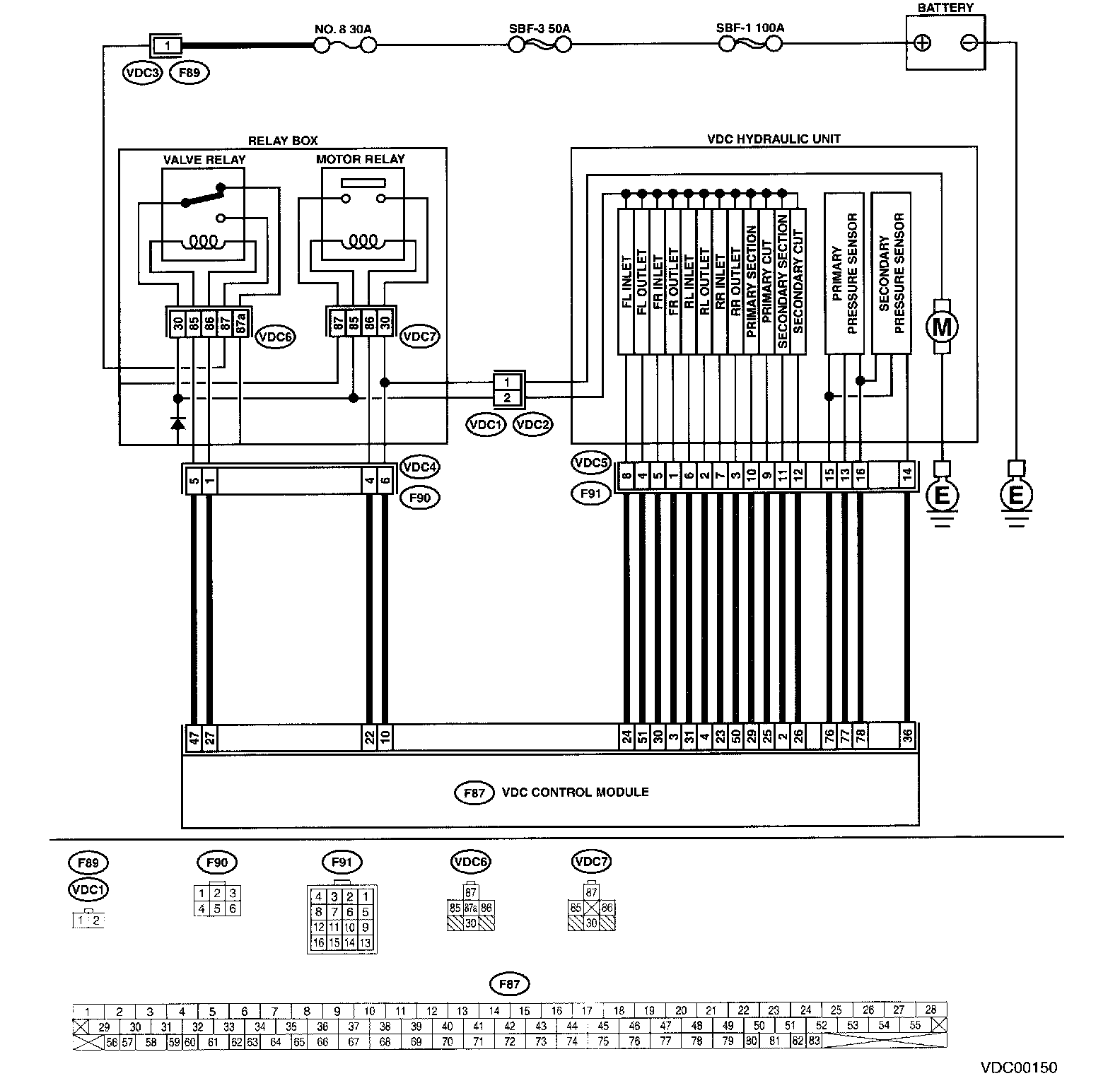

WIRING DIAGRAM:
