EAS Communication Line Grounding Shorted

DTC 48 EAS COMMUNICATION LINE GROUNDING SHORTED

DIAGNOSIS
^ EAS communication line is short circuited.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

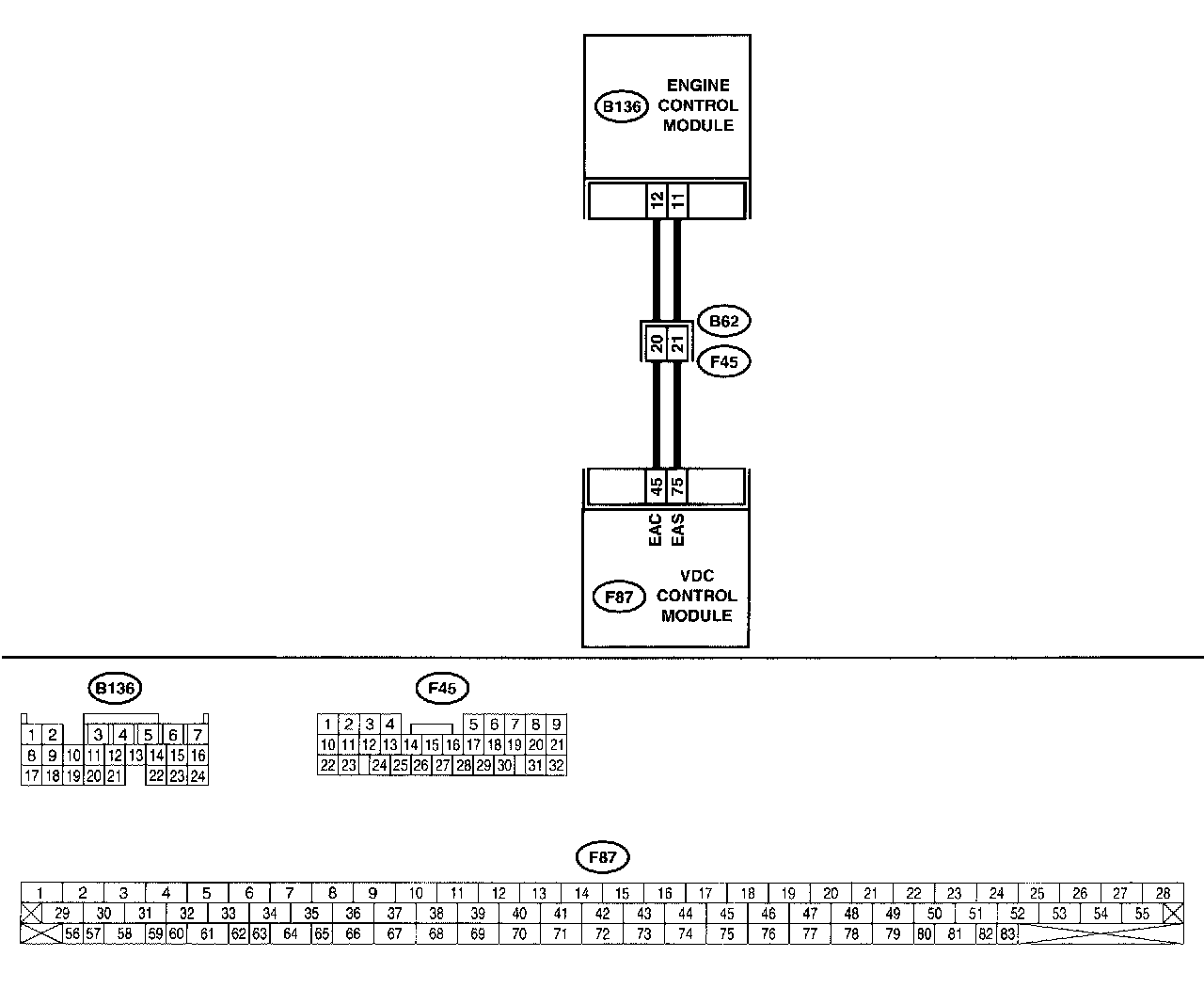

WIRING DIAGRAM:
