ABS, Vdc trouble Code Charts

DTC 48 FAULTY ECM-VDCCM COMMUNICATION LINE

DIAGNOSIS
^ EAS communication line is broken or short circuited.
^ EAC communication line is broken or short circuited.

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

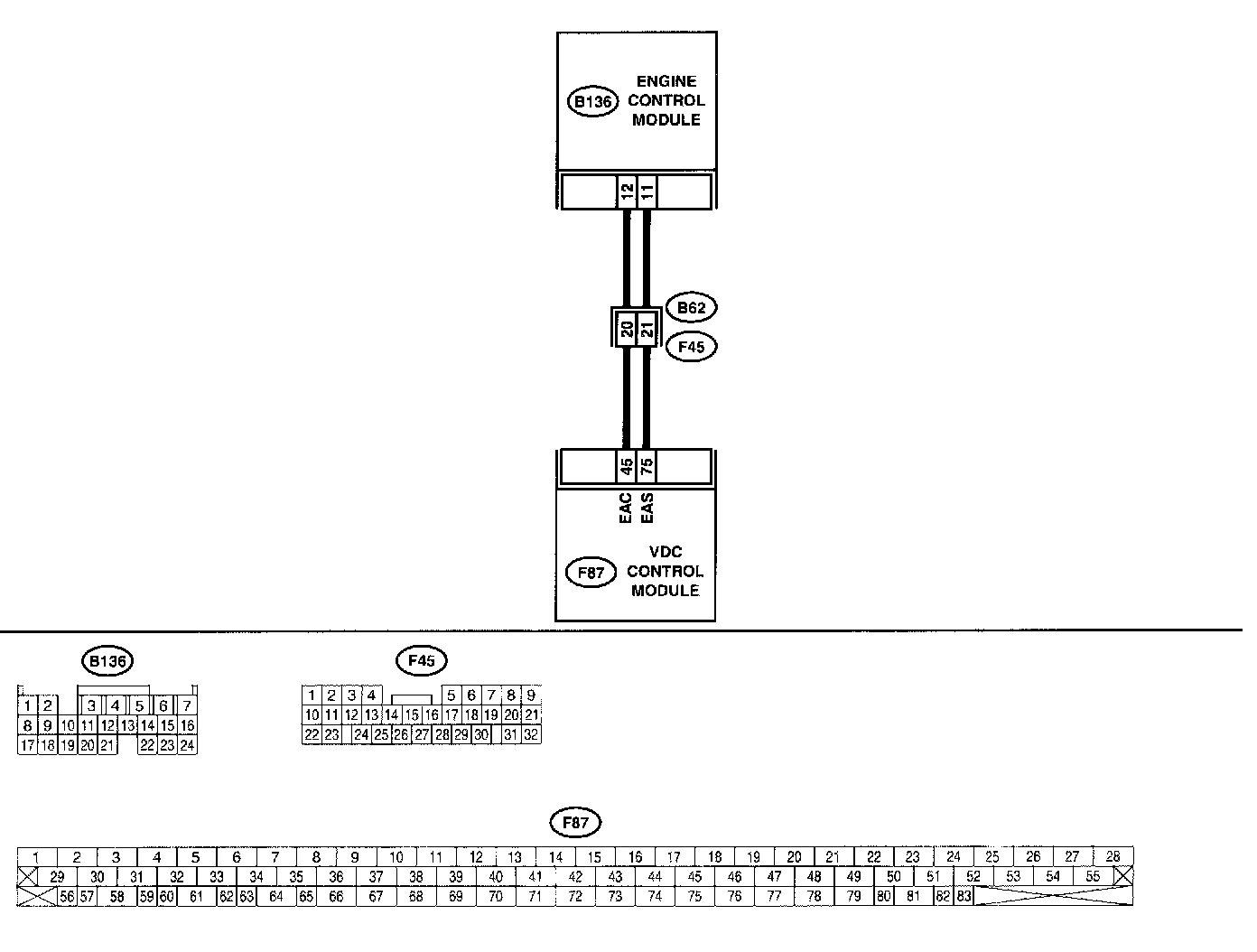

WIRING DIAGRAM:
