Transmission Control Systems
DTC 45 INTAKE MANIFOLD PRESSURE SIGNALDIAGNOSIS:
Input signal circuit of TCM from ECM is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock.
WIRING DIAGRAM:

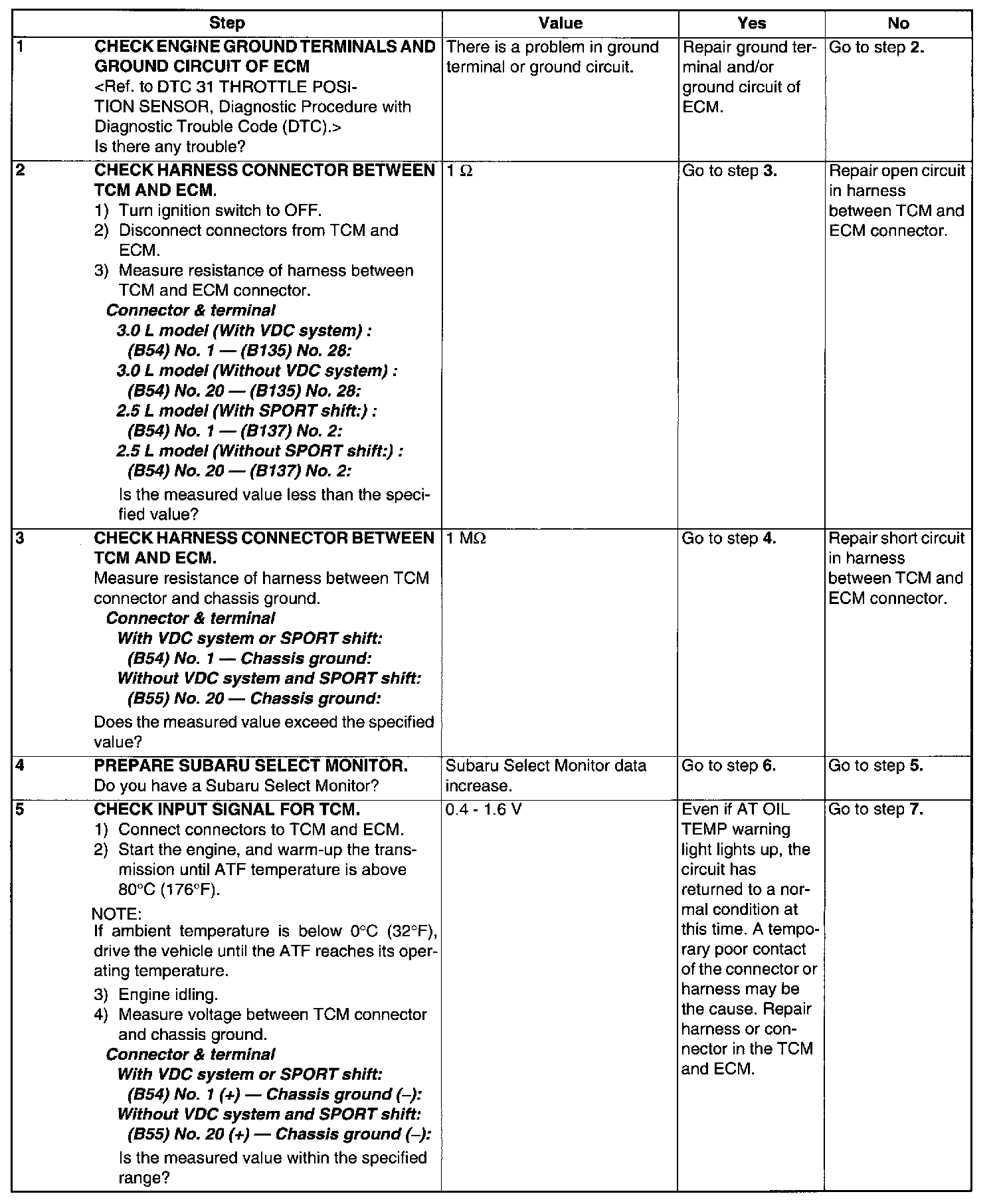

Test 1 Of 2:
Test 2 Of 2:
DIAGNOSIS:
Input signal circuit of TCM from ECM is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock.
WIRING DIAGRAM:
