Home >> Subaru >> 2003 >> Outback F6-3.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 45 >> Incorrect VDC Control Module

Incorrect VDC Control Module

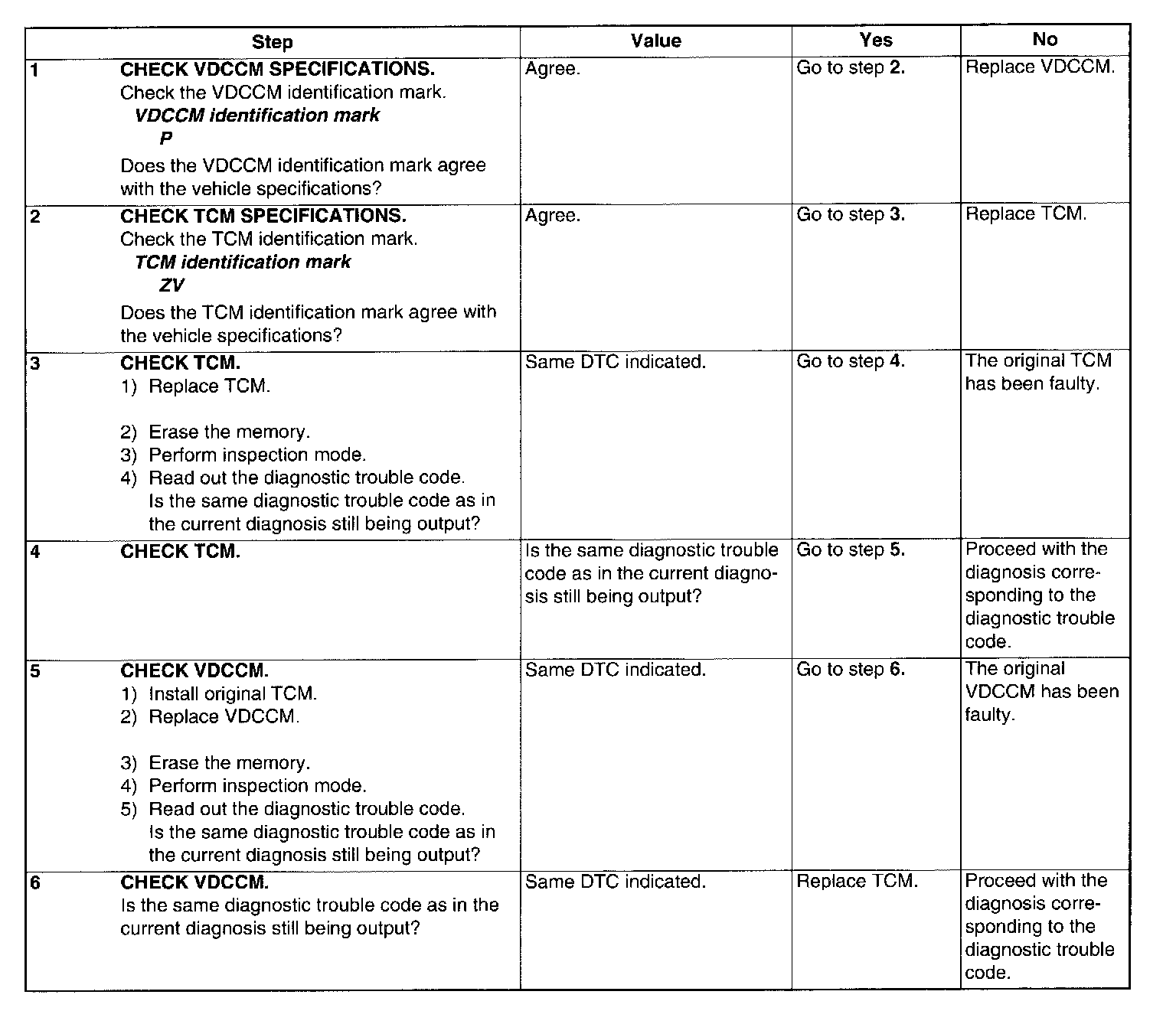

DTC 45 INCORRECT VDC CONTROL MODULE





DIAGNOSIS
^ Control module out of specification

TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.
