Vdc System Trouble Code Charts For Select Monitor Results

DTC 44 TOM COMMUNICATION CIRCUIT

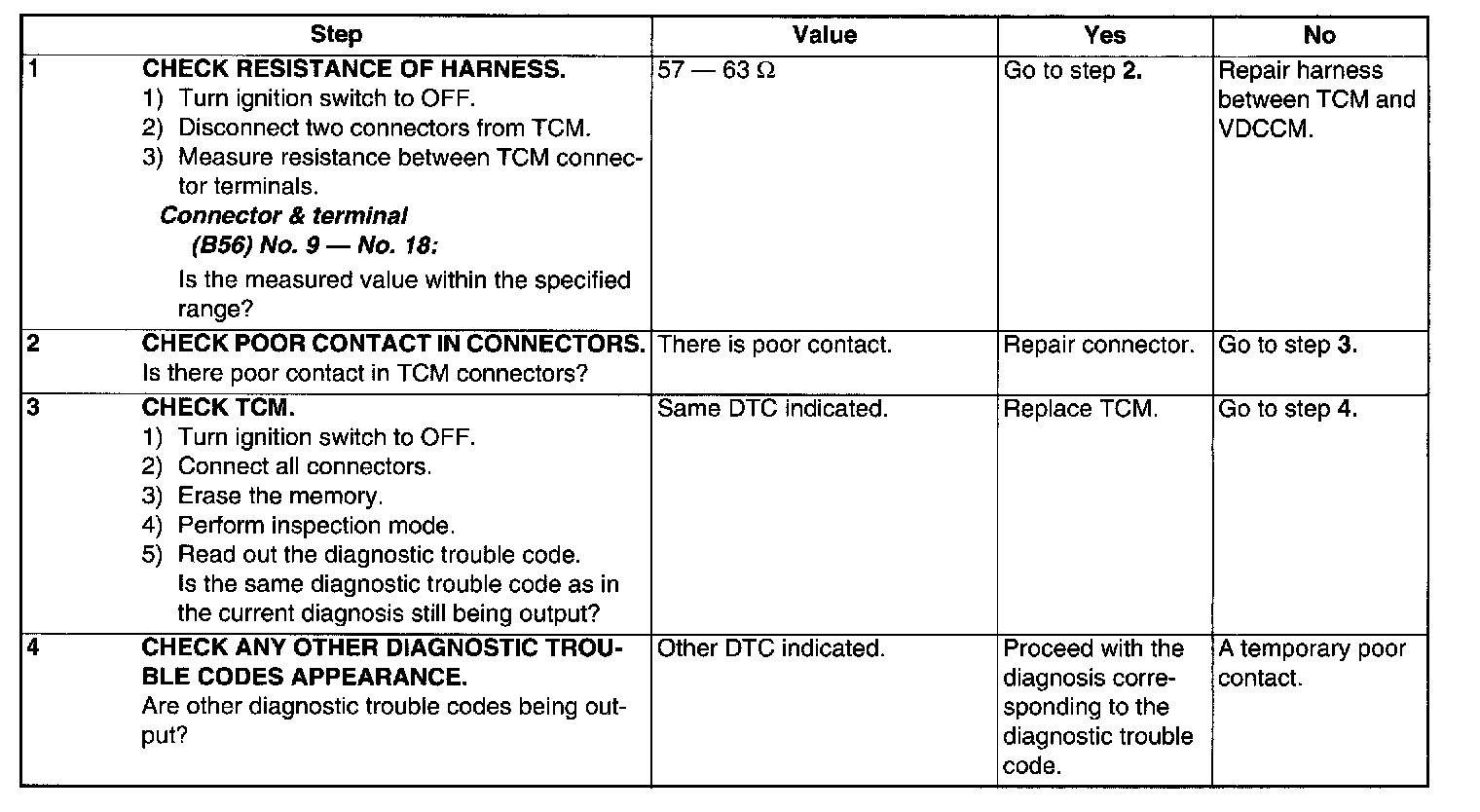

DIAGNOSIS
^ Communication with AT control faults

TROUBLE SYMPTOM:
^ VDC does not operate.

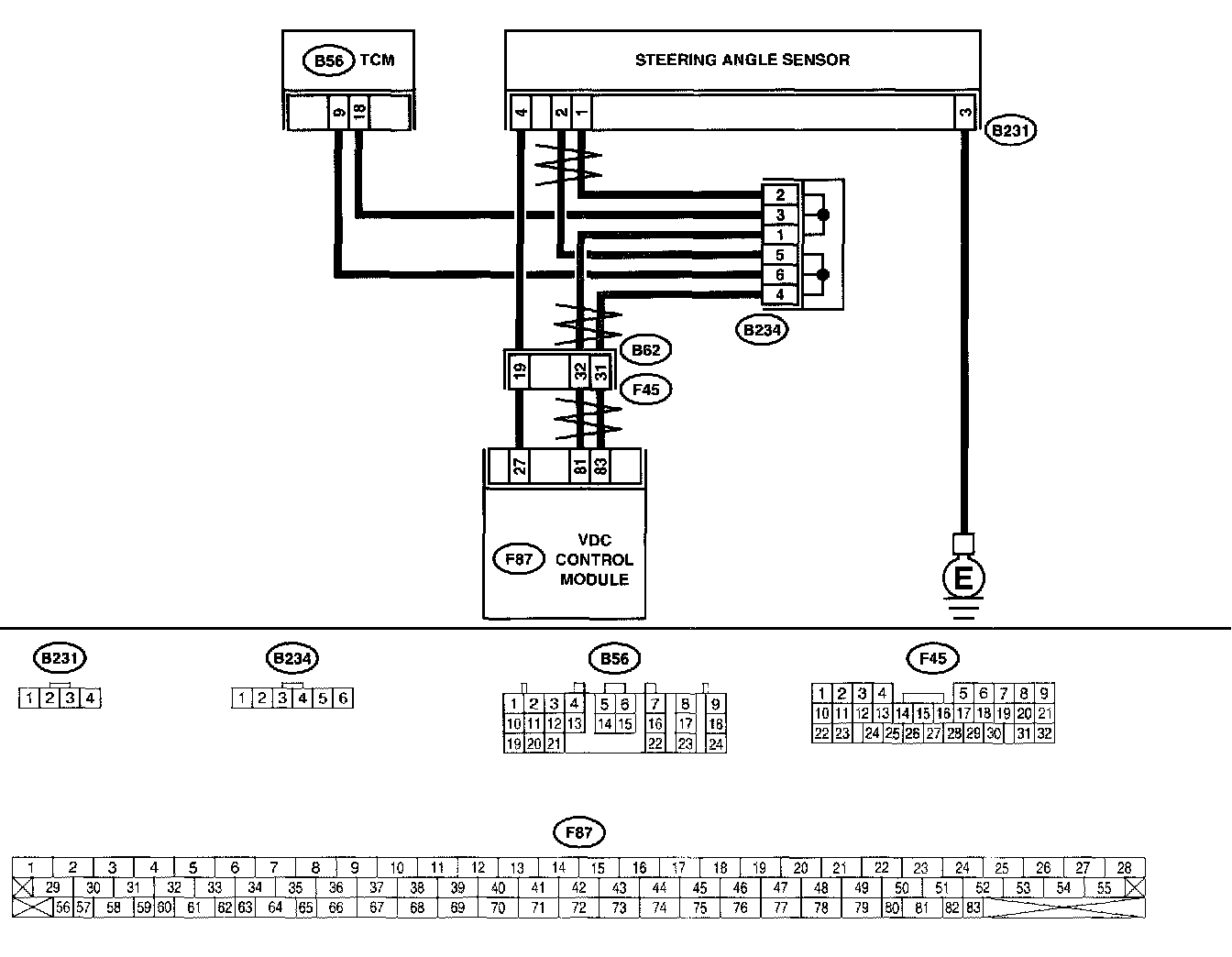

WIRING DIAGRAM:
