ABS-AT Control (Controlled)

DTC 44 ABS-AT CONTROL (CONTROLLED)

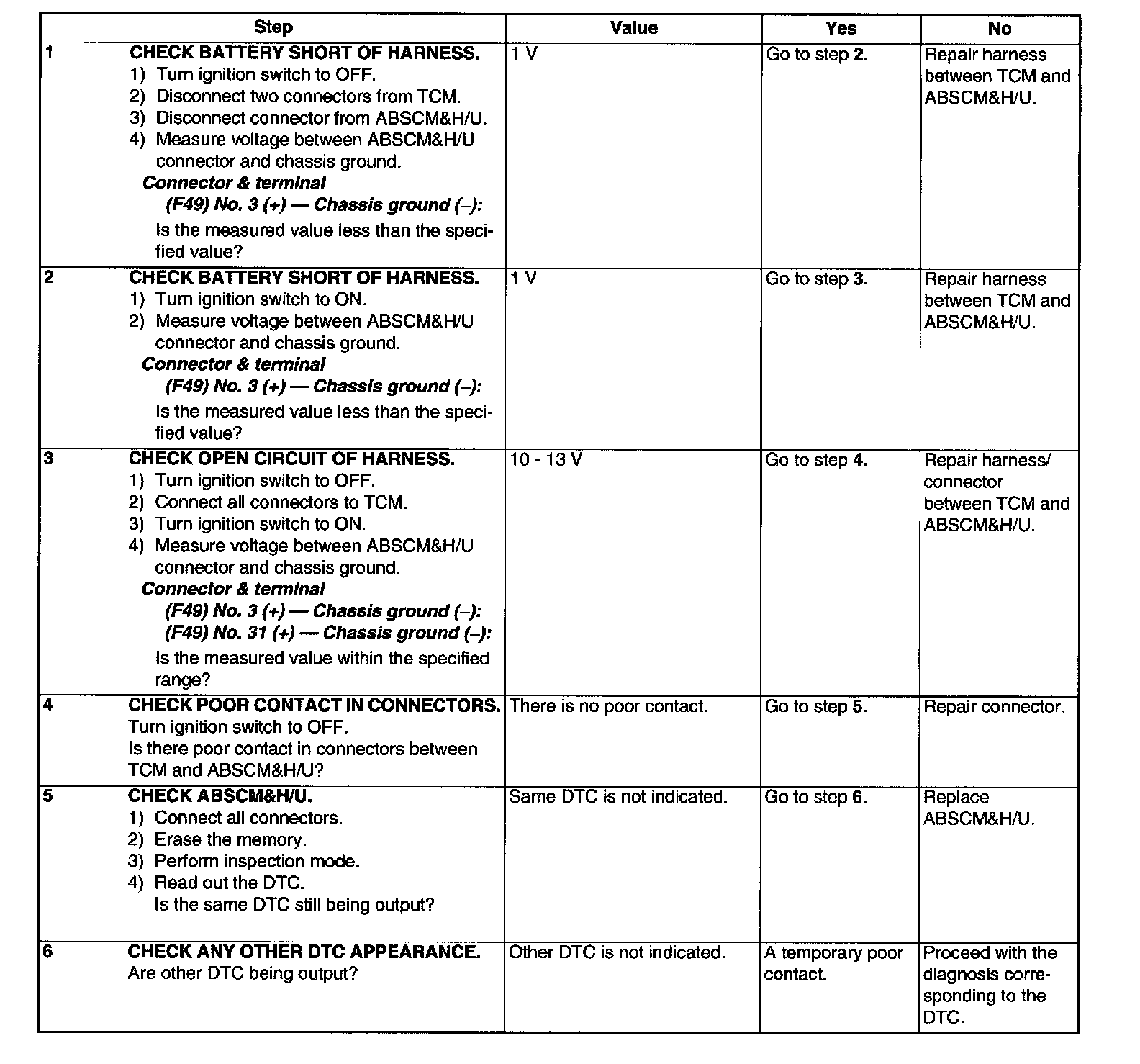

DIAGNOSIS
^ Combination of AT control faults

TROUBLE SYMPTOM:
^ ABS does not operate.

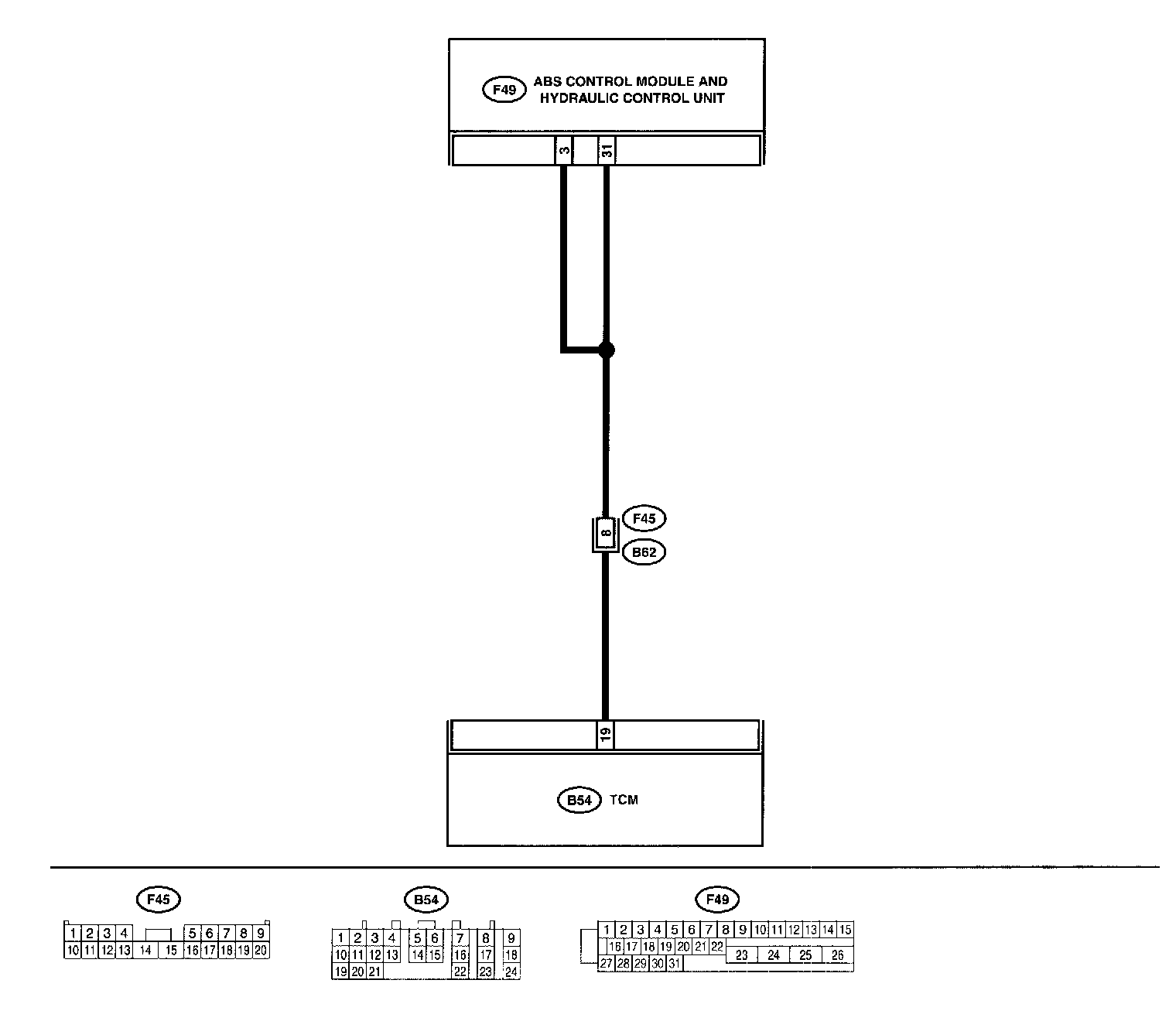

WIRING DIAGRAM:
