ABS Trouble Code Charts For Warning Light Codes

DTC 44 A COMBINATION OF AT CONTROL ABNORMAL

DIAGNOSIS
^ Combination of AT control faults

TROUBLE SYMPTOM:
^ ABS does not operate.





WIRING DIAGRAM:

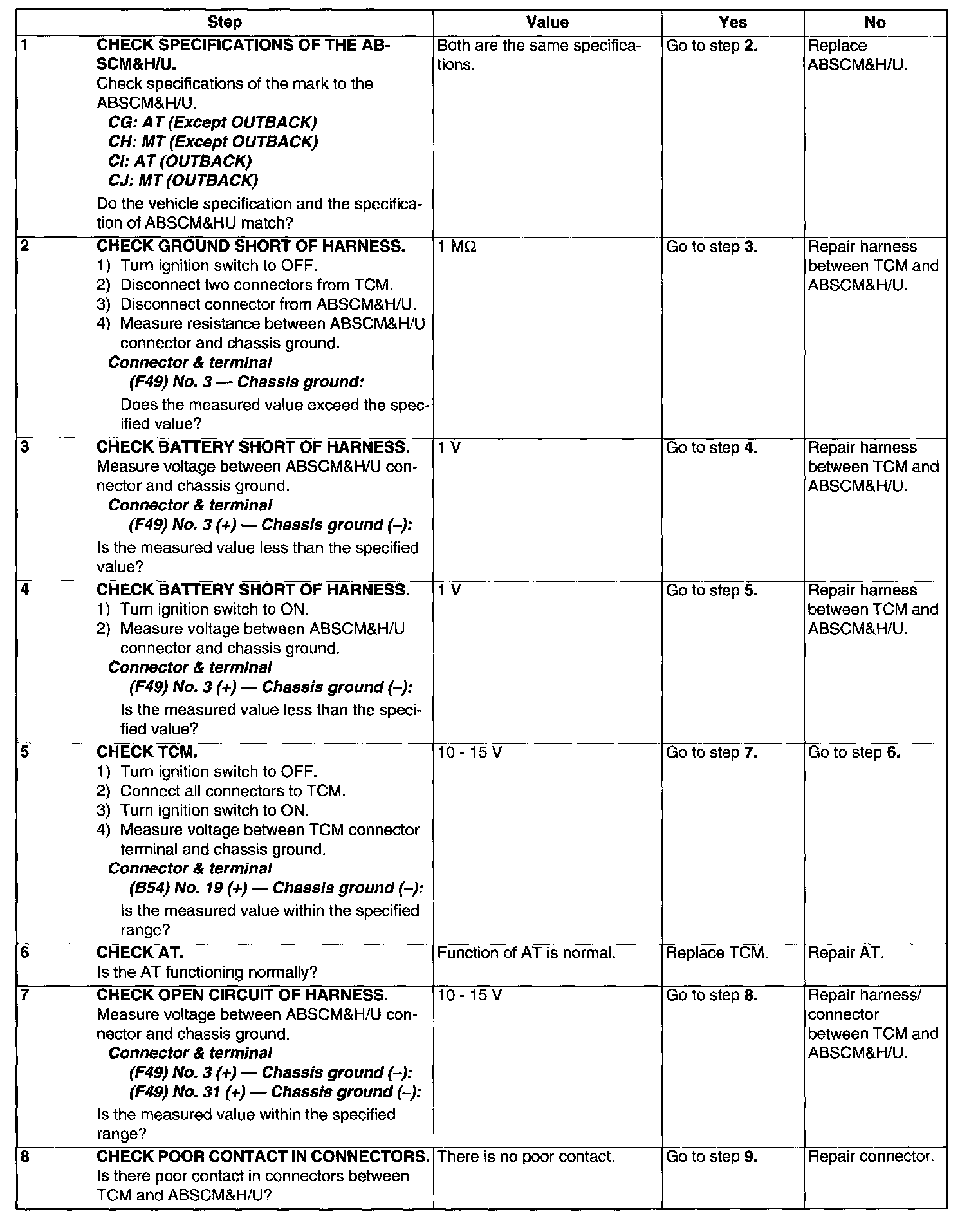

Test 1 Of 2:

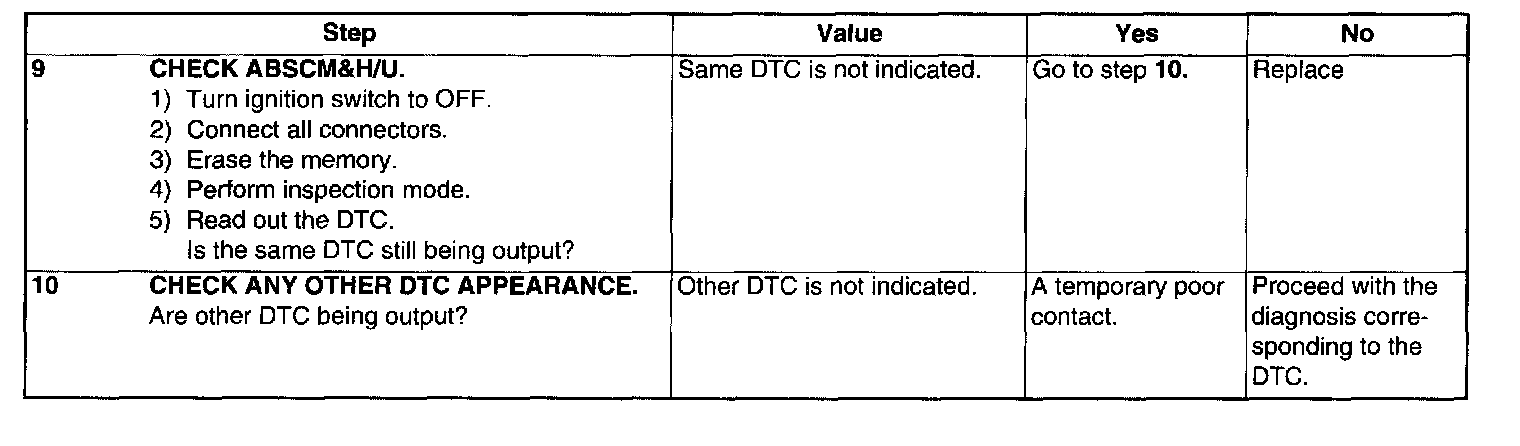

Test 2 Of 2:
