AEB Communication Line Malfunction
DTC 43 AEB COMMUNICATION LINE MALFUNCTIONDIAGNOSIS
^ AEB communication line is broken or short circuited.
TROUBLE SYMPTOM:
^ VDC does not operate.

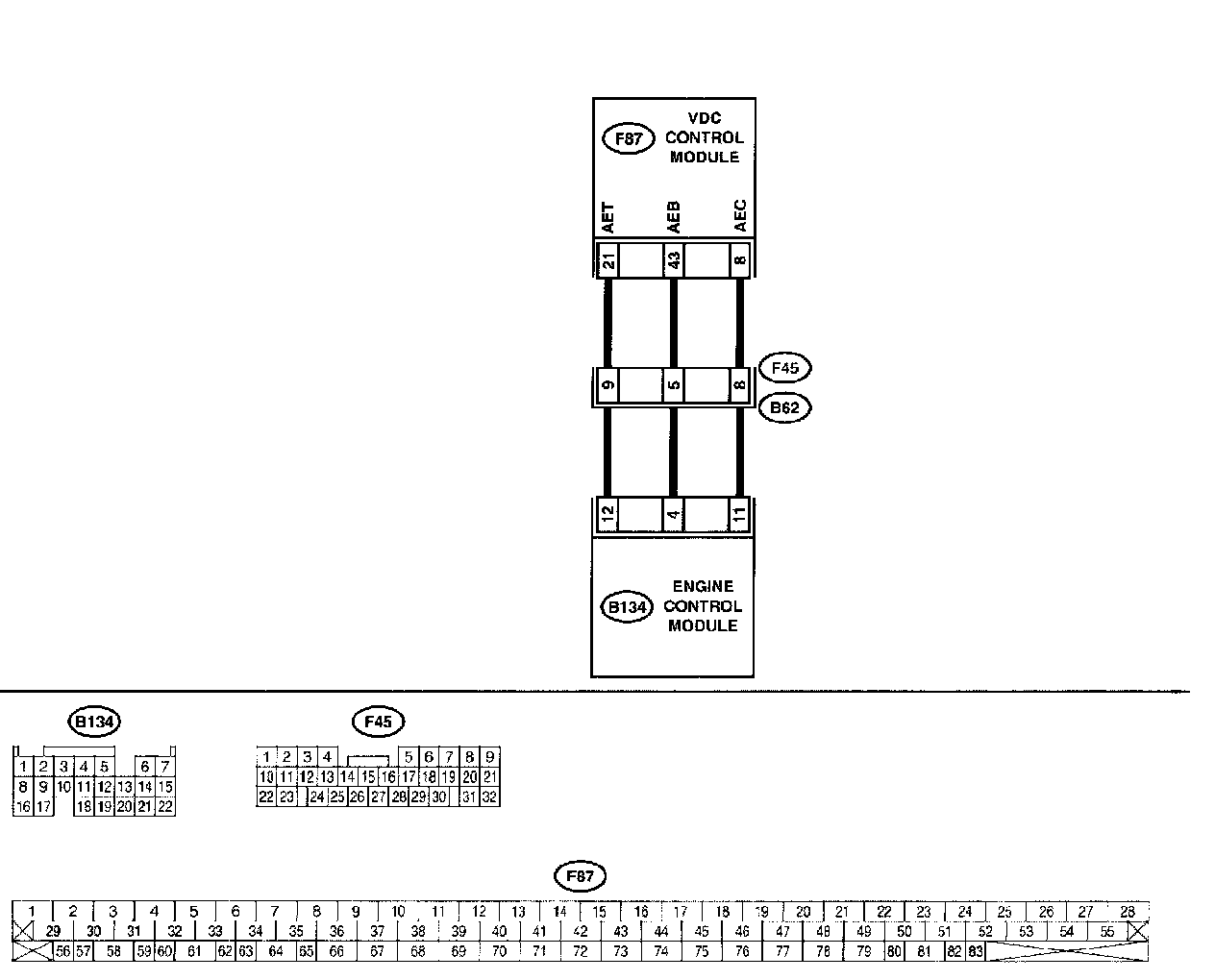

WIRING DIAGRAM:

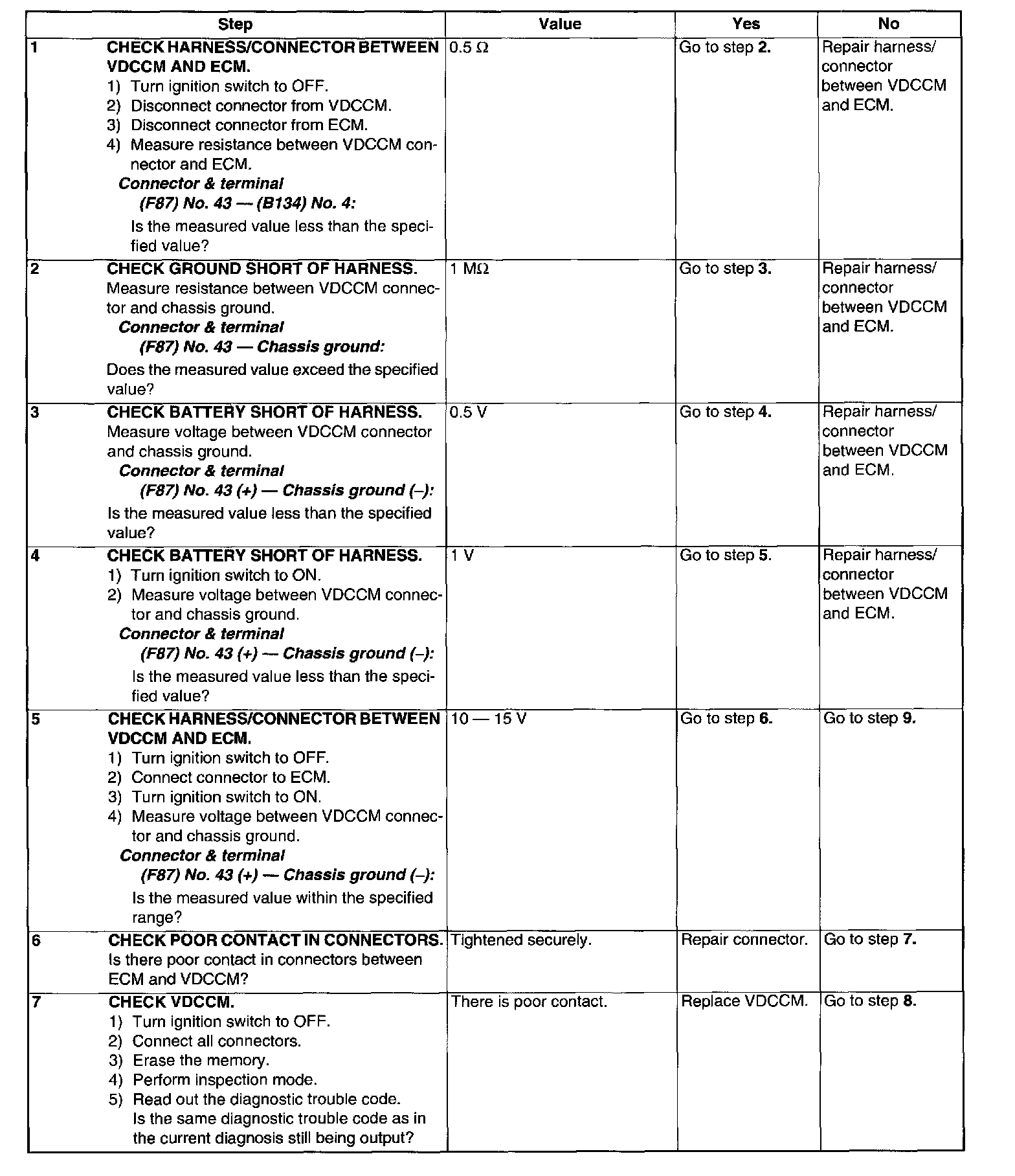

Test 1 Of 2:

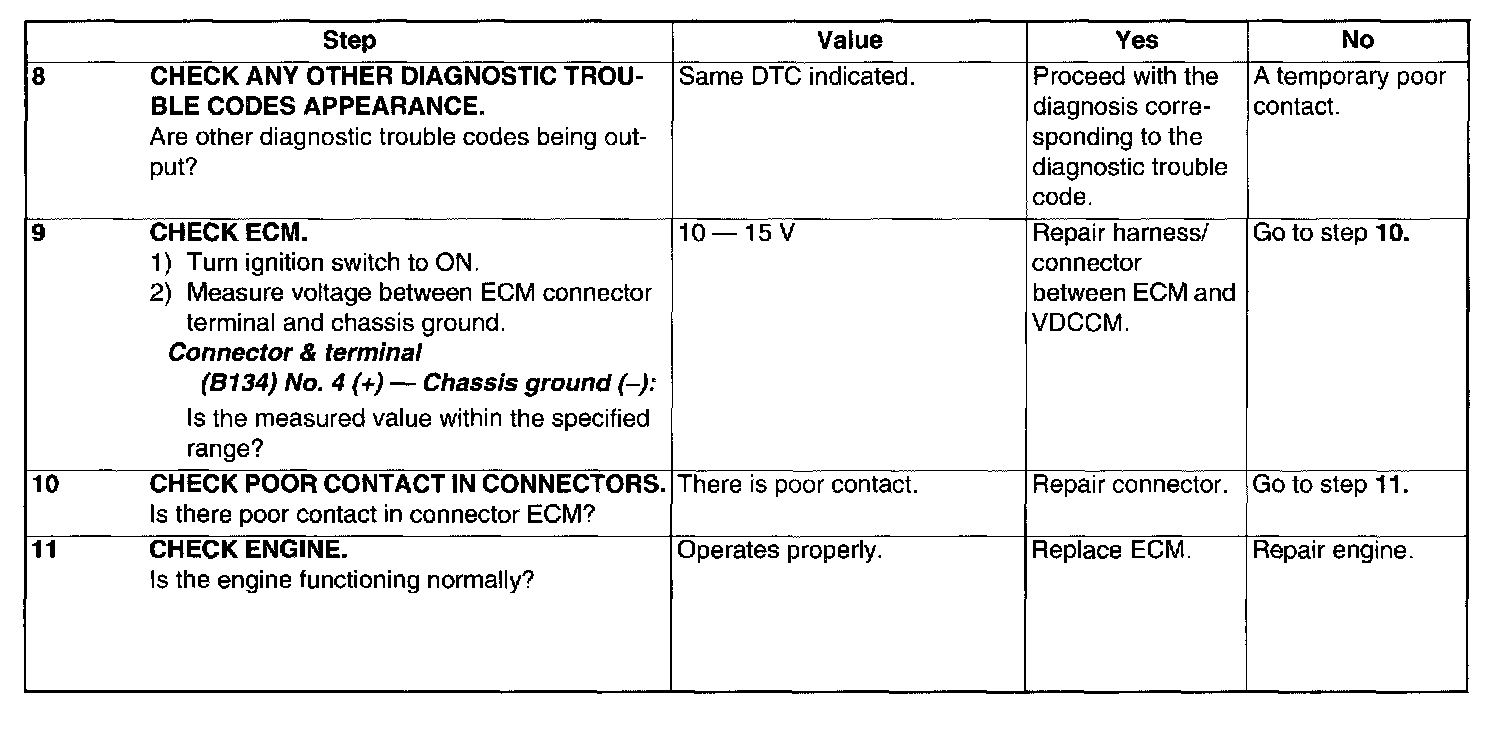

Test 2 Of 2:
DIAGNOSIS
^ AEB communication line is broken or short circuited.
TROUBLE SYMPTOM:
^ VDC does not operate.
WIRING DIAGRAM:
