ABS Trouble Code Charts For Warning Light Codes

DTC 42 SOURCE VOLTAGE IS ABNORMAL.

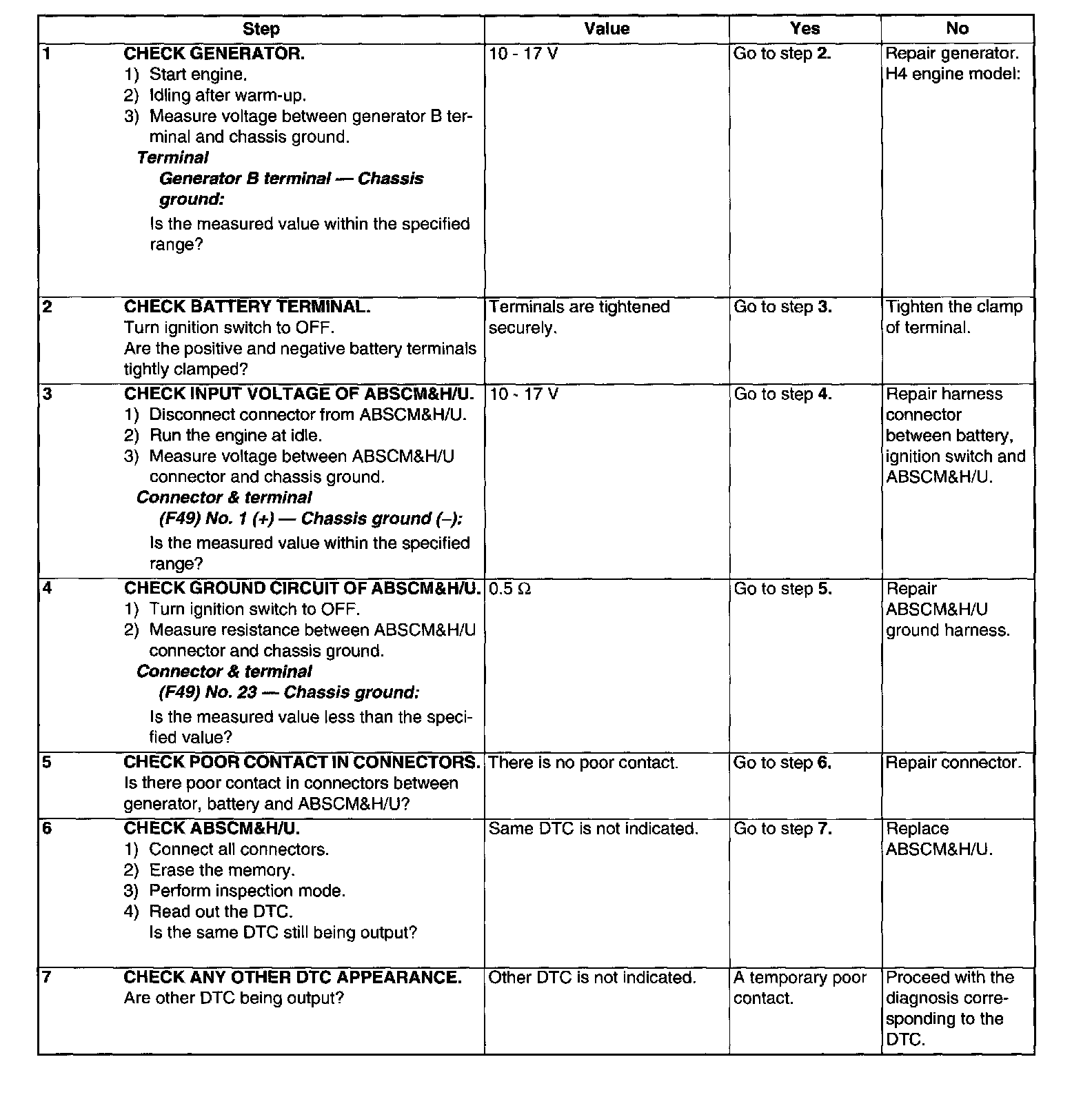

DIAGNOSIS
^ Power source voltage of the ABSCM&H/U is low or high.

TROUBLE SYMPTOM:
^ ABS does not operate.

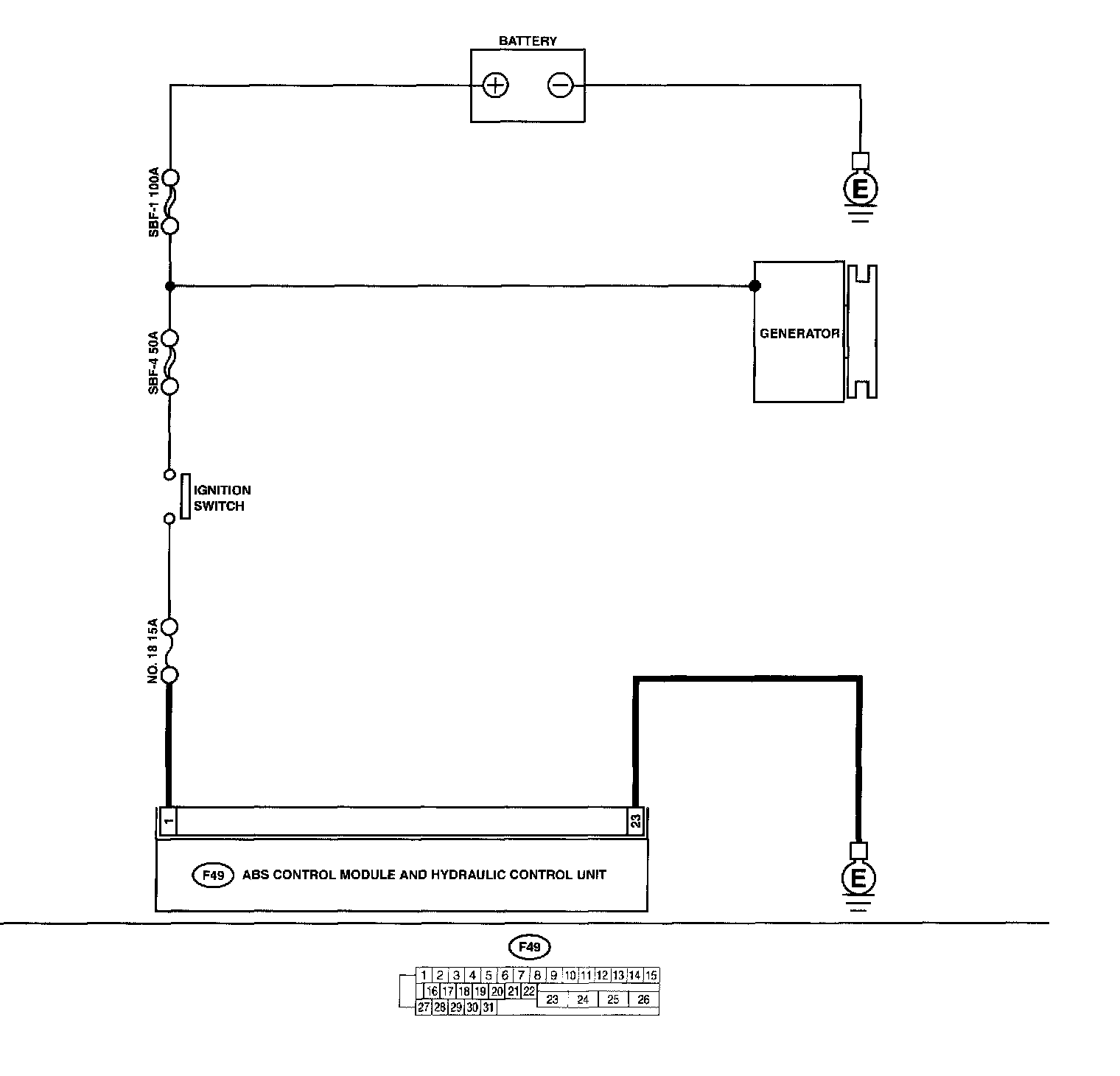

WIRING DIAGRAM:
