Transmission Control Systems
DTC 27 ATF TEMPERATURE SENSORDIAGNOSIS:
Input signal circuit of TCM to ATF temperature sensor is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock.

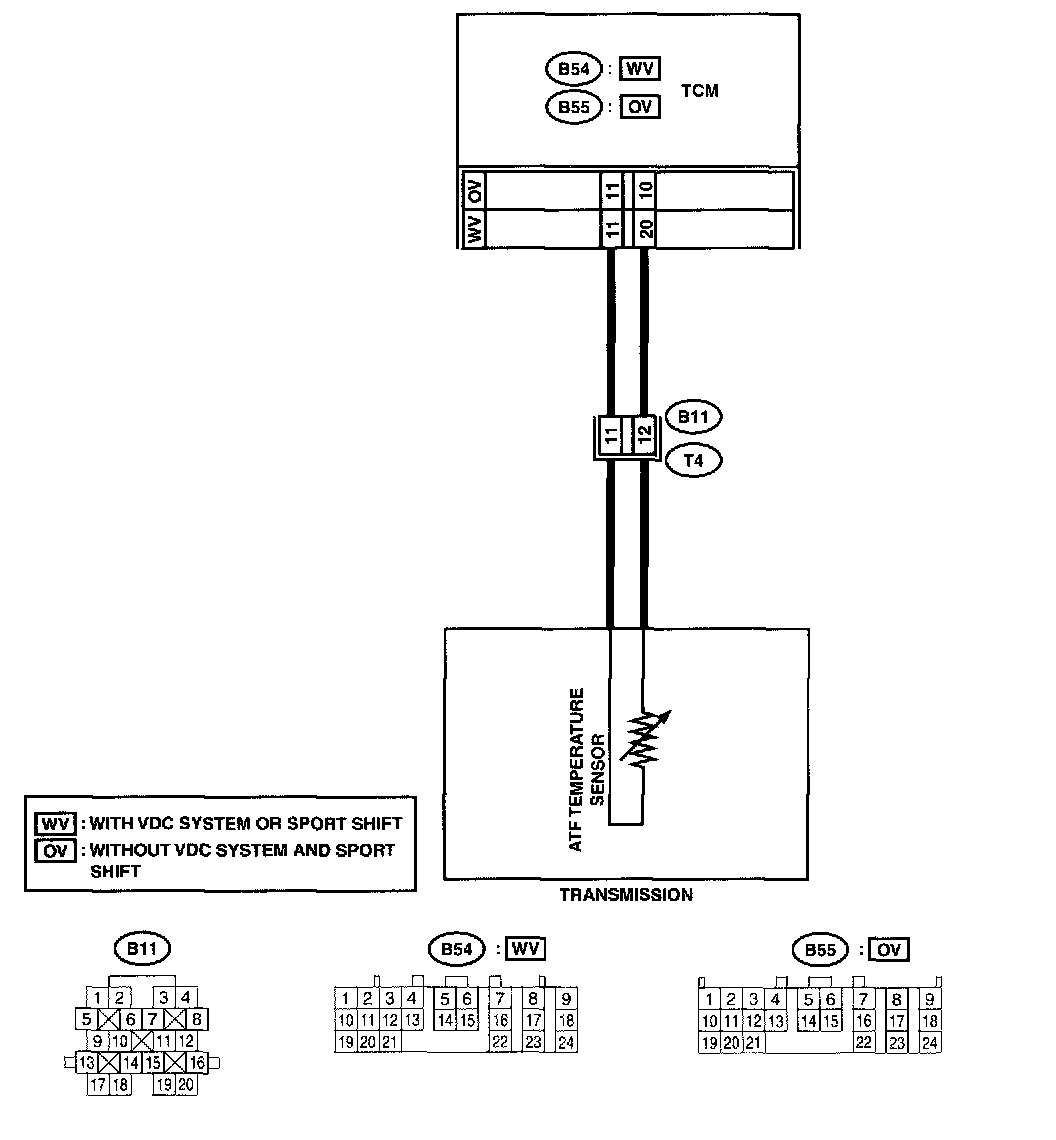

WIRING DIAGRAM:

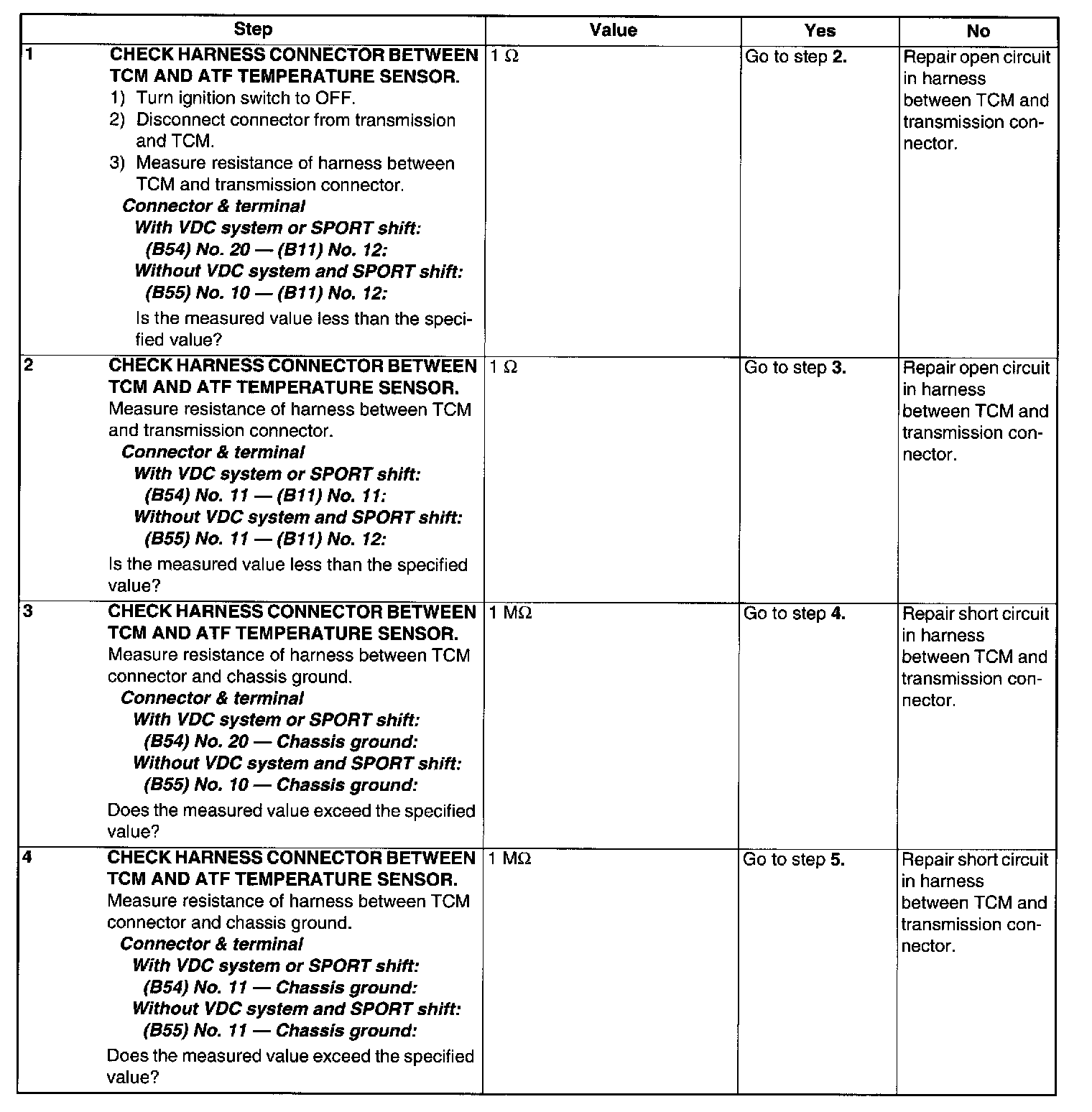

Test 1 Of 3:

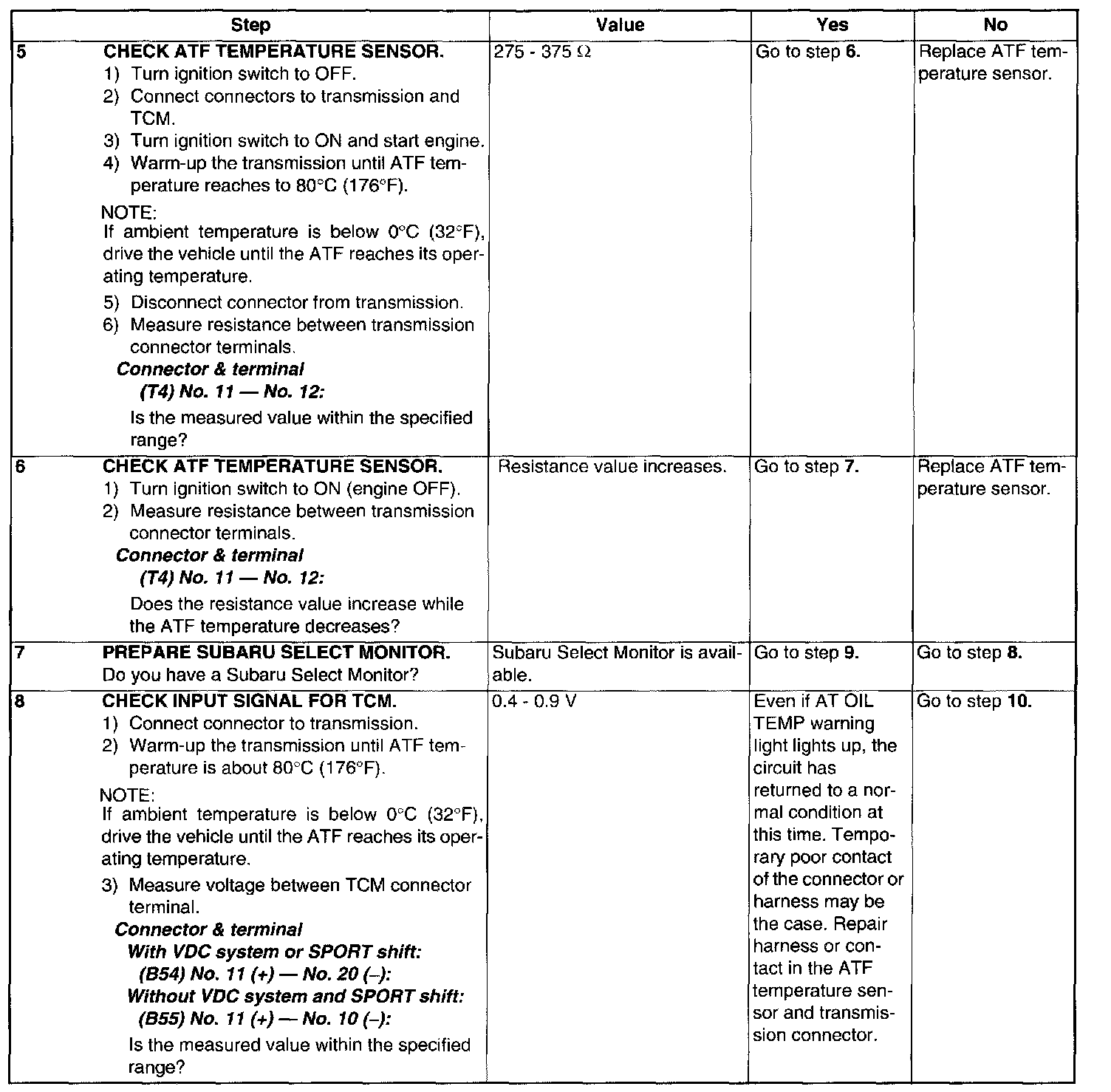

Test 2 Of 3:
Test 3 Of 3:
DIAGNOSIS:
Input signal circuit of TCM to ATF temperature sensor is open or shorted.
TROUBLE SYMPTOM:
Excessive shift shock.
WIRING DIAGRAM:
