Restraint Systems

DTC 22

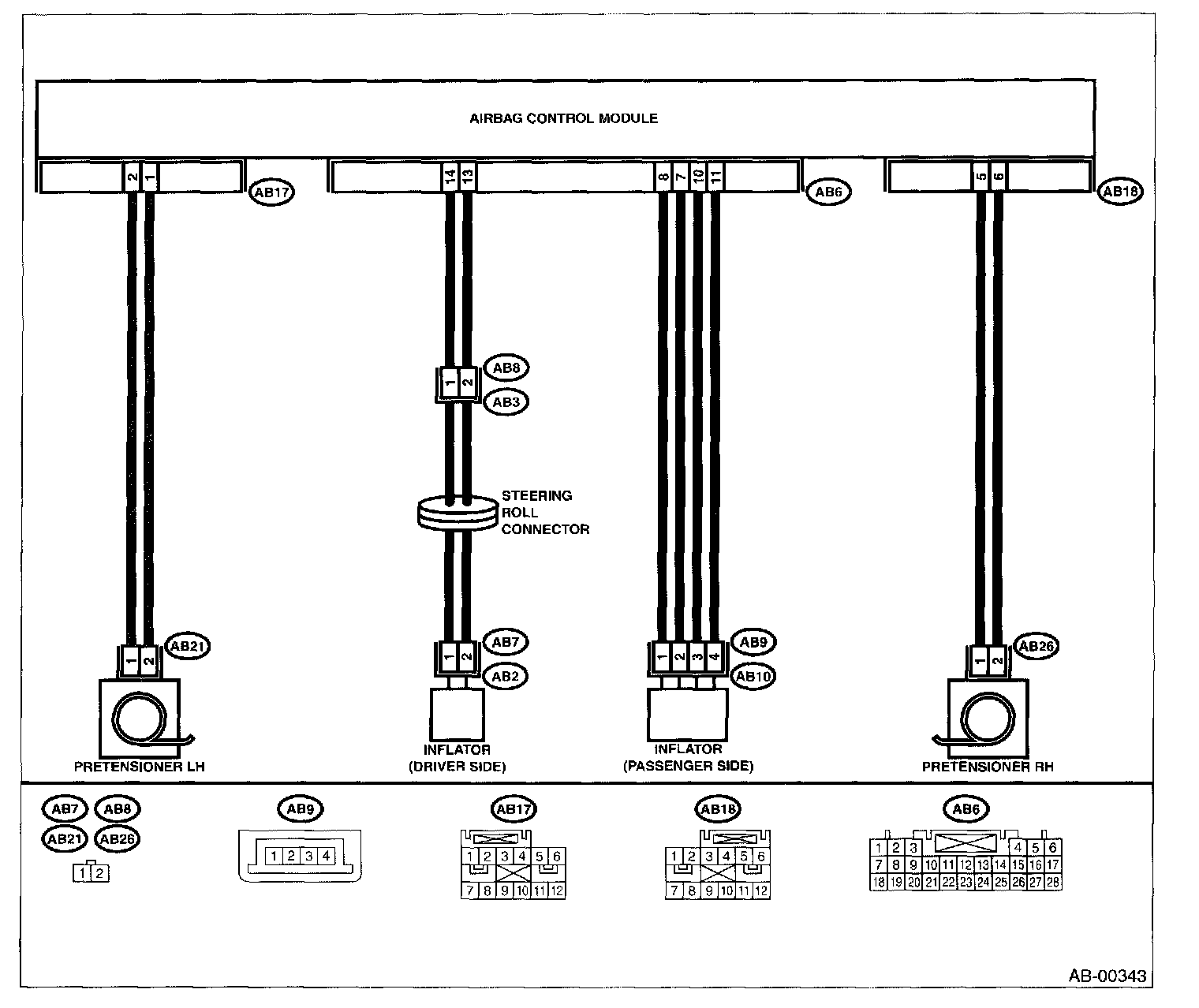

WIRING DIAGRAM

This code is indicated when the front airbag and the pretensioner are in operation.

Once this code is indicated, memory is not erasable; therefore change the following parts.
- Airbag control module.
- Driver's airbag module.
- Passenger's airbag module.
- Front sub-sensor of both sides.
- Front seat belt outer with pretensioner of both sides.
