Transmission Control Systems

DTC 11 ENGINE SPEED SIGNAL

DIAGNOSIS:
Engine speed input signal circuit is open or shorted.

TROUBLE SYMPTOM:
- No lock-up (after engine warm-up).
- AT OIL TEMP warning light remains on when vehicle speed is "0".

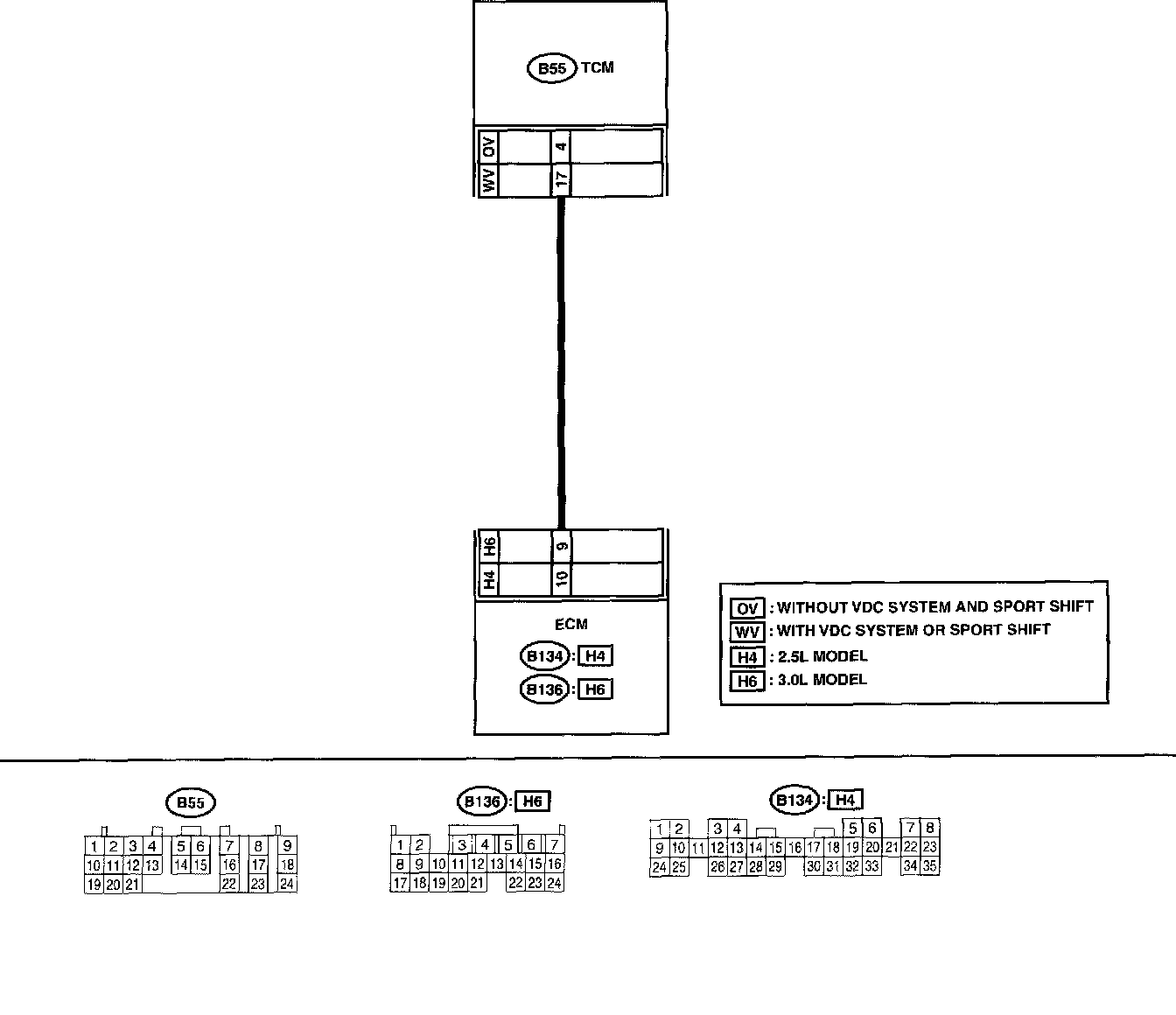

WIRING DIAGRAM:

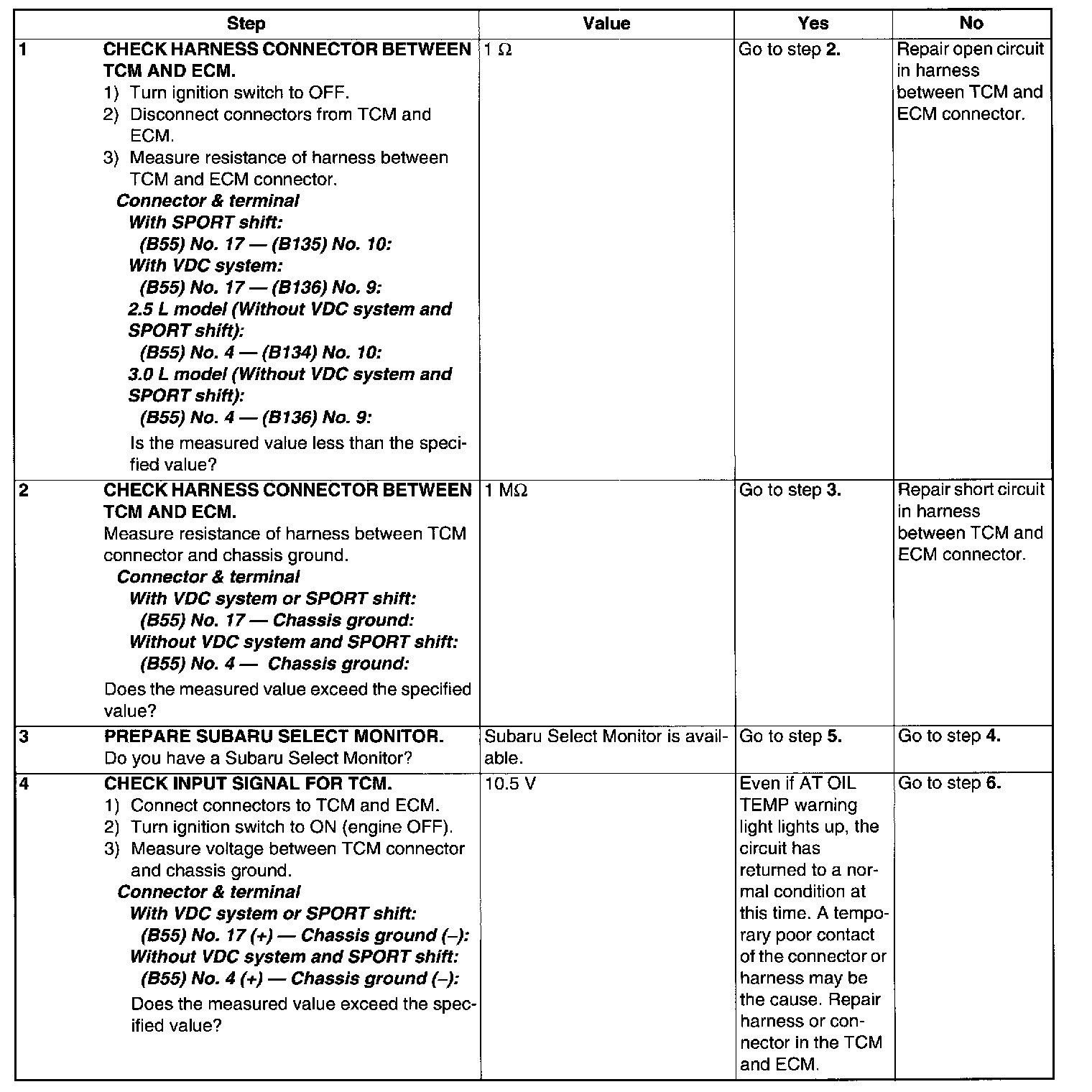

Test 1 Of 2:

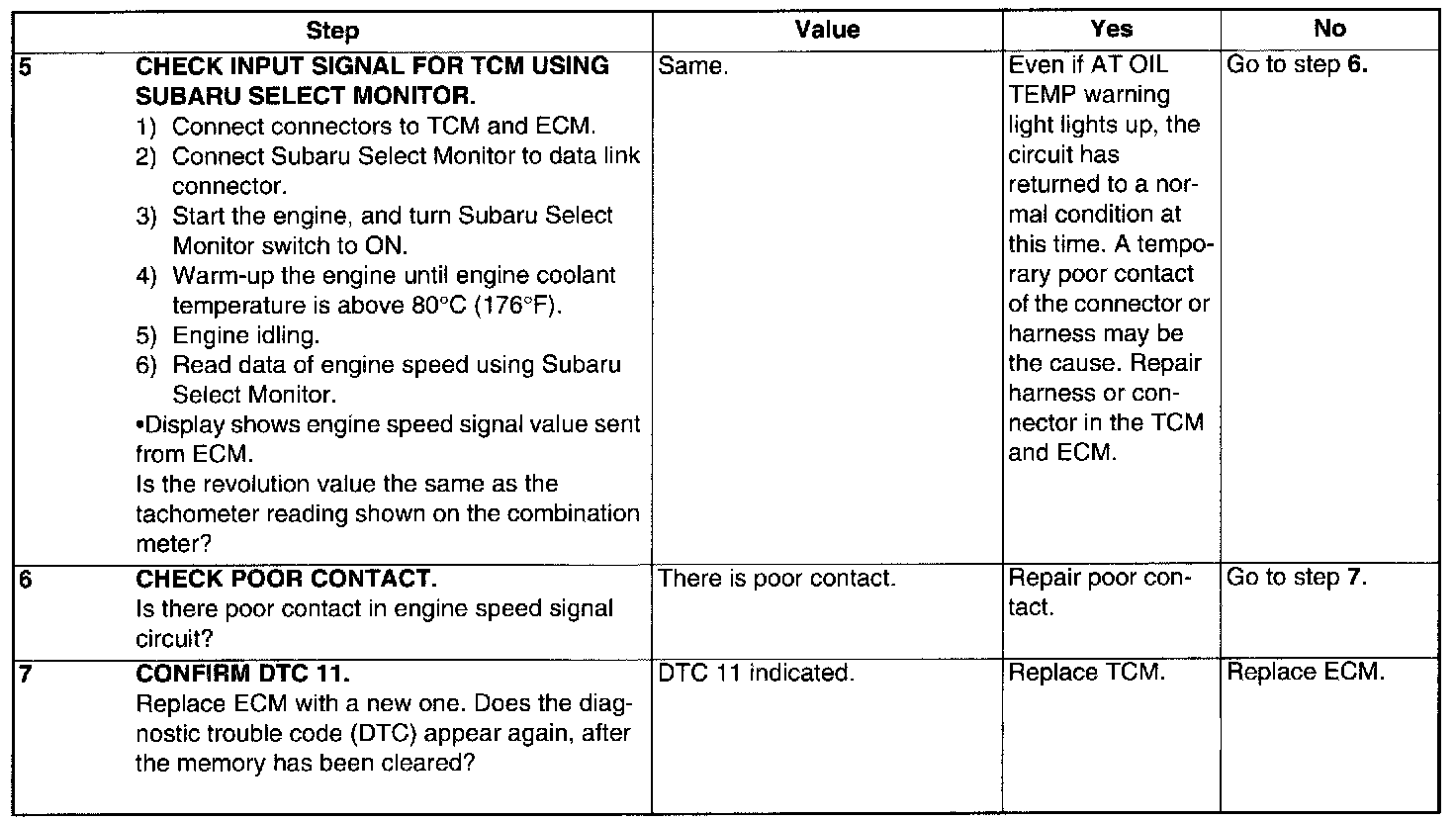

Test 2 Of 2:
