Subaru
>>
2003
>>
Outback F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
B30-B334
B30-B334
Bulkhead Wiring Harness (In Compartment)

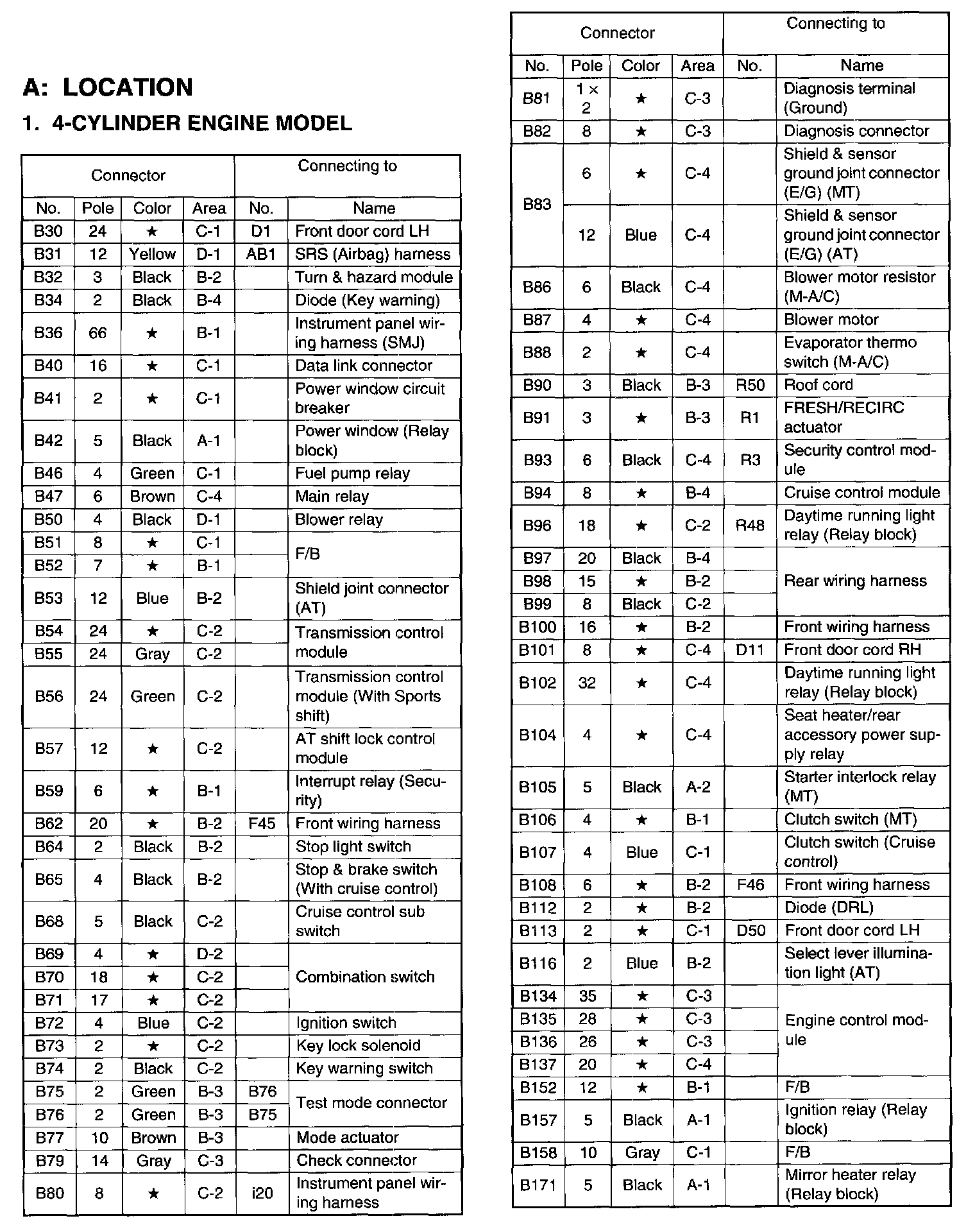

B30-B171:

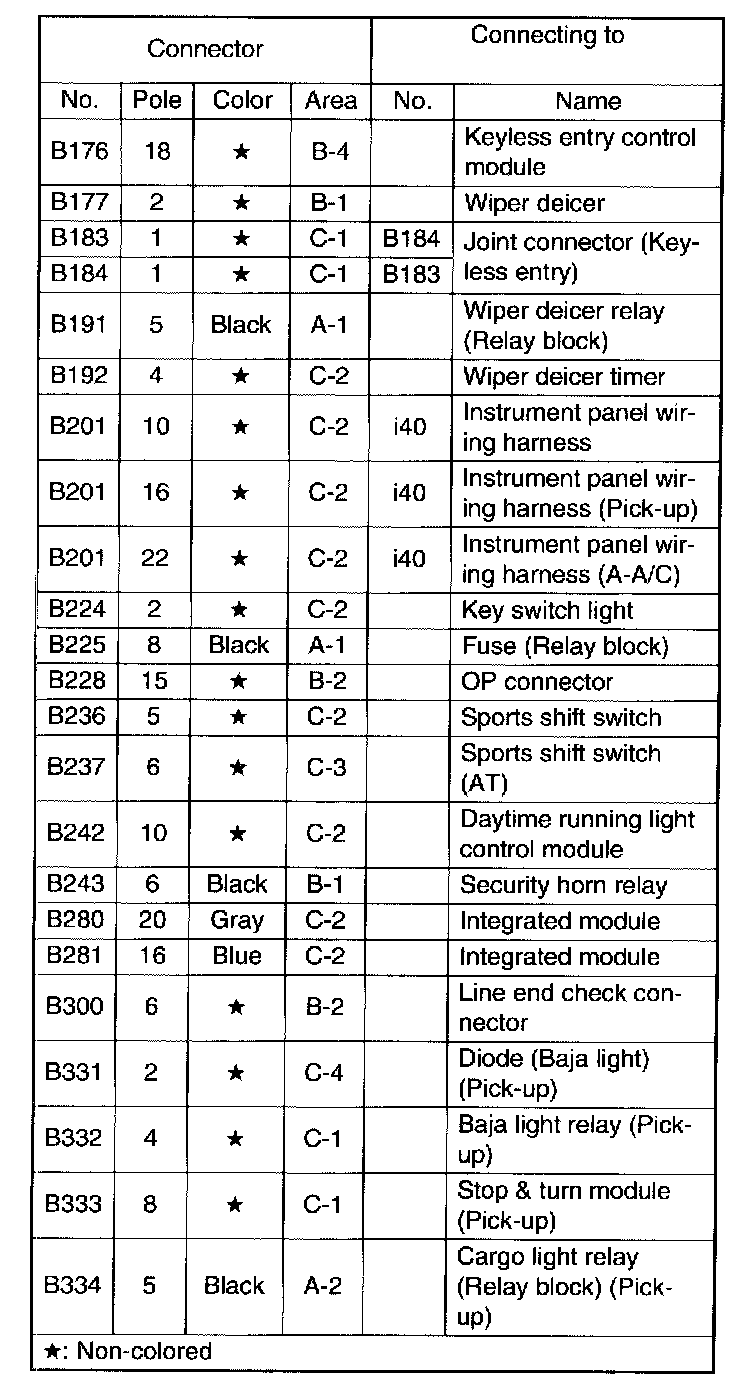

B176-B334:
Area View:
