Home >> Subaru >> 2003 >> Impreza WRX F4-2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

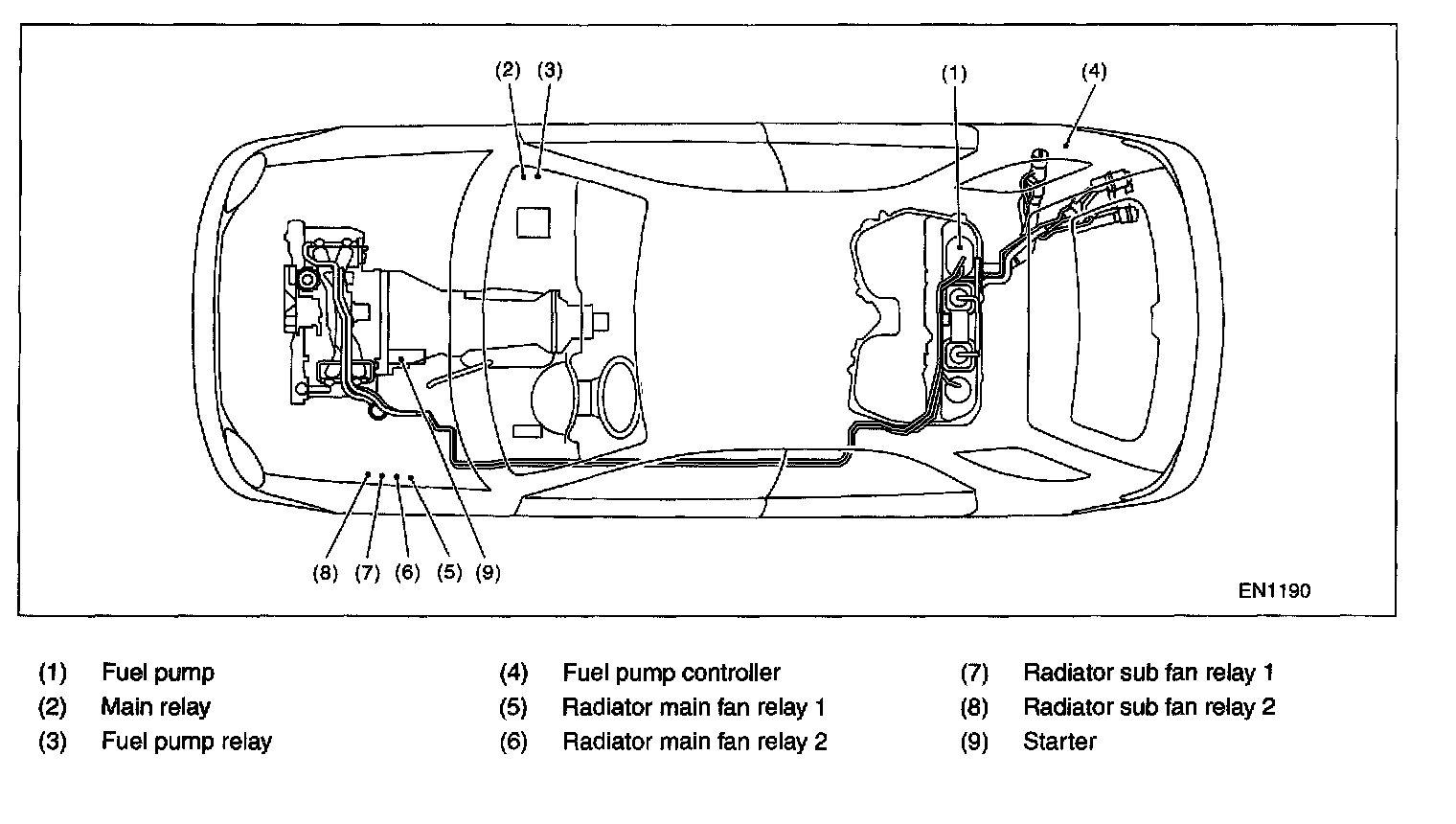

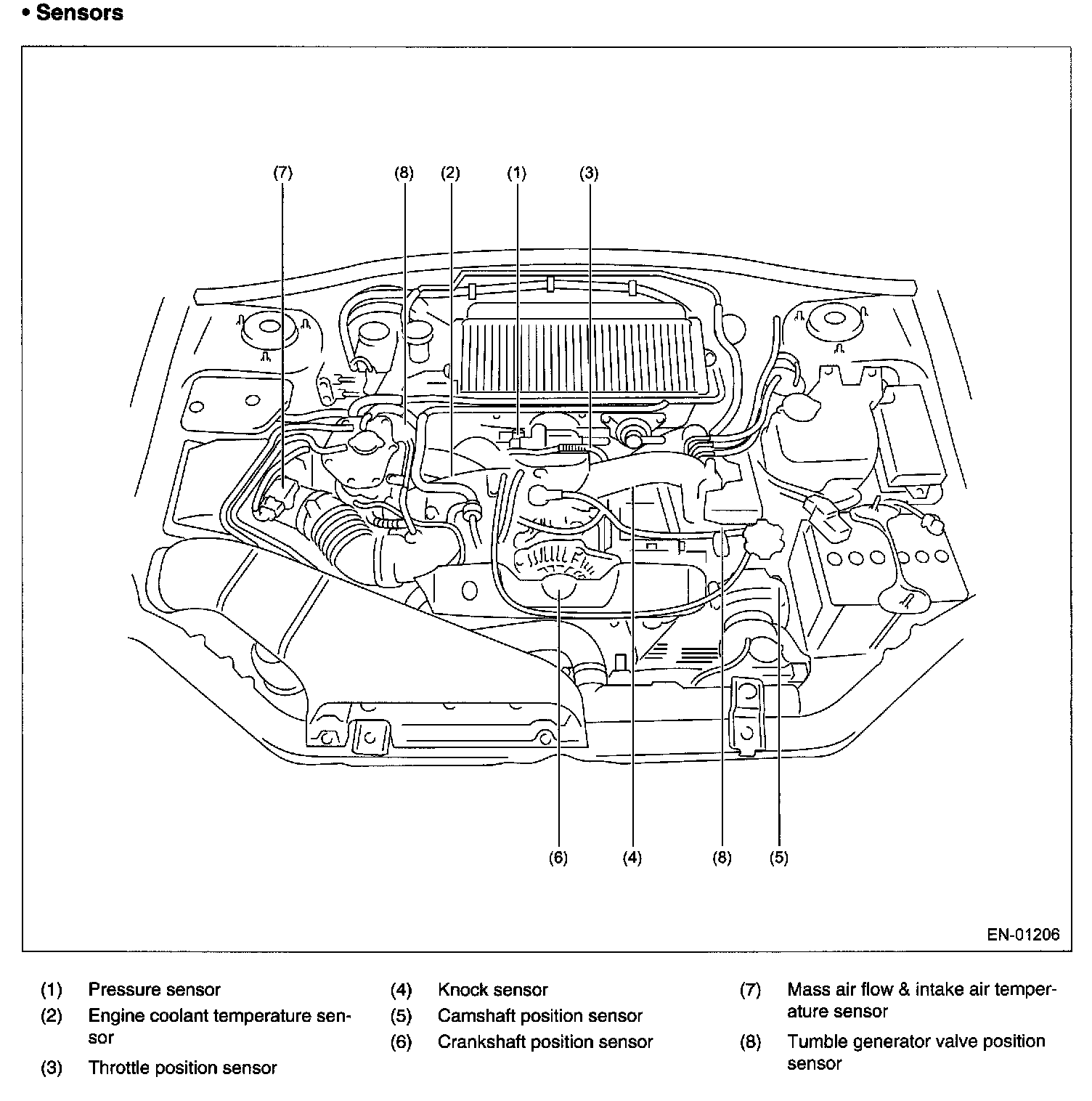

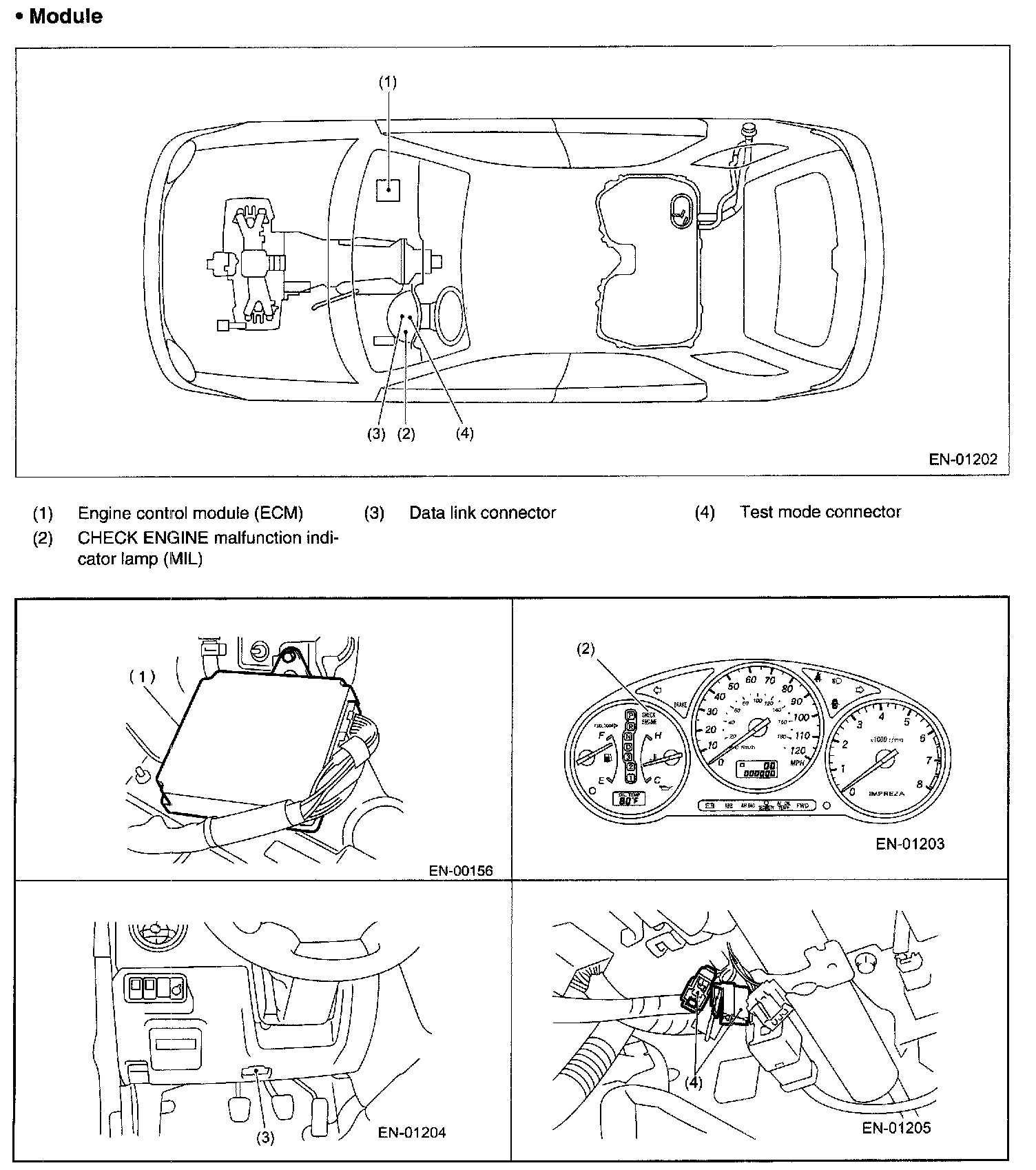

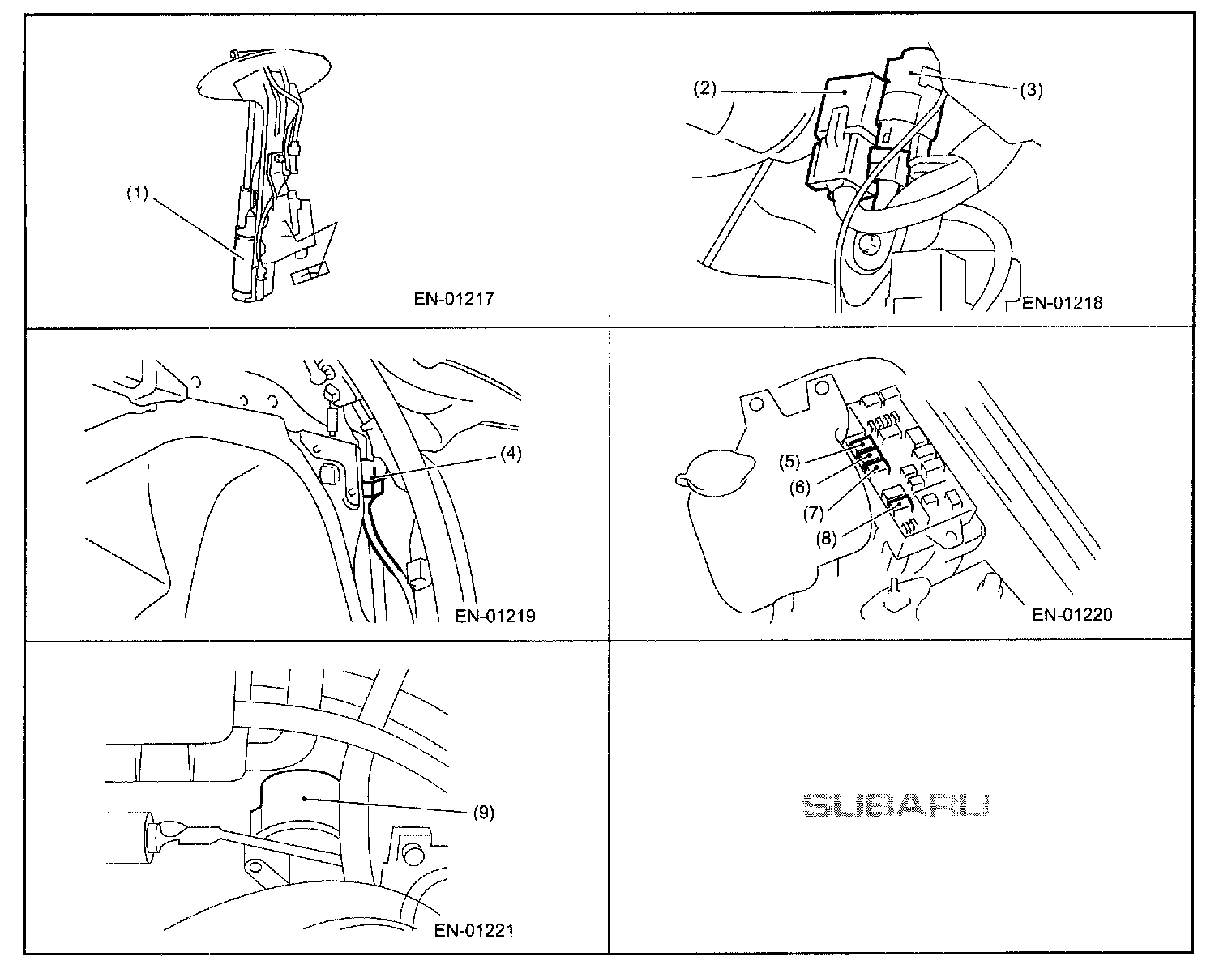

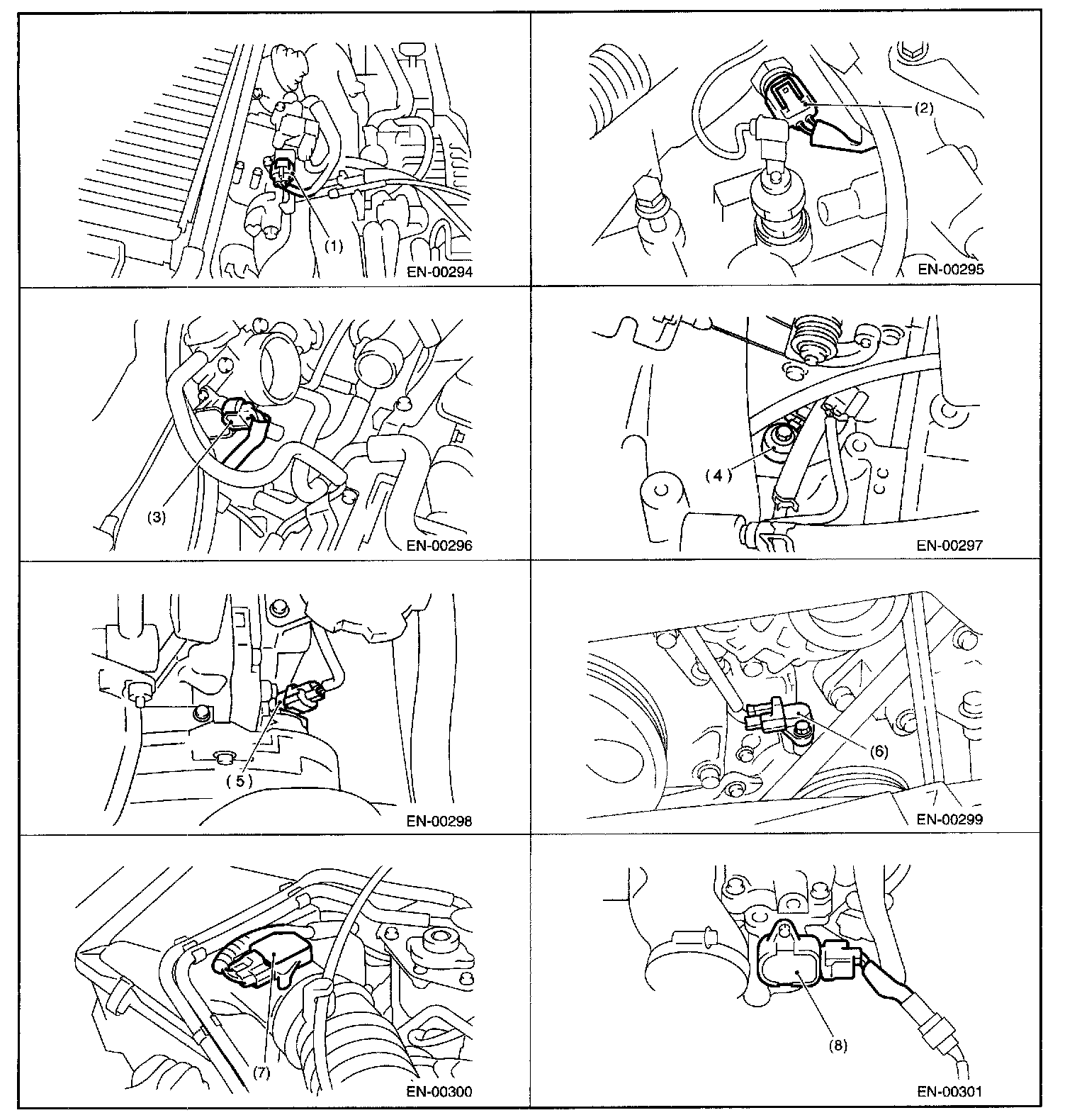

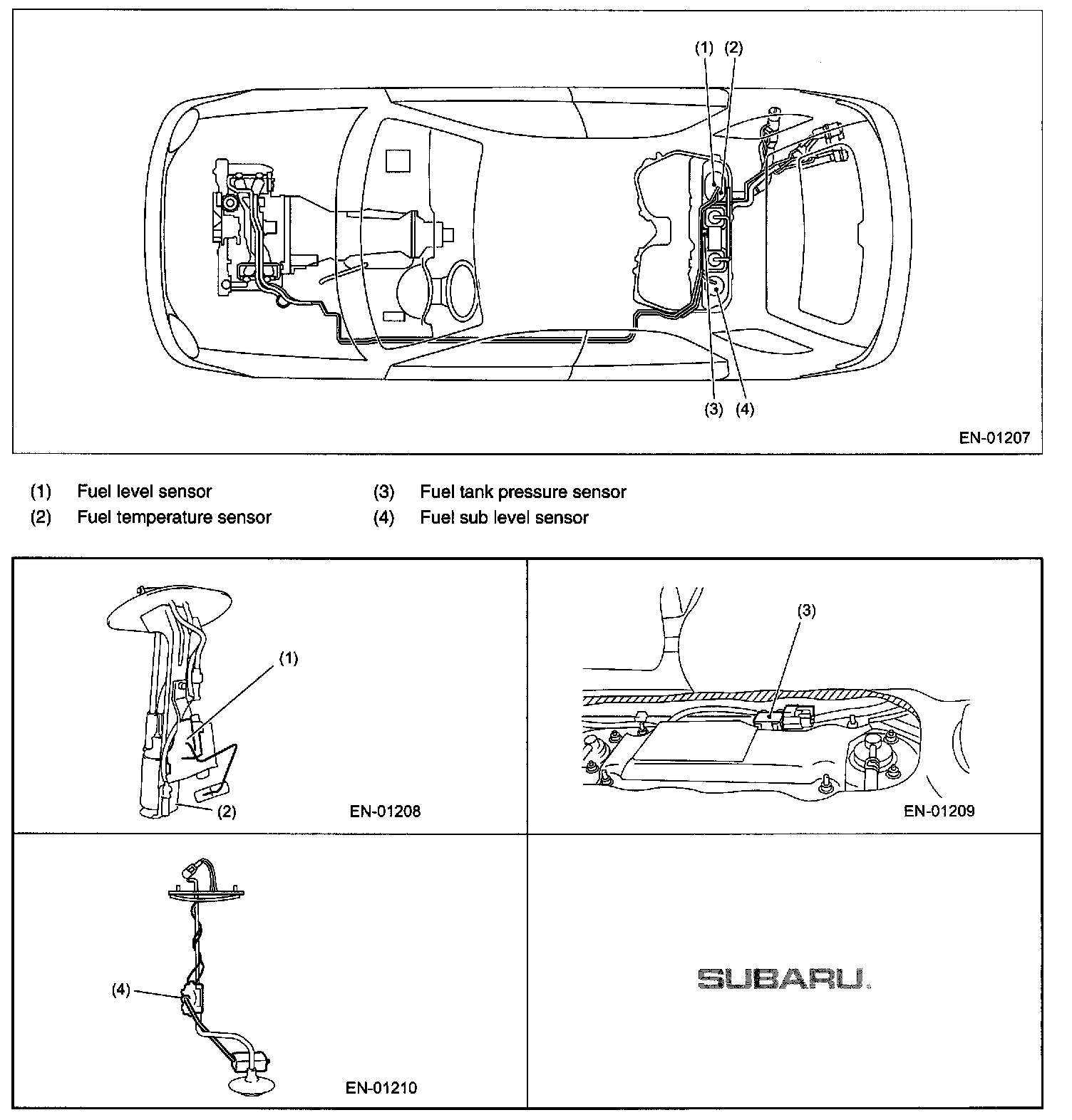

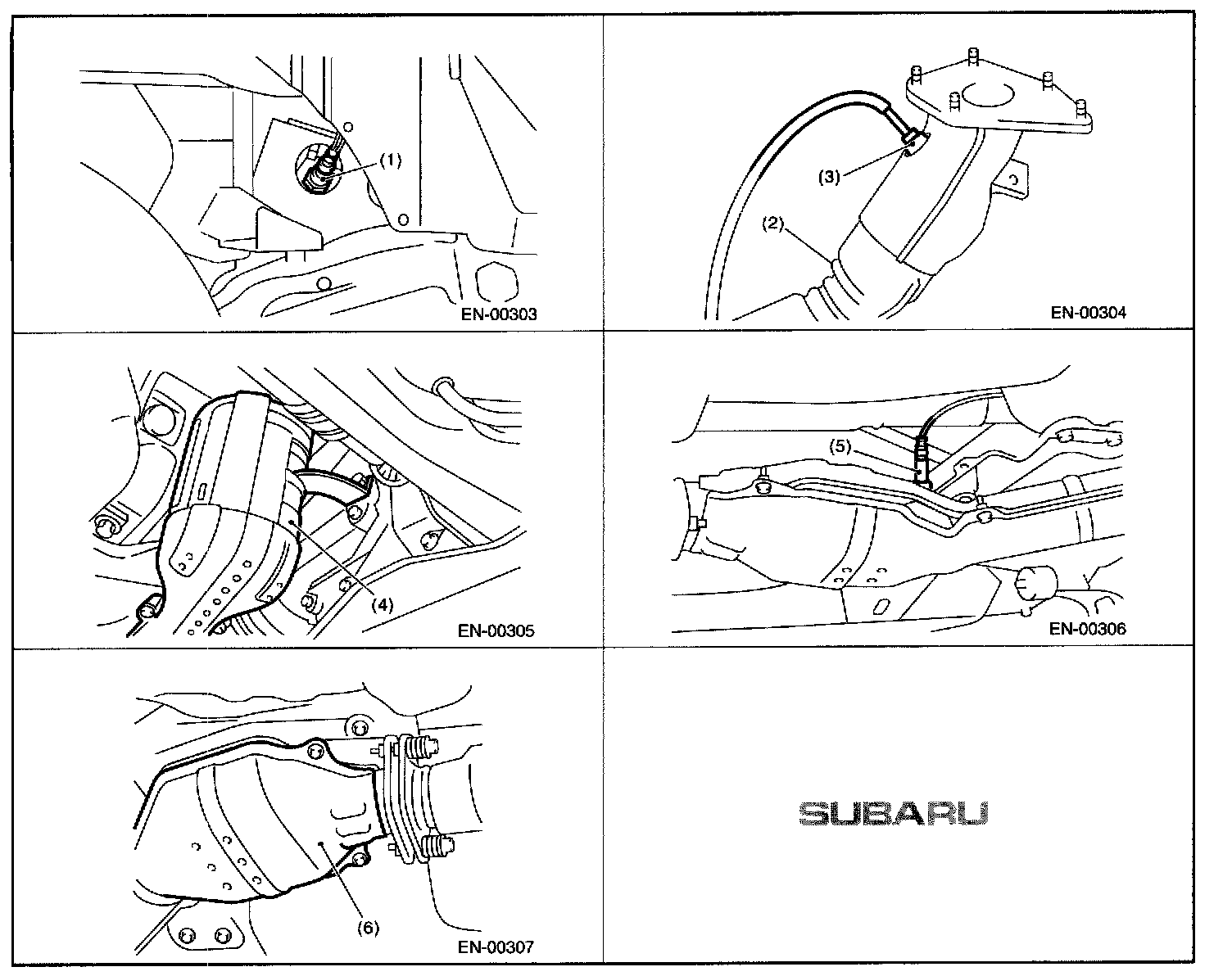

Computers and Control Systems: Locations

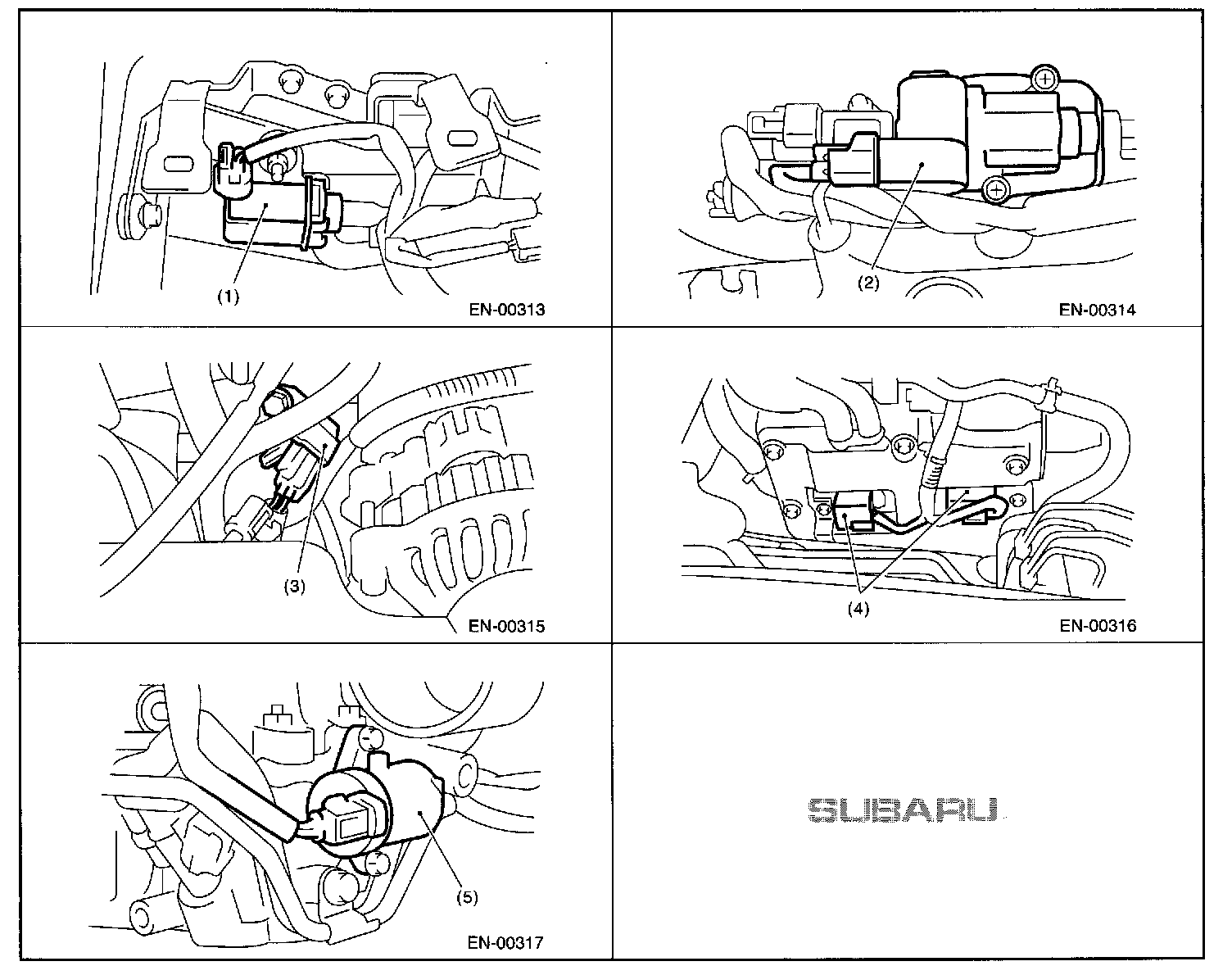

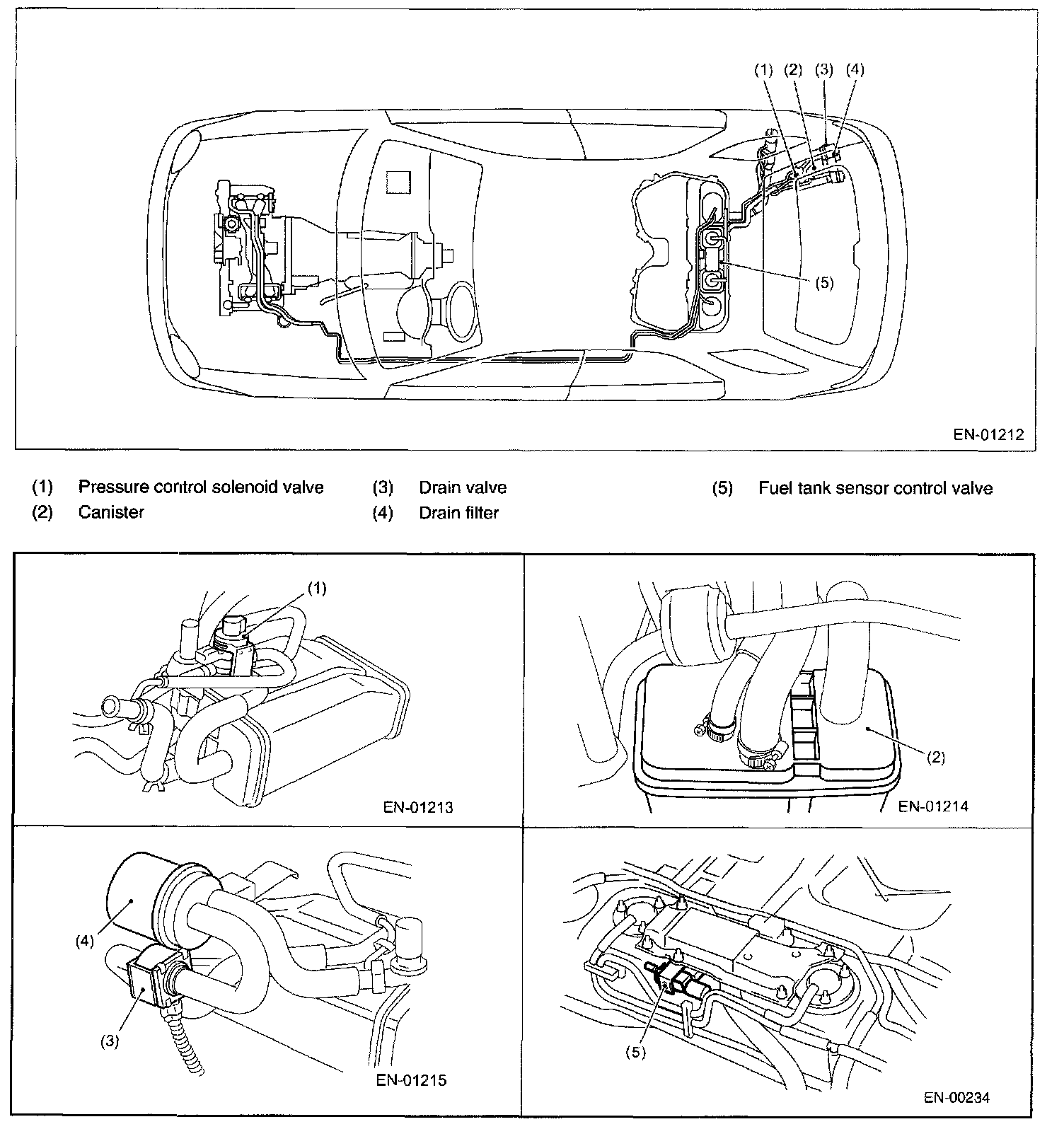

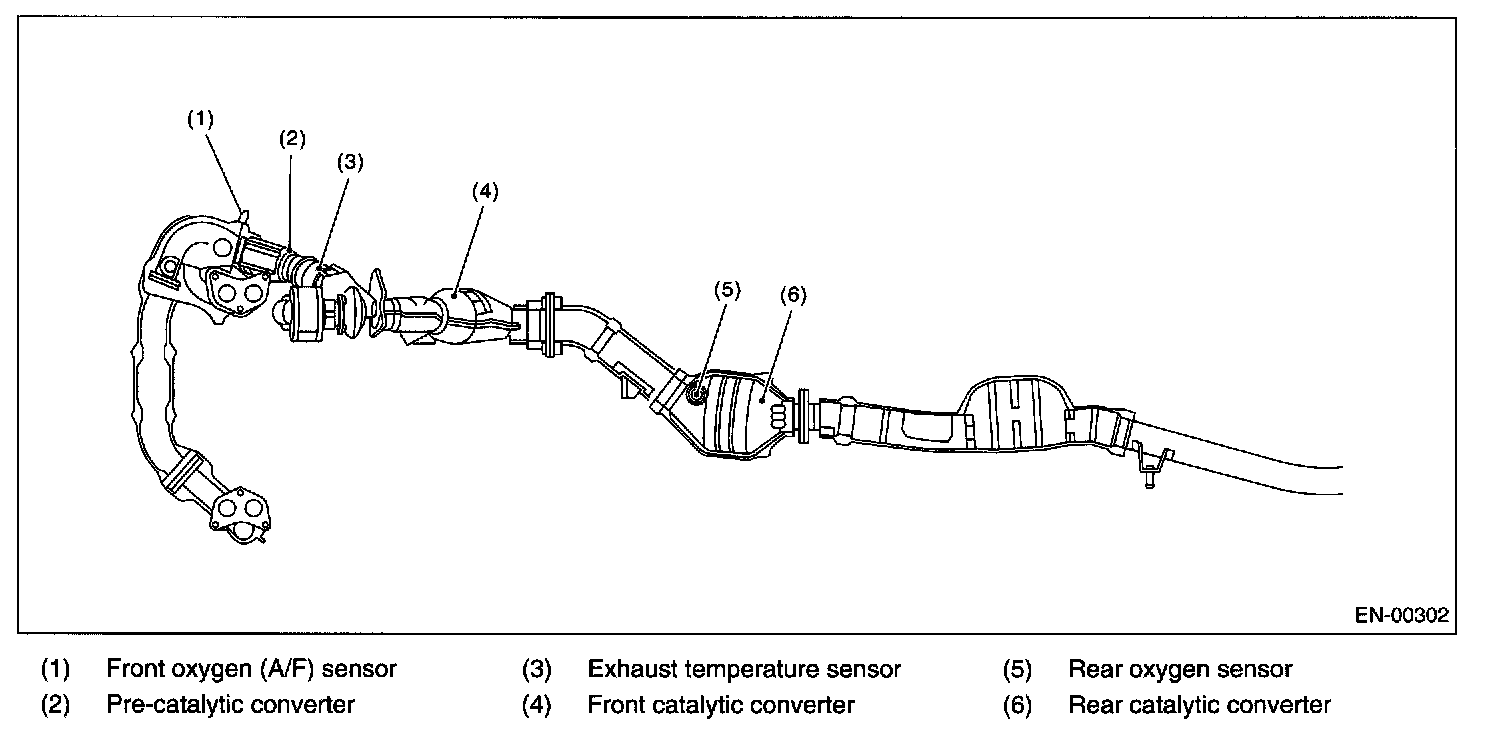

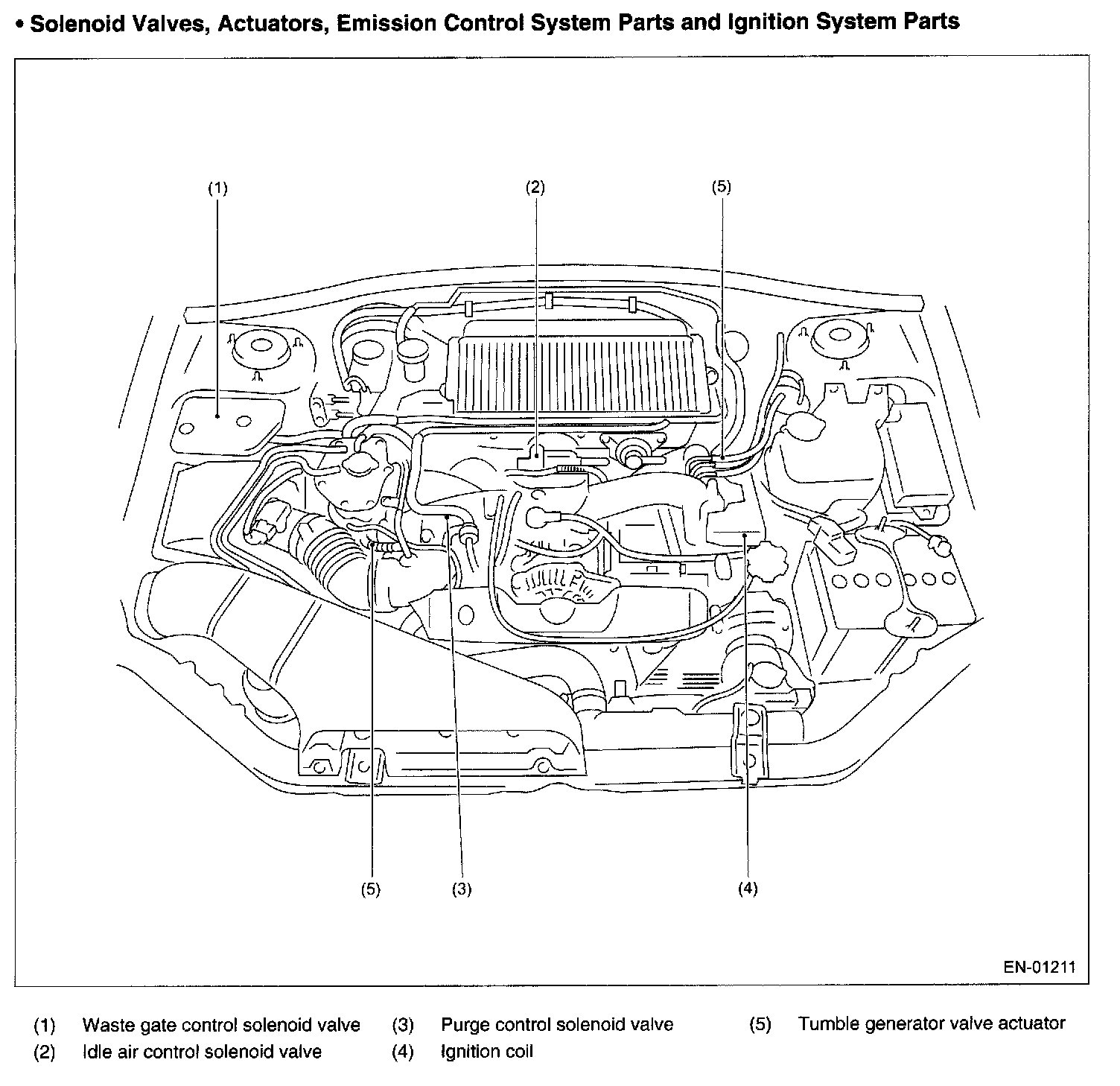

Solenoid Valves, Actuators Emission Control System Parts And Ignition System Parts:
