Impreza WRX F4-2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R16-R122
R16-R122

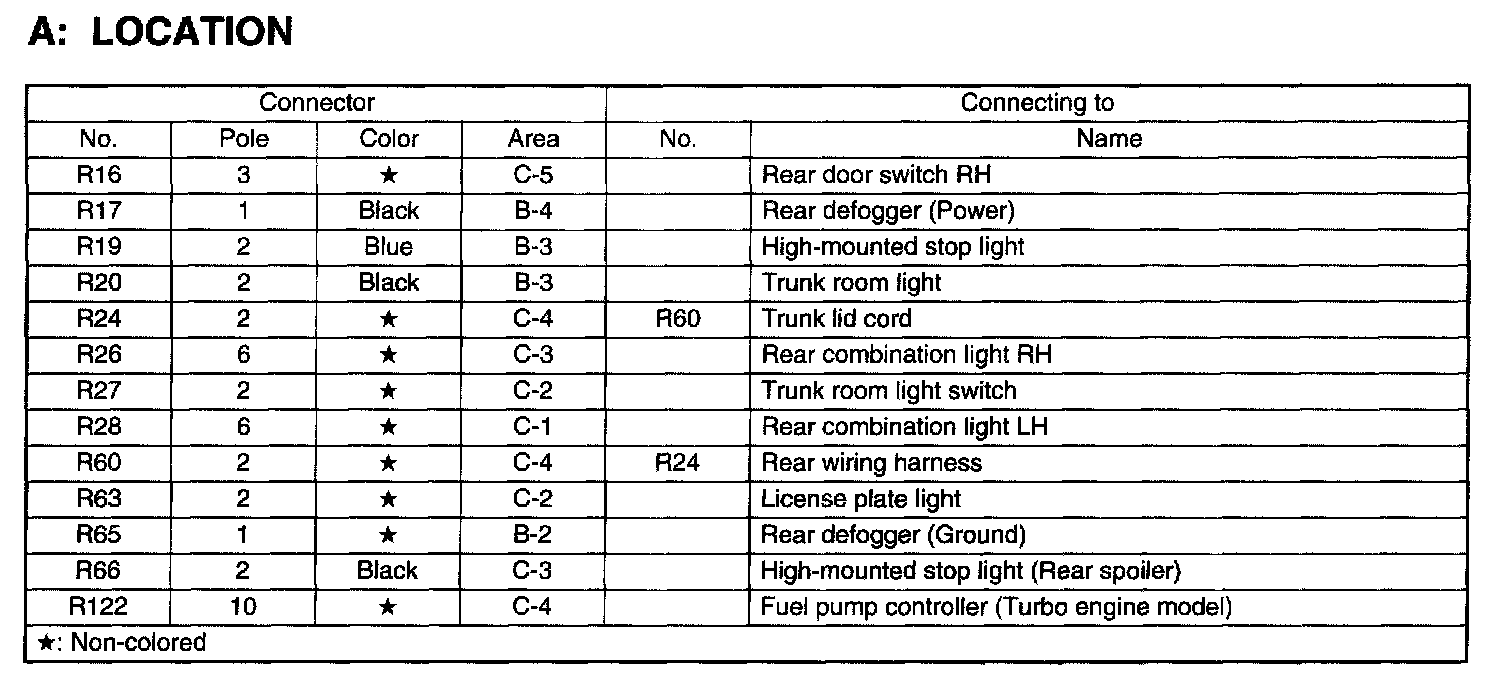

Rear Wiring Harness and Truck Lid Cord
R16-R122:

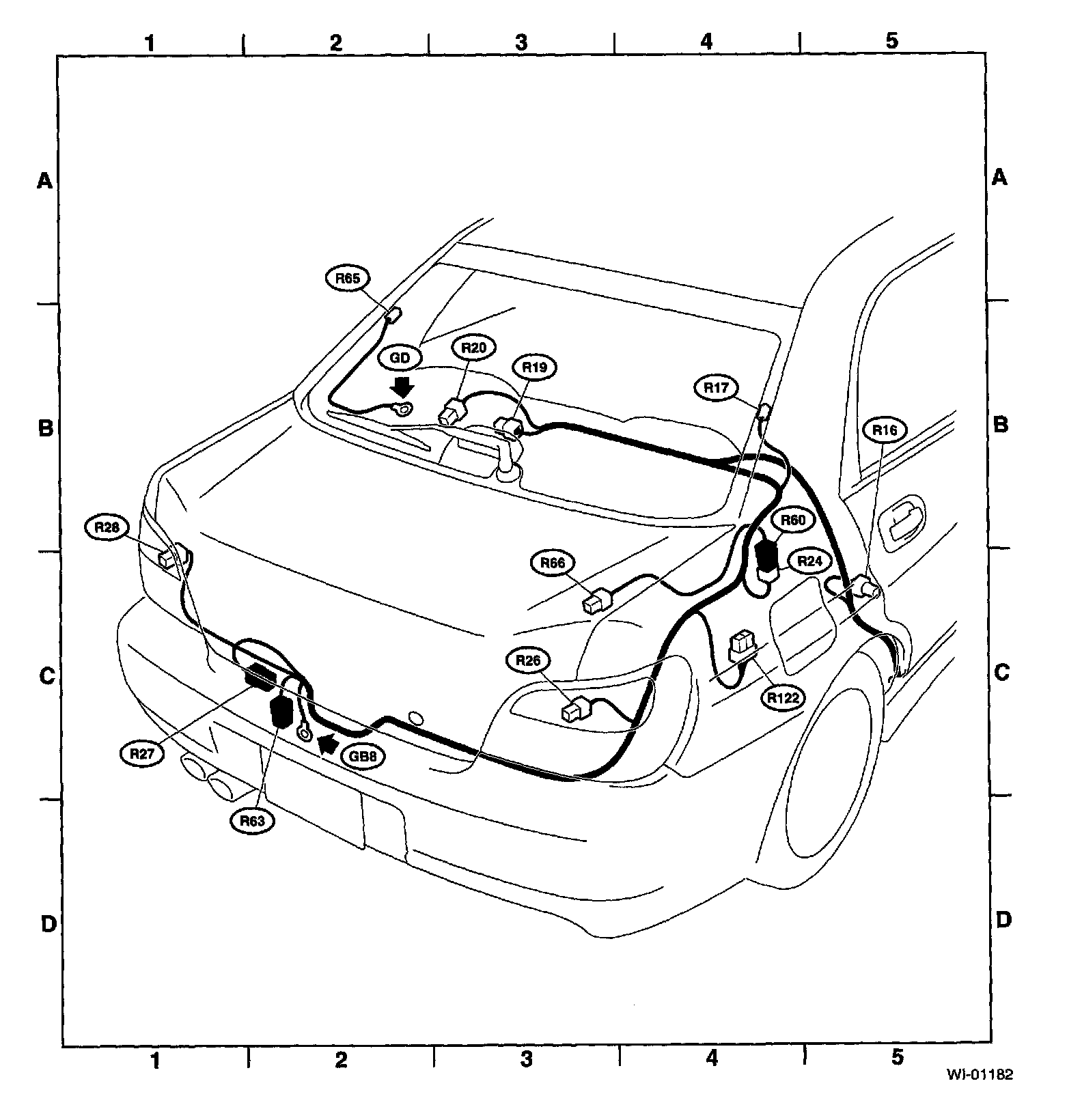

Area View:
