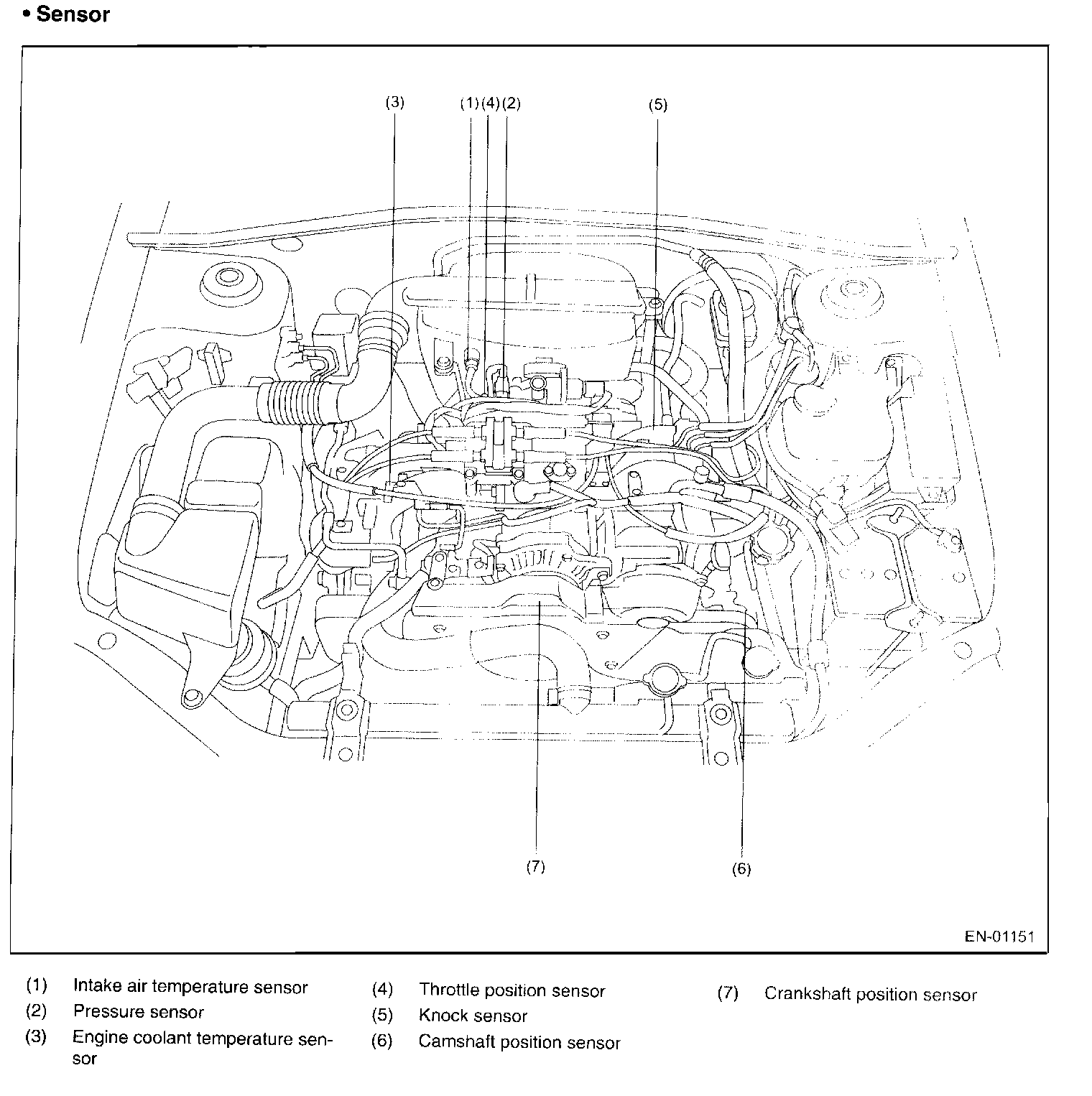

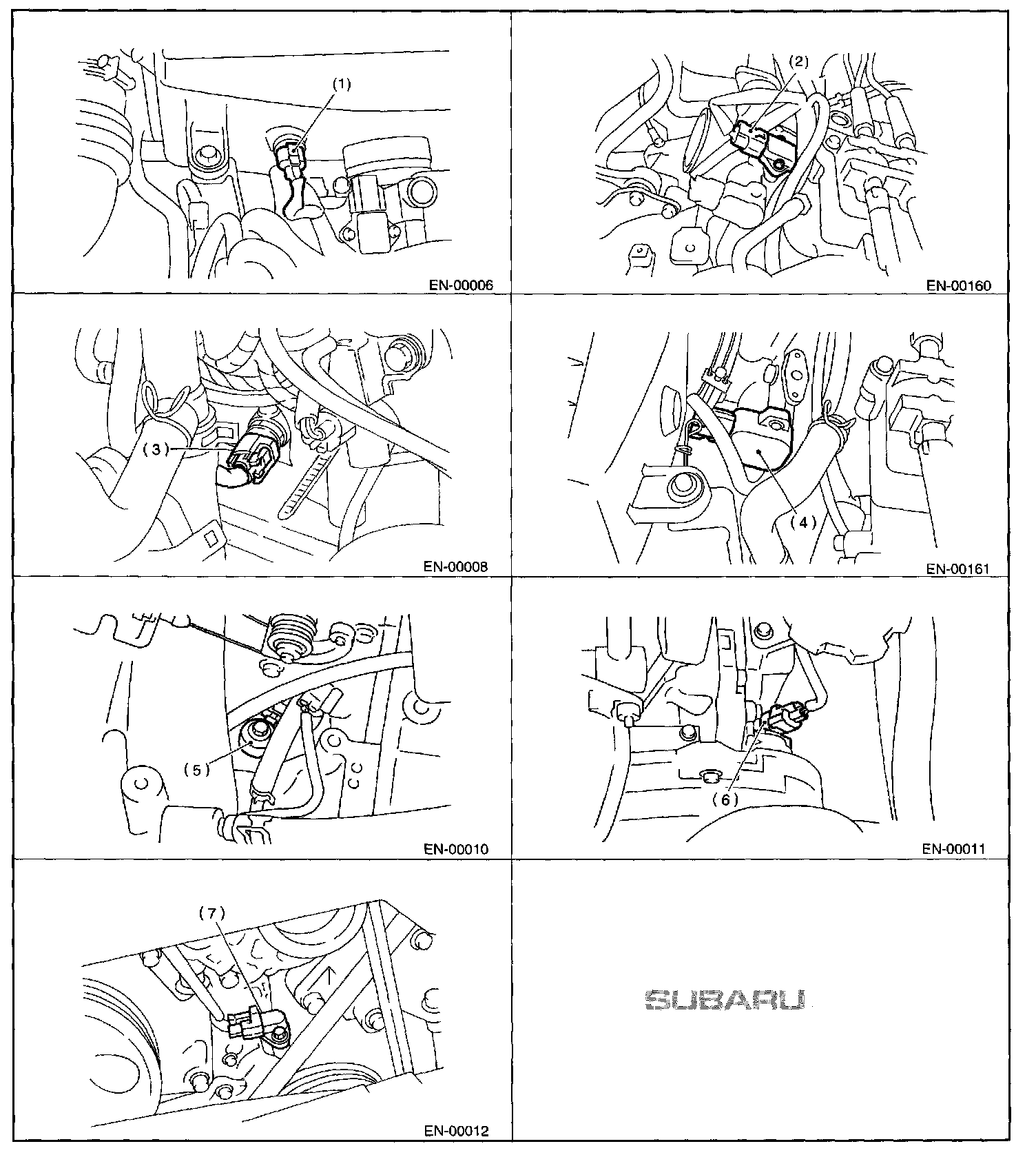

Computers and Control Systems: Locations

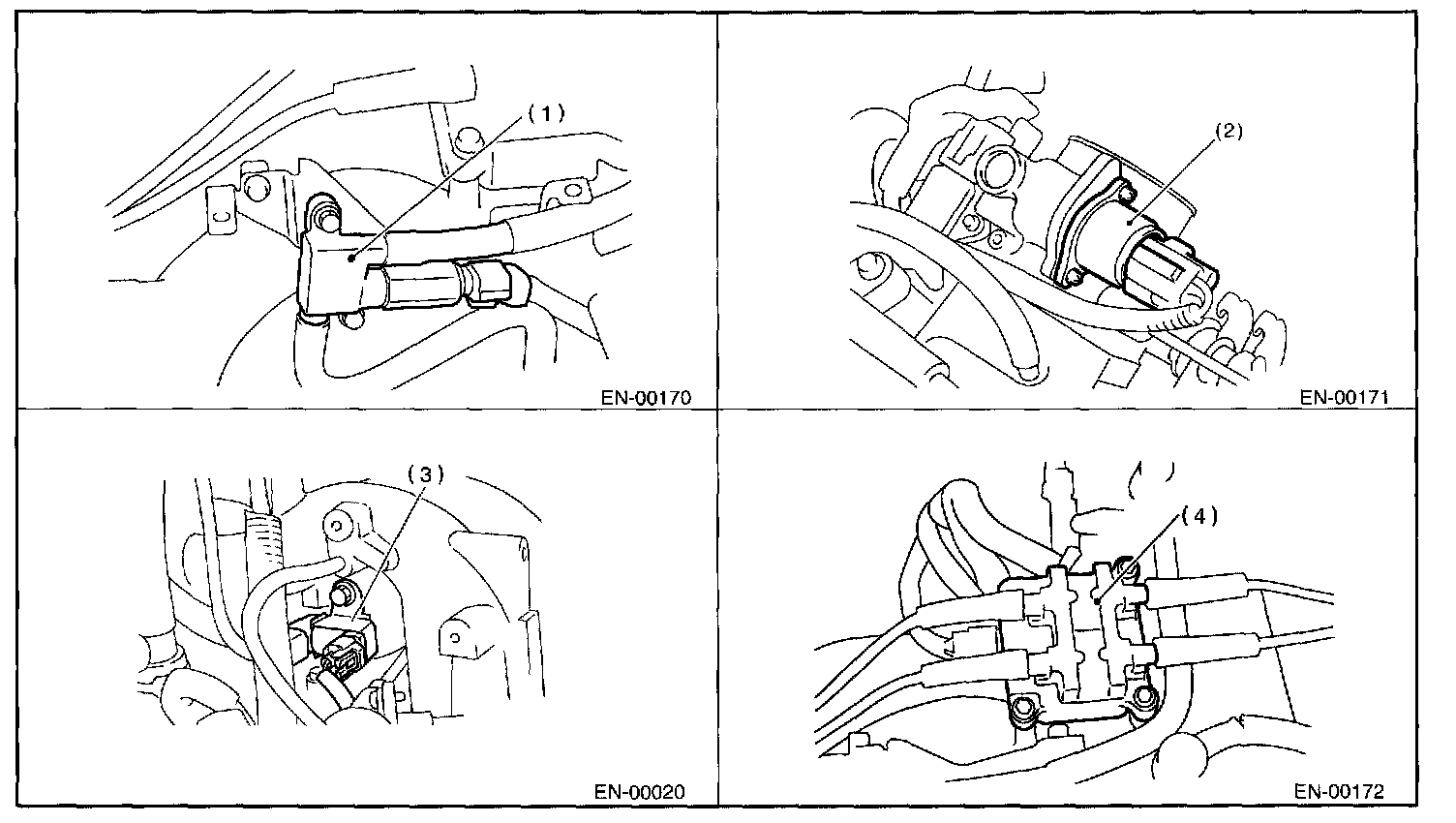

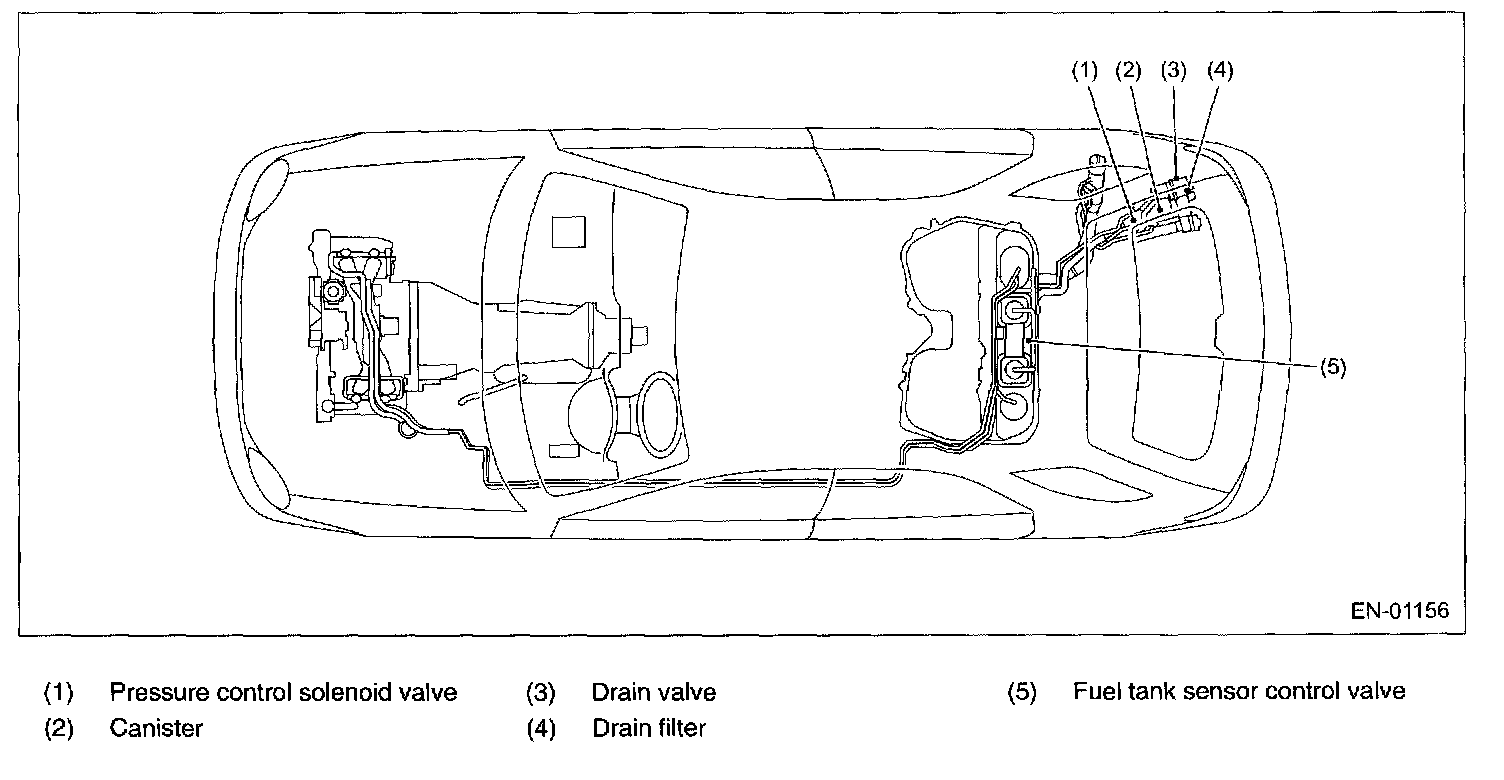

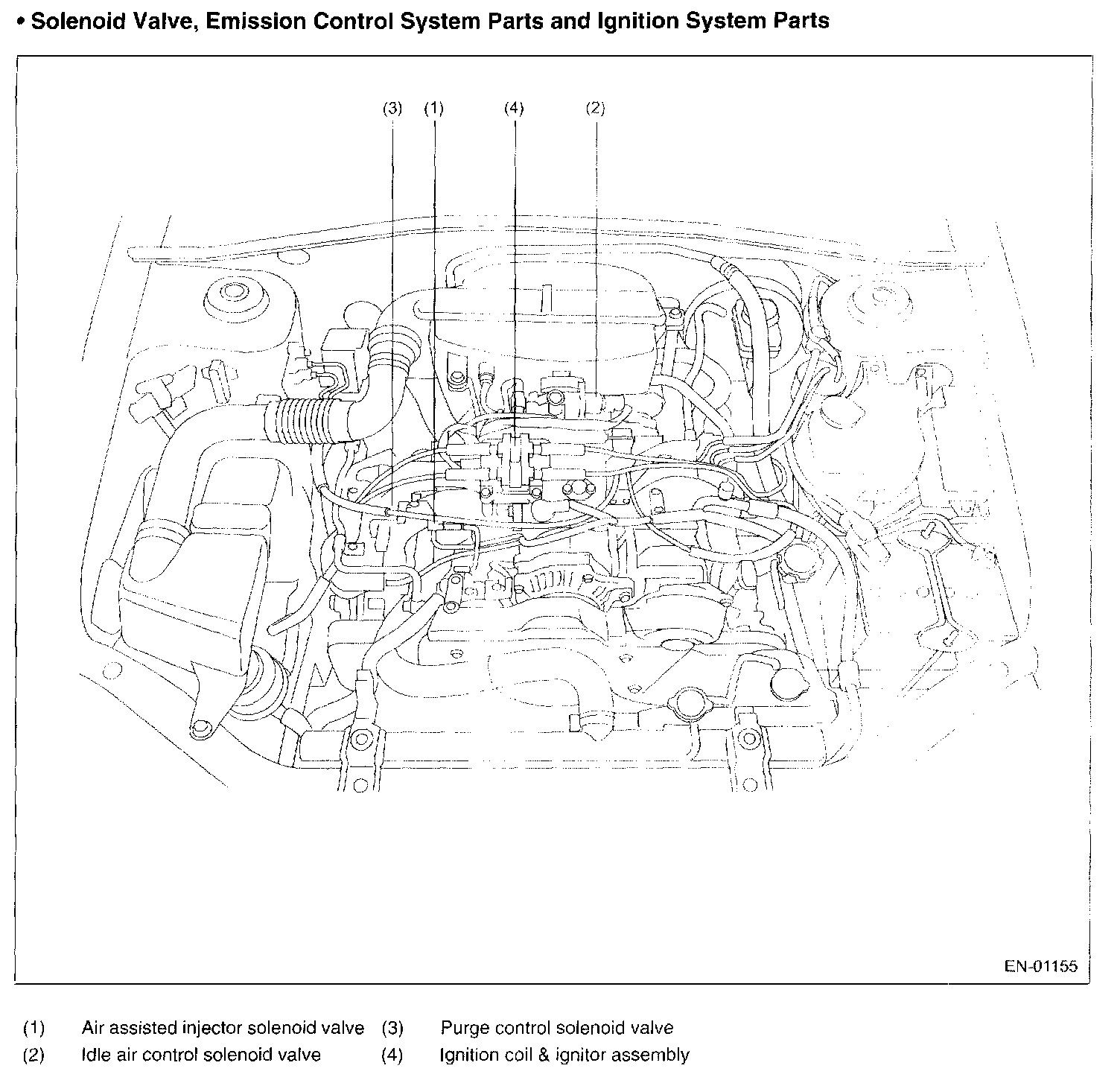

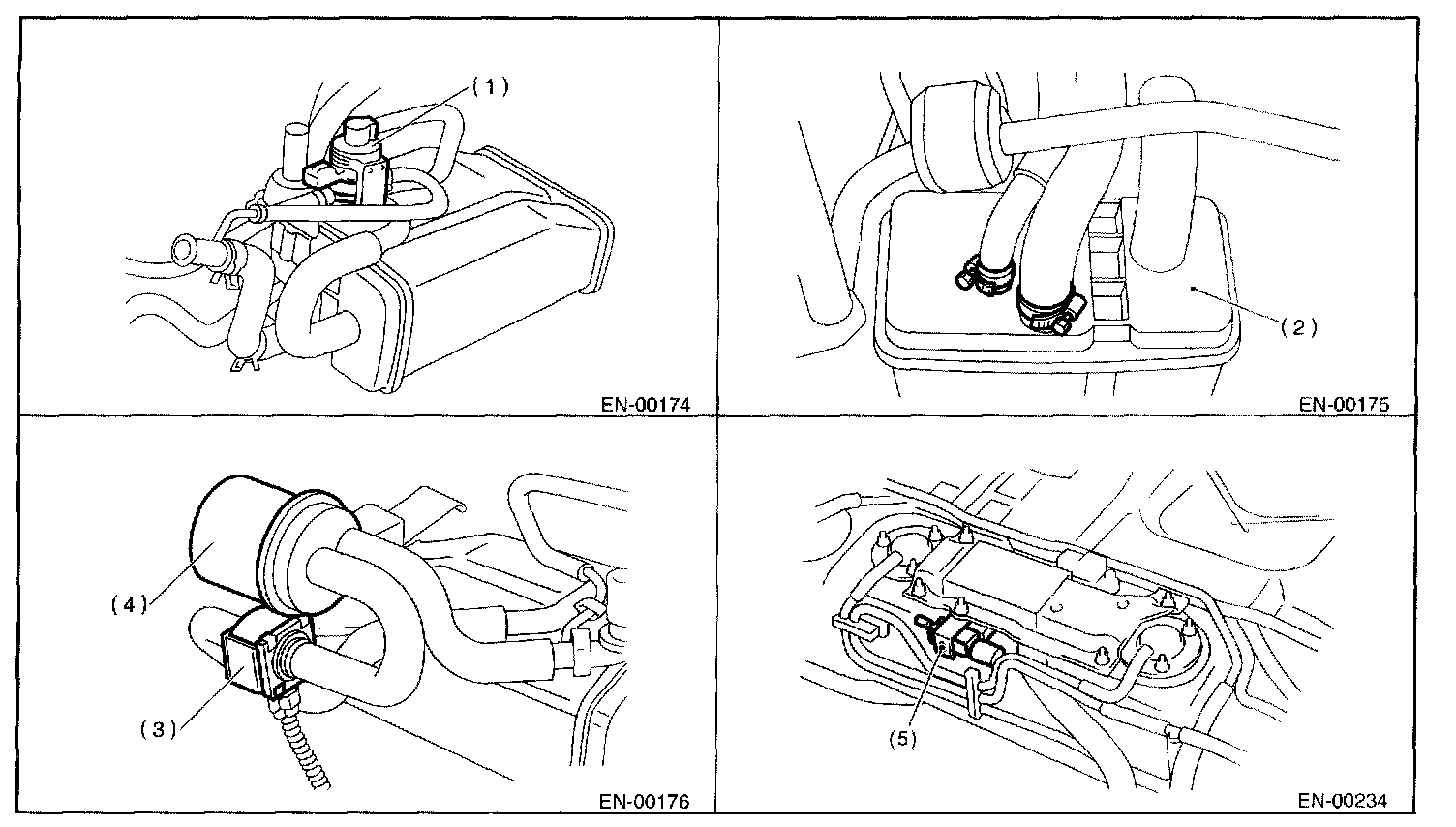

Solenoid Valve, Emission Control System Parts And Ignition System Parts:
