Home
>>
Subaru
>>
2003
>>
Impreza F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>

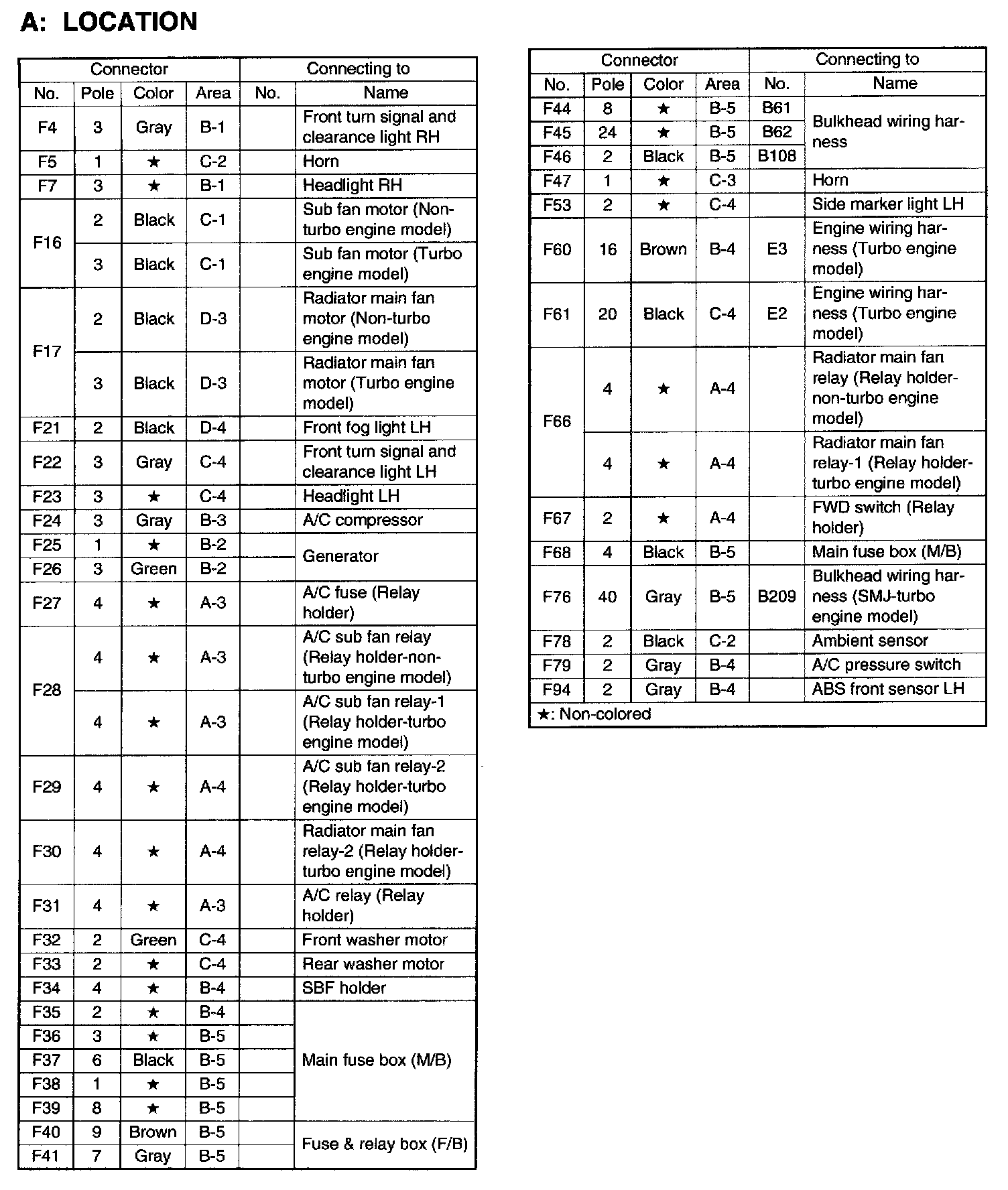

Connector Locations
>>
F4-F94
F4-F94

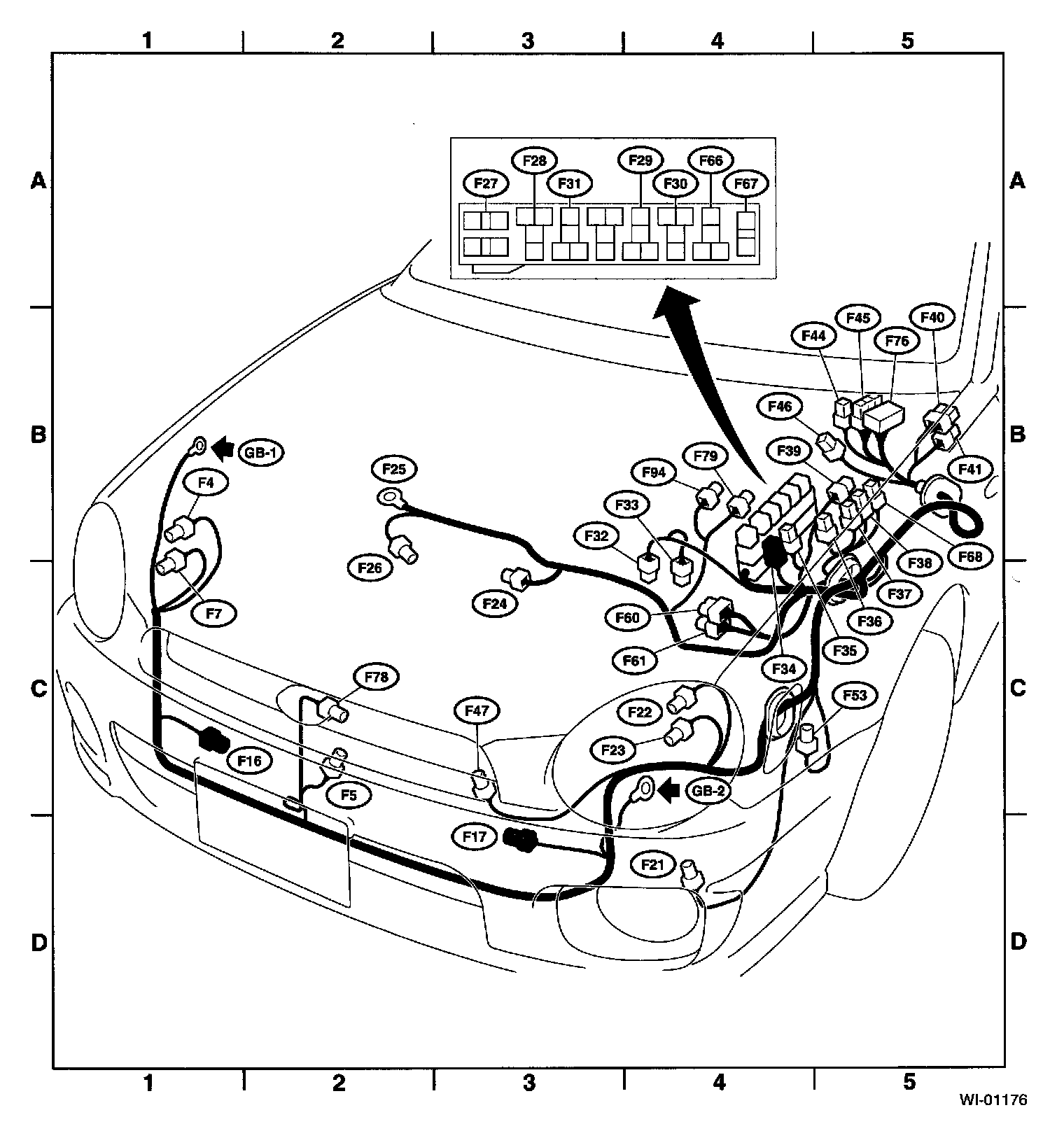

Front Wiring Harness
F4-F94:
Area View:
