Forester F4-2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>

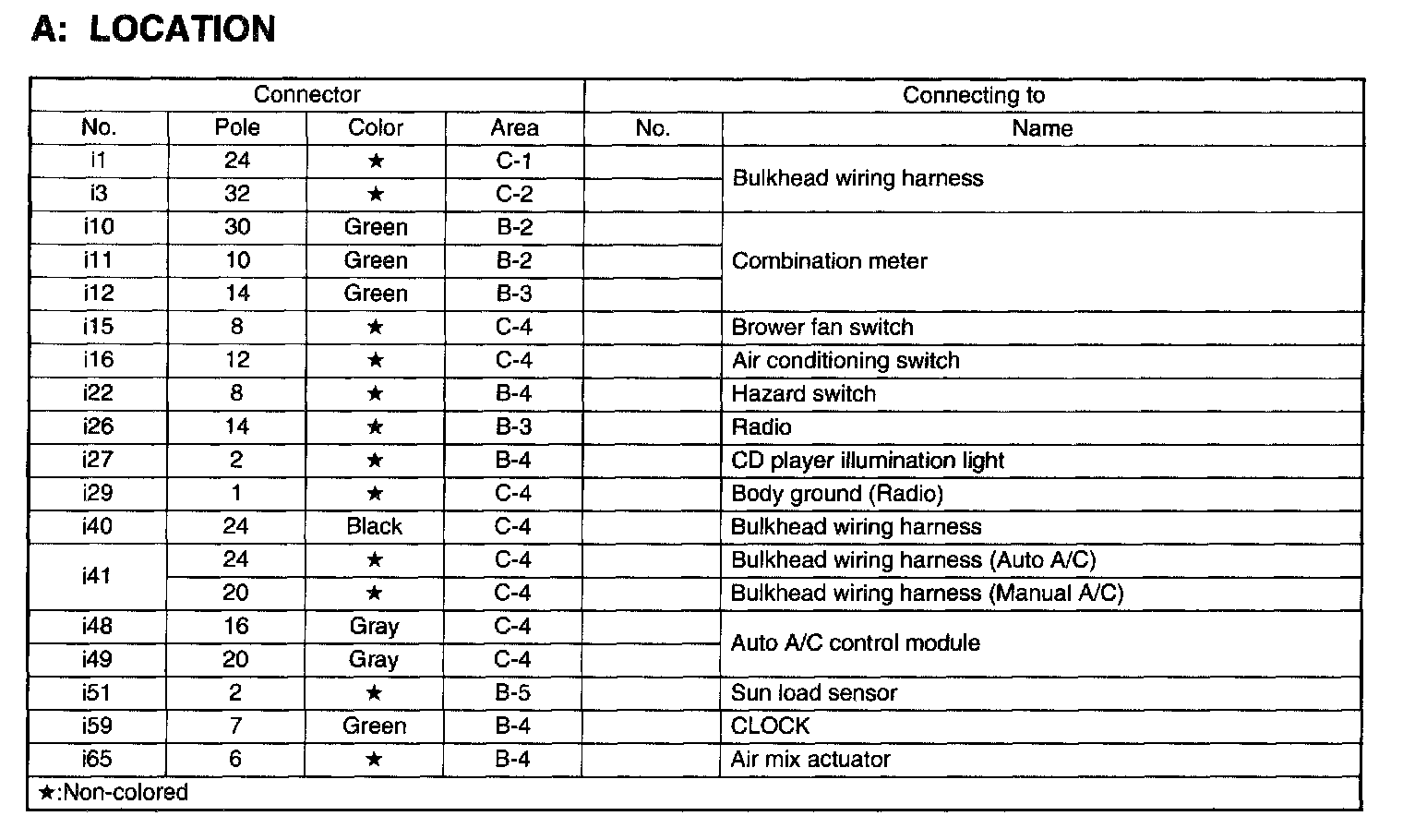

Connector Locations
>>
I1-I65
I1-I65

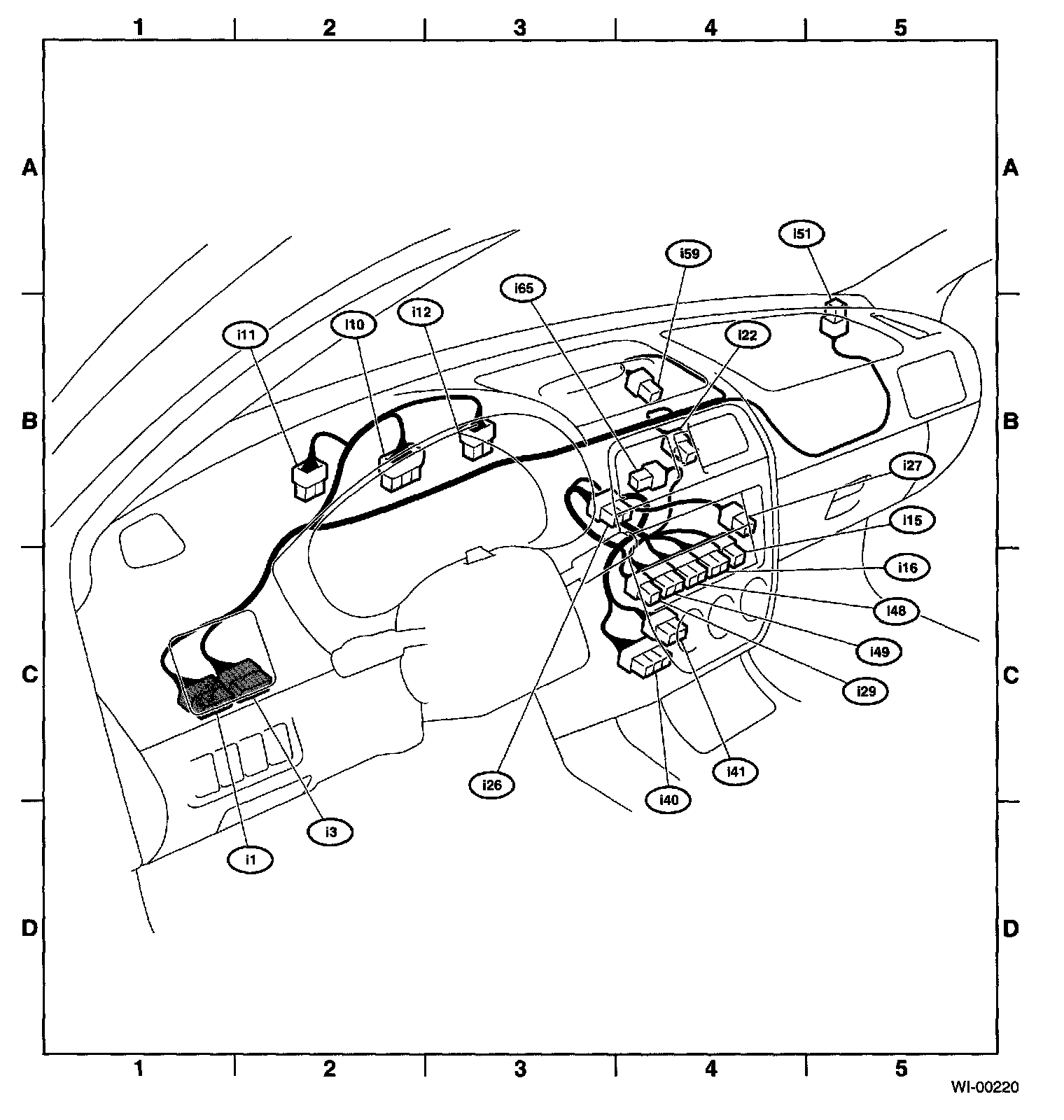

Instrument Panel Wiring Harness
I1-I65:
Area View:
